Batipalo Pointer for hydraulic hammer 530 Deleks

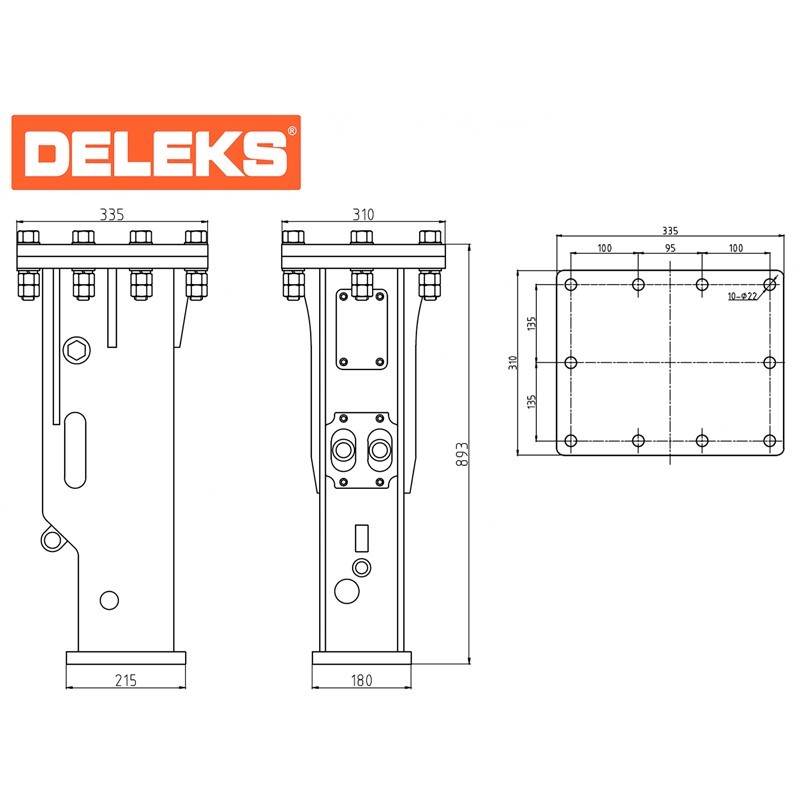

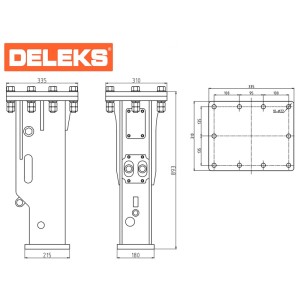

- Measurements: see pictures.
- Weight : 15.0 kg
€281.78 VAT incl.
Deleks products take about 15 to 25 days. |
The BRH Deleks HAMMER-530-S 320 Joule hydraulic breaker is a powerful and quiet attachment designed for mini excavators. Weighing 185 kg, it is perfectly suited for excavators from 2.5 to 5.0 tons. Its optimum oil flow of 25 to 45 l/min ensures efficient performance during work.
With a working pressure between 90 and 120 bar, this hammer provides an impact force of 320 Joule, which translates into a high performance of up to 1000 impacts per minute. Its 53 mm chisel allows versatility in different demolition tasks.
In addition to its power, safety is also present in the design, with 1/2" diameter hydraulic hoses. The Deleks HAMMER-530-S stands out for its durability, efficiency and precision, making it the ideal choice for demolition and excavation work in confined spaces.
Weight | 185 kg |
Optimal oil flow | 25~45 l/min |
Excavator range | 2.5 - 5.0 ton |
Working pressure | 90 - 120 bar |
Impacts per minute | 500 - 1000 bpm |
Impact energy | 320 Joule |
Chisel diameter | 53.0 mm |
Hydraulic hose diameter | 1/2" |
Packing dimension | 800*350*600 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
