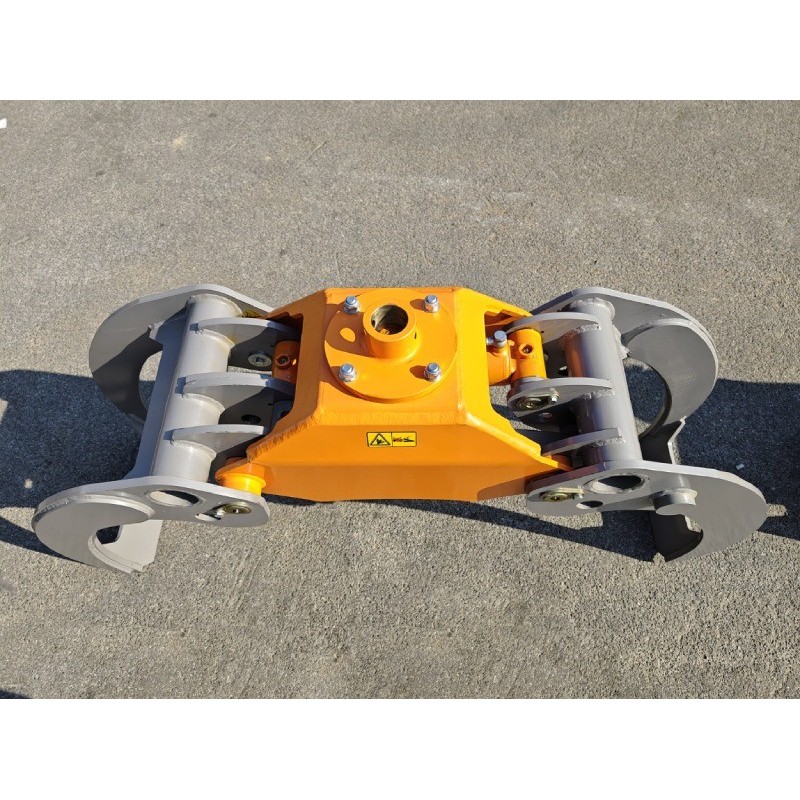

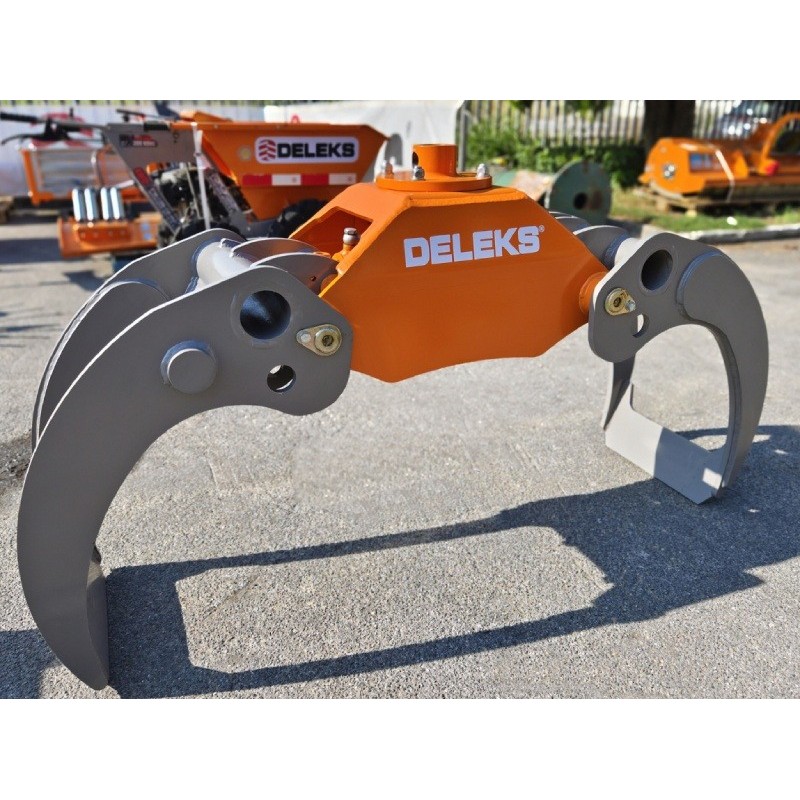

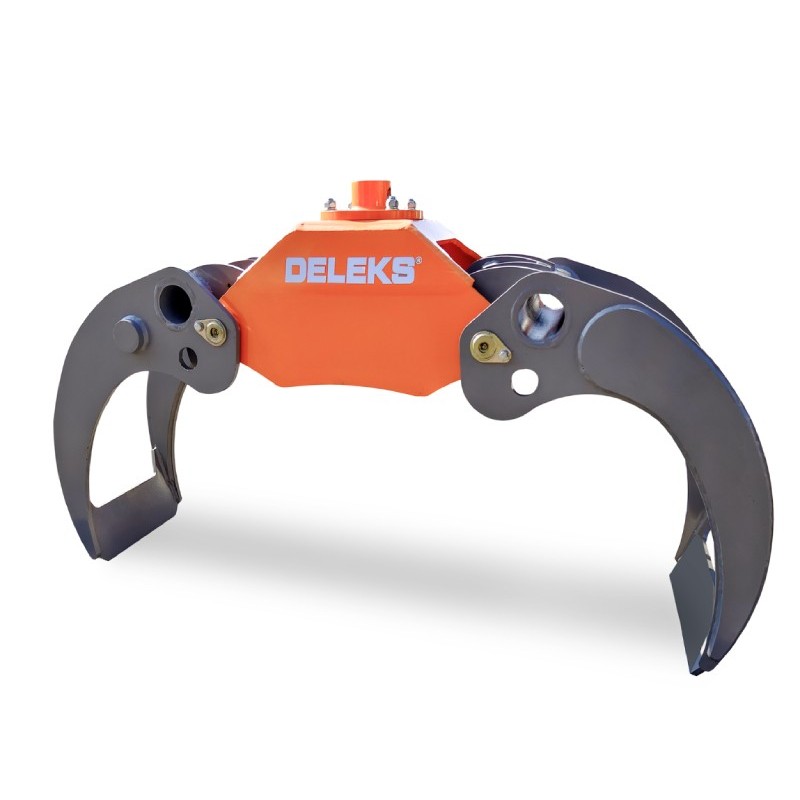

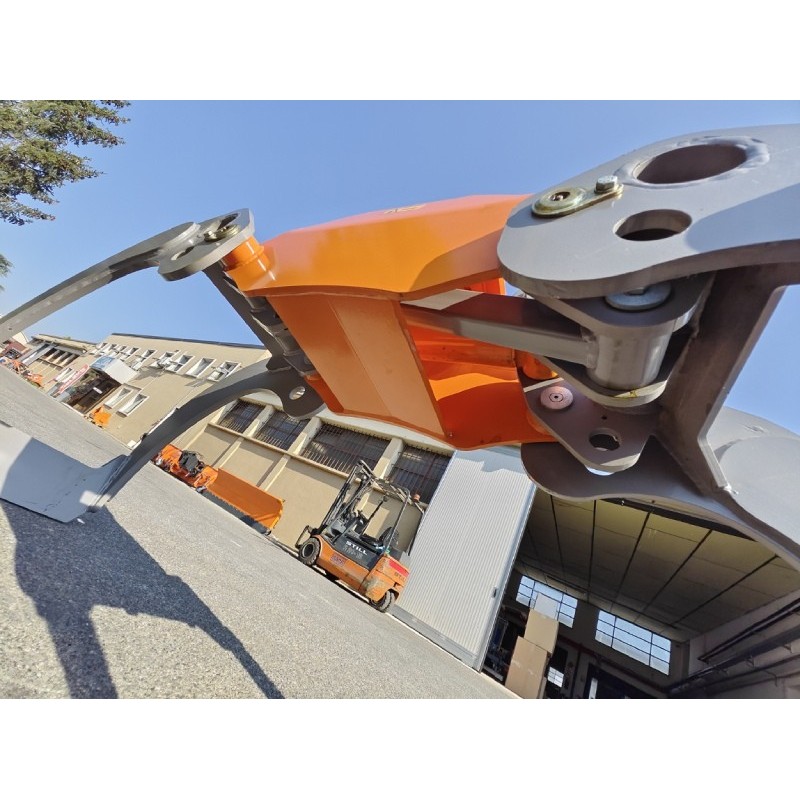

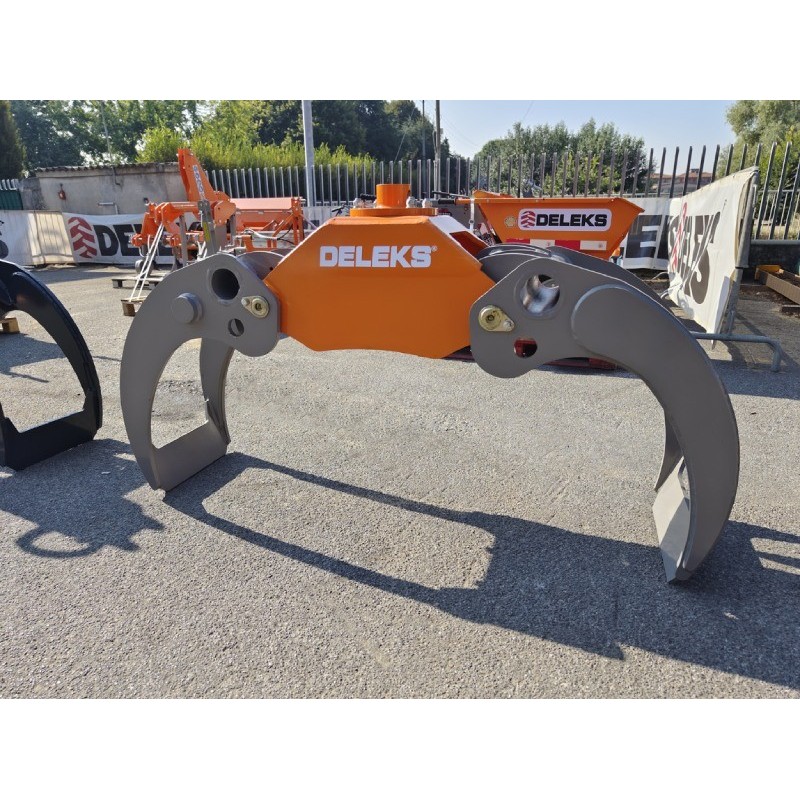

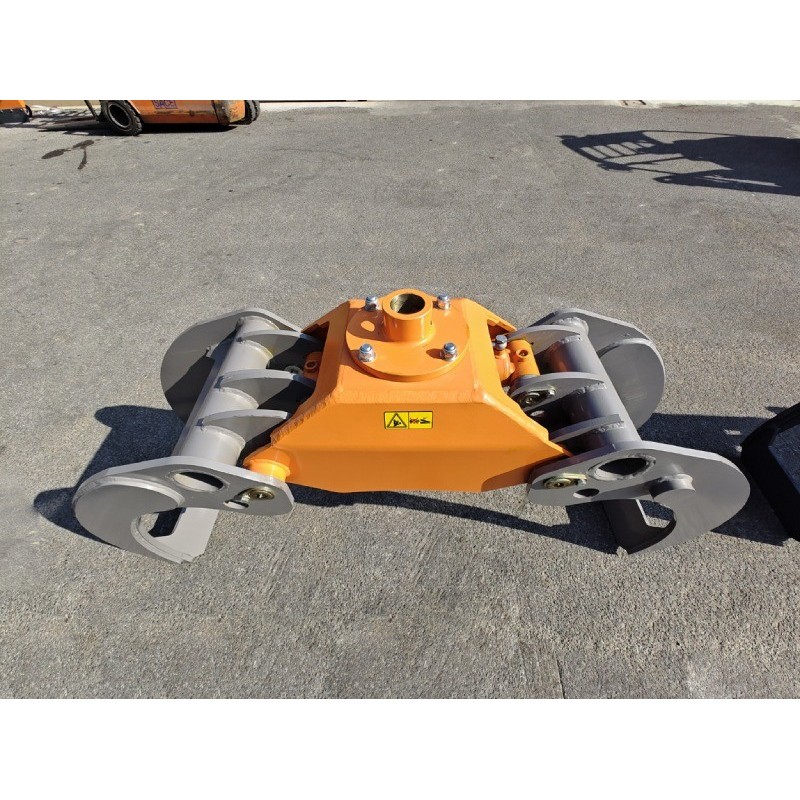

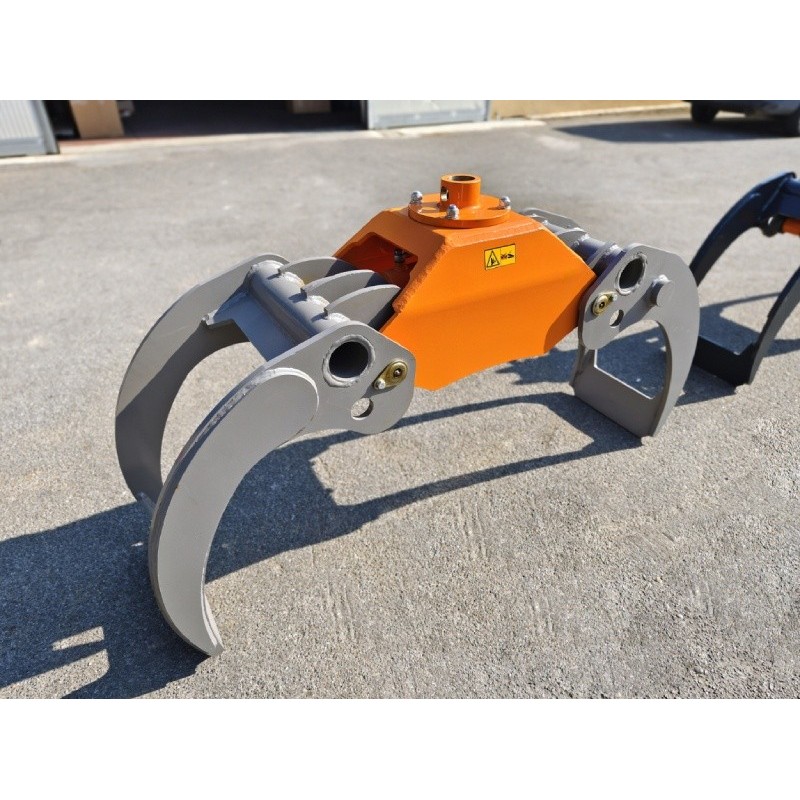

The DELEKS DK-18 2500 kg forestry grapple for excavators and cranes is ideal for transporting timber, rocks, forestry work or moving debris. It has a load capacity of 2500 kg, a gripping area of 0.36 square meters and a gripping force of 13.1 KN.

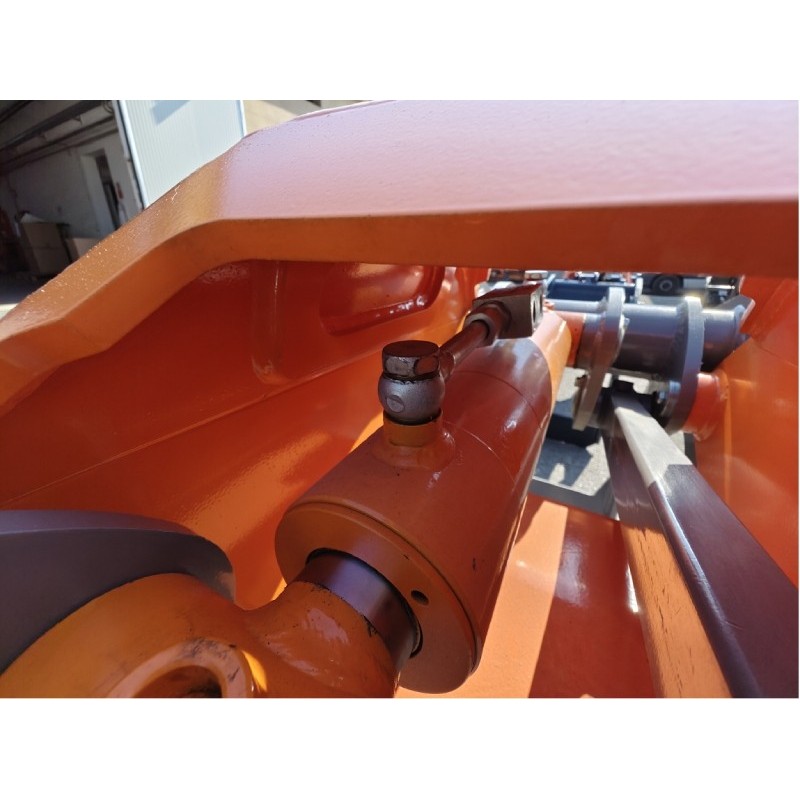

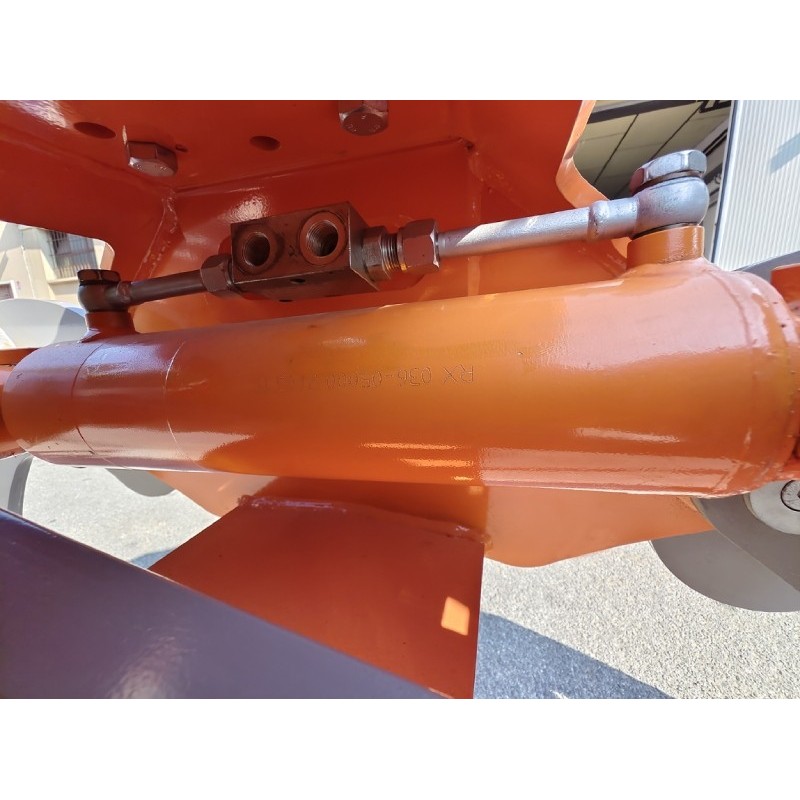

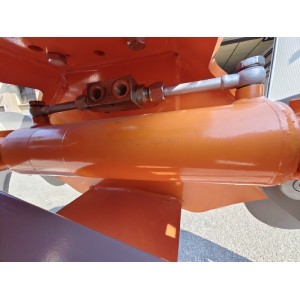

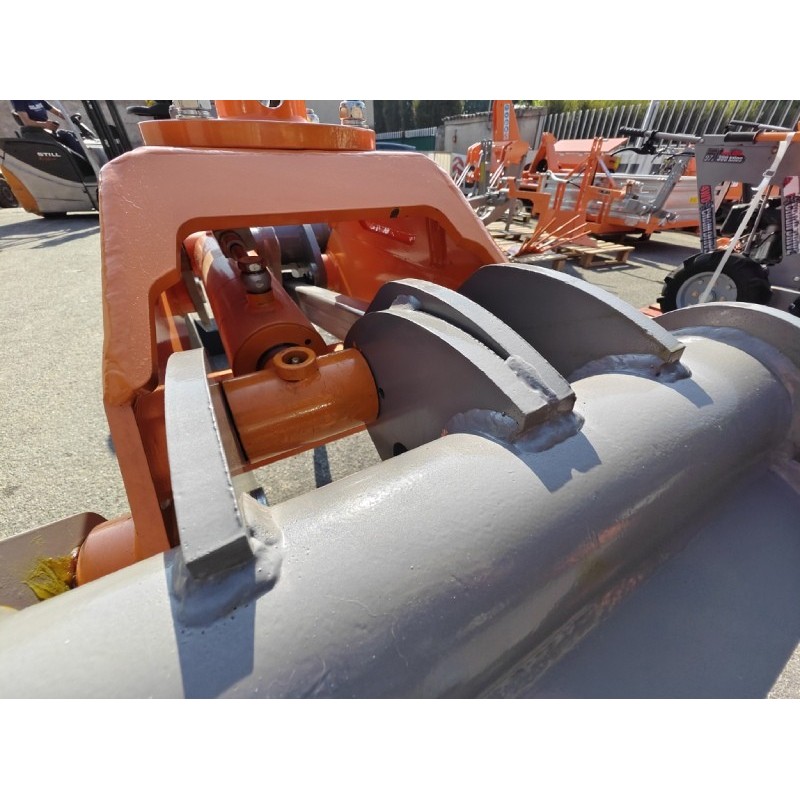

It is compatible with most mini excavators and has a 2-year warranty and a European quality conformity, its unique design of the grapples, which allows the gripping of debris or rocks, has a locking valve on the hydraulic piston. It is made of high quality steel: DIN S355.
Its bolts are made of reinforced steel, its high tightening tension and reinforced collets, with an optional rotator available.
Weight | 242.0 kg |
Load capacity | 2500.0 kg |
Plate thickness | 12.0 mm |
Oil pressure min./max | 150 - 220 bar |
Optimal oil flow | 25 - 50 l/min |

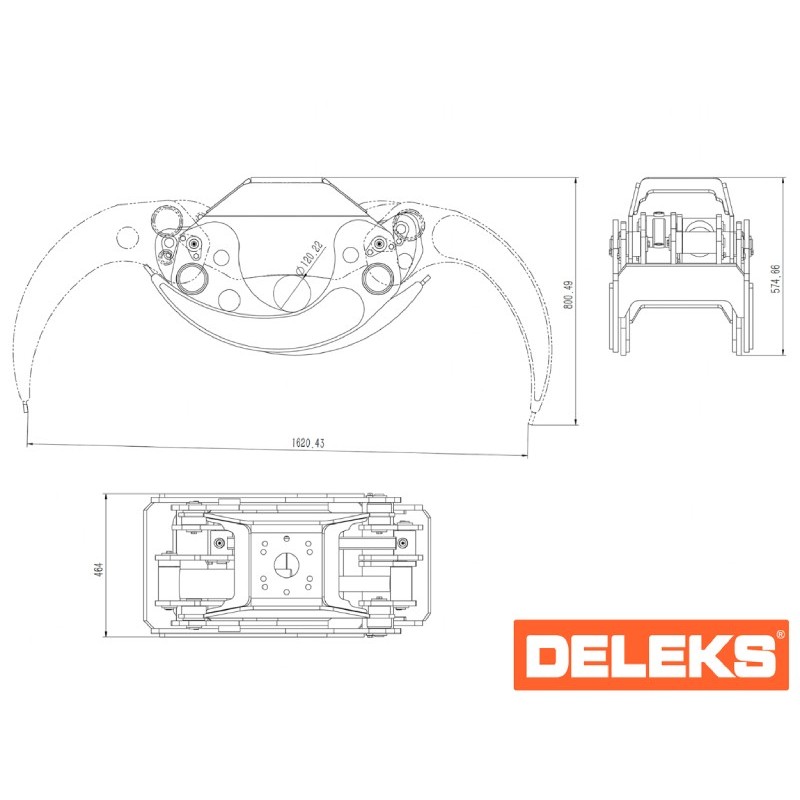

Other dimensions | See photos |
Hydraulic hoses | 400 bar pressure |
Maximum opening | 1620.0 mm |
Minimum diameter of branches | 40.0 mm |
hydraulic piston ø | 90.0 - 50.0 mm |
Max. pressure | 200 bar |
Excavator range | 5 - 10 ton |
Packing dimensions | 120 x 80 x 50 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
