- Batteries and charger not included

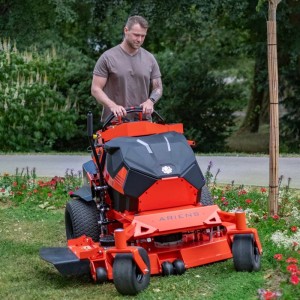

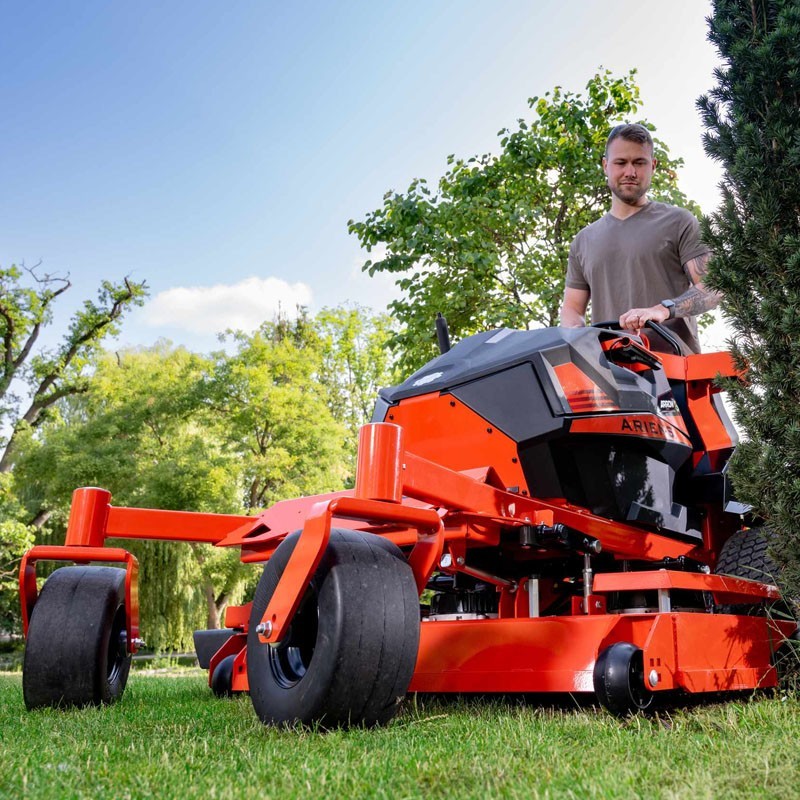

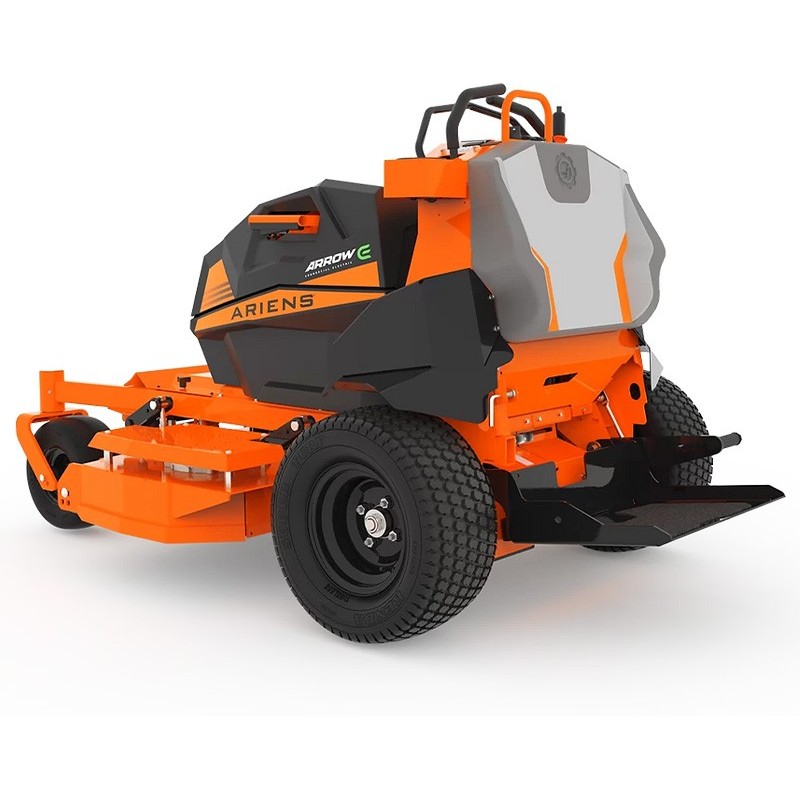

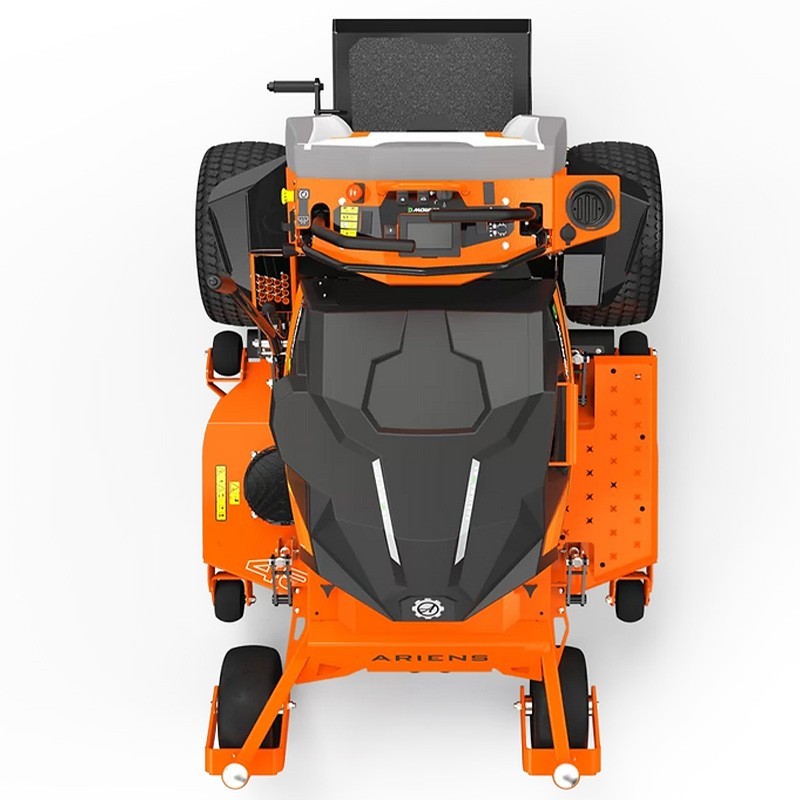

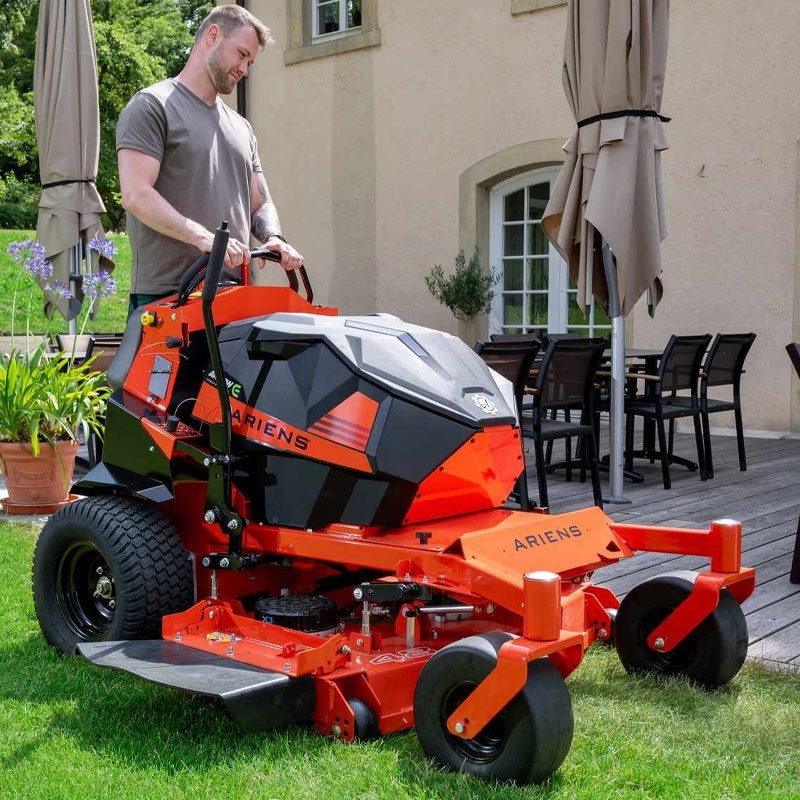

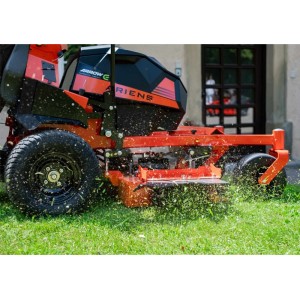

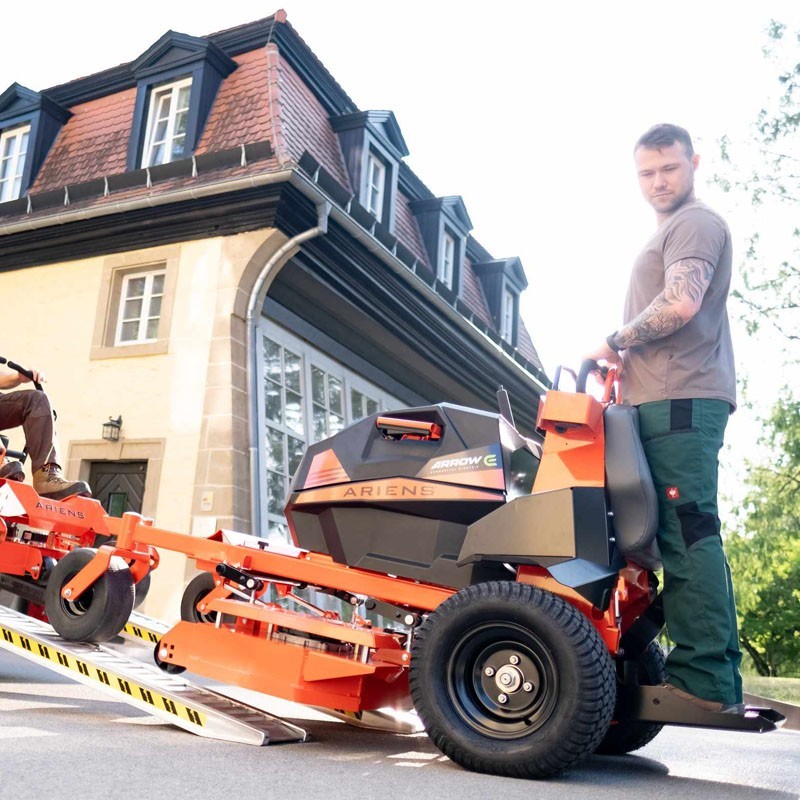

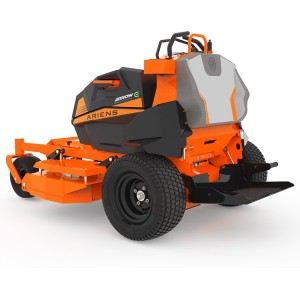

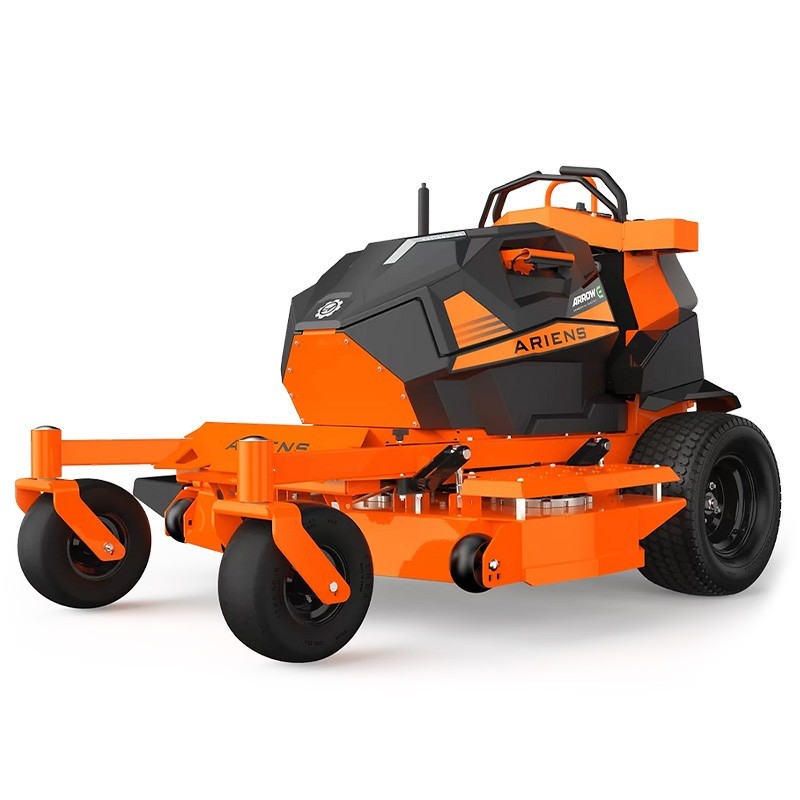

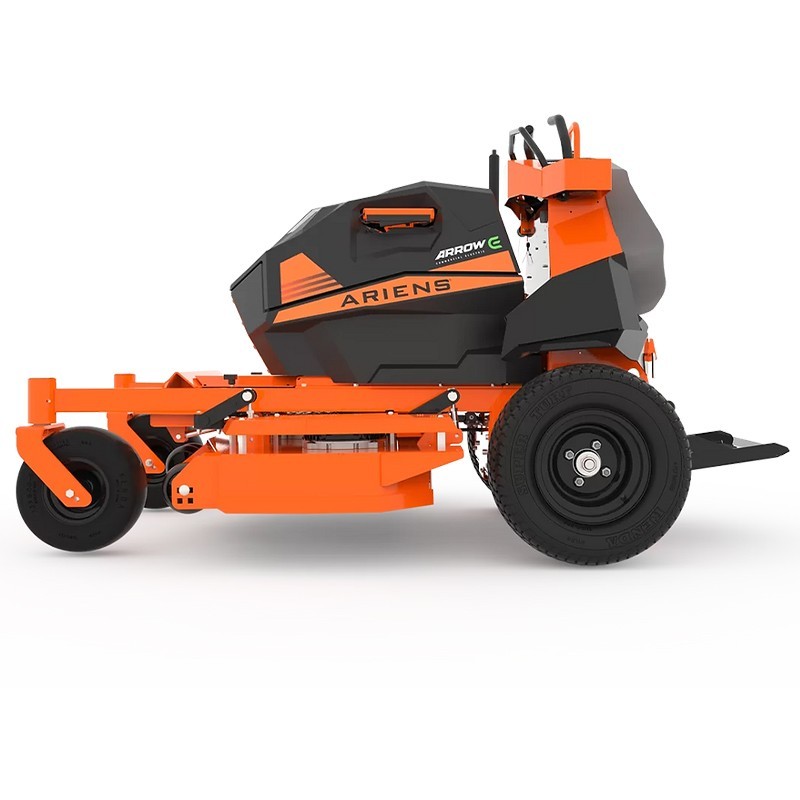

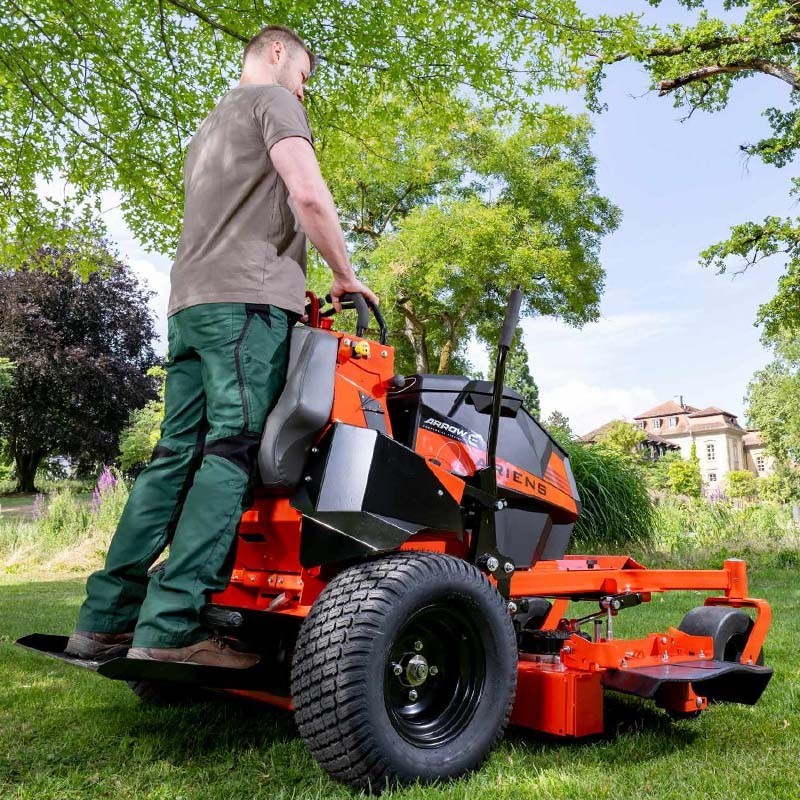

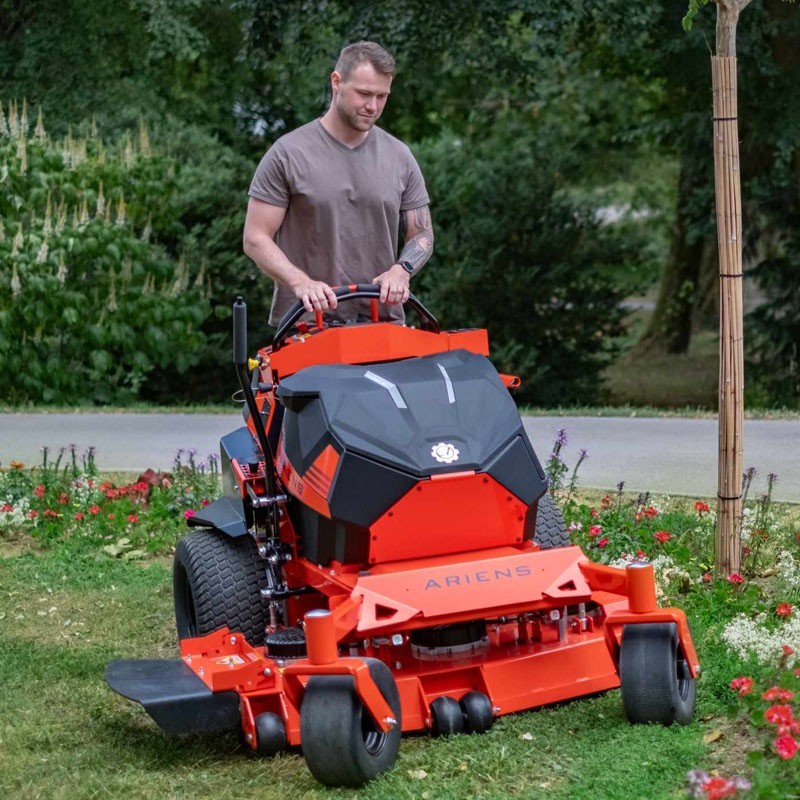

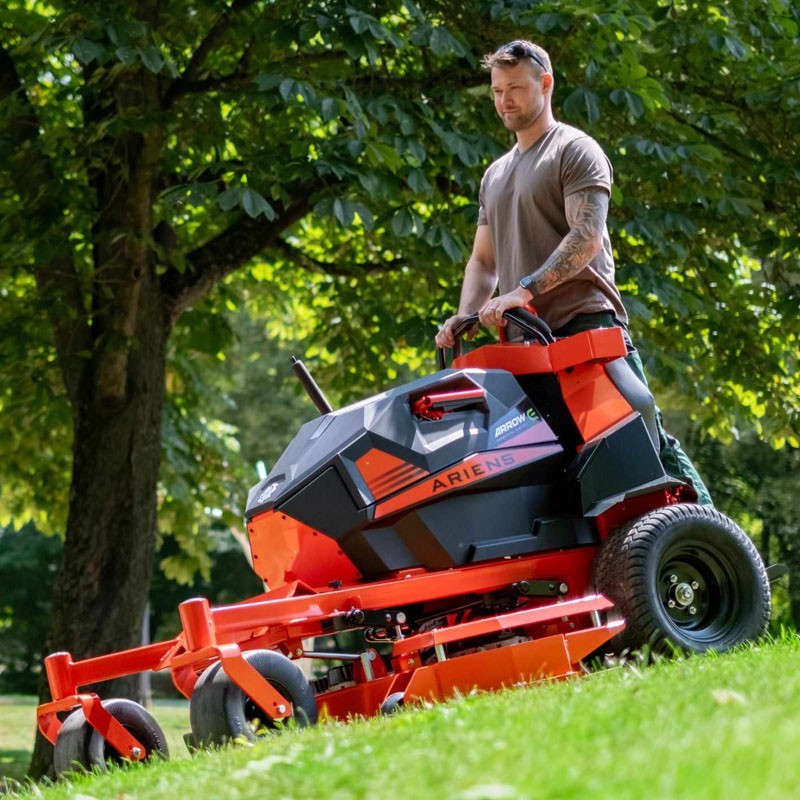

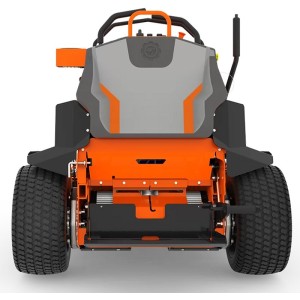

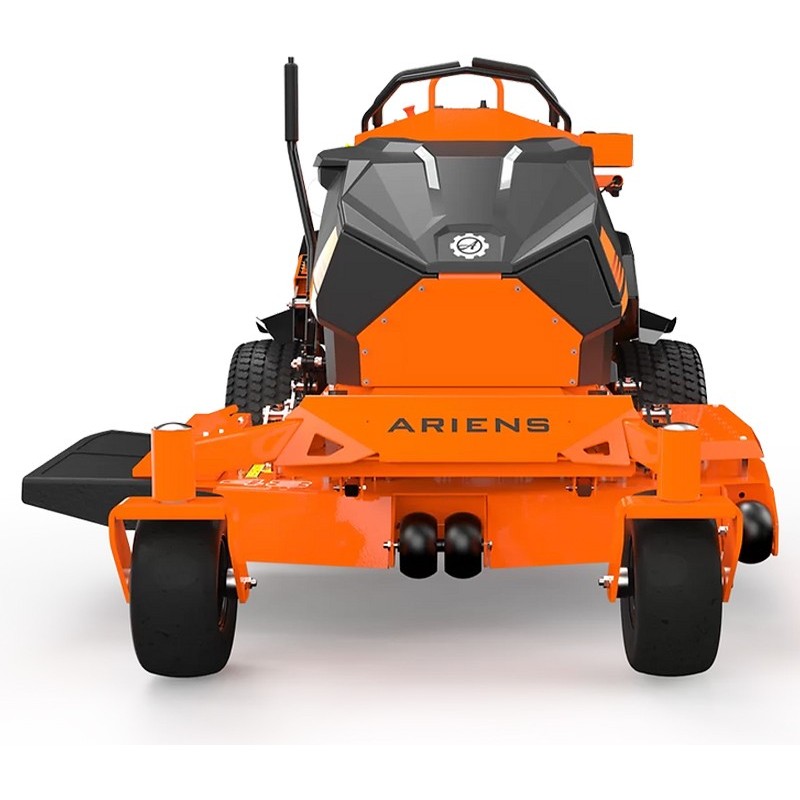

The Ariens Arrow E 52 Zero Turn Battery Lawn M ower combines power and efficiency for professional mowing without emissions. With a capacity of four 56V batteries and a total capacity of 16 kWh, it allows working at maximum power with only two batteries, optimizing autonomy.

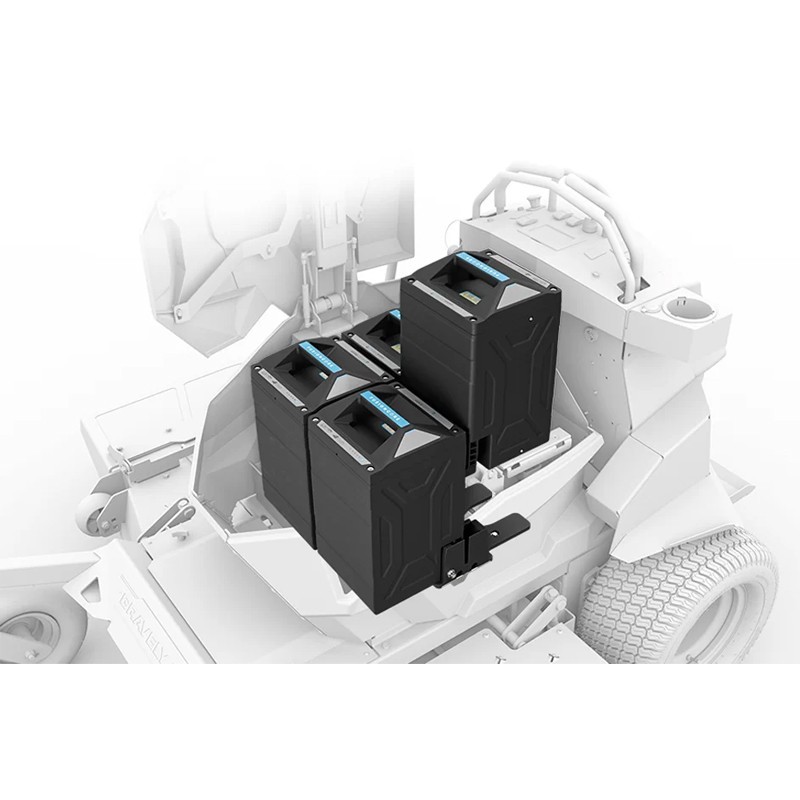

Its quick battery change system facilitates battery replacement to minimize work interruptions. Its 132 cm cutting deck is made of 4.5 mm steel, ensuring strength and durability in demanding conditions.

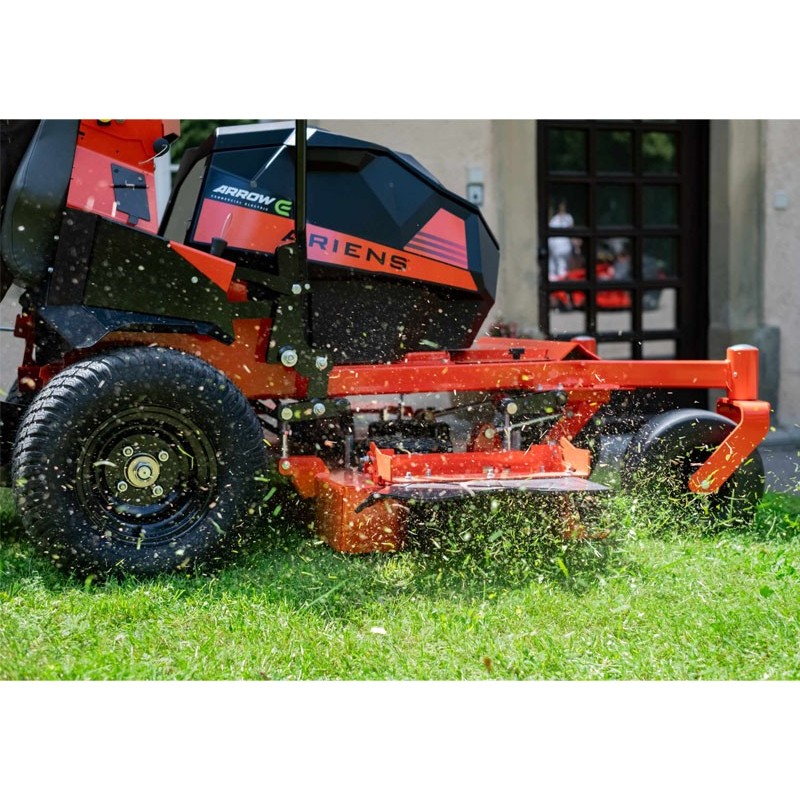

Height adjustment is made with precision thanks to a combined foot pedal and manual lift system, allowing quick adaptation to the type of grass. In addition, its side discharge design offers the option of installing a mulching kit for added versatility.

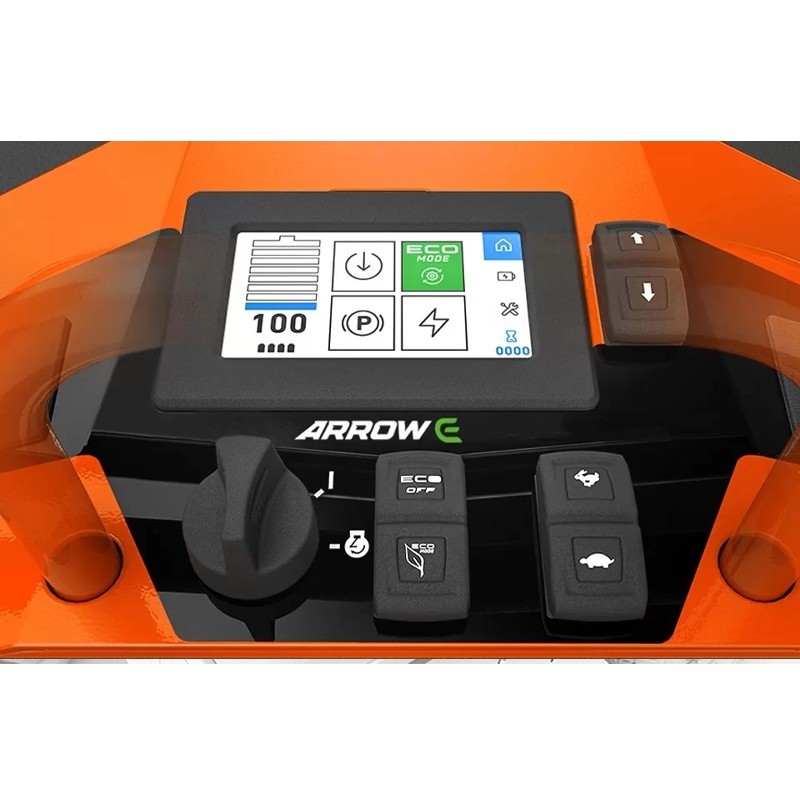

The Ariens Arrow E 52 incorporates a color LED display that provides real-time information on load status, operating modes and system diagnostics without the need for external devices. To maximize energy efficiency, ECO mode adjusts blade speed when turf is less dense, extending run time without compromising performance.
| Propulsion system | Brushless electric motors |
| Maximum forward speed | 17.7 km/h |
| Maximum speed in reverse | 8.9 km/h |
| Discharge type | Lateral |
| Mulching kit | Optional |
| Cutting deck material | 4.5 mm rolled steel |
| Cutterdeck construction | Welded |
| Platform lifting system | Foot pedal and hand lever |
| Number of blades | 3 |
| Spindle material | Forged aluminum |
| Spindle shaft | StressProof steel |
| Blade drive | Brushless direct electric drive |
| Cutting width | 132 cm |
| Cutting height | 3.8 cm - 12.7 cm |
| Cutting height positions | 15 |
| Front wheels | 13 x 6.5-6 semi-pneumatic |
| Rear wheels | 20 x 10-10 |
| Driver's platform | Suspension, folding |
| LED interface | Hour meter + 2 USB charging ports |
| Weight | 562 kg |
| Dimensions | 190 x 170 x 117 cm |
| Battery type | Interchangeable lithium-ion battery 56V |
| Battery capacity | 4 x 4 kWh |
| Batteries | Not included |
| Charging time | Fast charge: 5.3 hours |
| Charger | Not included |
