Dot machine Solter SOLSPOT 9000 with STUDDER kit and clamp
- MAX. Intensity: 8000A
- Absorbed power 50%: 10Kva
- Service voltage (Vmp): 8V
- Network voltage: 400V-1ph
€4,213.02 VAT incl.

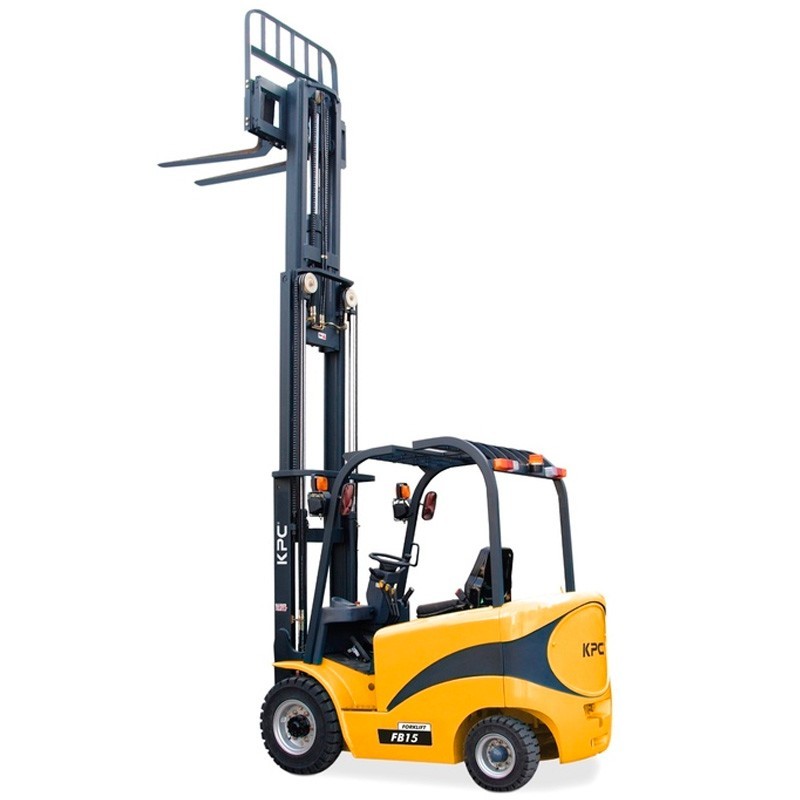

The KPC FB15 for klift truck is an efficient and compact machine, designed for operations in industrial spaces and warehouses with medium load requirements.
With a load capacity of 1500 kg and a load center of 500 mm, this forklift truck ensures safe and stable handling of goods. Equipped with a standard 3000 mm mast and a maximum lift height of 3980 mm (with grill), it allows optimal access to high racks.
Adjustable forks ranging from 250 to 890 mm and with dimensions 920x100x35 mm add versatility to the handling of different types of loads. In addition, it has a travel speed of up to 16 km/h and an agile lifting capacity(290 mm/s with load).
With a robust design, it incorporates a 6.5 kW drive motor and 8.6 kW pump, powered by a standard 48V/420Ah battery and controlled by an AC ZAPI system.
The KPC FB15 also offers excellent performance on ramps, withstanding a maximum slope of 15% under load. Ideal for those looking for power, maneuverability and durability in their daily operations.
MODEL | FB15 |
Load capacity | 1500 kg |
Load center | 500 mm |
Max. mast height (standard) | 3000 mm |
Lifting height | 135 mm |
Fork dimensions | 920x100x35 mm |
Mast inclination (forward/reverse) | 5º/10º deg |
Length (end forks) | 2073 mm |
Width | 1120 mm |
Min. mast height | 2000 mm |
Max. working height (with grill) | 3980 mm |
Protective roof height | 2135 mm |
Min. turning radius | 1965 mm |
Front footprint | 955 |
Rear footprint | 920 |
Min. ground clearance | 105 mm |
Wheelbase | 1380 mm |
Fork adjustment (min/max) | 250/890 mm |
Travel speed (w/load-s/load) | 15/16 km/h |
Lifting speed (w/load) | 290 mm/s |
Lifting speed (s/load) | 440 mm/s |
Max. lifting capacity (w/load-s/load) | 15 % |
Weight (with battery) | 2950 kg |
Front tire | 6.00-9 10 PR |
Rear tire | 5.00-8 8 PR |
Driven motor | K.6.5 kW |
Motor pump | K8.6 kW |
Standard battery | 48/420 V/Ah |
Controller type | AC |
Controller brand | ZAPI |
Operating pressure (for accessories) | 14.5 Mpa |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
