KOMPAK DRAFEX dirty water pump 5 meters.
- Current : Single phase
- Water use type : Clean and dirty water
- Nominal power : 0,58 - 1,1 kW
- Power Supply power rating : Electric
- Chassis material : Stainless steel
- Max. immersion : 5 m
€242.03 VAT incl.

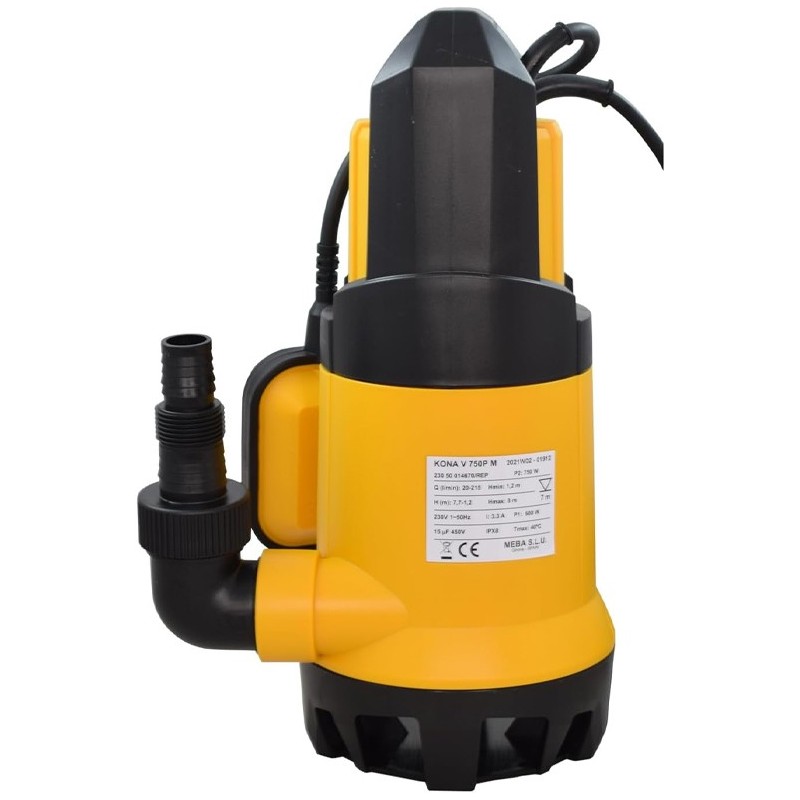

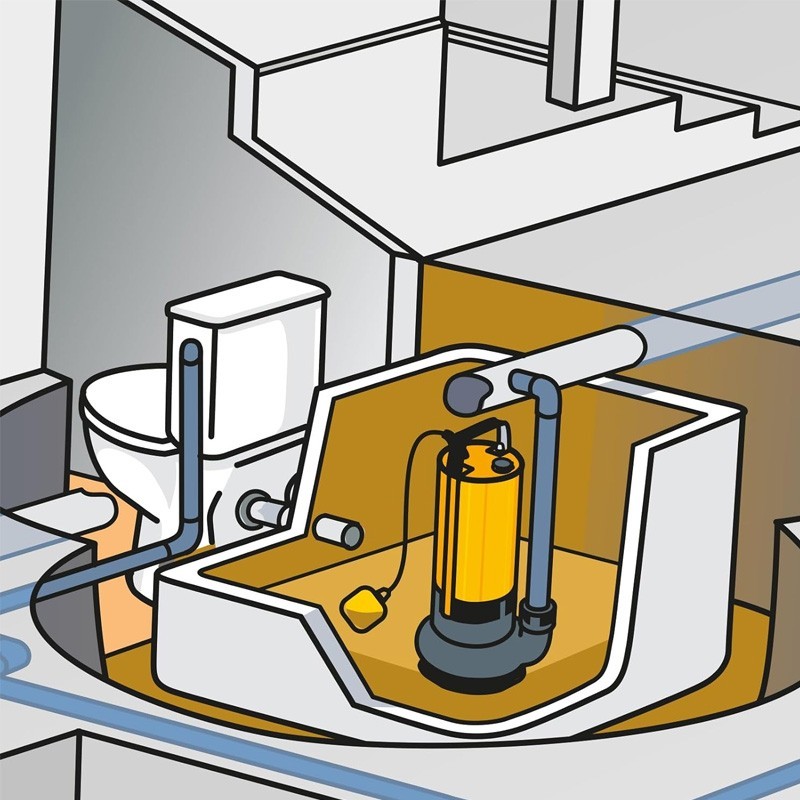

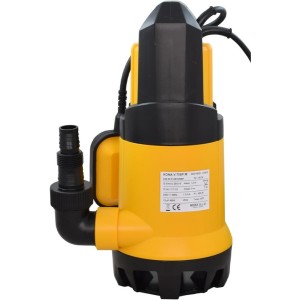

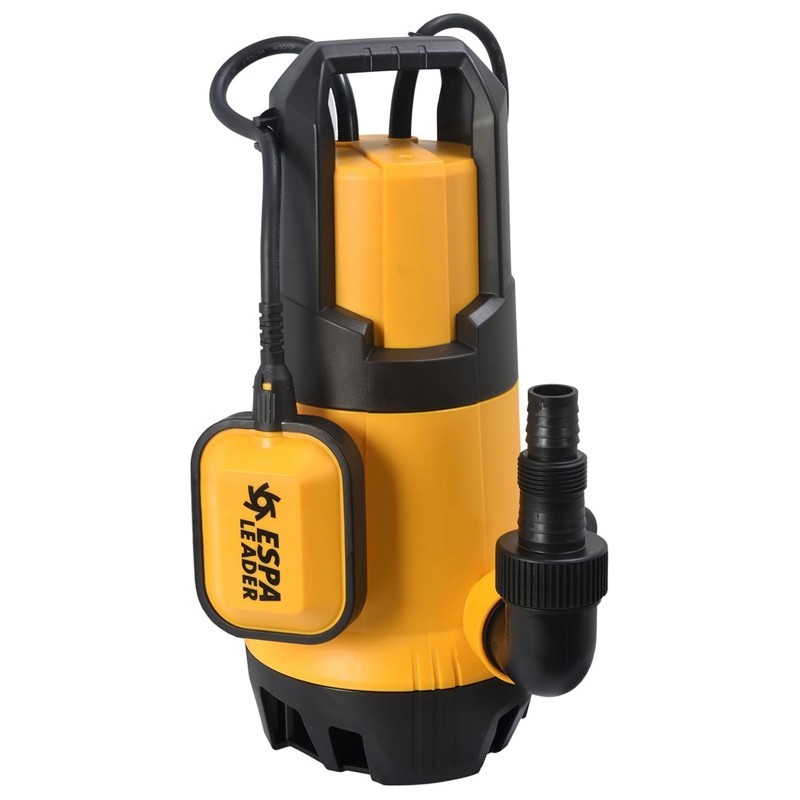

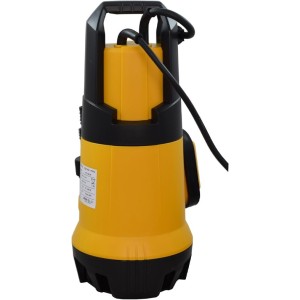

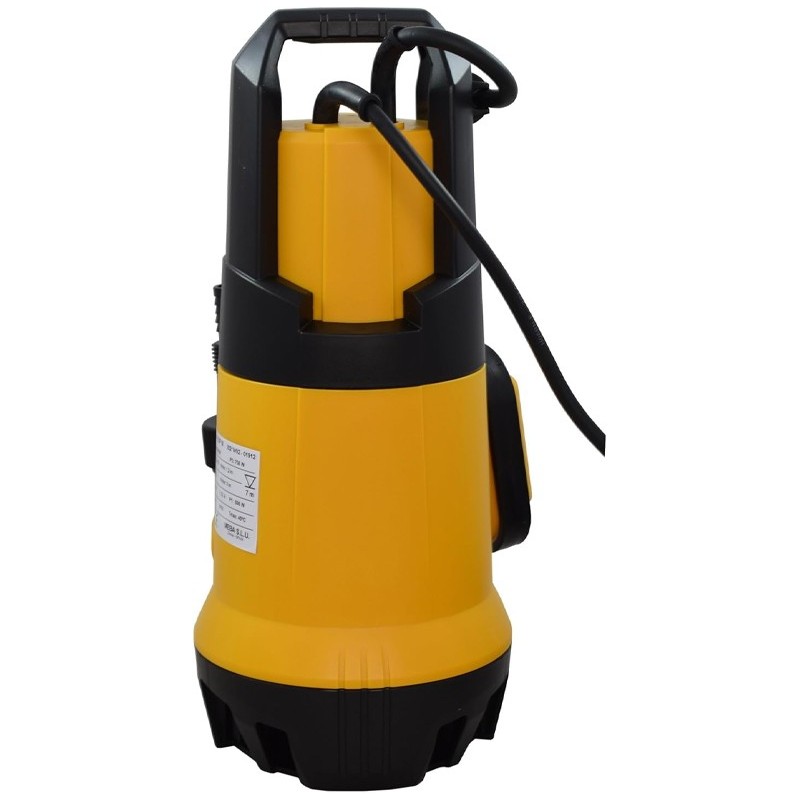

The Espa Leader KONA V 750P M dirty water pump is designed for efficient drainage of loaded and dirty water as well as for small sewage treatment plants. Thanks to its solids passage of up to 35 mm and a maximum capacity of 13,000 l/h, it is ideal for emptying septic tanks, wells or flooded basements.

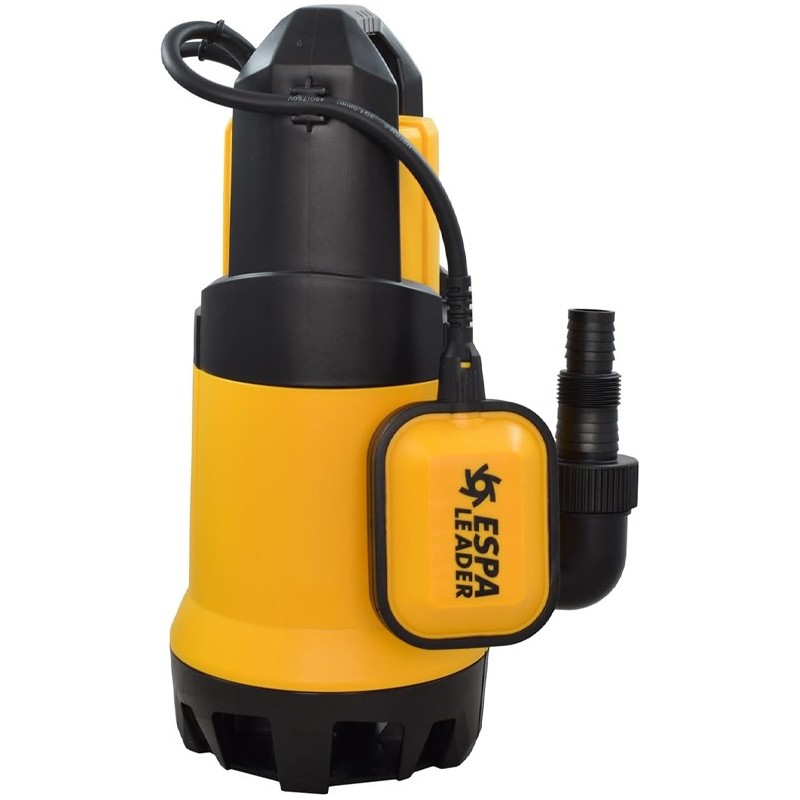

Manufactured with a pump body in resistant plastic, this submersible pump reaches a maximum immersion depth of 7 meters and allows working with liquids up to 40 °C. It includes level switch, 10-meter electric cable and plug, facilitating its installation and automatic operation in hard-to-reach spaces.
Motor | Electric |
Weight | 6,25 kg |
Power | 750 W |
Pump body | Plastic |
Single-phase | 230 V |

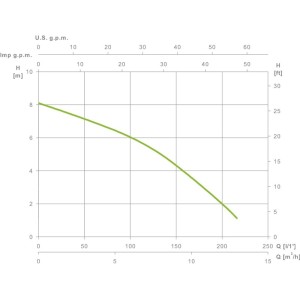

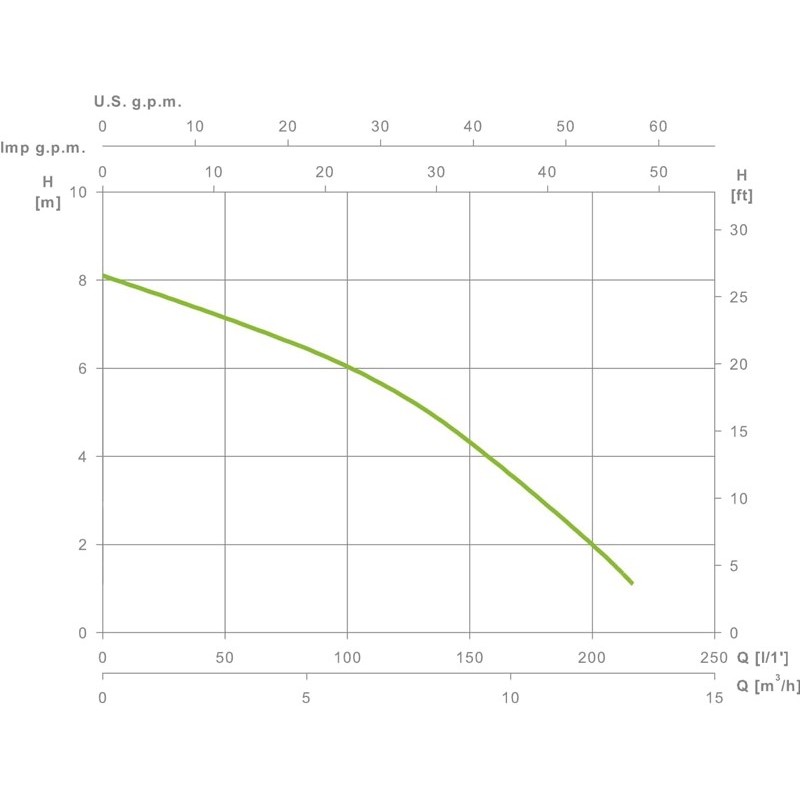

Head | 8 m |
Solids passage diameter | 35 mm (dirty water) |
Maximum immersion at water level | 7 m |
Maximum flow rate | 13000 l/h |
Other characteristics | 10m cable and plug - Level switch - 40ºC |
Intensity | 2,6 A |
Compound | 15 µF |
IP | X8 |

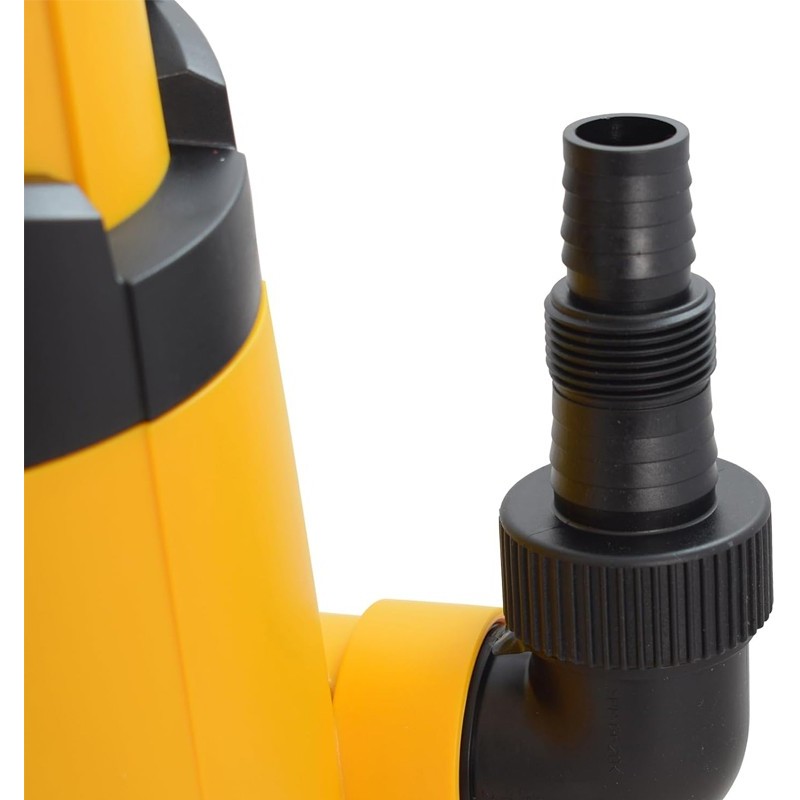

Discharge diameter | 1" o 1+1/2" |
Dimensions | 369x160 mm |
Data sheet
