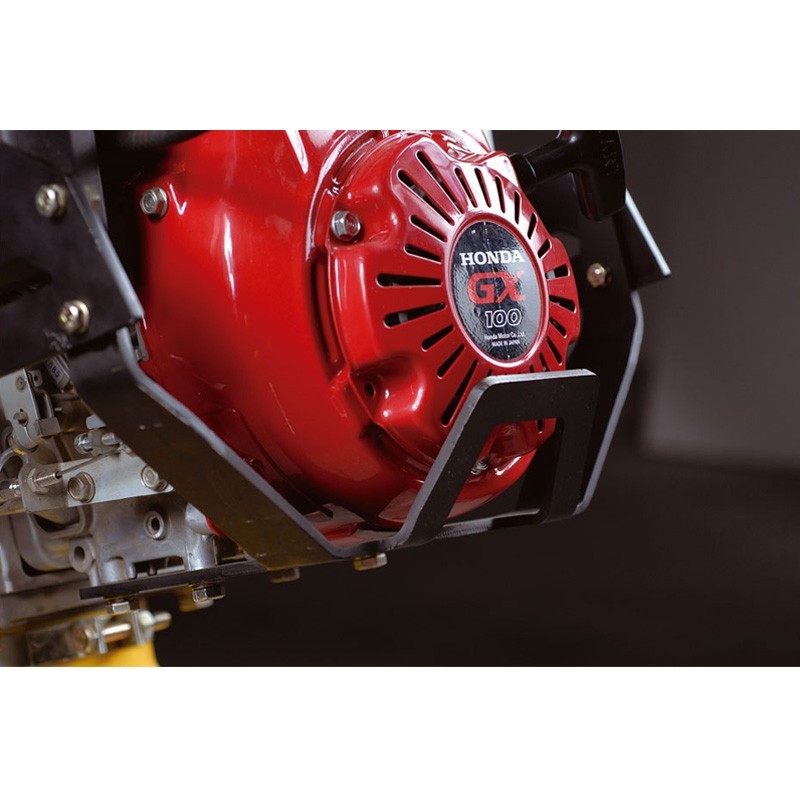

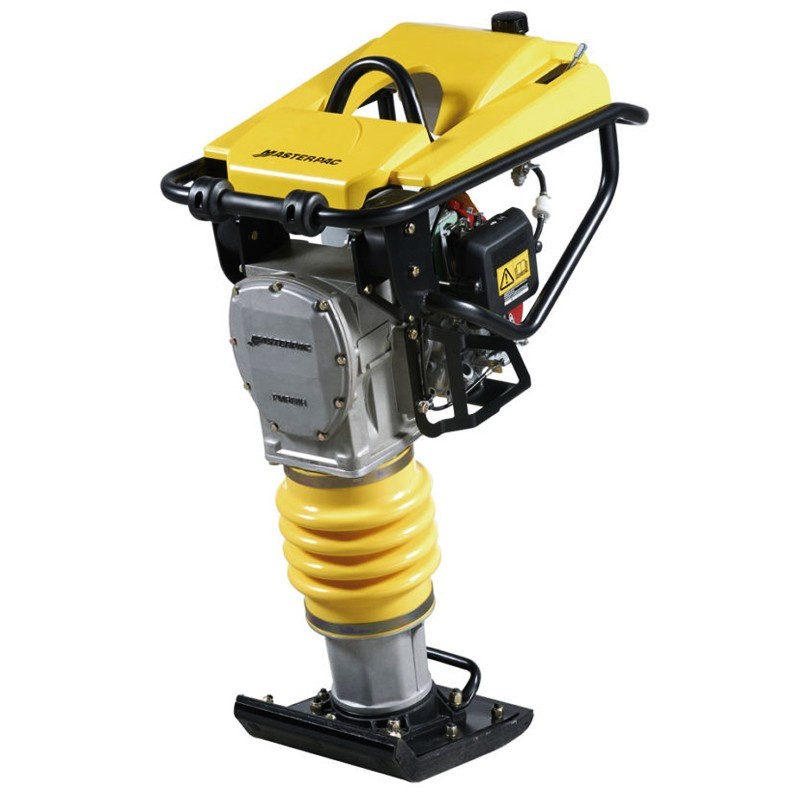

The Vibrating Pison Compactor Ayerbe AY 68 H PV features a 3 HP Honda GX100 engine, providing an impressive impact force of 12.8 KN. Its rugged design includes a reinforced chassis and side engine protection for exceptional durability in demanding work environments.
With a footprint of 350 x 285 mm and adjustable strokes per minute between 600 and 650, this machine offers optimum performance for soil compaction.

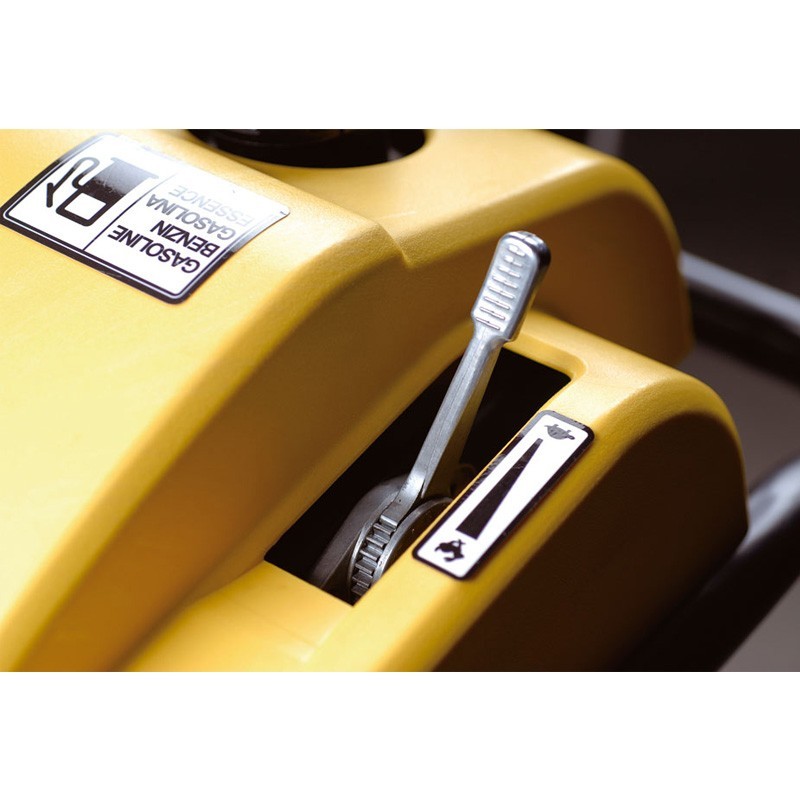

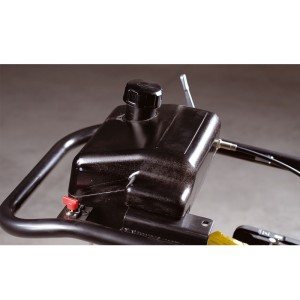

Its adjustable travel speed from 8 to 11 m/min and ergonomic handle ensure operator comfort during use. In addition, it features a triple filtering system to keep the engine in optimal condition and an acceleration lever for precise control.
| Engine | HONDA GX100 |
| Power | 3 HP |
| Foot dimensions | 350 x 285 mm |
| Travel speed | 8 - 11 m./ min |
| Impact force | 12,8 Kn |
| Impacts per minute | 600 - 650 rpm |
| Fuel | Gasoline |
| Weight | 68 Kg |
| Dimensions | 703 x 345 x 1028 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
