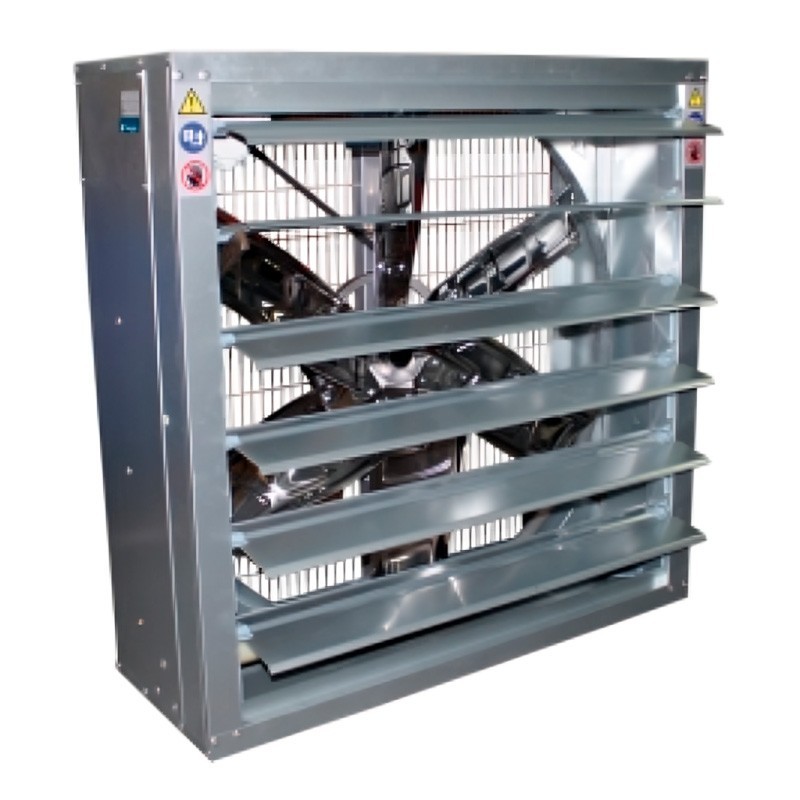

Casals HJB high flow helicoidal fan

Rating:
(0)
  • Galvanized steel sheet
  • Ideal for farms and greenhouses
  • IP55 protection
  • Voltage: 230 - 400 V
En stock
icon Voltage
Voltage
230 - 400 V
icon Power
Power
550 - 1100 W
icon RPM
RPM
1390 - 1450 RPM
icon Chassis material
Chassis material
Steel
icon Air flow rate
Air flow rate
15.600 - 41,100 m3/h
icon Weight
Weight
80 - 110 Kg
€547.05 excl. VAT
€661.93 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Casals HJB high flow helicoidal fan
€661.93
Select
Qty

Casals HJB helicoidal fan

The Casals HJB helicoidal fan is a high airflow solution, ideal for industrial and agricultural ventilation. Its galvanized steel structure guarantees high resistance and durability.

Equipped with an AISI 430 stainless steel propeller and an IP-55 asynchronous motor, it offers efficient and safe performance. It incorporates an overpressure shutter and a protection grid, ensuring reliable operation in demanding environments.

Available in several models, with flow rates up to 41,100 m³/h, it operates at 50 Hz and withstands temperatures up to 50°C, making it a robust and versatile option.

Highlights

  • Completely built in galvanized steel sheet.
  • Equipped with pressure shutter.
  • Propeller made of stainless steel (AISI 430)
  • Protection grid on the transmission side.
  • Standard squirrel cage asynchronous motor with IP-55 protection and class F insulation.
  • Standard voltage 230/400V 50Hz
  • Internal terminal box.
  • Motor access cover
  • Maximum continuous working temperature: 50ºC.

Technical specifications

MODEL HJB 90 HJB 110 HJB 120 HJB 140
Engine RPM 1390 RPM 1450 RPM 1450 RPM 1450 RPM
Rated current 2.5 (230 V) / 1.4 (400 V) 3.5 (230 V) / 2.0 (400 V) 4,7 (230 V) / 2,7 (400 V) 4.7 (230 V) / 2.7 (400 V)
Nominal power 0.55 kW 0.75 kW 1.10 kW 1.10 kW
Maximum air flow rate 15.600 m3/h 25.800 m3/h 32.600 m3/h 41.100 m3/h
Sound 63 dB(A) 65 dB(A) 62 dB(A) 61 dB(A)
Frequency 50 Hz 50 Hz 50 Hz 50 Hz
Weight 80 Kg 88 Kg 97 Kg 110 Kg
Product dimensions (H x W x D) 900 x 900 x 400 mm 1100 x 1100 x 400 mm 1220 x 1220 x 400 mm 1220 x 1220 x 400 mm
261931

Data sheet

Voltage
230 - 400 V
Power
550 - 1100 W
RPM
1390 - 1450 RPM
Chassis material
Steel
Air flow rate
15.600 - 41,100 m3/h
Weight
80 - 110 Kg

Specific References

mpn
509111034
