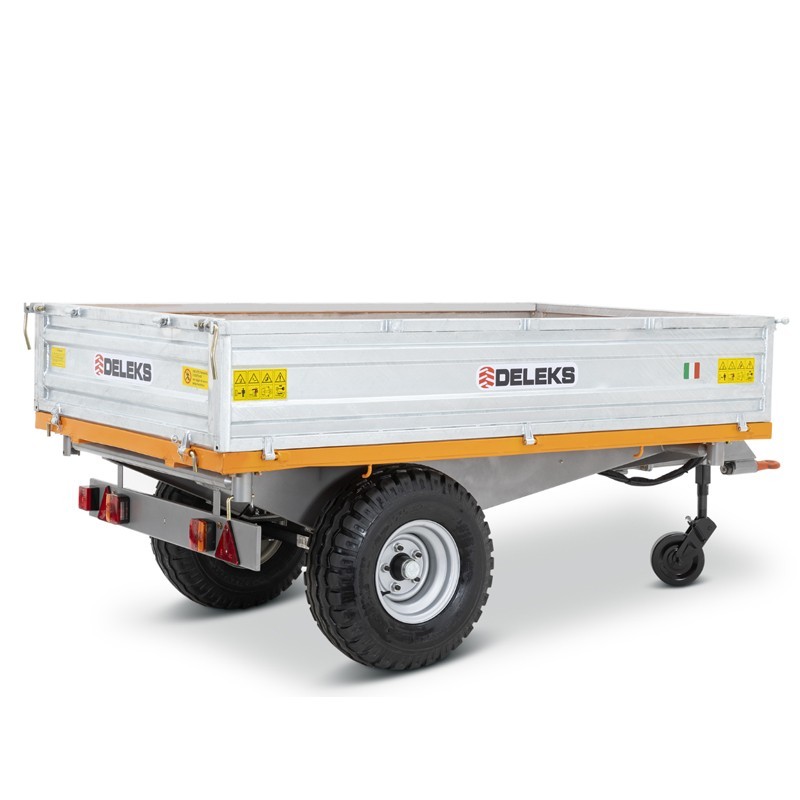

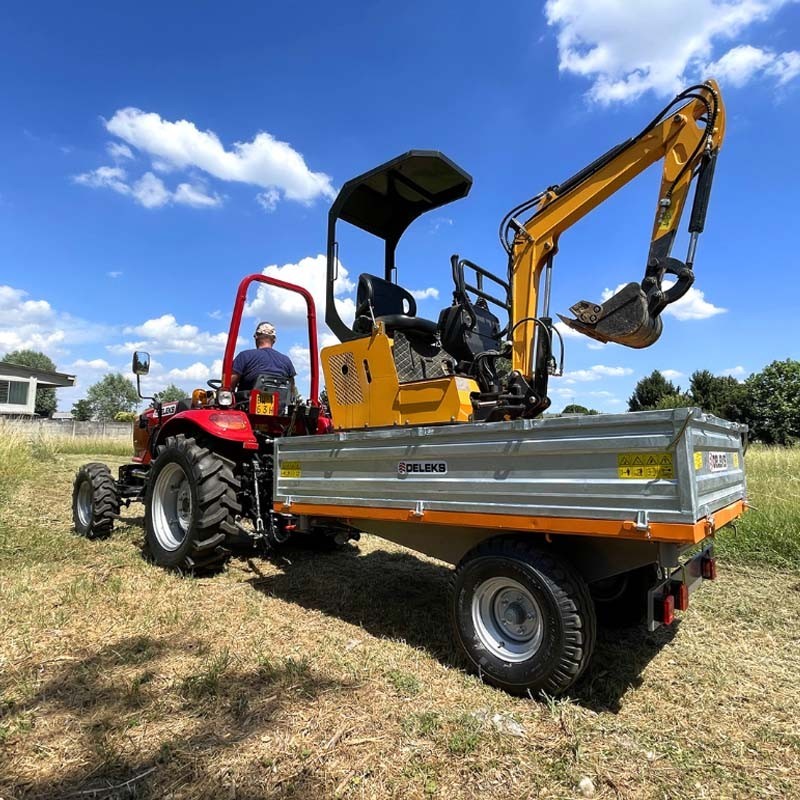

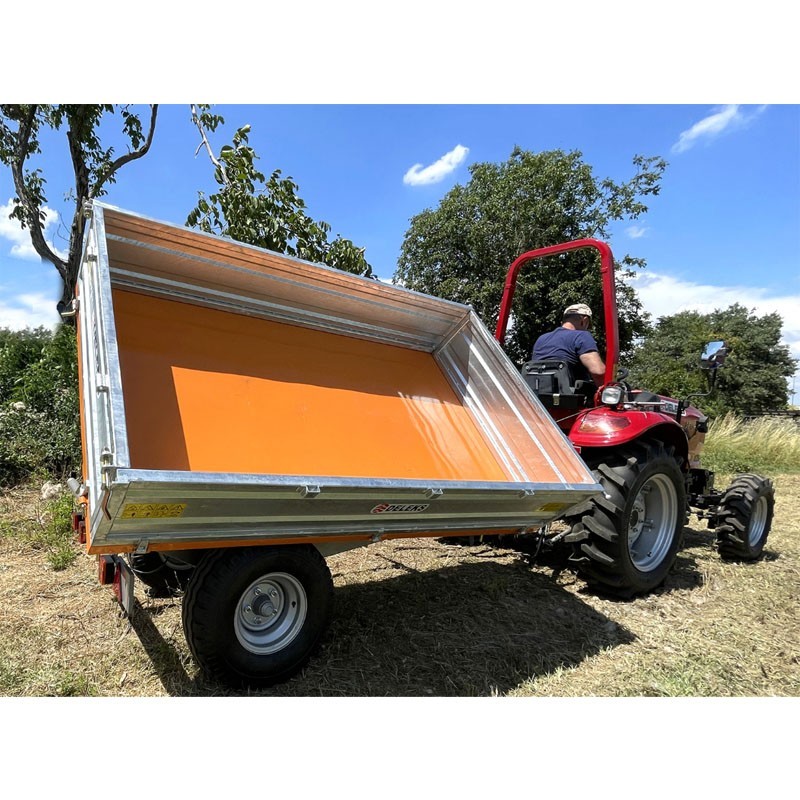

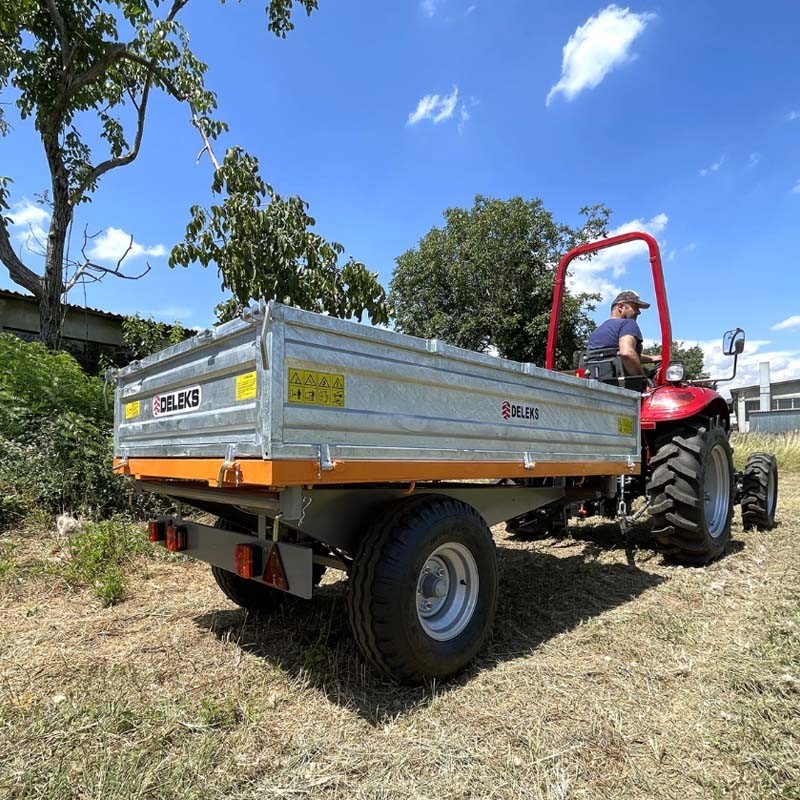

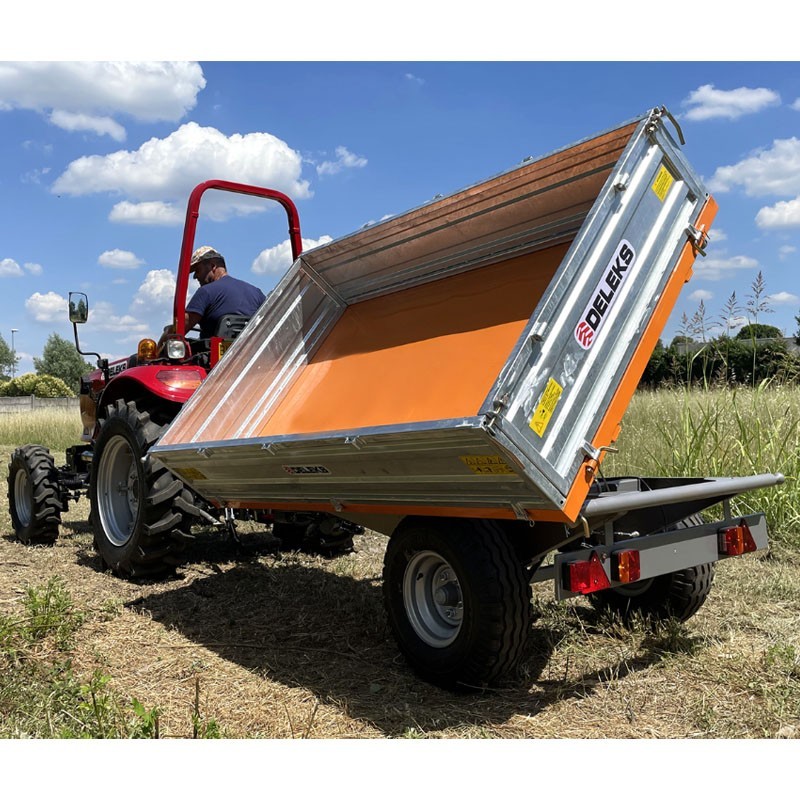

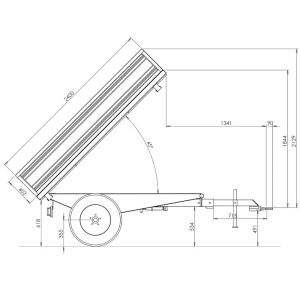

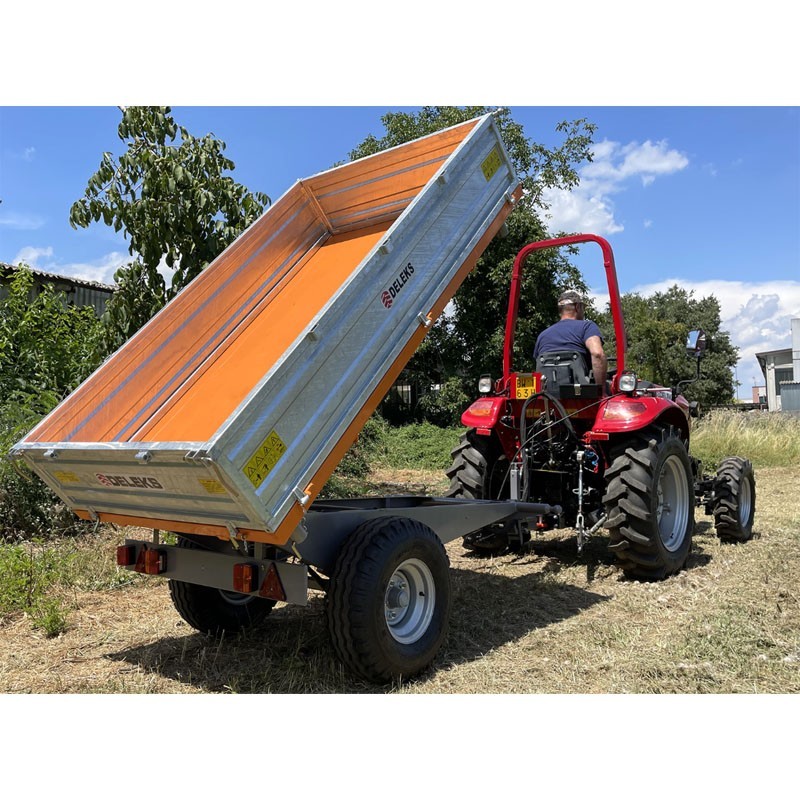

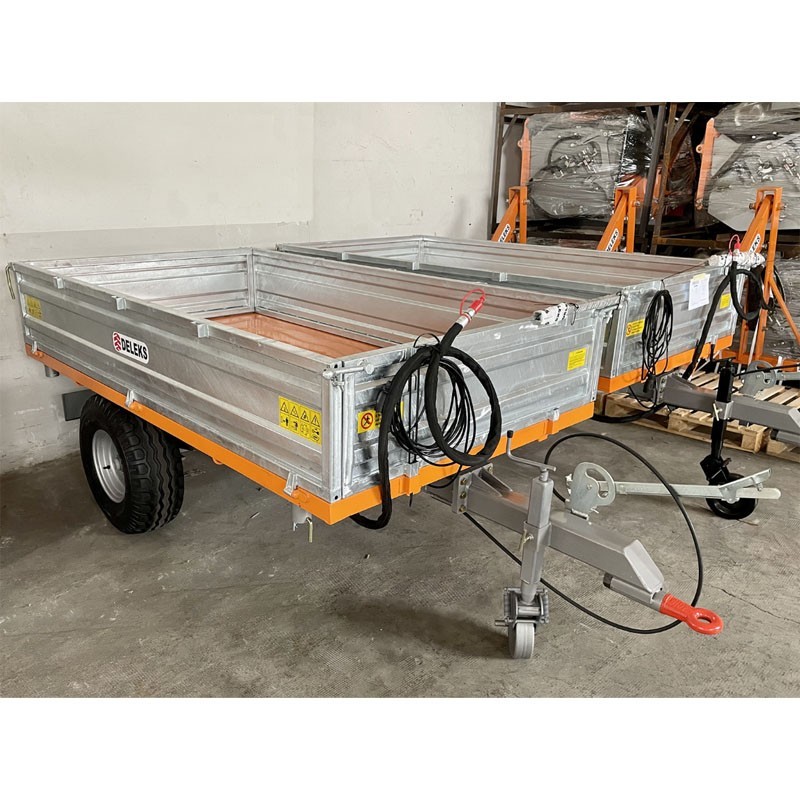

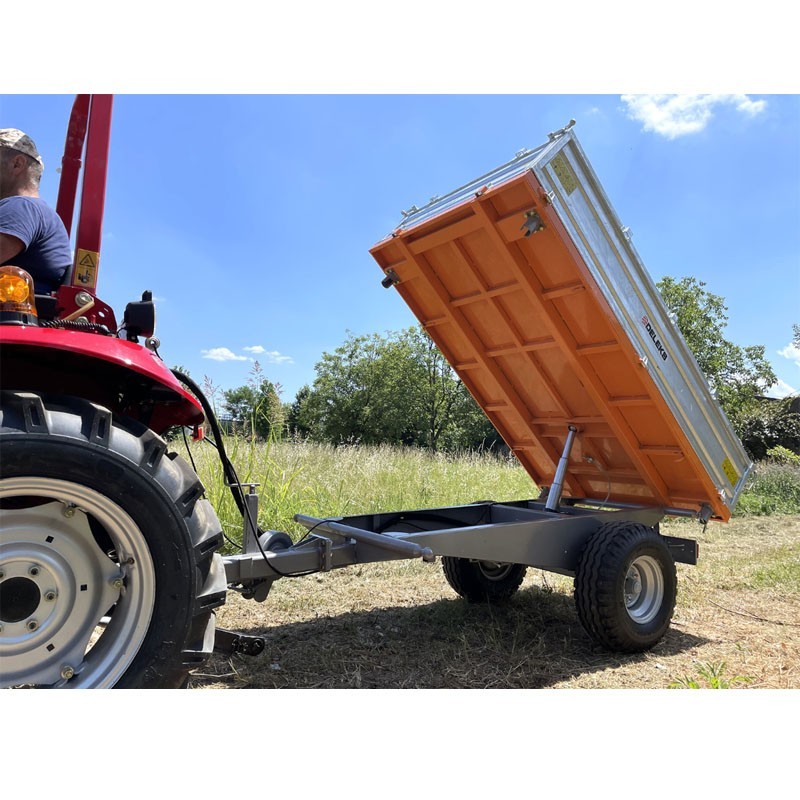

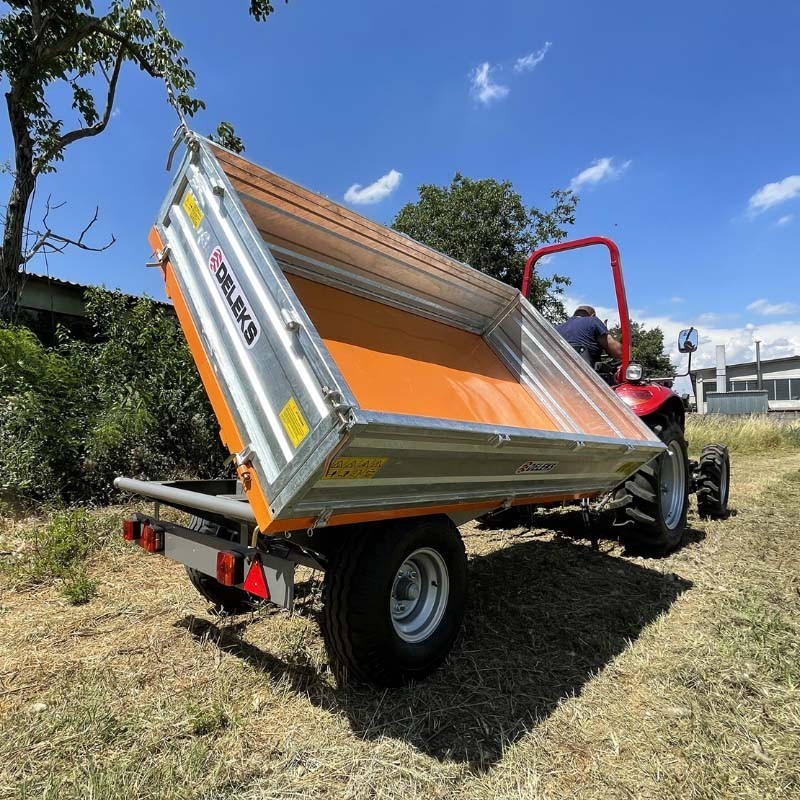

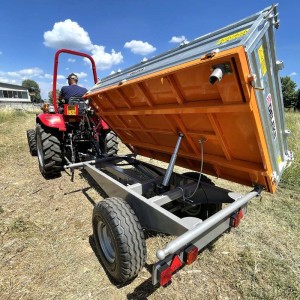

The DELEKS RM14-T3H agricultural tipping tractor trailer has one axle and is suitable for tractors from 20 to 70 HP, this trailer can transport soil, sand, wood or gravel and this task is easily done thanks to its 4 folding alterales of 40 cm.
This model of trailer measures 140 x 240 cm and has a total load capacity of 2 tons, it is the ideal solution for small farms, the trailer is delivered with the hitch and the folding sides removed, this model is CE compliant and has a 2 year warranty.

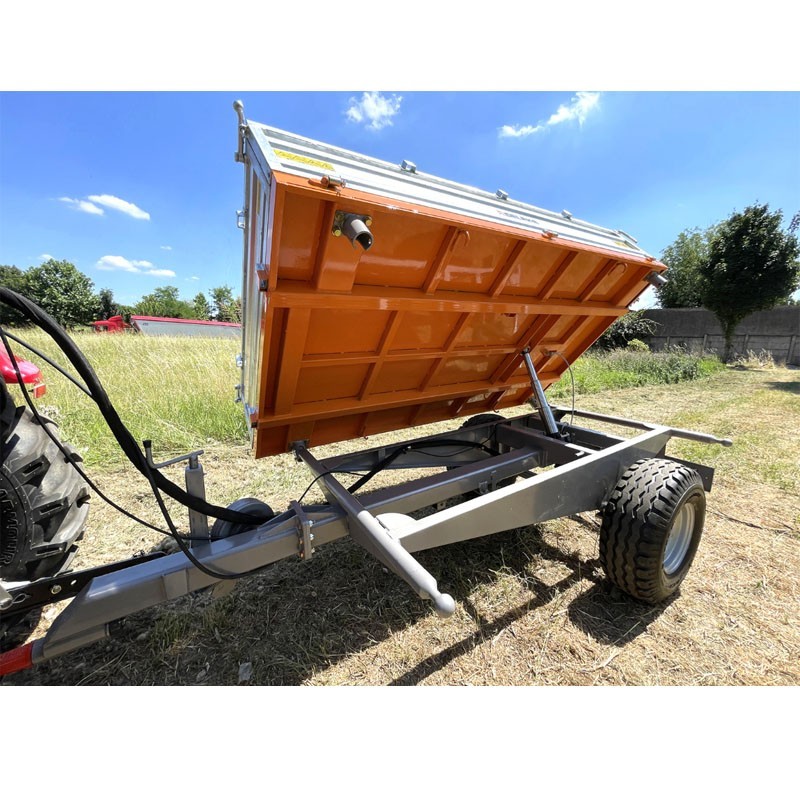

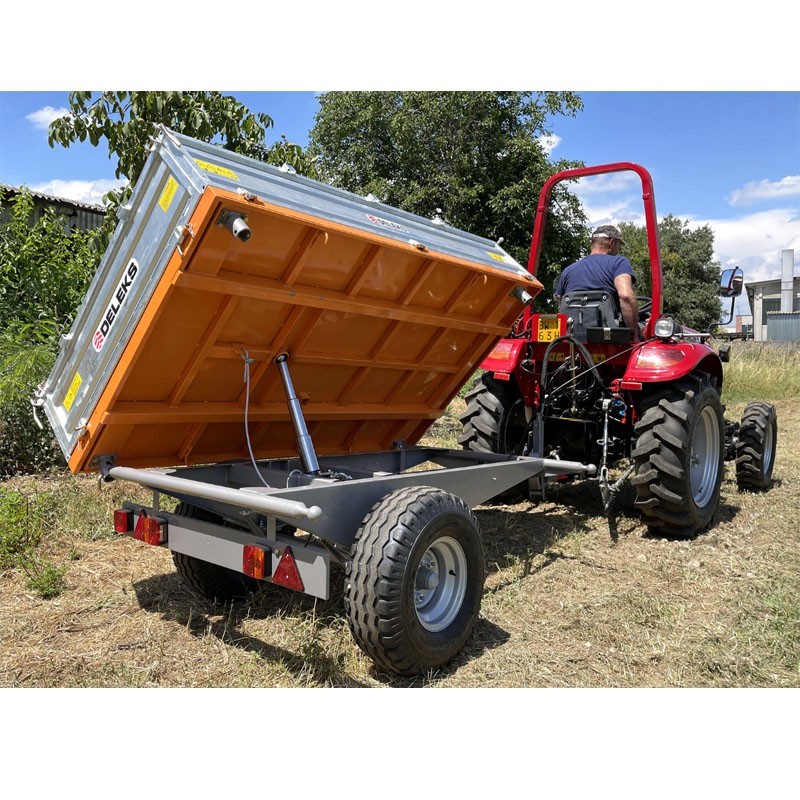

This trailer is not homologated for public roads. It has a hydraulic tipper on both sides, its folding sides are 40 cm high, it has a hydraulic brake, its axle is TVZ 50 mm, it is manufactured in Italy as its BBM, the tires of this trailer

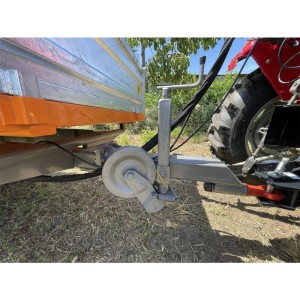

They have measures of 10.0/80 R12 - 40km/h TVS-EUROGRIP and has a rotating retention foot.
Weight | 380 kg |
Tractor power | 20 - 70 hp |
Oil pressure min./max | 130 - 150 bar |
Optimal oil flow | 20-25 l/min |

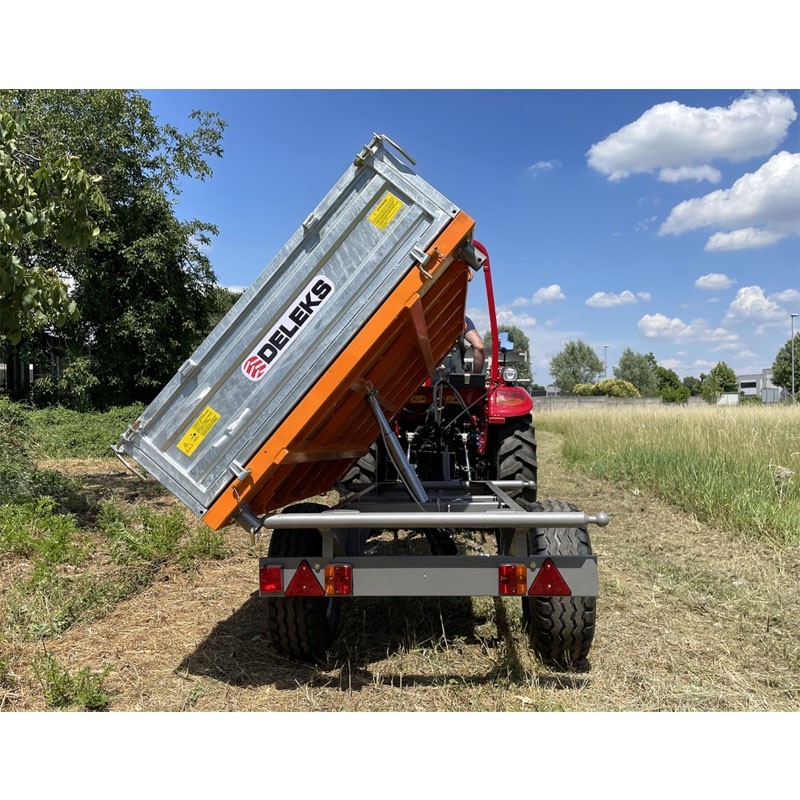

Type | Hydraulic 3-sided tipper |
ATM | 2.0 ton |

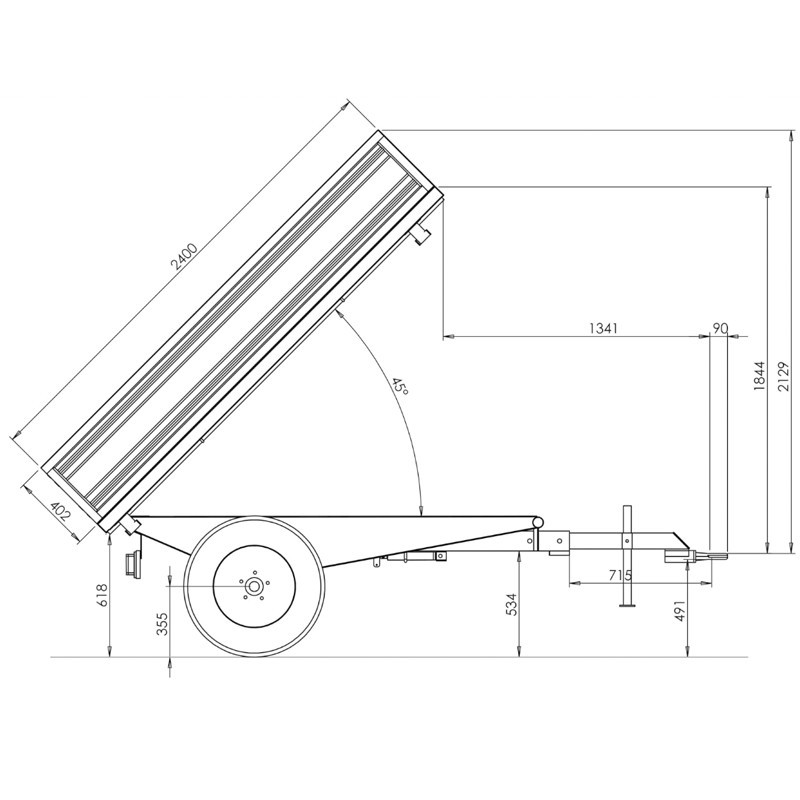

Tilting angle | 45° |
Height sides | 400.0 mm |
Rudder | Fixed |
Gate | Top and bottom with manual closing |
Floor thickness | 2.0 mm |
Floor height | 770.0 mm |
Shaft | TVZ 50x50 full bar |
Wheel dimensions | 10.0/80 R12 - 40km/h TVS-EUROGRIP |
Hydraulic brakes | √ |
Additional sides | Optional - Height 600.0 mm |

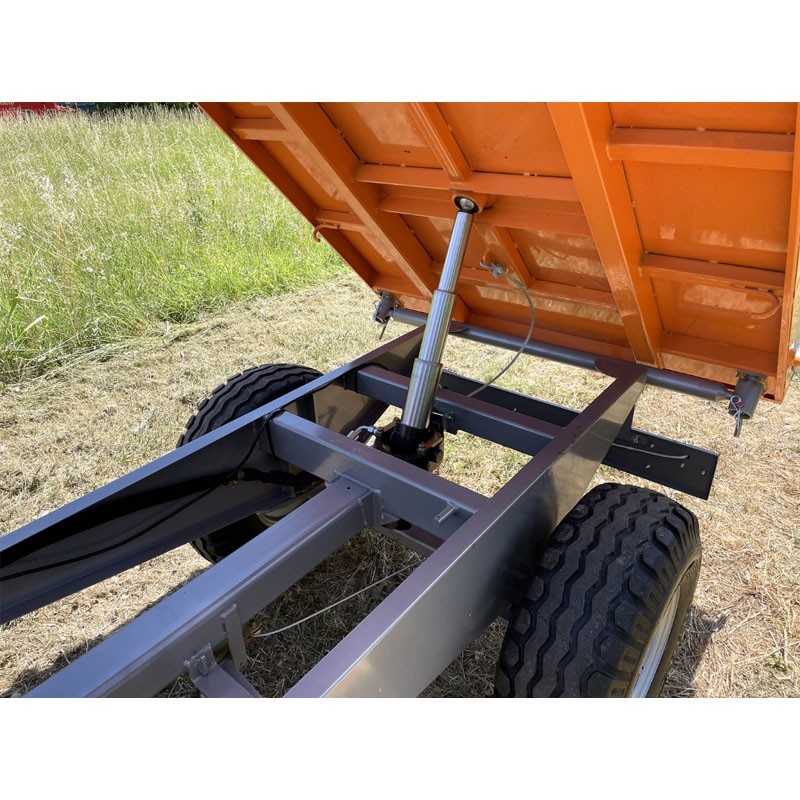

Tilting system | Single acting hydraulic |
Hydraulic hoses | With 1.2" AGRI connections, WP-400 bar |

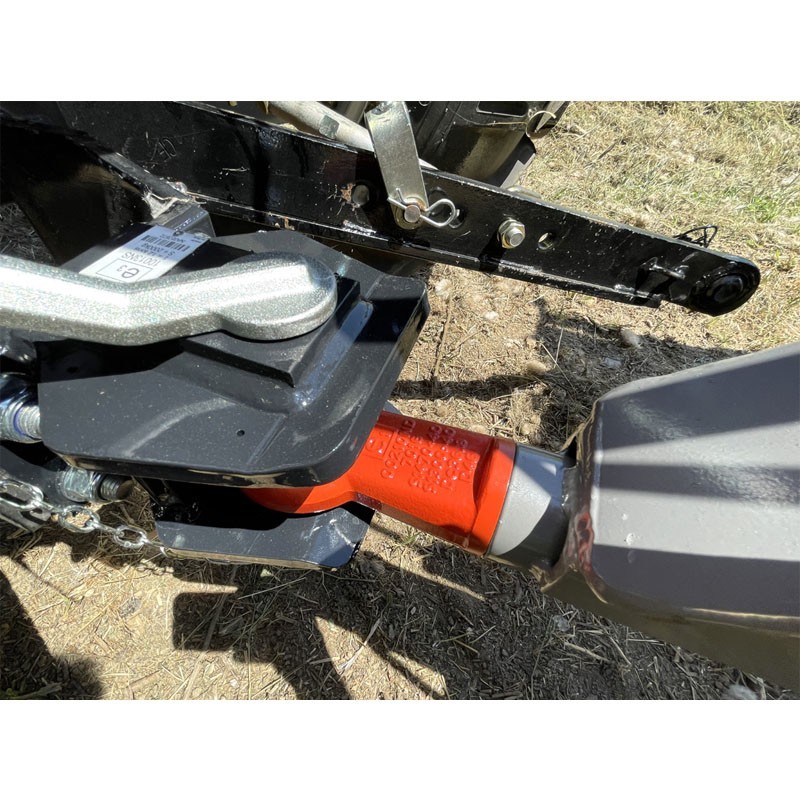

Rudder ring | BBM |
Rear lights | KRAMP |

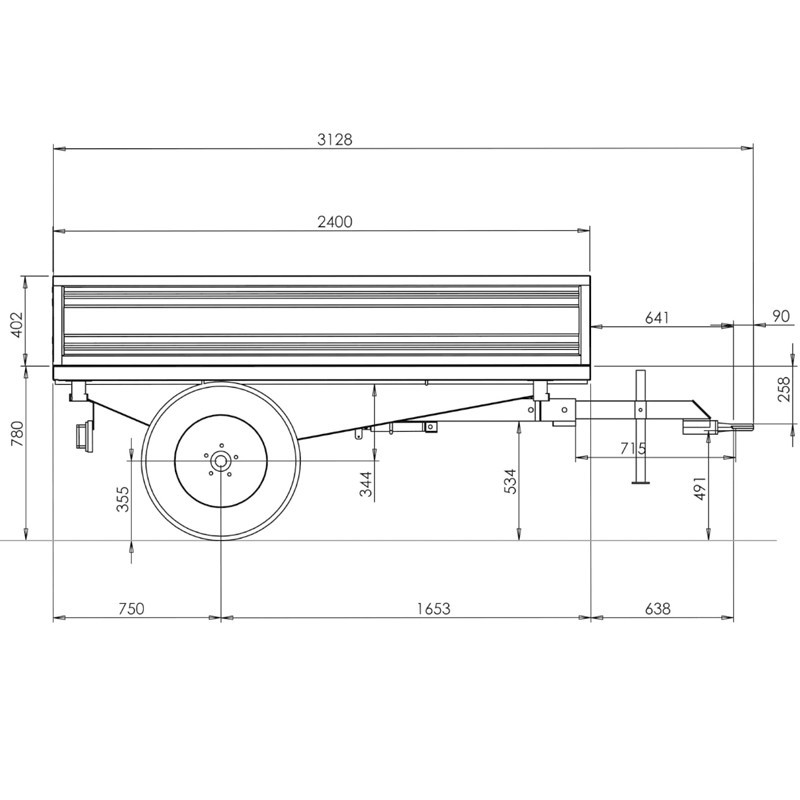

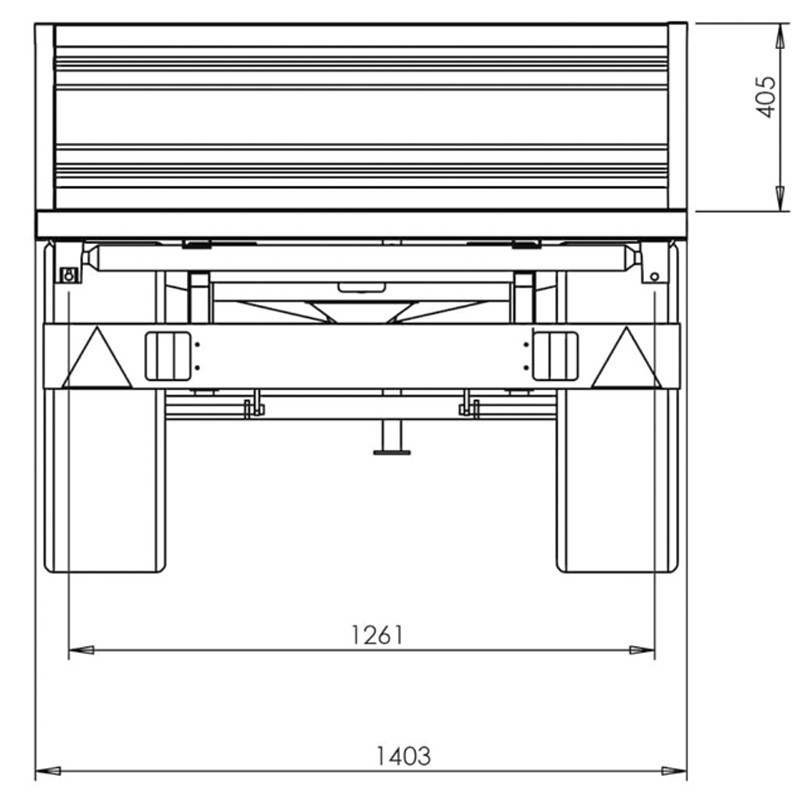

Case size | 1450.0*2450.0 mm |
Load capacity with brakes | 1620.0 kg |
Weight empty | 380.0 kg |
Sides | Retractable and removable |
Packing dimensions | 145 x 245 x 90 cm |
IMPORTANT NOTICE |
For the correct shipment of this product, the customer will need a forklift or similar for the unloading of this product and the address must be accessible for a 24t truck. |
