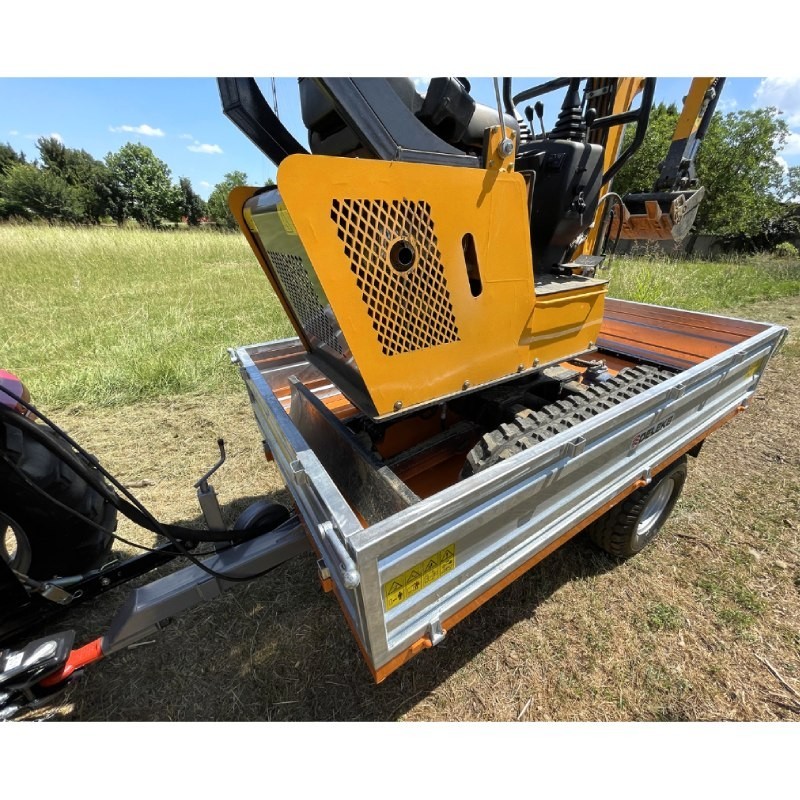

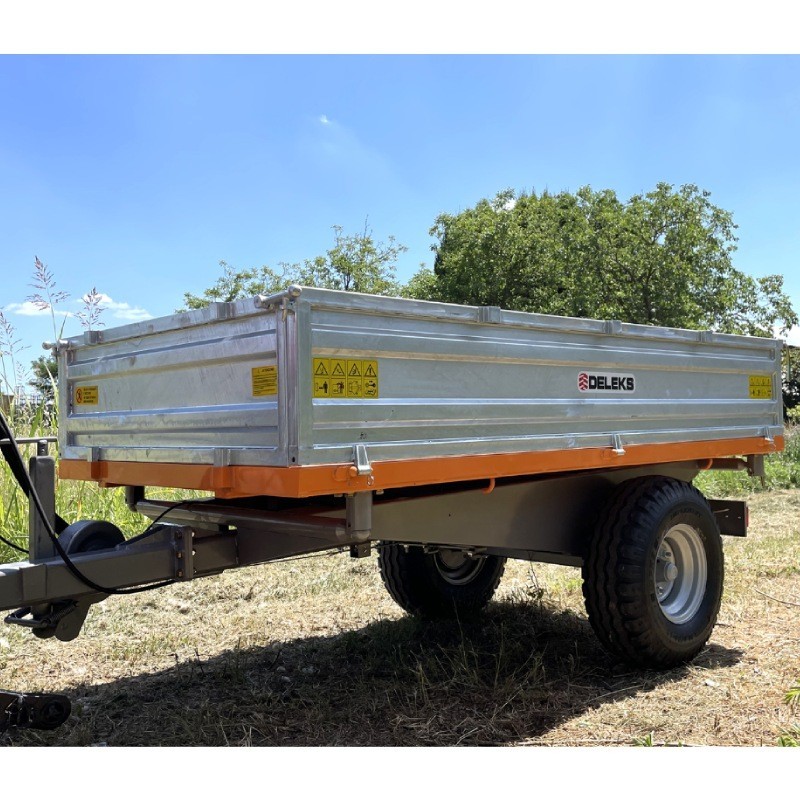

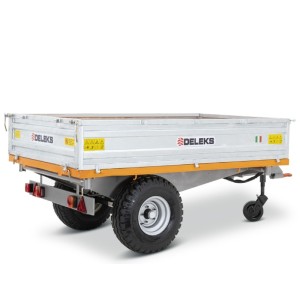

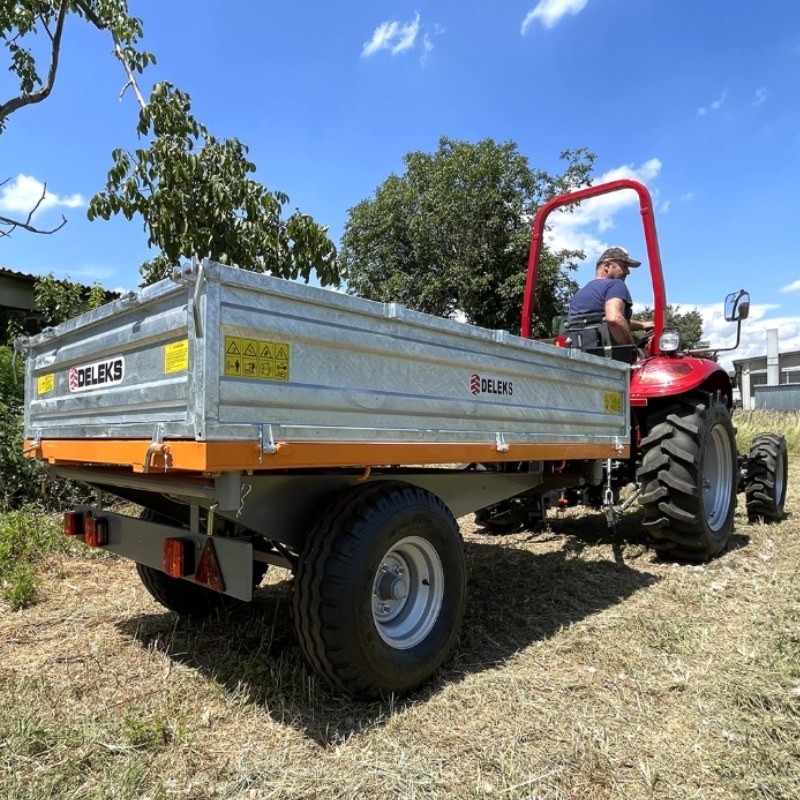

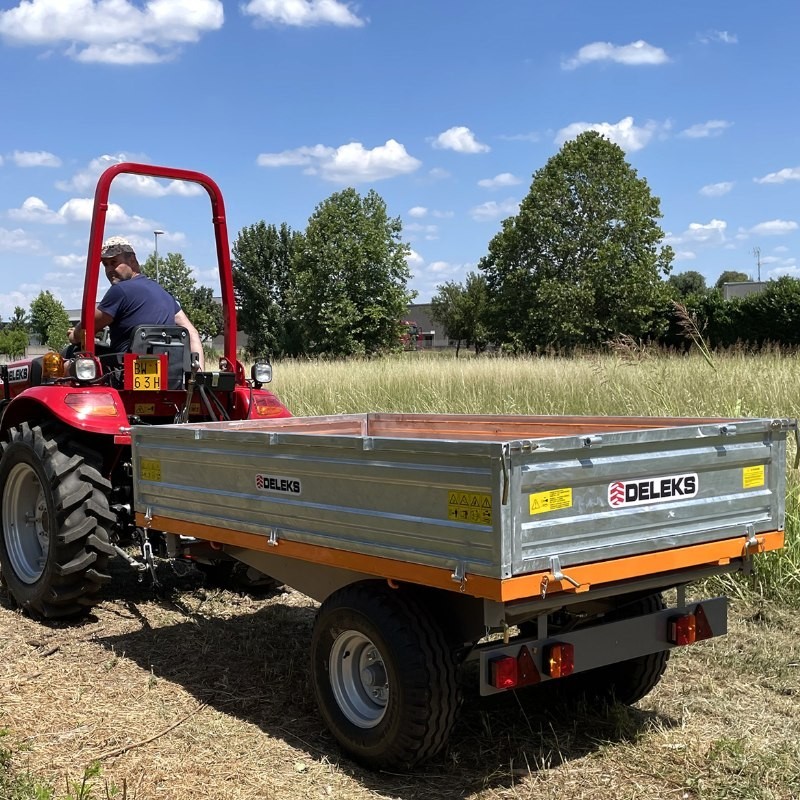

This RMT4-T3 trailer from Deleks is compatible with tractors with a power of 20 to 70 hp and from various brands including Kubota, Renault, Massey Ferguson, New Holland Boomer, Antonio Carraro Tigre, or John Deere Series 2.

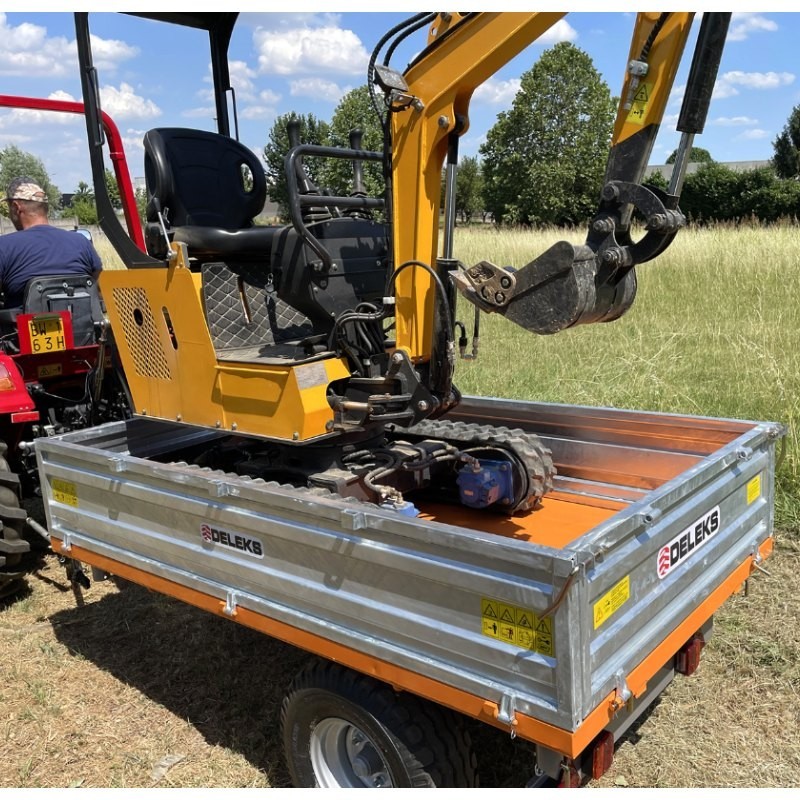

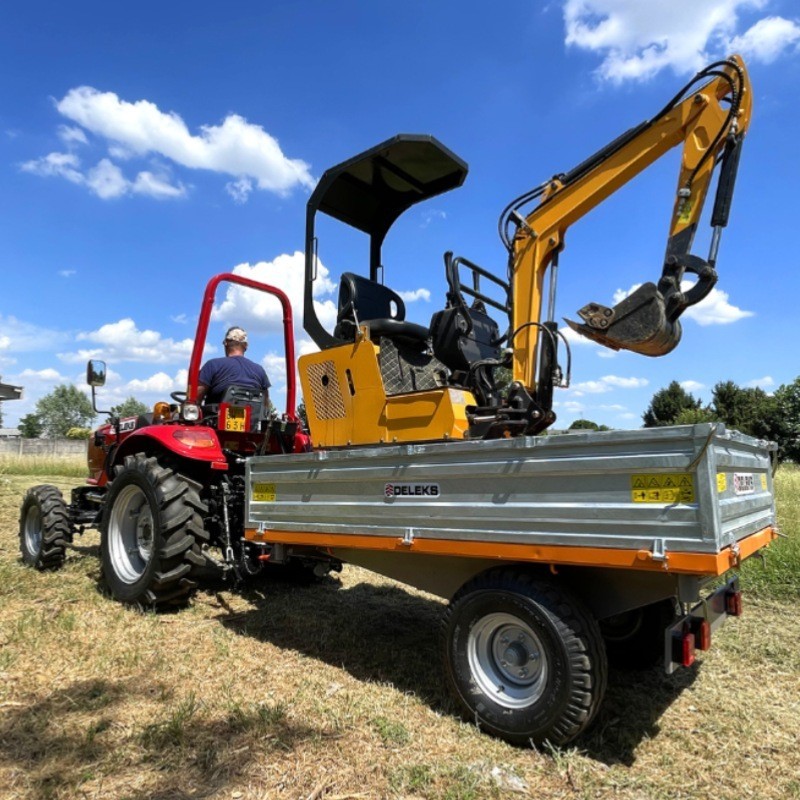

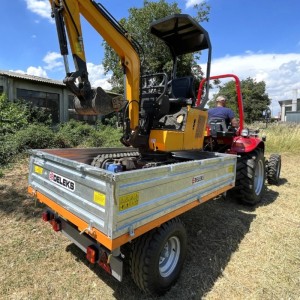

This product has a weight of 380 kg with dimensions of 140 x 240, capable of transporting a maximum of 2 tons of any material such as soil, wood, and even tools.

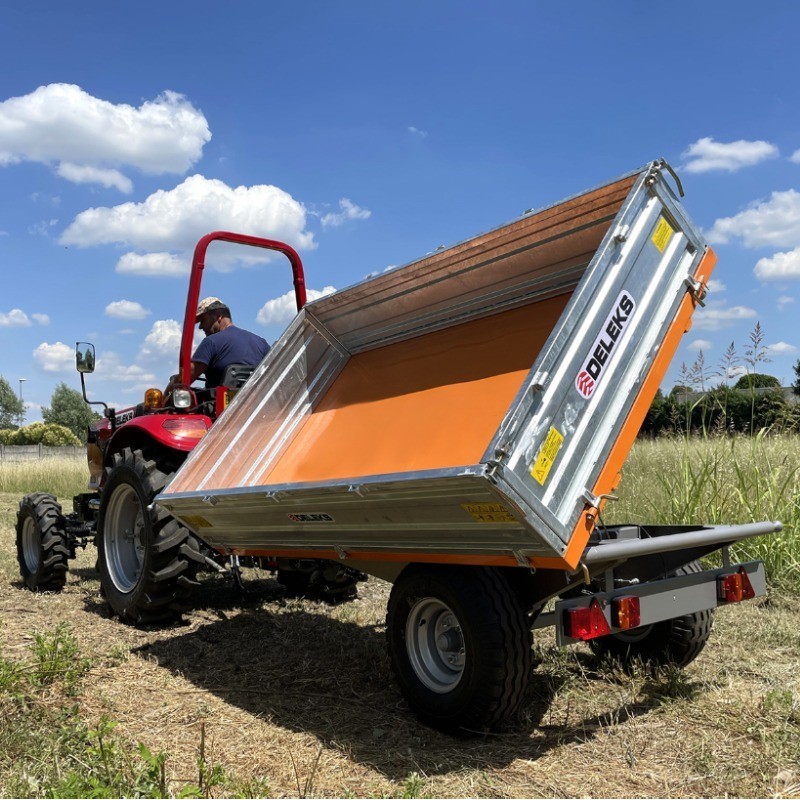

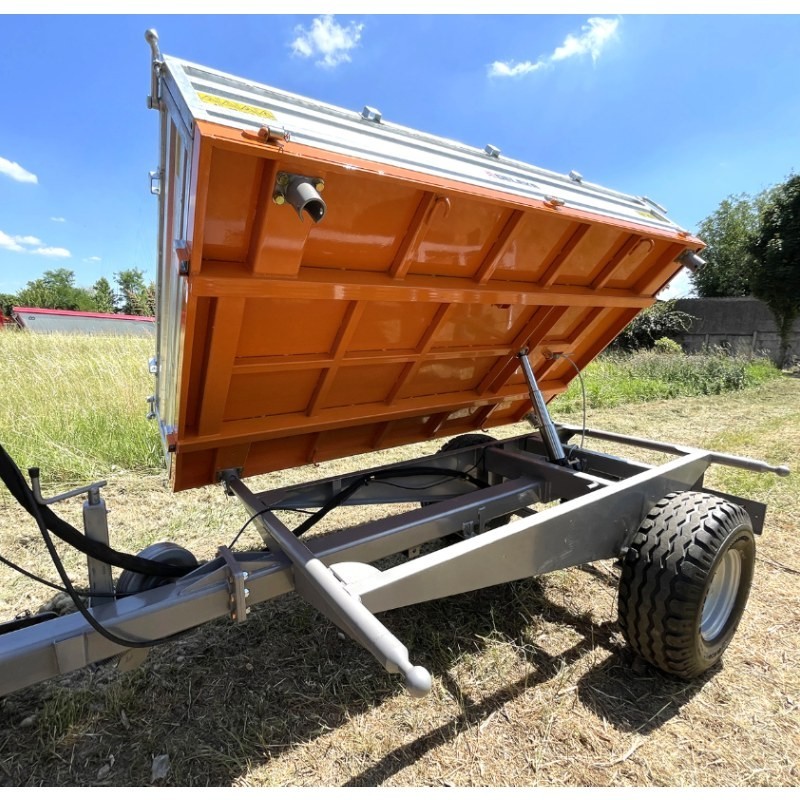

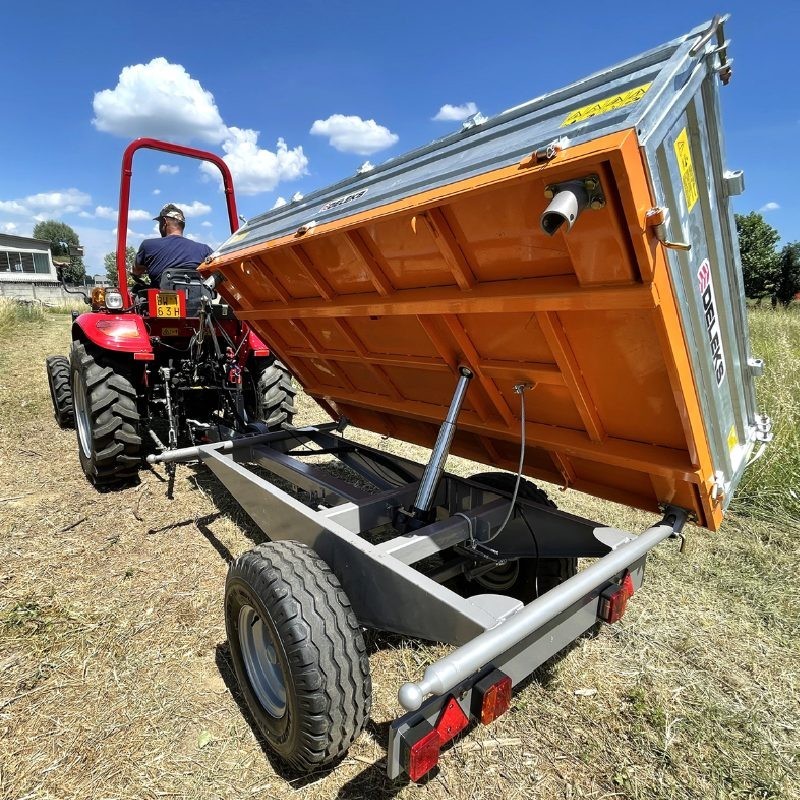

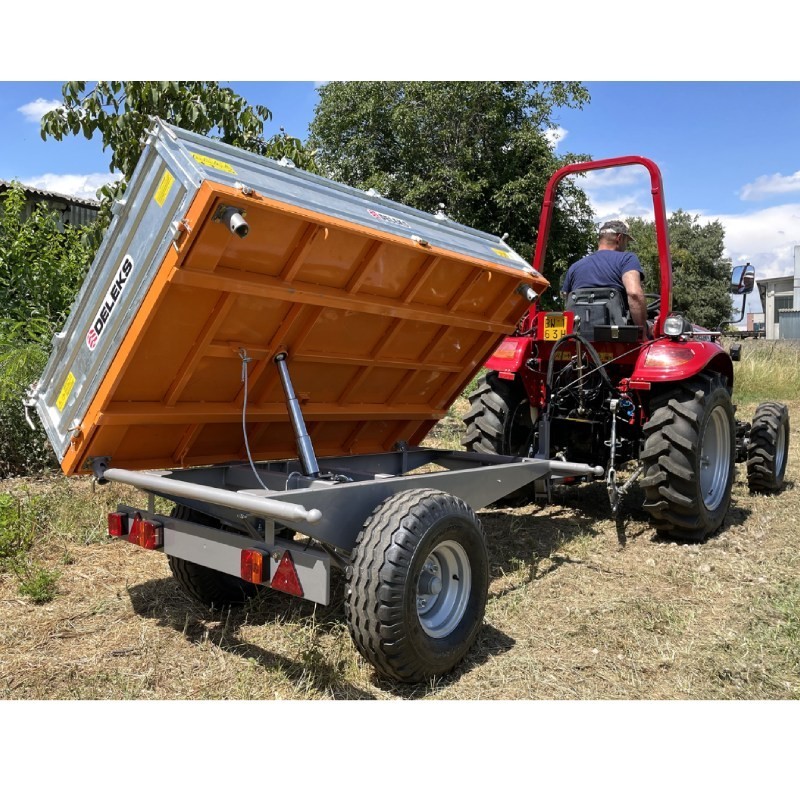

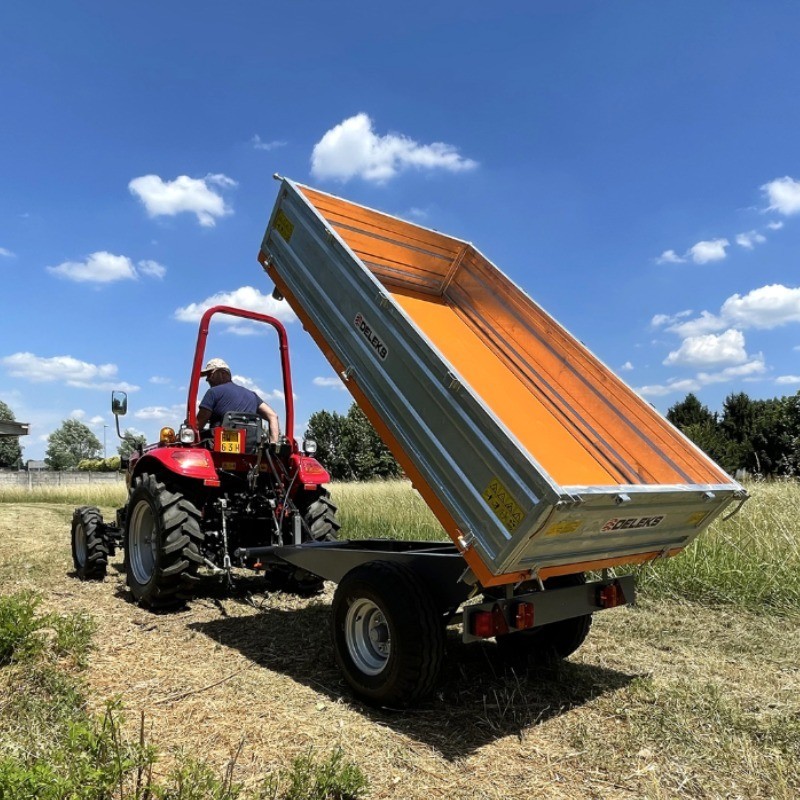

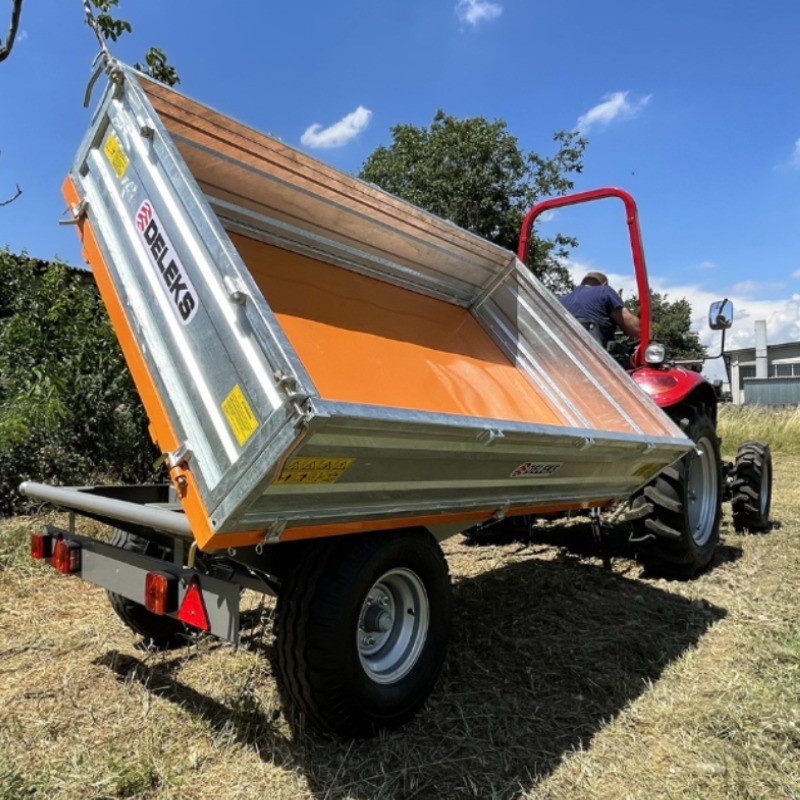

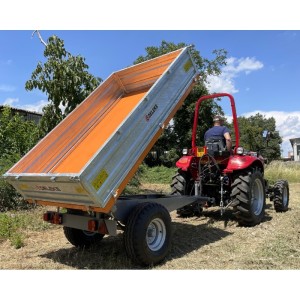

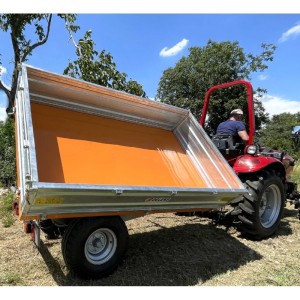

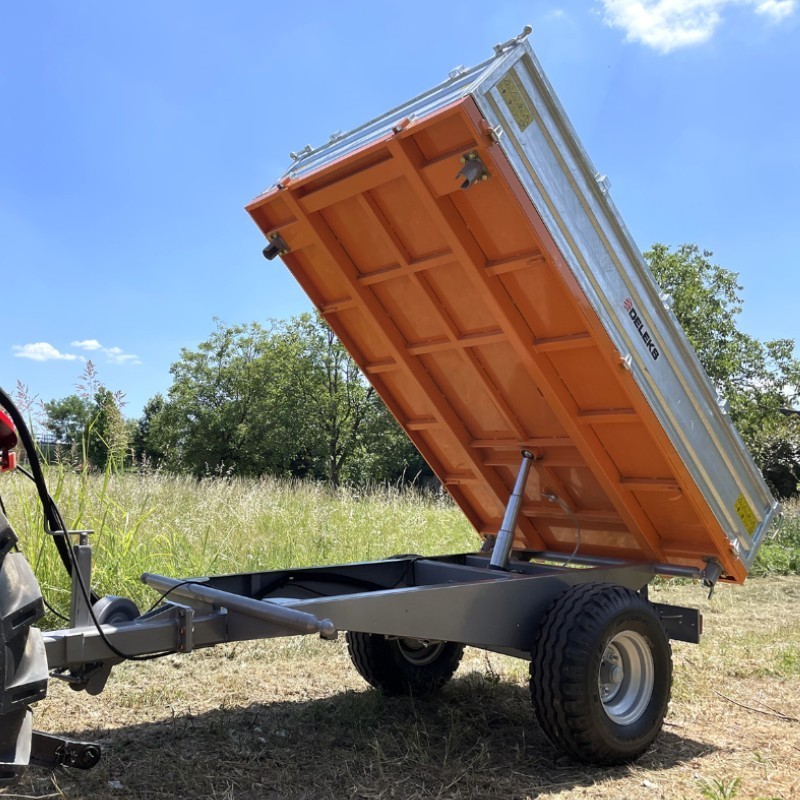

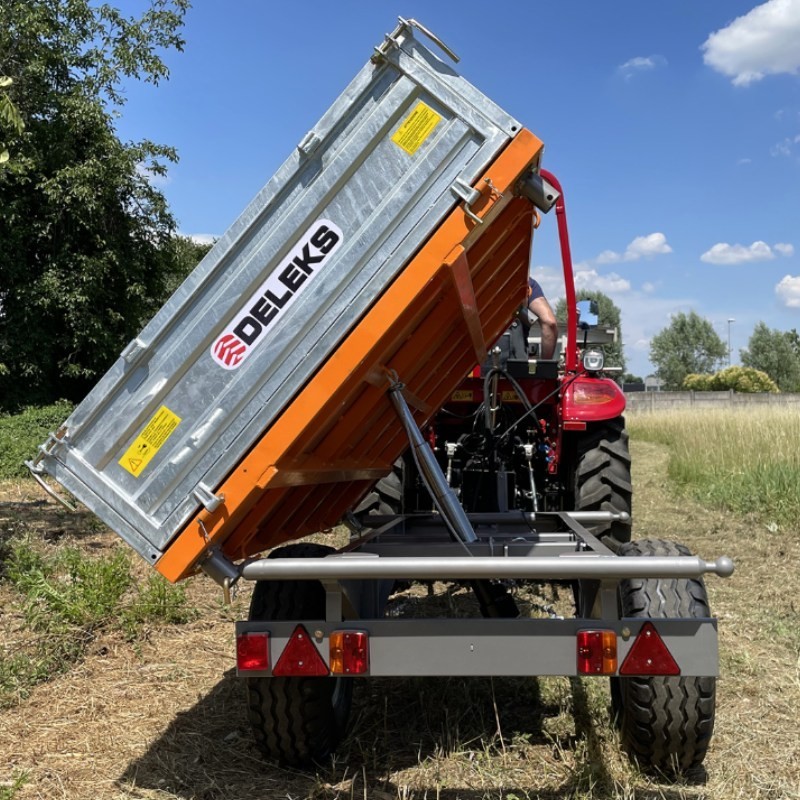

This trailer features a 45º tilt angle, a hydraulic tipper to both sides, and also comes with 4 foldable sides each 40 cm high.
Weight | 380 kg |
Tractor power | 20 - 70 hp |
Oil pressure min./max | 130 - 150 bar |
Optimal oil flow | 20-25 l/min |
Type | 3-side hydraulic tipper |
ATM | 2.0 ton |

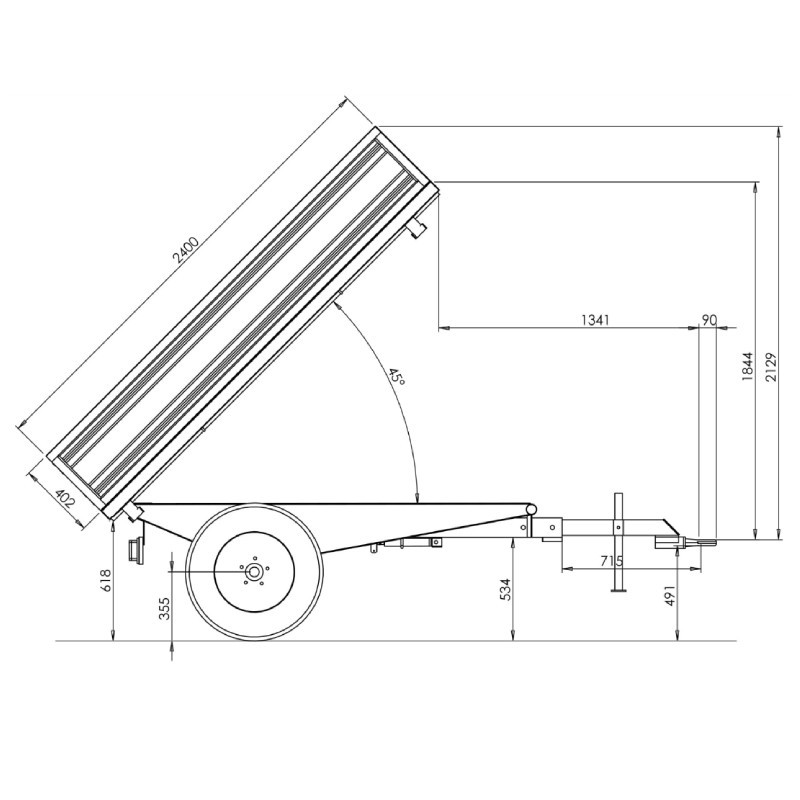

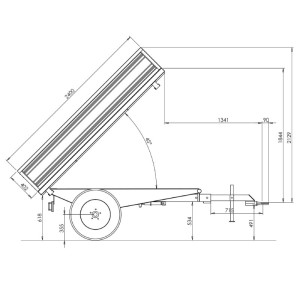

Tilt angle | 45° |
Side height | 400.0 mm |
Tongue | Fixed |
Gate | Up and down with manual lock |
Floor thickness | 2.0 mm |
Floor height | 770.0 mm |
Axle | TVZ 50x50 full bar |

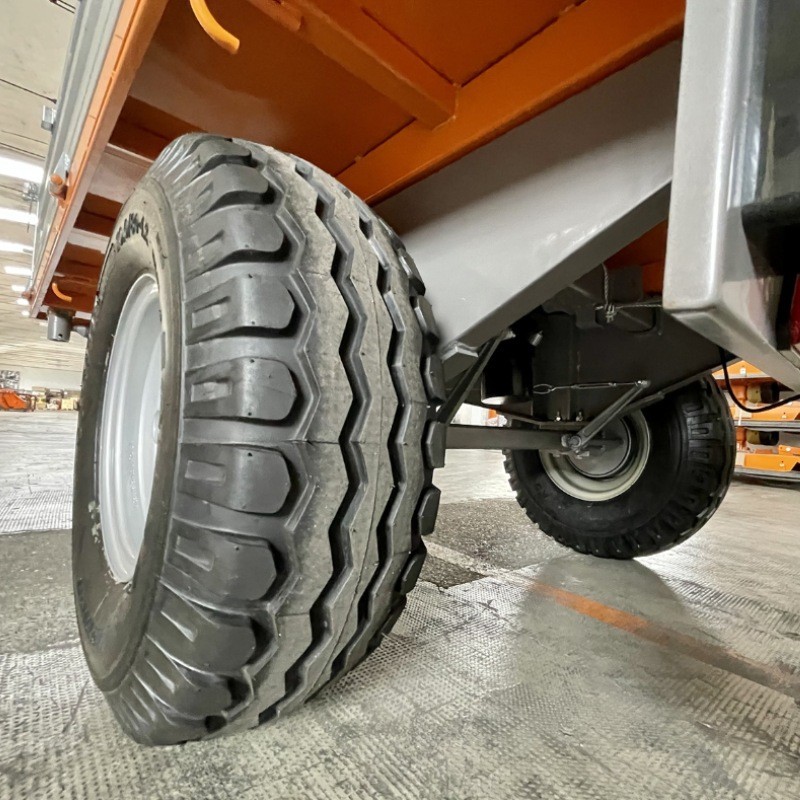

Wheel dimensions | 10.0/80 R12 - 40km/h TVS-EUROGRIP |
Mechanical brakes | √ |
Hydraulic brakes | Optional |
Additional sides | Optional - Height 600.0 mm |

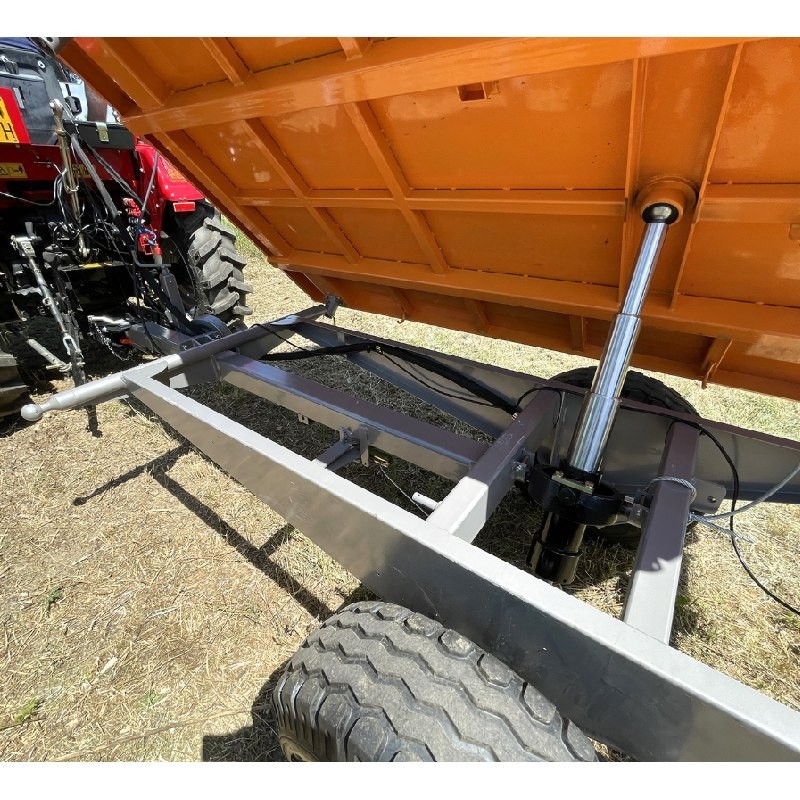

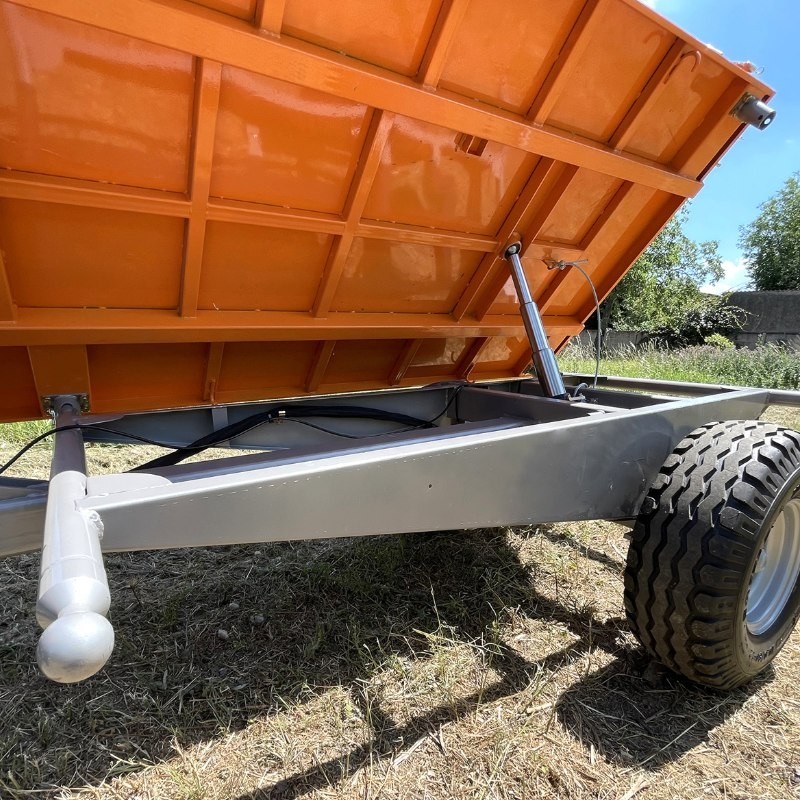

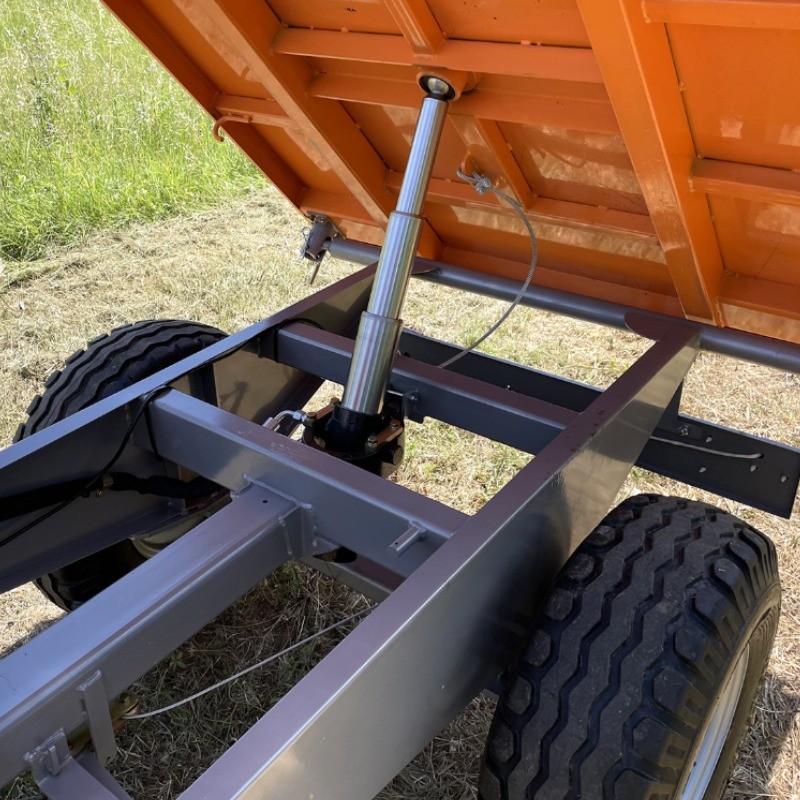

Tilt system | Single effect hydraulic |
Hydraulic hoses | With 1.2" AGRI connections, WP-400 bar |

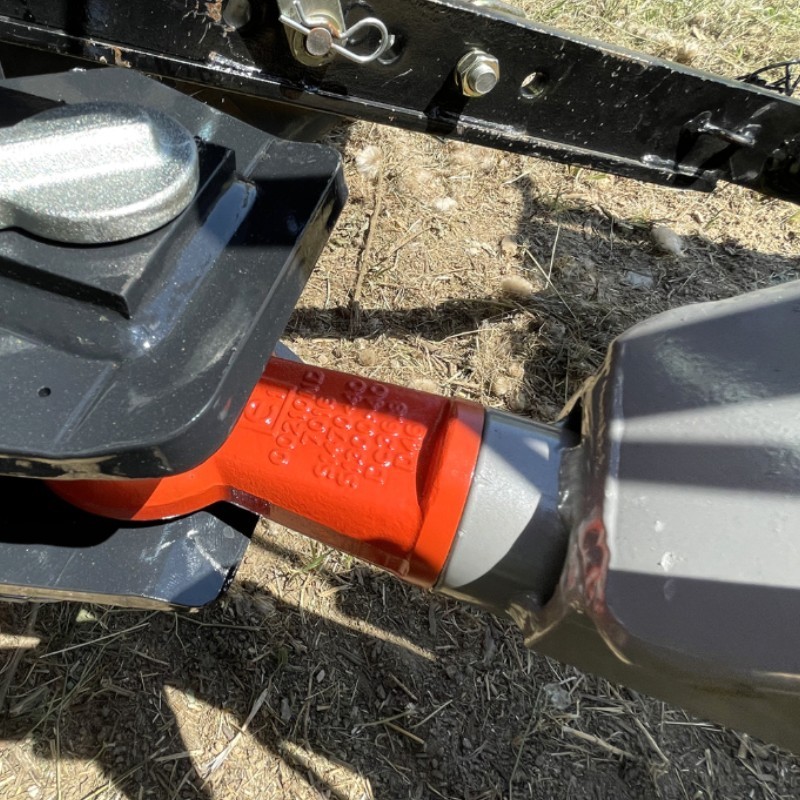

Tongue ring | BBM |
Rear lights | KRAMP |

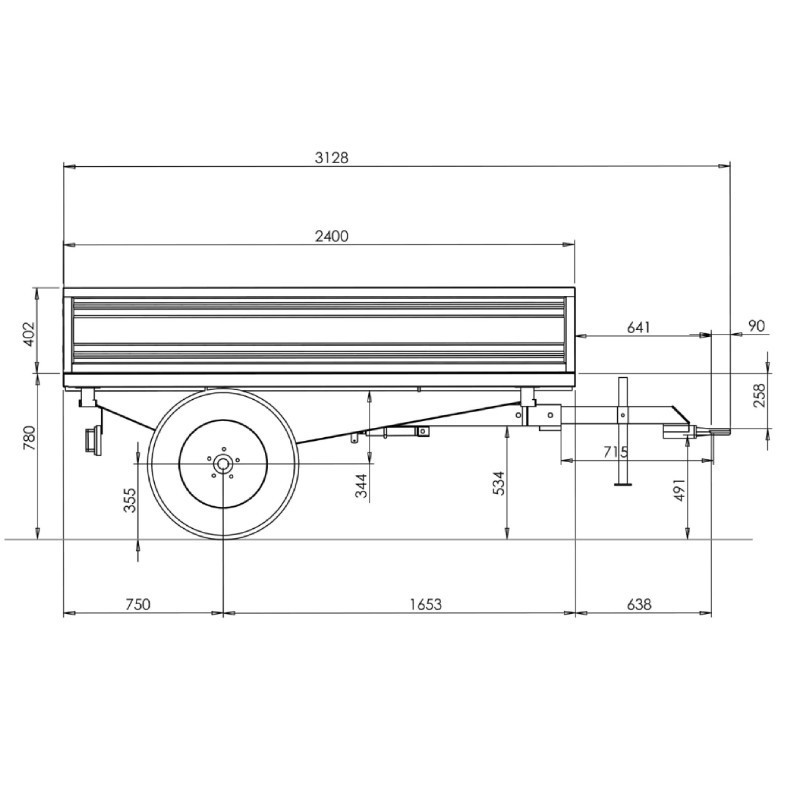

Box measurement | 1450.0 * 2450.0 mm |
Load capacity with brakes | 1620.0 kg |
Empty weight | 380.0 kg |
Sides | Retractable and removable |
Packaging dimension | 1450 * 2450 * 900 mm |
IMPORTANT NOTICE |
For the correct delivery of this product, the customer will need a forklift or similar for unloading this product, and the address must be accessible for a 24t truck. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
NOT APPROVED FOR ROAD USE
