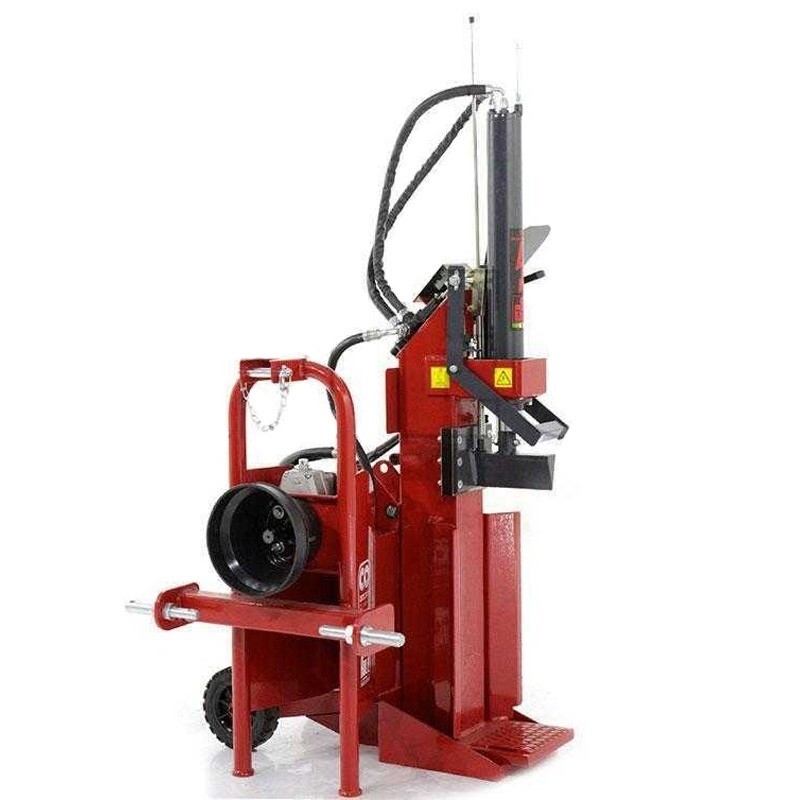

The firewood chipper Ceccato Olindo SPLT11 POL has 11 tons of cutting force and is capable of working in three different positions. This makes it a very good option to buy if you already have a tractor, as it also has a 3-point connection to take advantage of the engine power to do the job.
The maximum length of the trunk that this firewood splitter is capable of breaking is 57 centimeters with a maximum diameter of 50 centimeters. It should be noted that this firewood splitter is equipped with a pump that has a flow rate of 20 liters per minute, thus offering a more powerful thrust as well as a higher working speed.
Finally, the SPLT11 POL has a 7-liter hydraulic oil tank and is equipped with a top lever to protect the operator's hands and with support bars to hold the logs.
Power Supply | PTO tractor |
RPM | 540 rpm |
Type | multi-position steerable |
Double speed | Yes |
Force | 11 tons |
Piston stroke | 50 cm |
Cut to ground | Yes |
Maximum trunk diameter | 50 cm |
Pump type | single |
Flow rate per minute | 20 l/min |
Maximum pressure | 180 BAR |
Oil tank | Yes |
Hydraulic cylinder outer diameter | 80 mm |
Piston rod diameter | 40 mm |
Piston speed | 23 cm/s - 9 cm/s |
Rising speed | 15 cm/s |
Quantity of hydraulic oil required | 7 liters |
Upper lever for hand protection | Yes |
Support bars to contain the logs | Yes |
Transport trolley with wheels | Yes |
Log lifting system | No |
Product dimensions | 90 x 80 x 170 cm |
Net weight | 152 Kg |
Packing dimensions | 80 x 80 x 180 cm |
Total packing weight | 162 Kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
