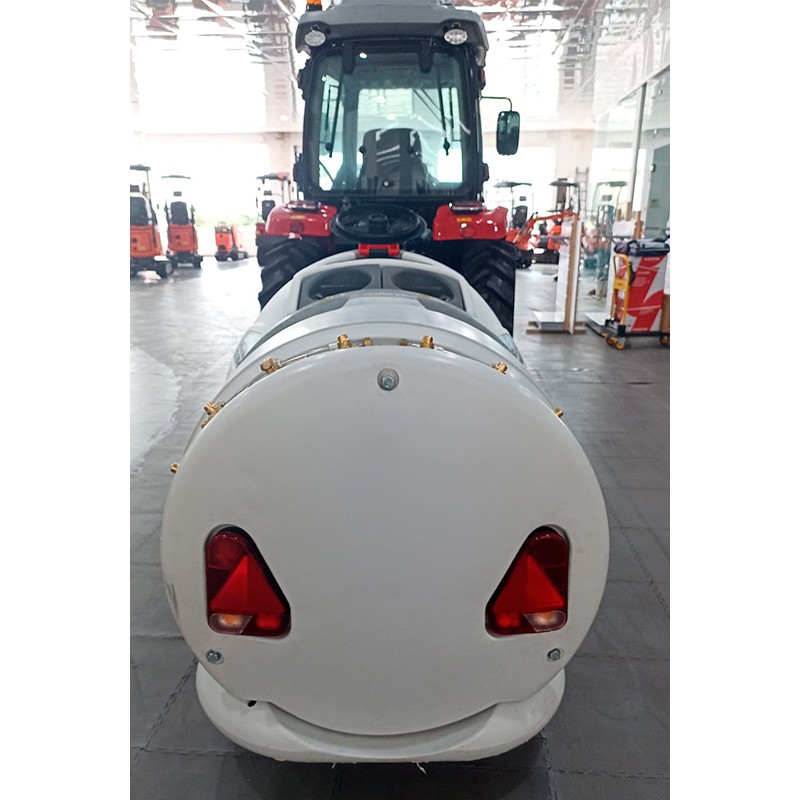

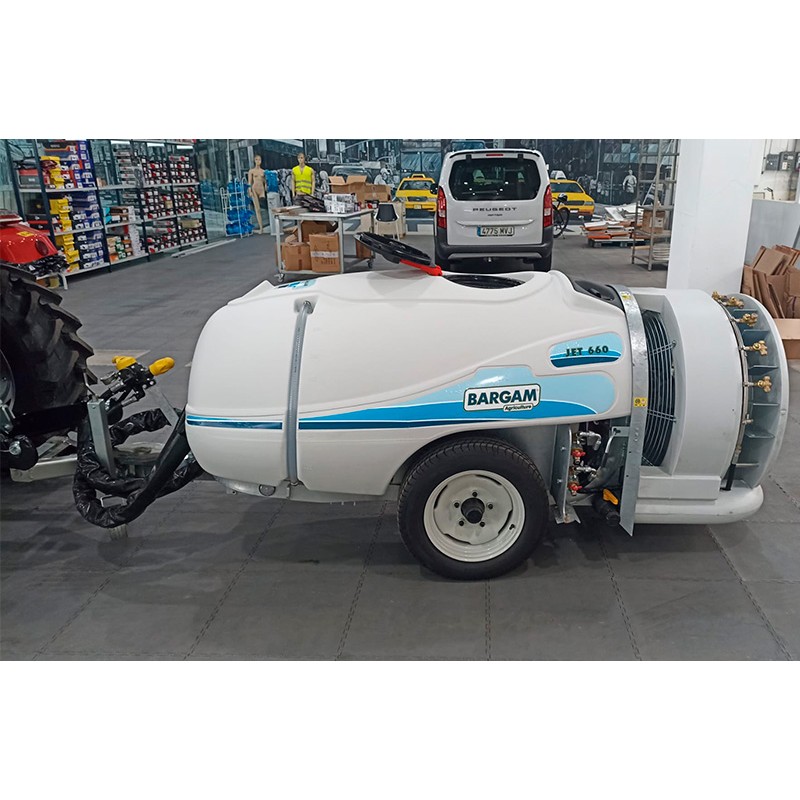

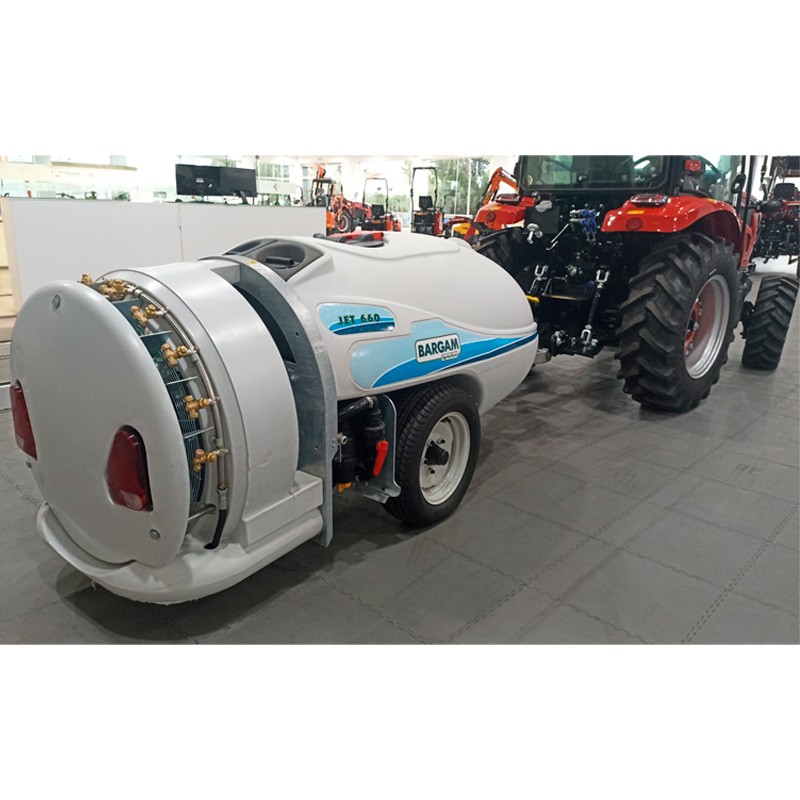

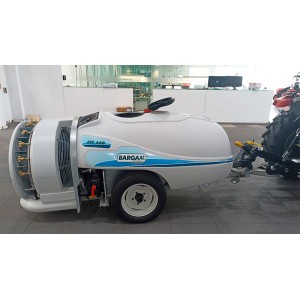

Trailed Atomizer 35-50 HP Zeppelin
- Power: 35-50 HP
- Pressure: 0-40 BAR
- Weight: 428 - 635 Kg
- Turbine diameter: 800 - 920 mm
€7,336.87 VAT incl.
Assembly and set-up INCLUDED |

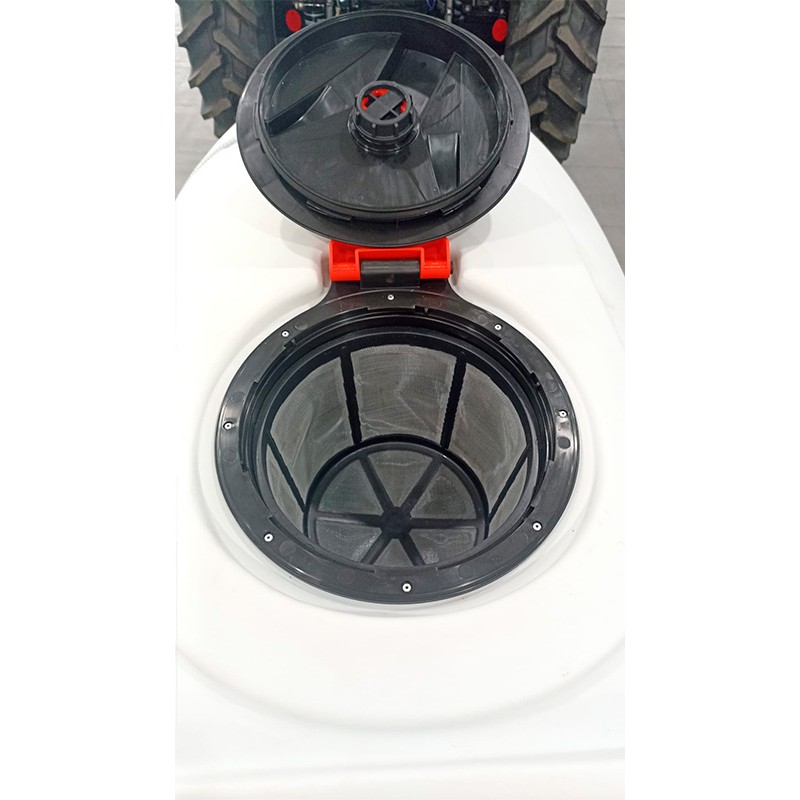

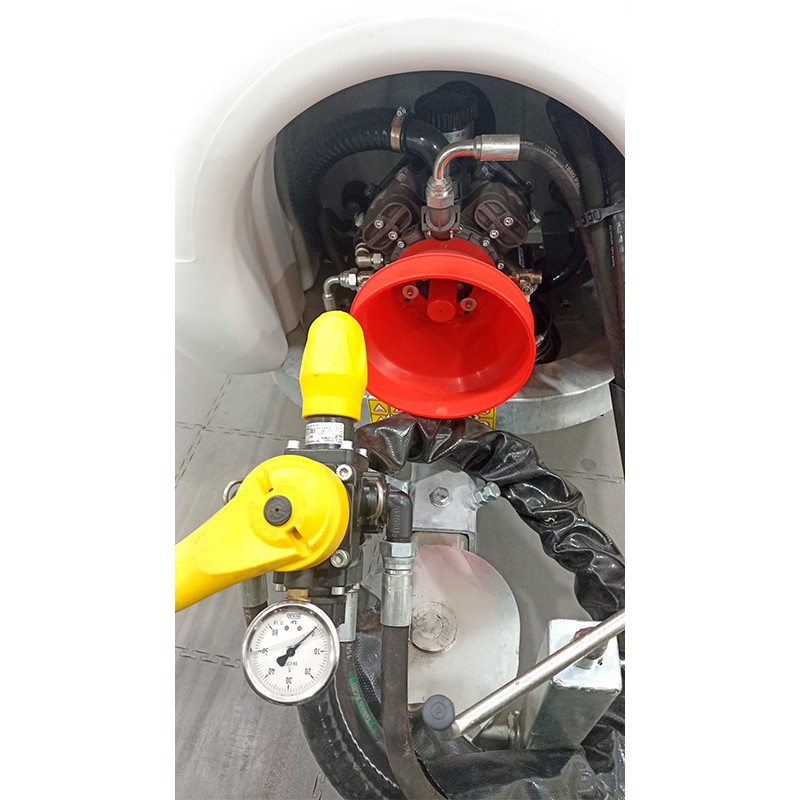

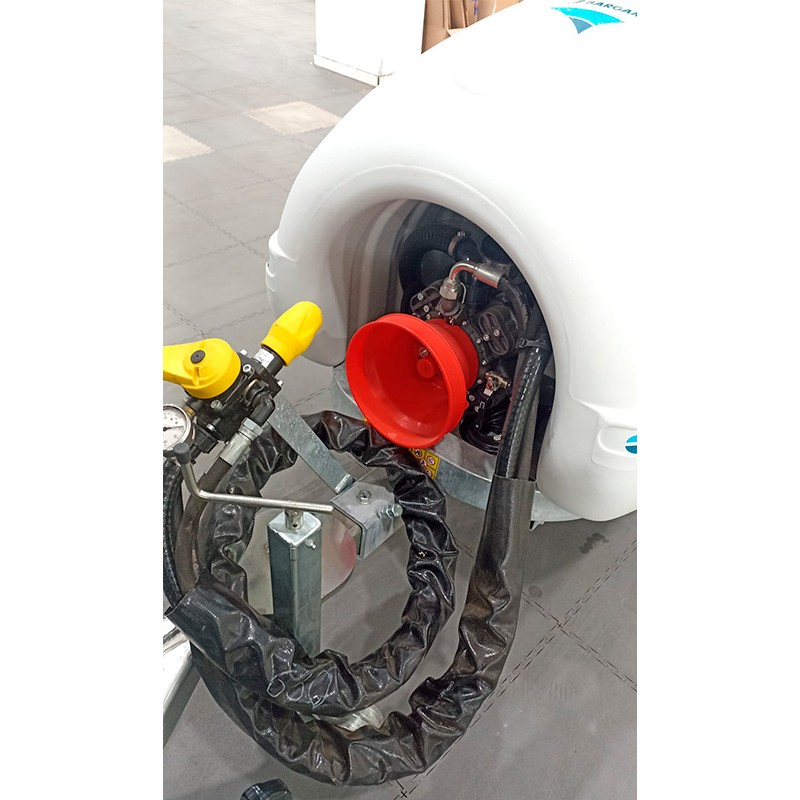

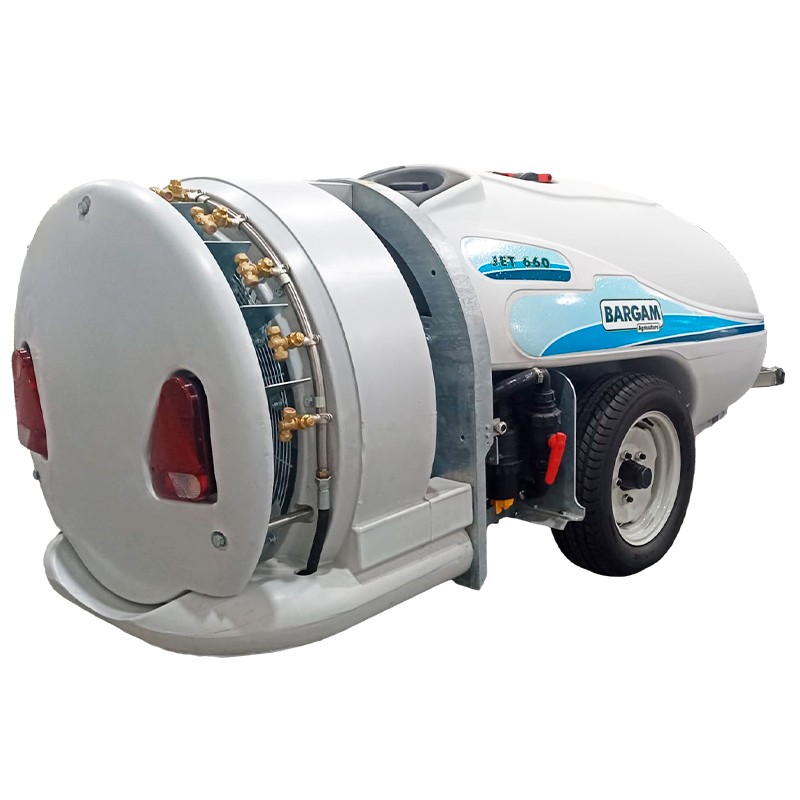

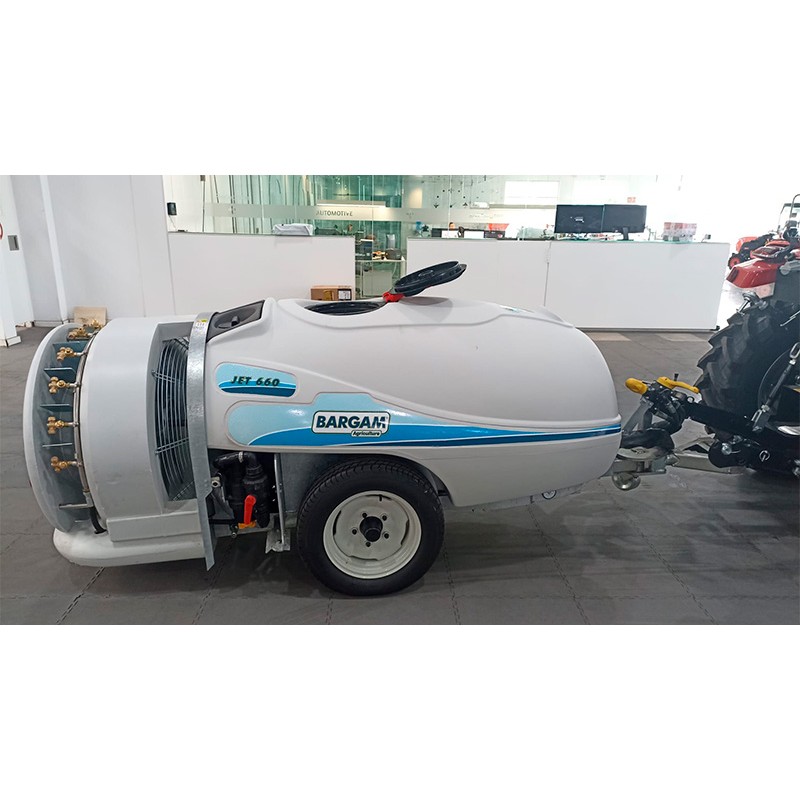

Italian-made atomizer for vineyard and orchard that combines simplicity and reliability. Polyethylene tank with total emptying and circuit flushing for quick product changes. The 70 50 diaphragm pump maintains stable flow and uniform spraying even at low tractor speed.
The single-speed fan unit with 700 mm propeller and 12 blades generates a fine mist that penetrates well into the canopy. Ten anti-drip nozzles reduce losses and the hydraulic agitator keeps the mixture homogeneous at all times. Annovi Reverberi remote control to regulate from the driver's seat and external level indicator to check the filling at a glance.

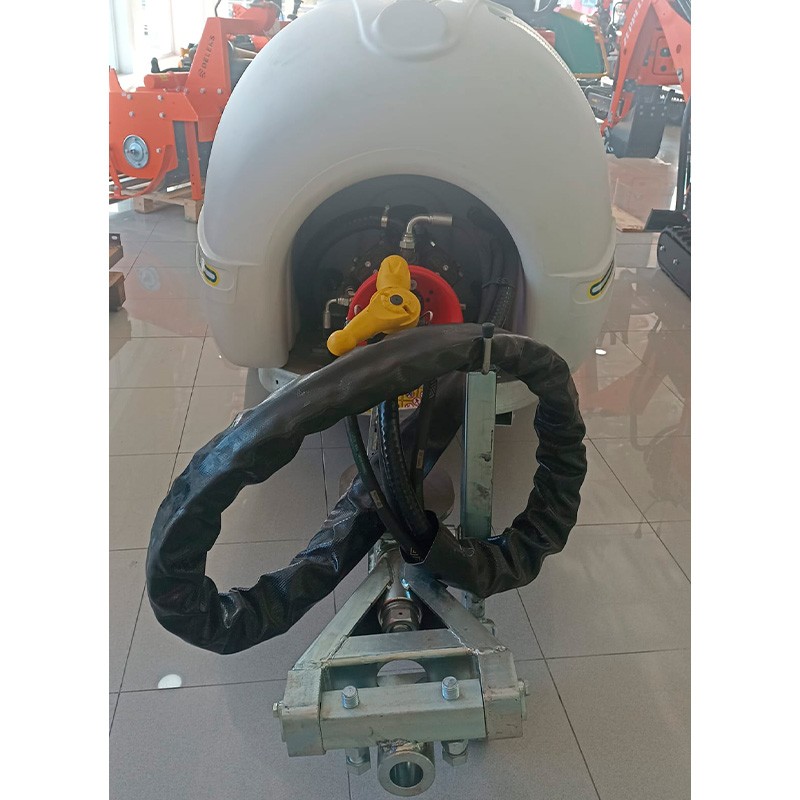

Hot-dip galvanized steel chassis designed for durability and easy maintenance access with external suction filter and fixed support for safe parking. Includes hand wash tank and CE approval.
Models and capacities | |

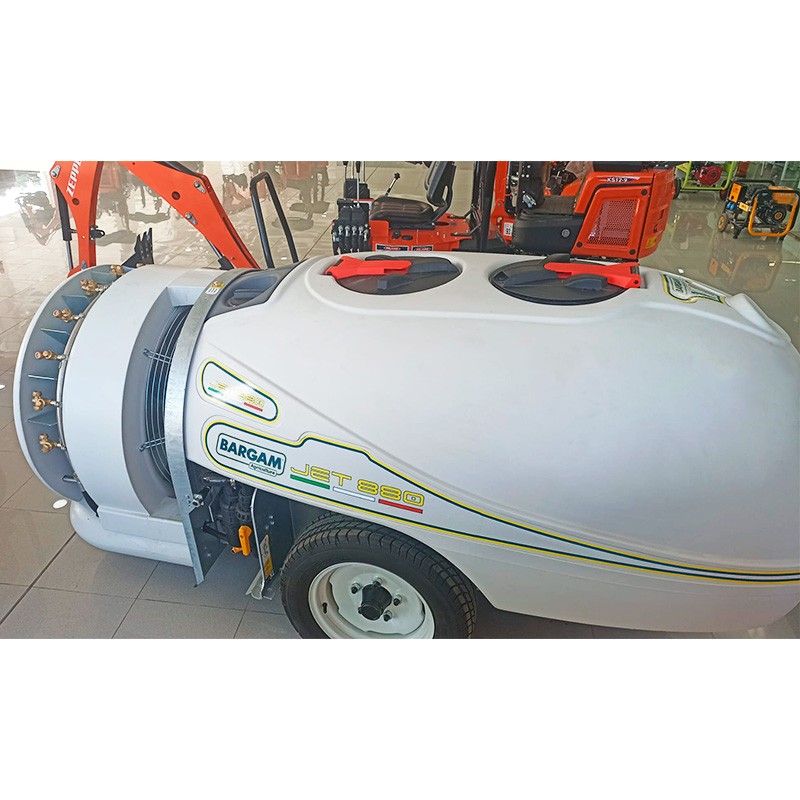

Models | ECO JET 660 L | ECO JET 880 L |
Origin | Made in Italy |
Membrane pump | |

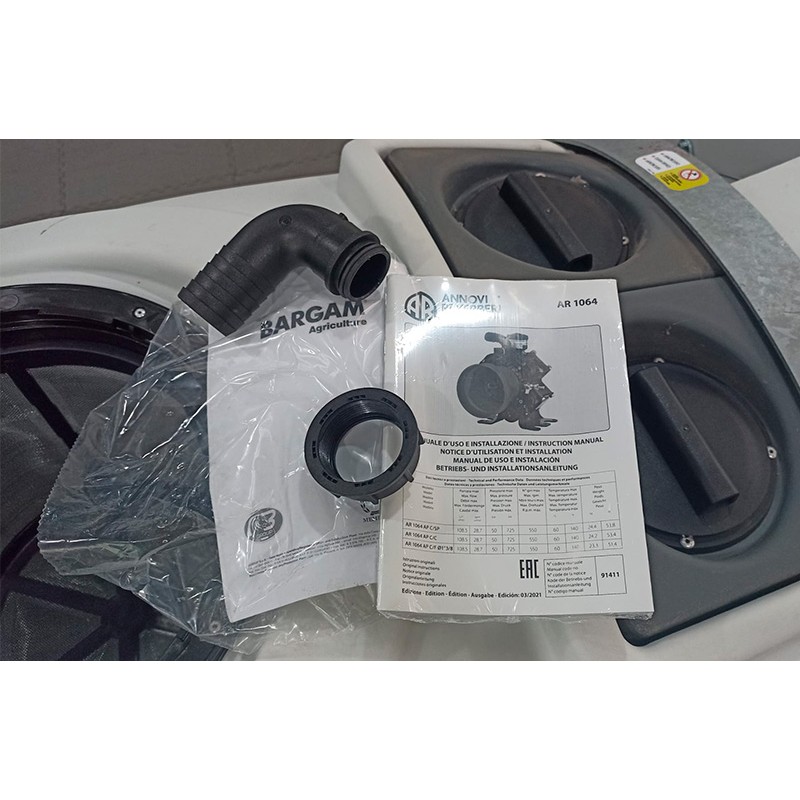

Make and model | Annovi Reverberi AR 1064 |
Maximum flow rate | 108,5 L/min |
Maximum pressure | 50 bar |
Maximum RPM | 725 rpm |
Max. temperature | 60 °C |

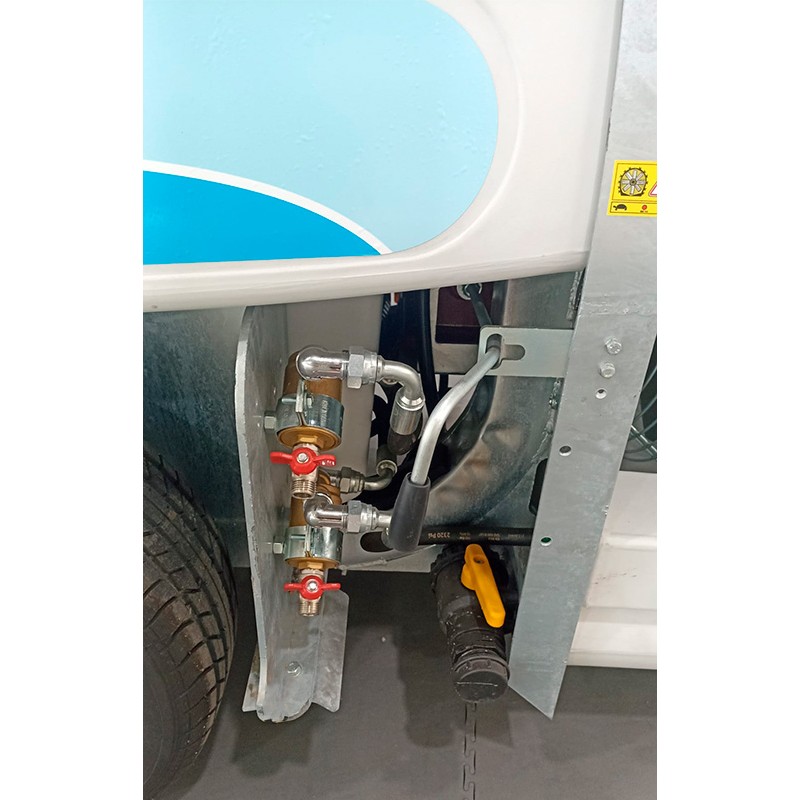

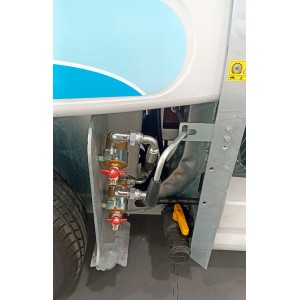

Remote control | AR Matic Annovi Reverberi |
Tanks | |
Main | Total emptying polyethylene |
Circuit flushing | Including |
Hand wash | Including |
Level indicator | External |
Spraying circuit | |

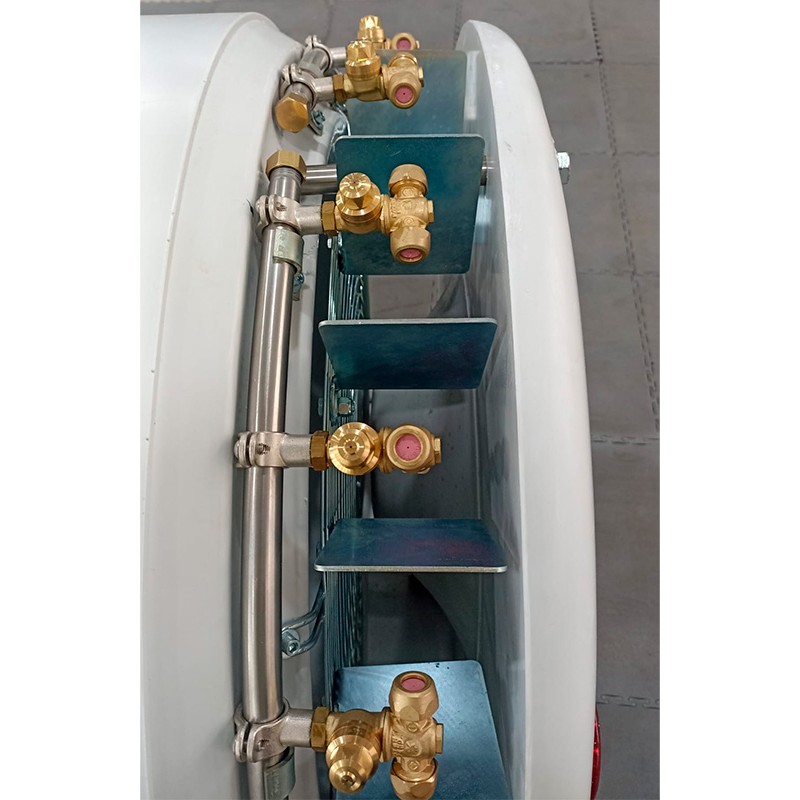

Nozzles | 10 anti-drip |
Agitator | Hydraulic |

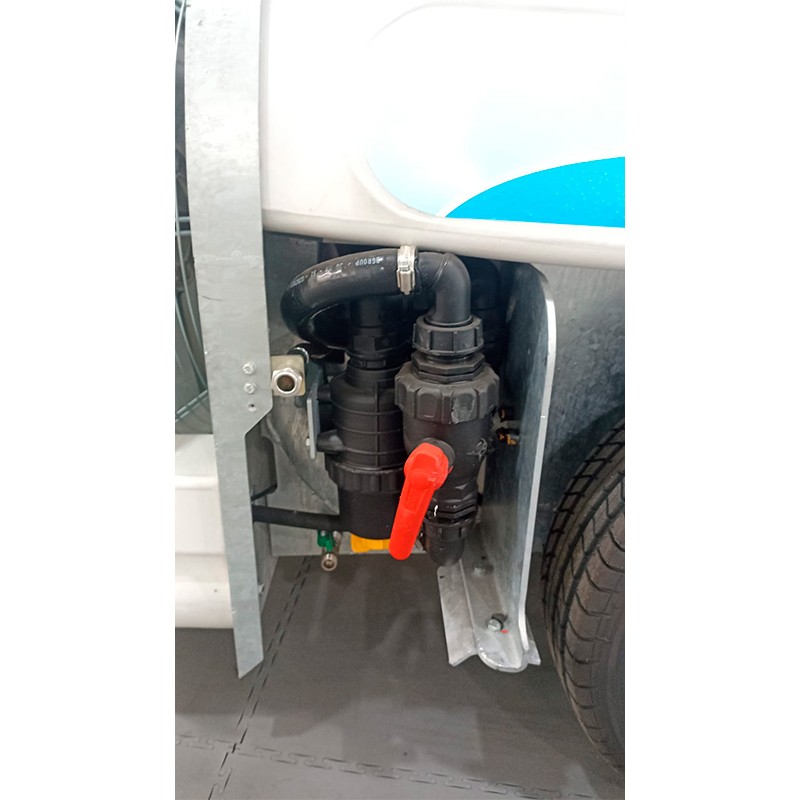

Suction filter | External |
Ventilation and air | |
Fan unit | 1 speed |
Propeller | 700 mm with 12 blades, without clutch |
Frame and chassis | |
Frame | Hot-dip galvanized steel |
Support | Fixed |
Homologation | |
Certifications | CE marking and E homologation |
IMPORTANT WARNINGS |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
