Trailed Atomizer for Tractor Centauro Polinyà 1000 L
- Power: 35-50 HP
- Turbine diameter: 820 mm
- Tank capacity: 1000 liters
- PTO SHAFT INCLUDED
€7,398.22 VAT incl.

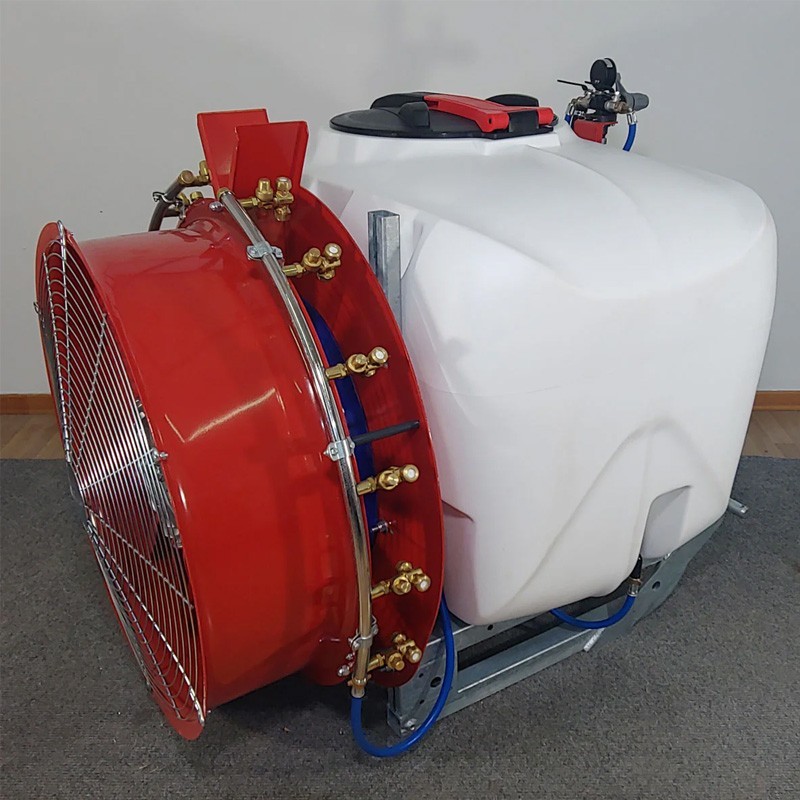

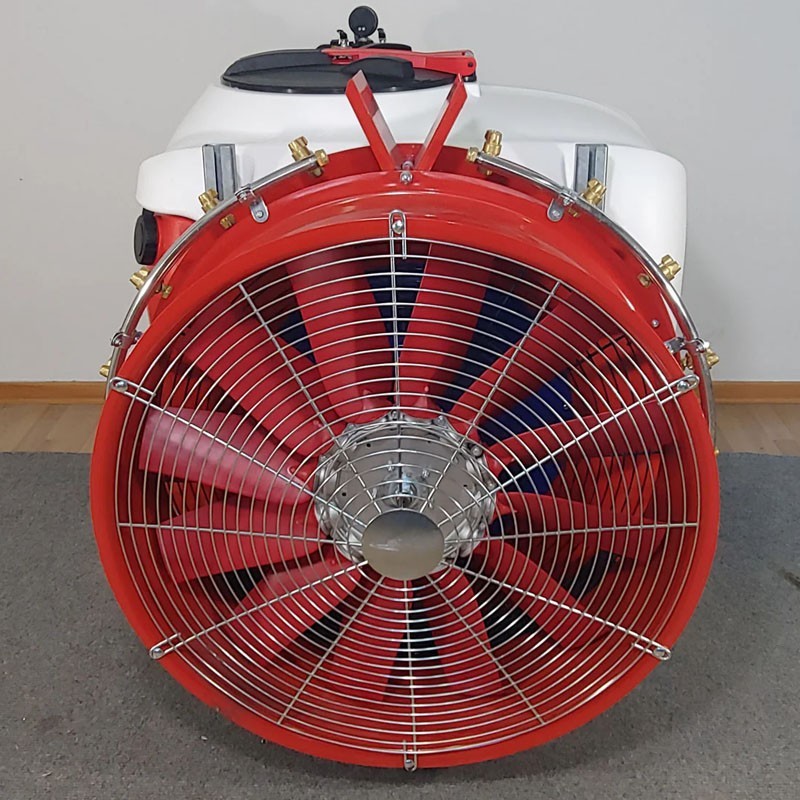

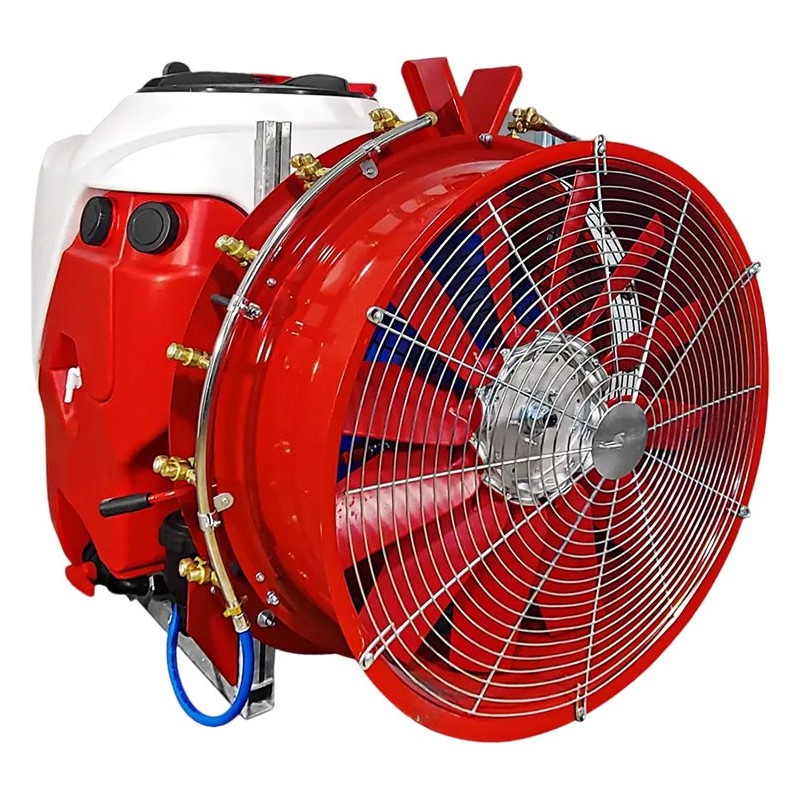

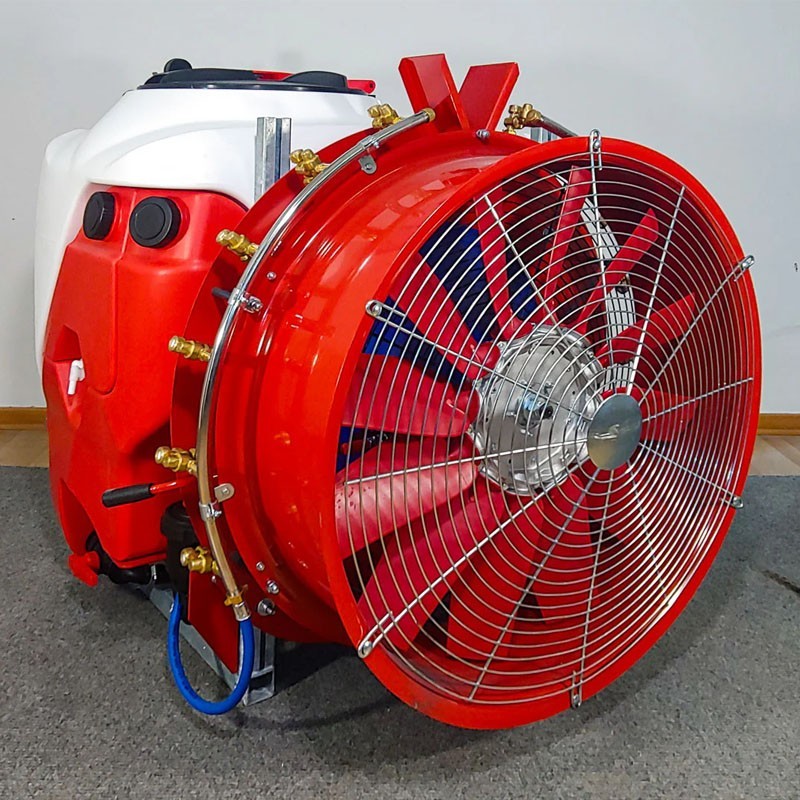

The Giemme NEO-S sprayer is a highly efficient agricultural tool designed to facilitate the application of phytosanitary products on crops. Its variable pitch fan, equipped with 9 nylon and glass blades with a diameter of 800 mm, ensures uniform distribution of the liquid.
The gear transmission in oil bath, with 2 speeds and disengagement option, offers an adaptable operability to different field needs. This atomizer has a multi-volume hydraulic agitator and a group of painted steel fans with rear suction flow, which ensures optimum performance and durability.

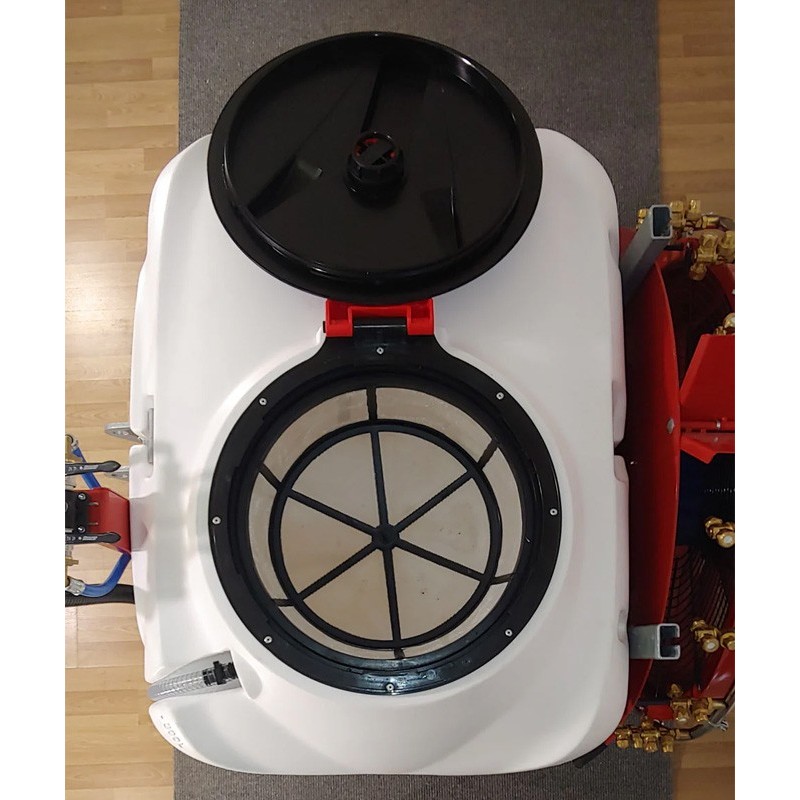

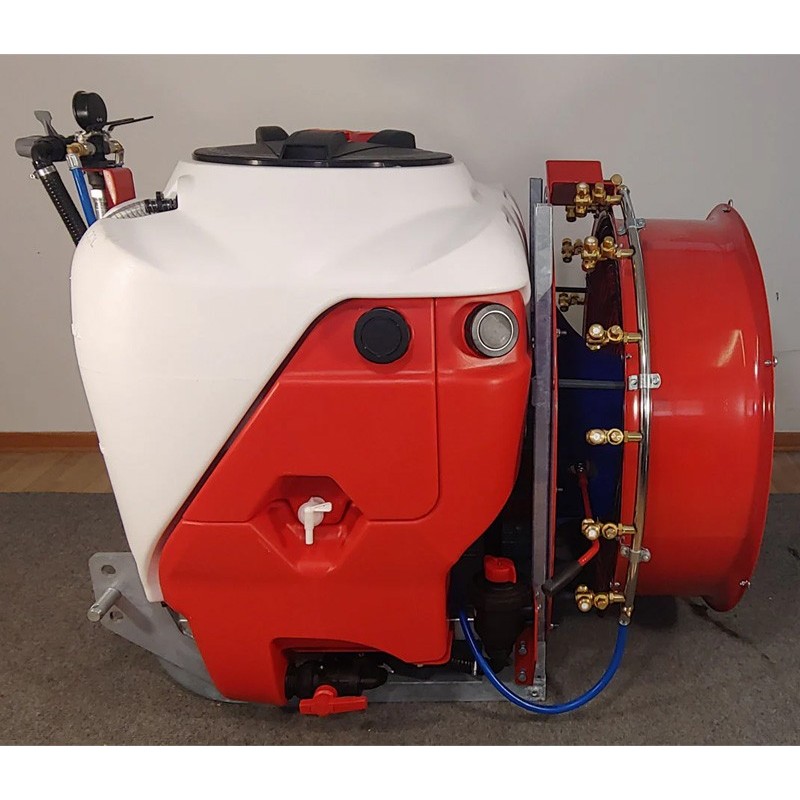

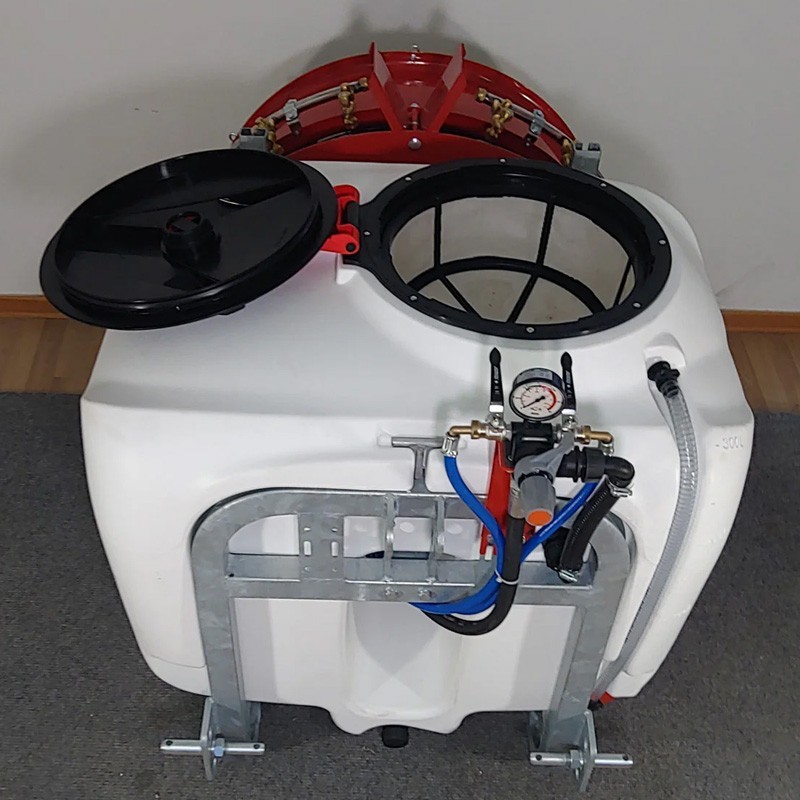

In addition, it incorporates a suction filter with check valve, as well as a total emptying polyethylene tank, accompanied by tanks for circuit washing and hand washing, providing an integral cleaning of the system.
The high quality components of the Giemme NEO-S include double anti-drip brass quick-closing nozzles, high-pressure piping and stainless steel and brass connections.

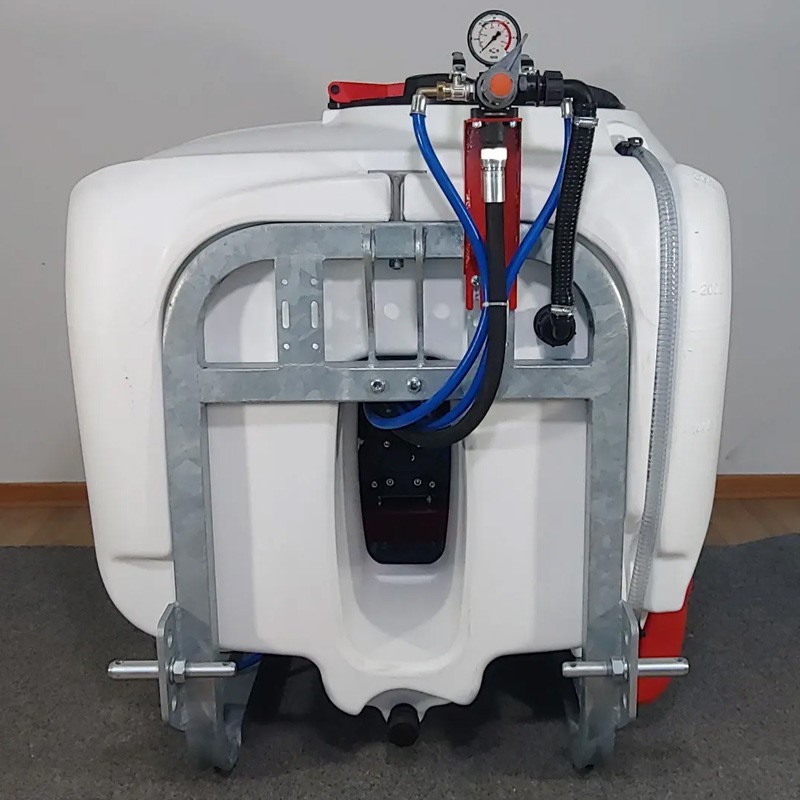

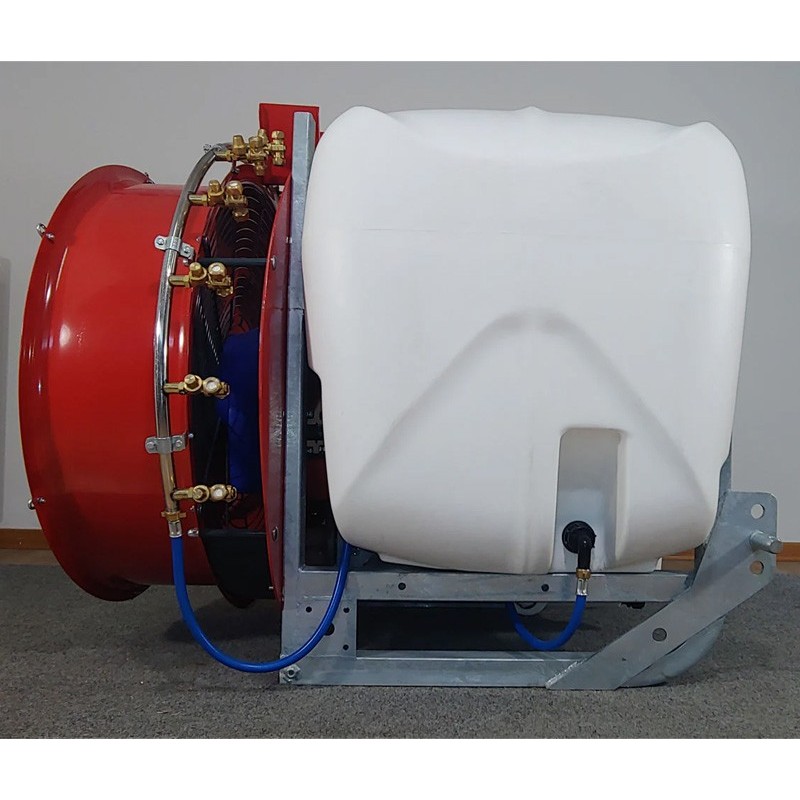

The stainless steel nozzle rods and the reinforced galvanized steel chassis stand out for their strength and long service life. The control unit Comet, with 3 high pressure valves and pressure gauge mounted on the chassis, allows a precise and safe control of the atomizer.
Model | NEO-S 300 | NEO-S 400 | NEO-S 600 |
Capacity | 300 L | 400 L | 600 L |
Number of jets | 6+6 | 6+6 | 6+6 |
Pump model | Comet APS 51 | Comet APS 71 | Comet APS 71 |
Pressure | 40 bar | 50 bar | 50 bar |
Tractor power | 35/50 HP | 45/60 HP | 50/70 HP |
Dimensions | 110 x 101 x 119 cm | 112 x 121 x 119 cm | 140 x 121 x 119 cm |
Weight | 193 kg | 199 kg | 217 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
- PTO SHAFT INCLUDED
Cardan shaft included
