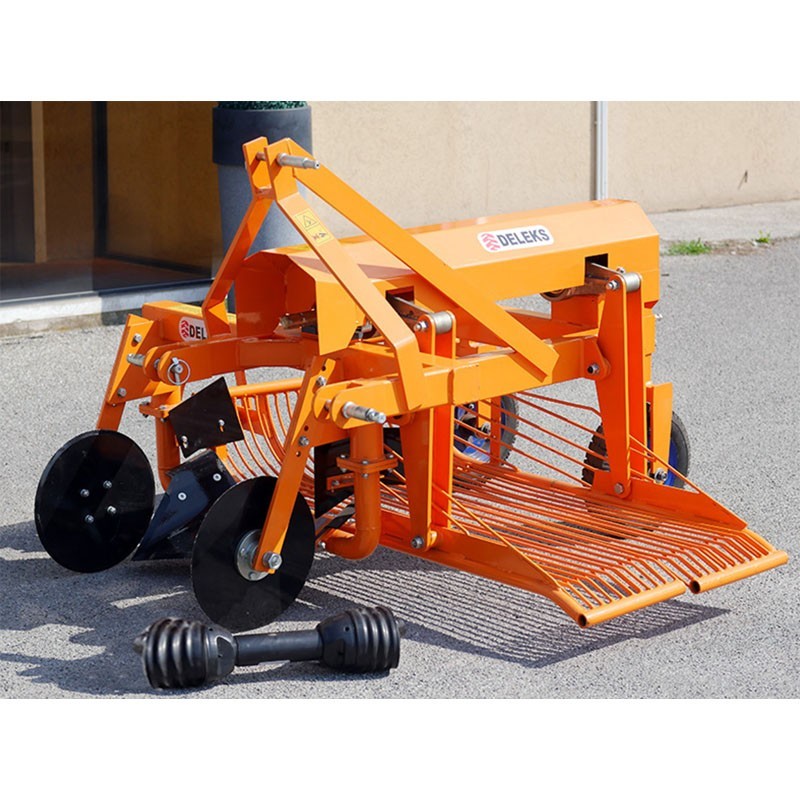

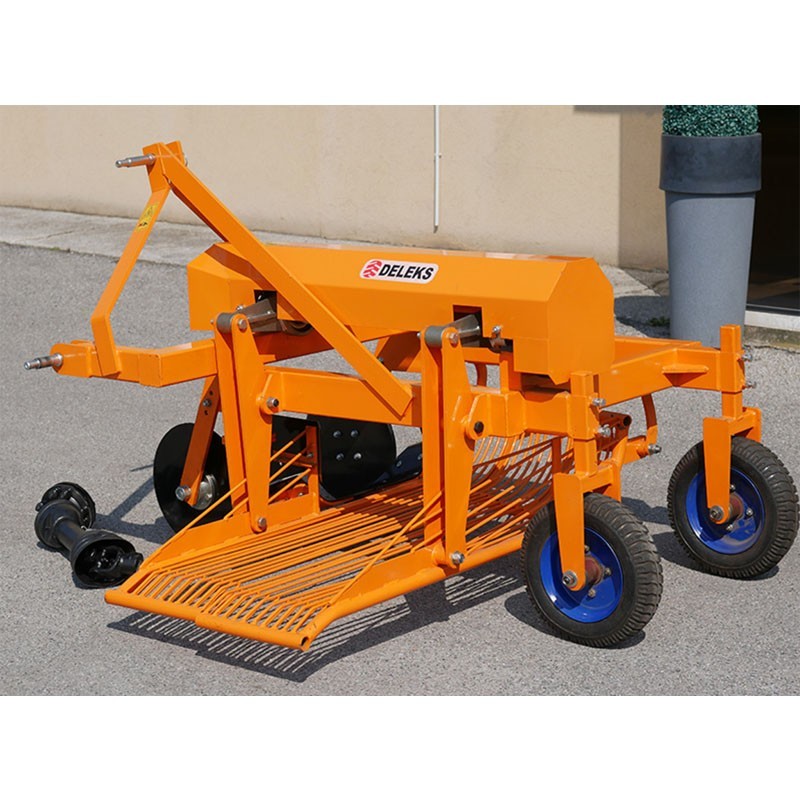

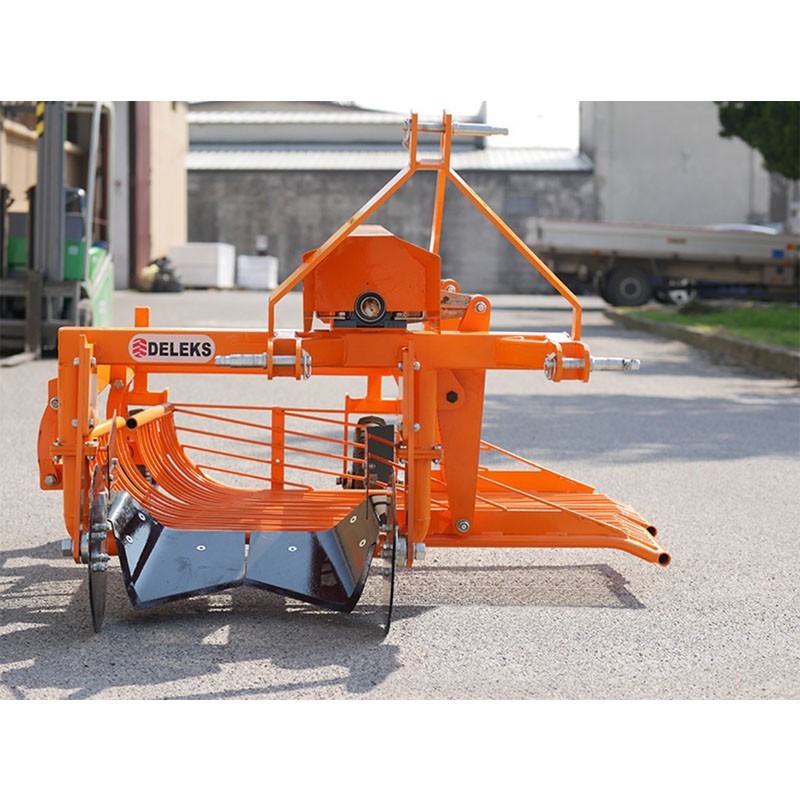

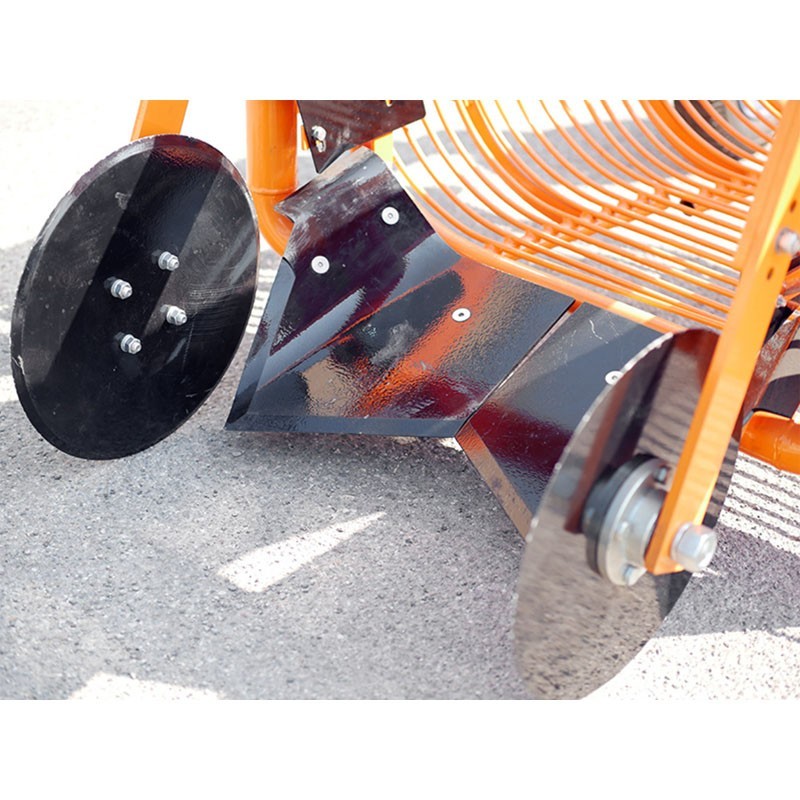

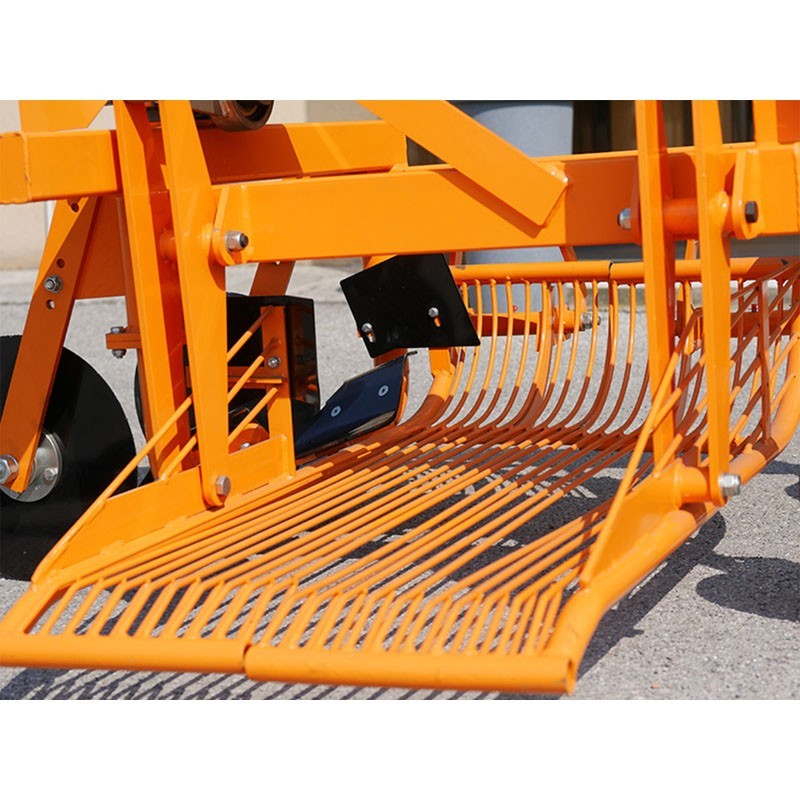

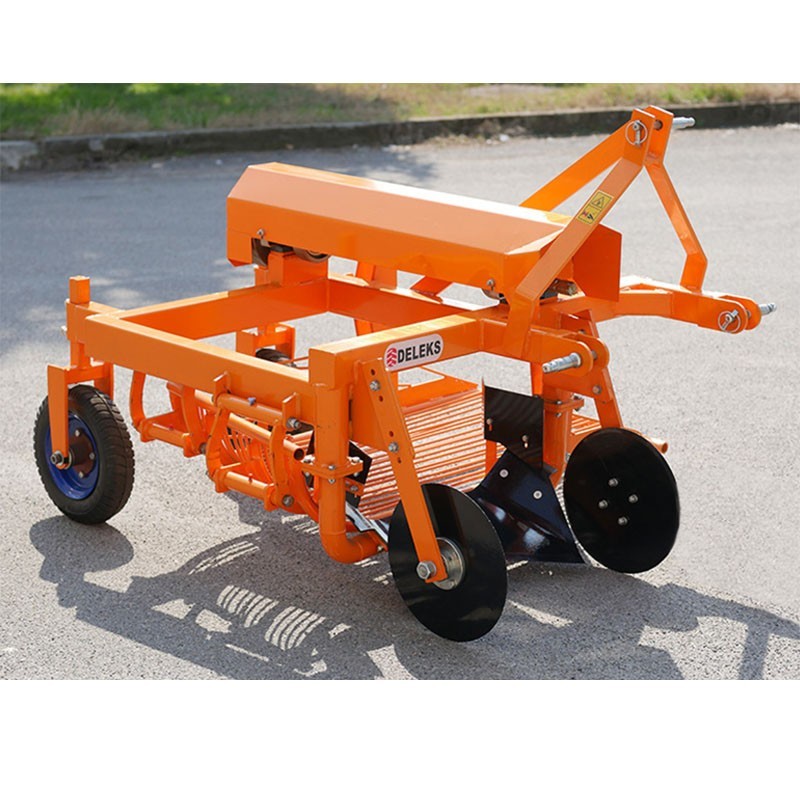

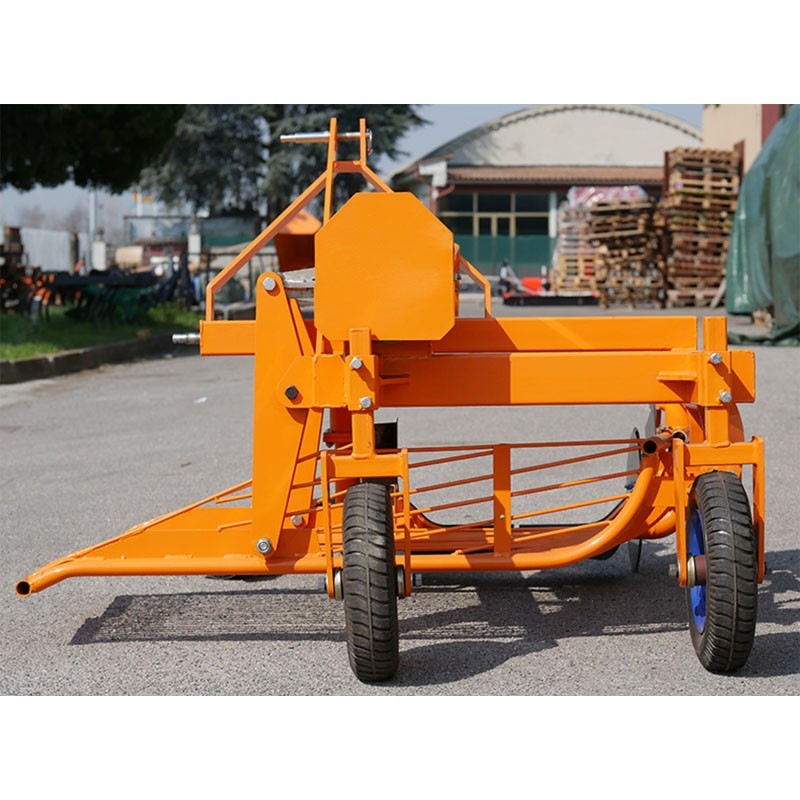

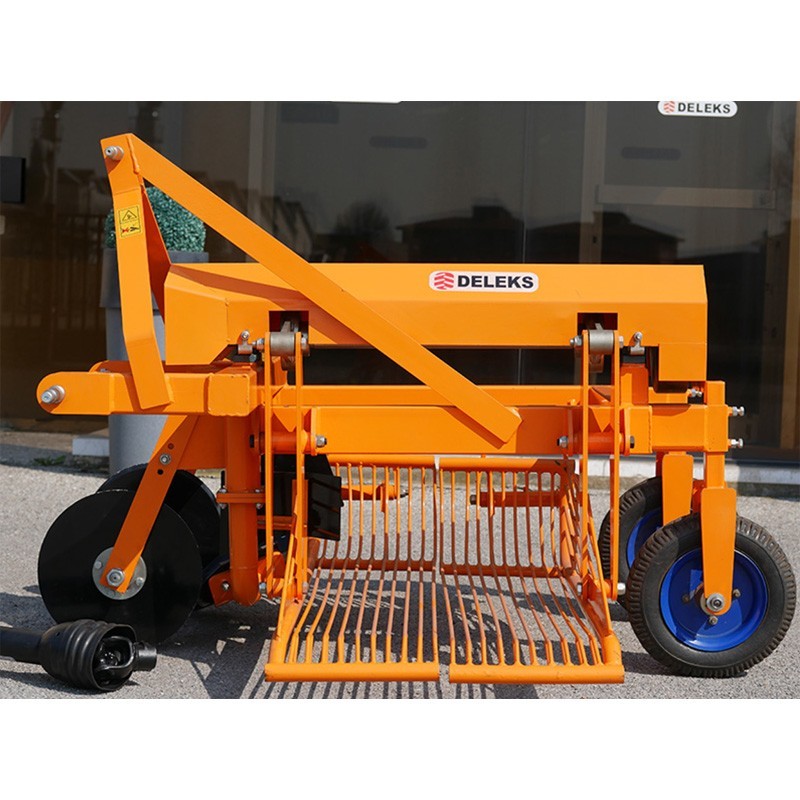

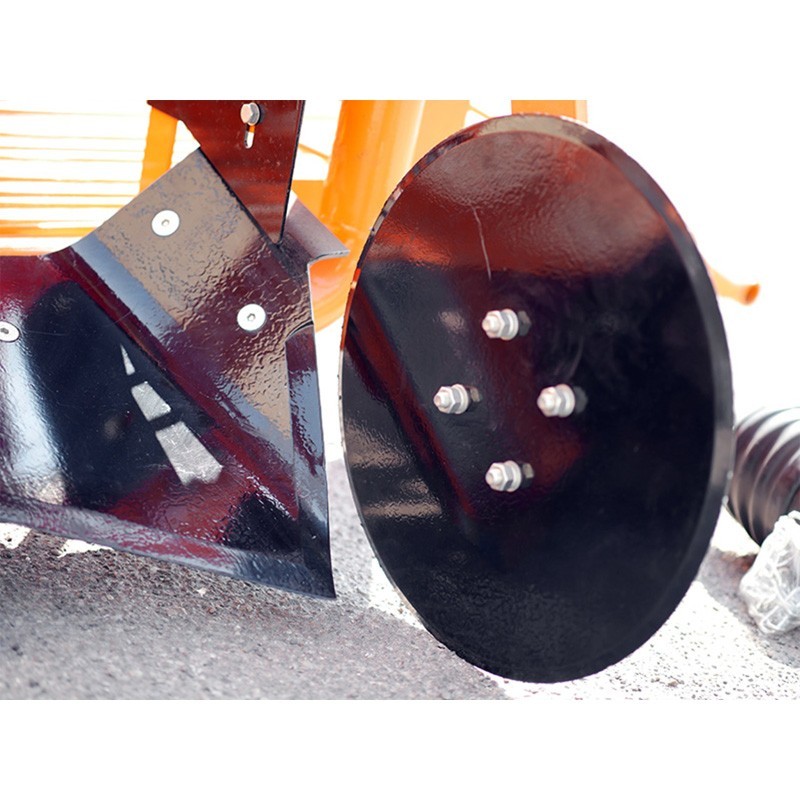

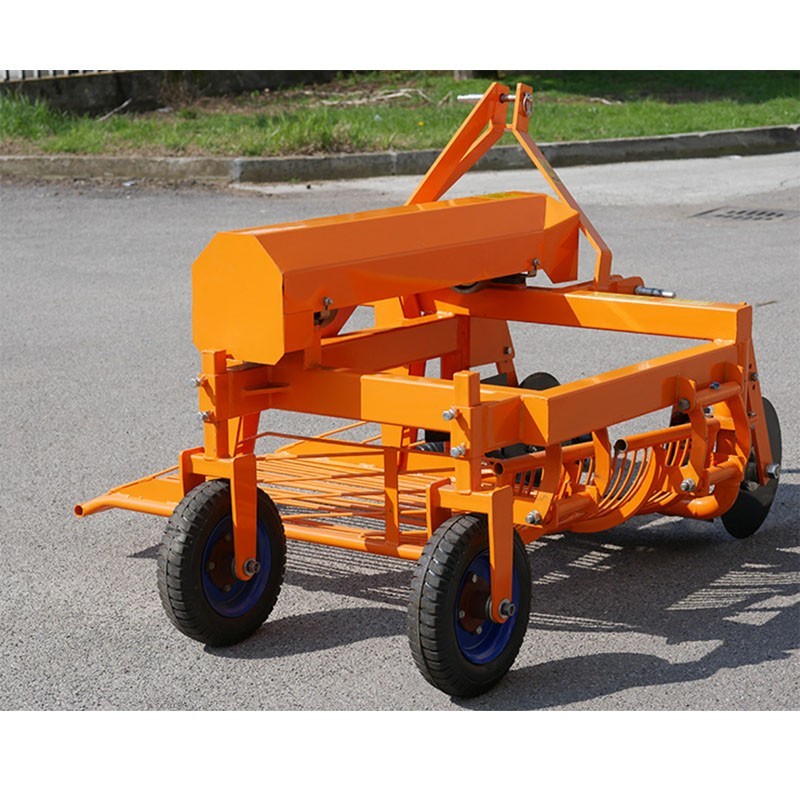

The potato digger for tractor Deleks DPT-150 35-60 HP is composed of a vibrating furrow that allows to penetrate the soil and extract the potatoes and of a grid that separates the potatoes from the soil, it is adapted for most tractors with a minimum power of 35 - 60 HP.

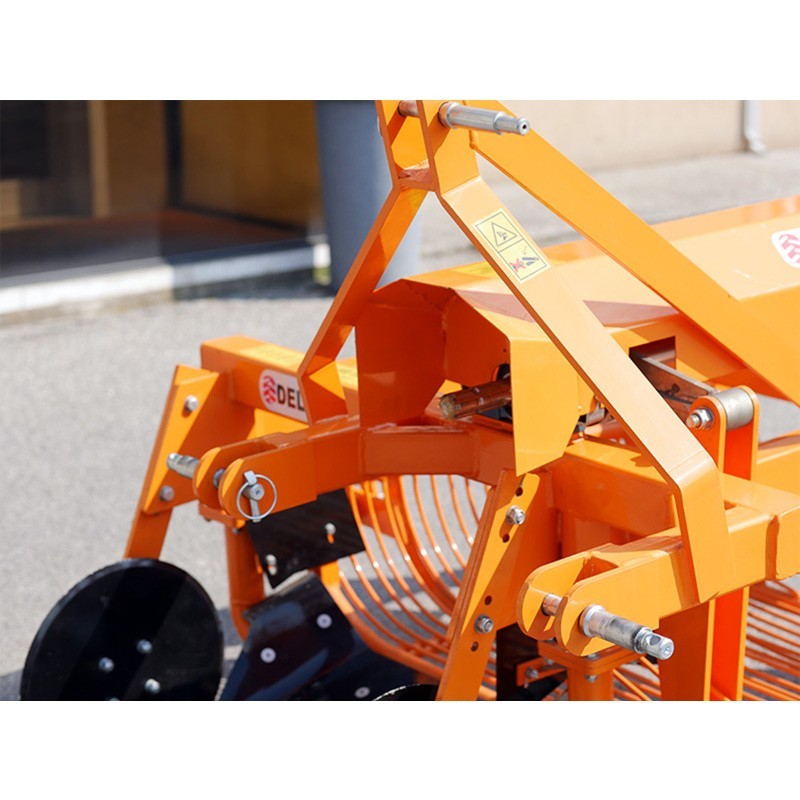

Ithas a 3-point hitch of category 1 - 2 and complies with CE conformity, it has the possibility to extract potatoes from a field in a single operation, it can be used for other types of crops, it has a reinforced chassis, which makes it a machine with a long life and longevity.

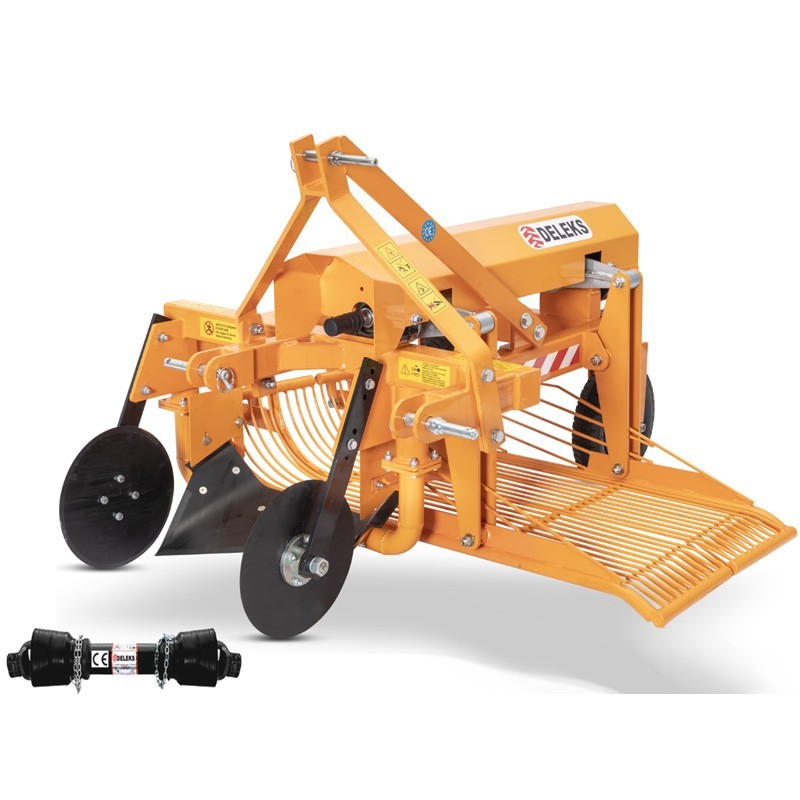

It comes with a cardan shaft included so that it can be coupled to the tractor much more easily. It has a working width of 630 mm, making it a useful machine for harvesting potatoes. It weighs about 272 kg, which makes it a robust machine that fulfills its function correctly.
Overall width | 1500.0 mm |
Weight | 272.0 kg |
Total height | 1100.0 mm |
Tractor power | 35 - 60 HP |
3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Position of the transmission box | 400.0 mm on left side/ 700.0 mm on right side |
Plate thickness. 3-point hitch | 12.0*60.0 mm |
Distance between lower points | 555.0 - 820.0 mm |
Total length | 1600.0 mm |
Distance between 2 points and the floor | 580.0 mm |
Working depth | Adjustable |

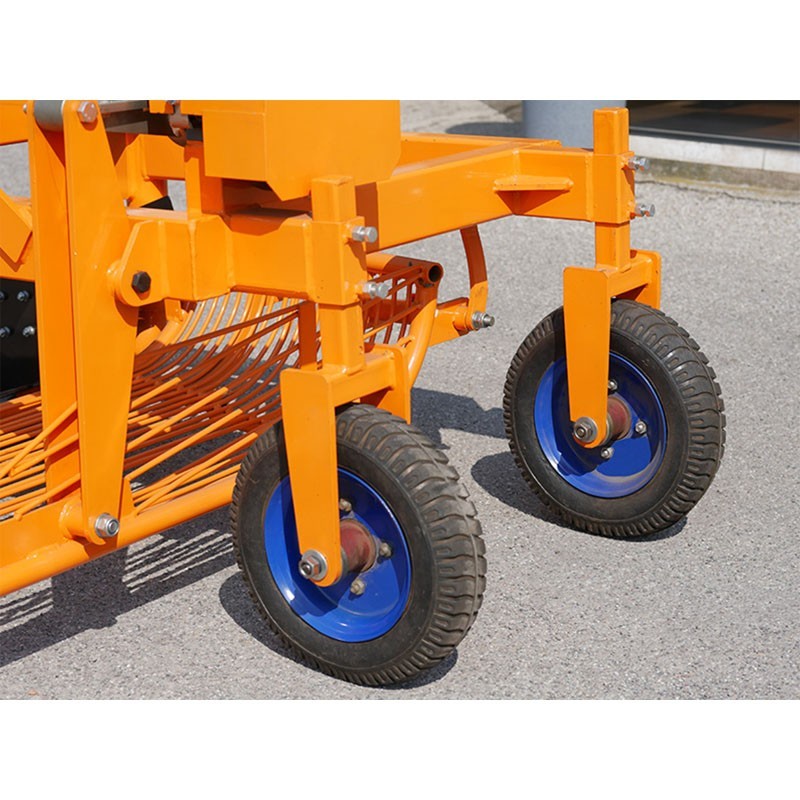

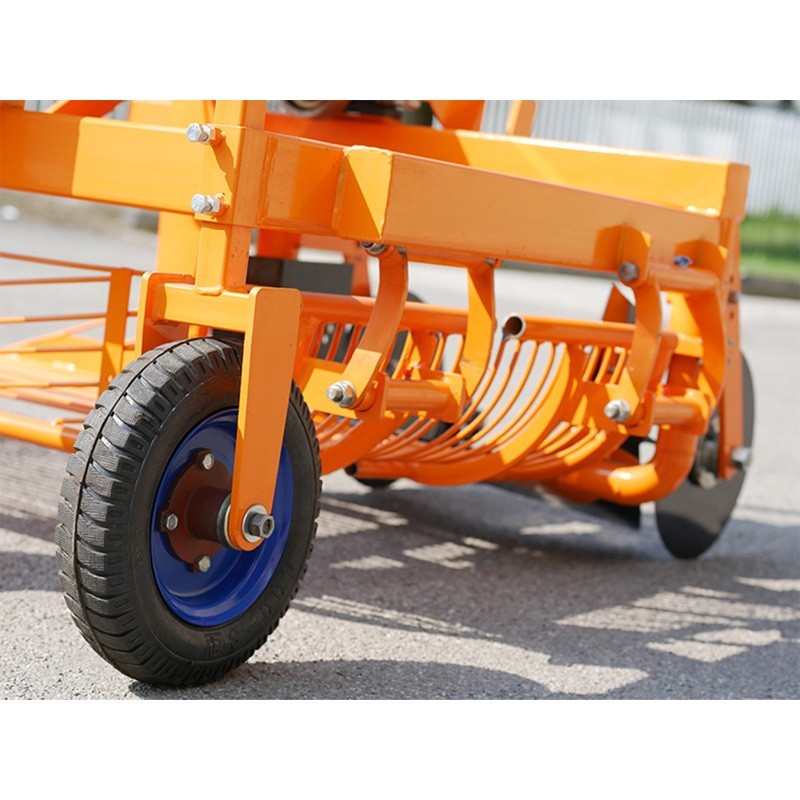

ø Wheels | 380*9 mm |
Working width | 630.0 mm |
Space between gearbox and ground | 680.0 mm |
Cardan shaft | CE 4x800 mm + Pin |
Direction of rotation PTO | Right side |
PTO | 540 g/min |
Packing dimension | 1150.0*1600.0*100.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
