PTO Mechanical Elevator EuroCentauro Palafrugell
- Tractor power: 15-60 HP
- Load capacity: 300-1200 Kg
€552.18 VAT incl.
Deleks products take about 15 to 25 days. |

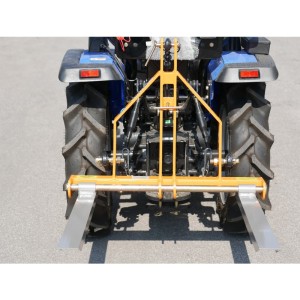

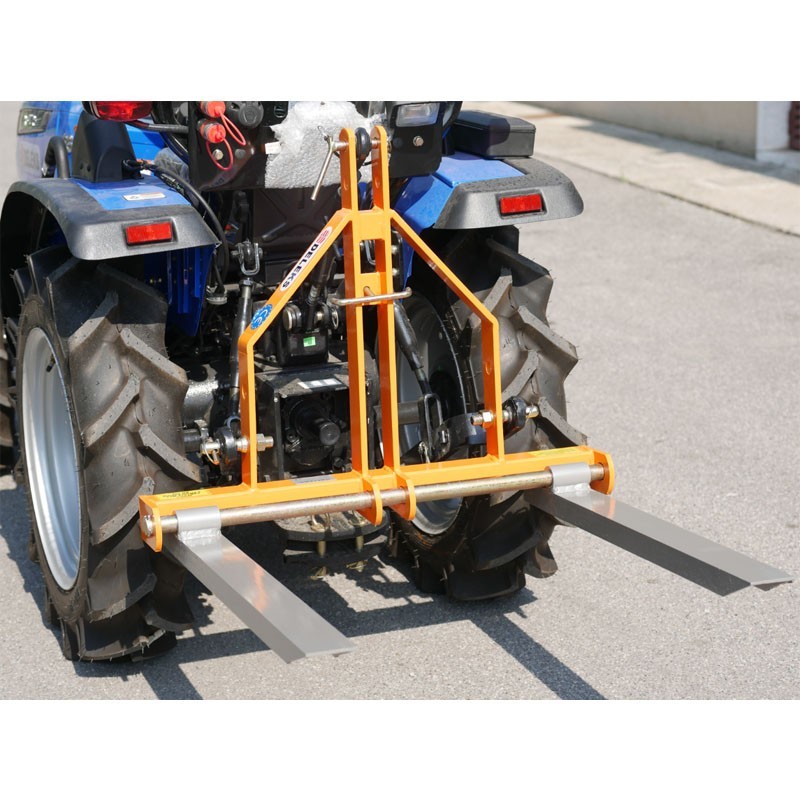

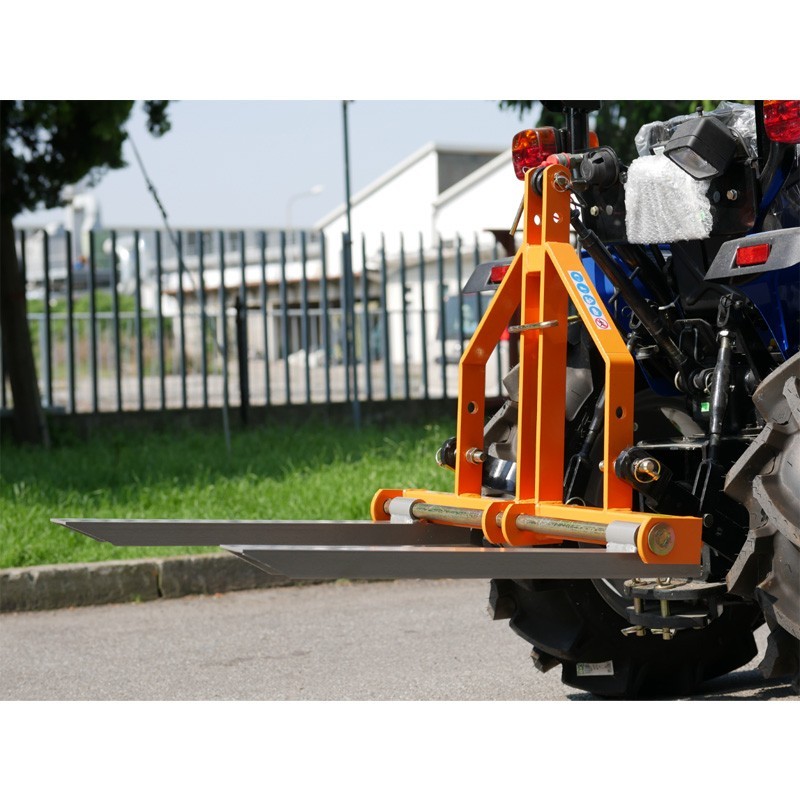

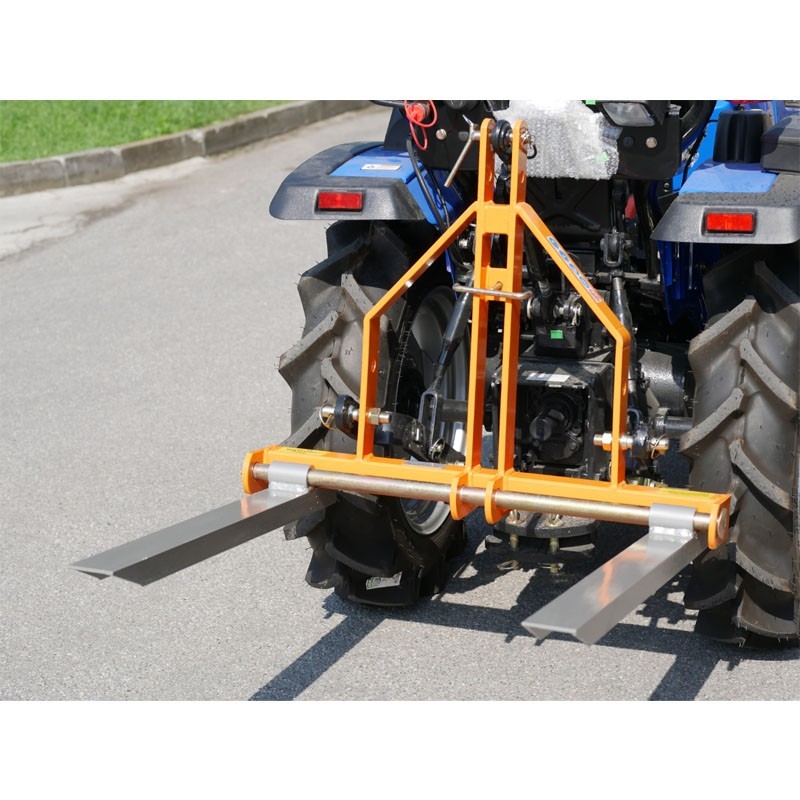

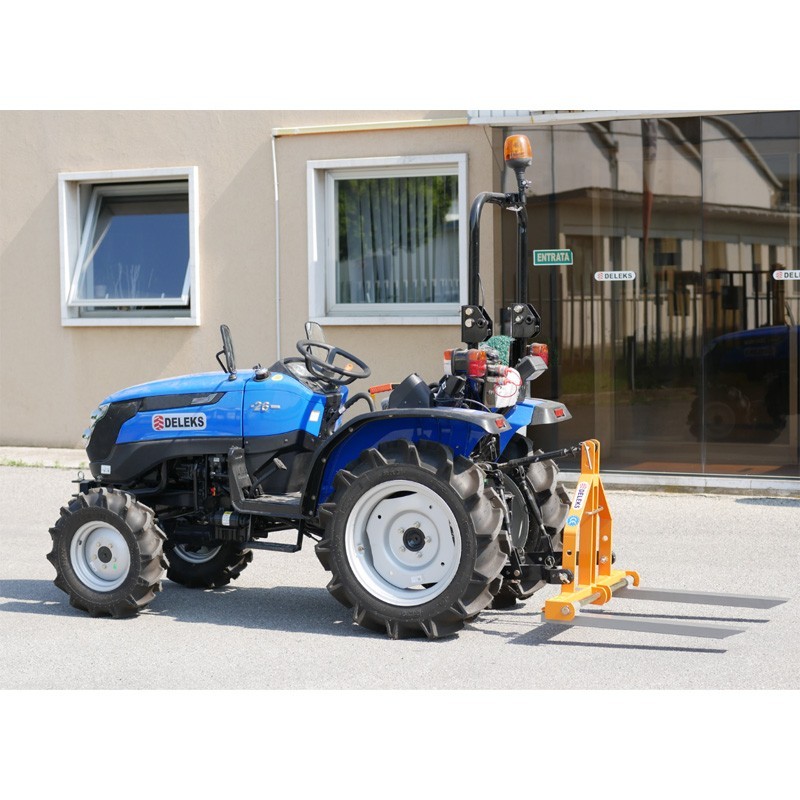

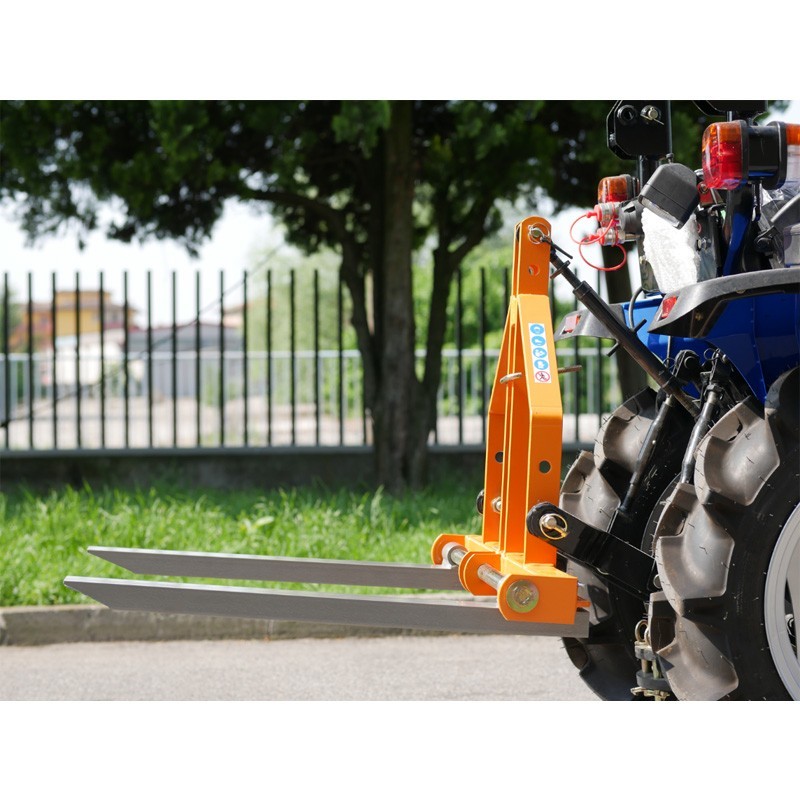

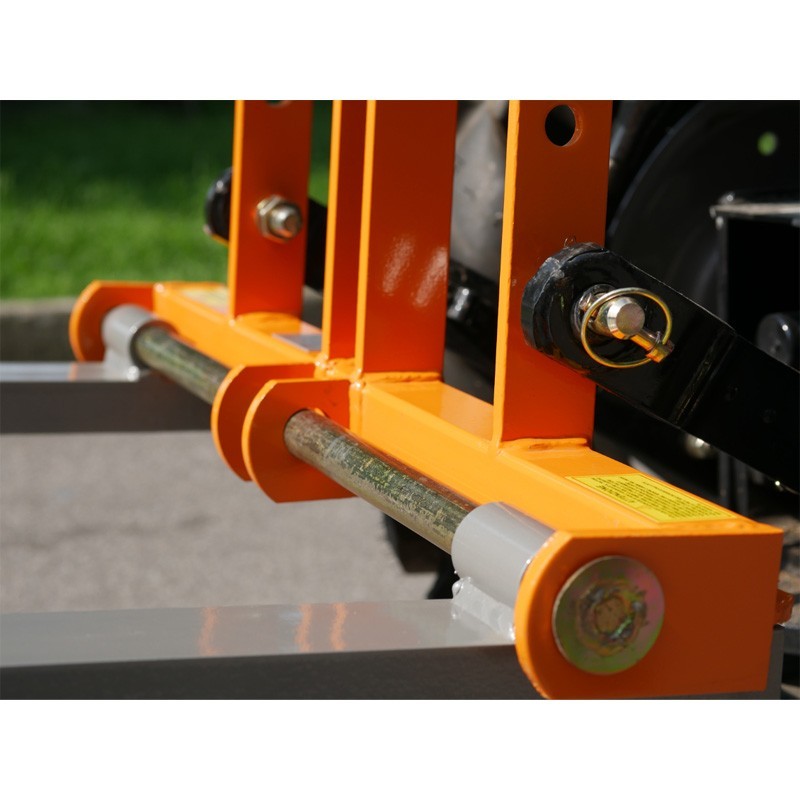

The DELEKS D-300 300kg rear pallet lift for tractor is made for micro tractors with power from 12 to 45 HP, its conception allows an easy adjustment of the space between the forks and a locking of the forks.

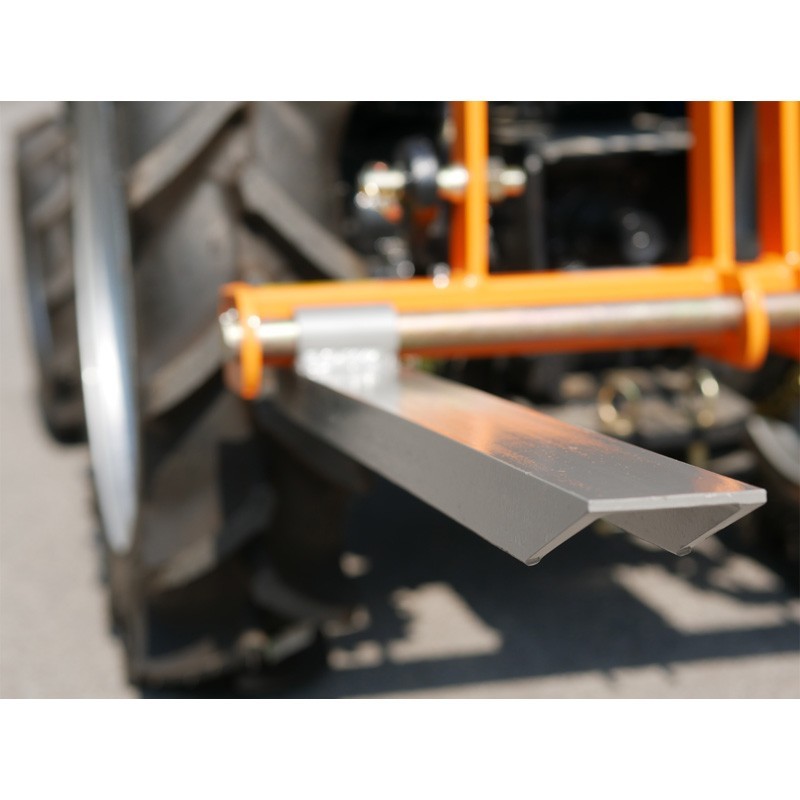

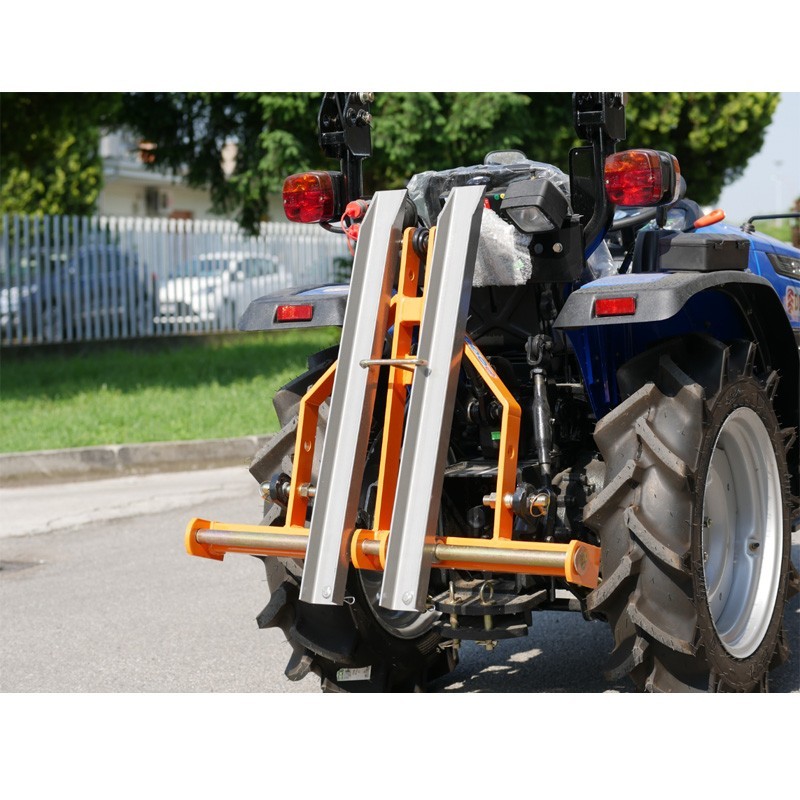

The weight of the load is well distributed on the 3 points, which allows not to create stress points, the adjustable forks allow you to work on farms and in warehouses, the forks can be folded when not in use.
Overall width | 910.0 mm |
Weight | 54.0 kg |
Total height | 740.0 mm (open) |
Tractor power | 12 - 45 hp |

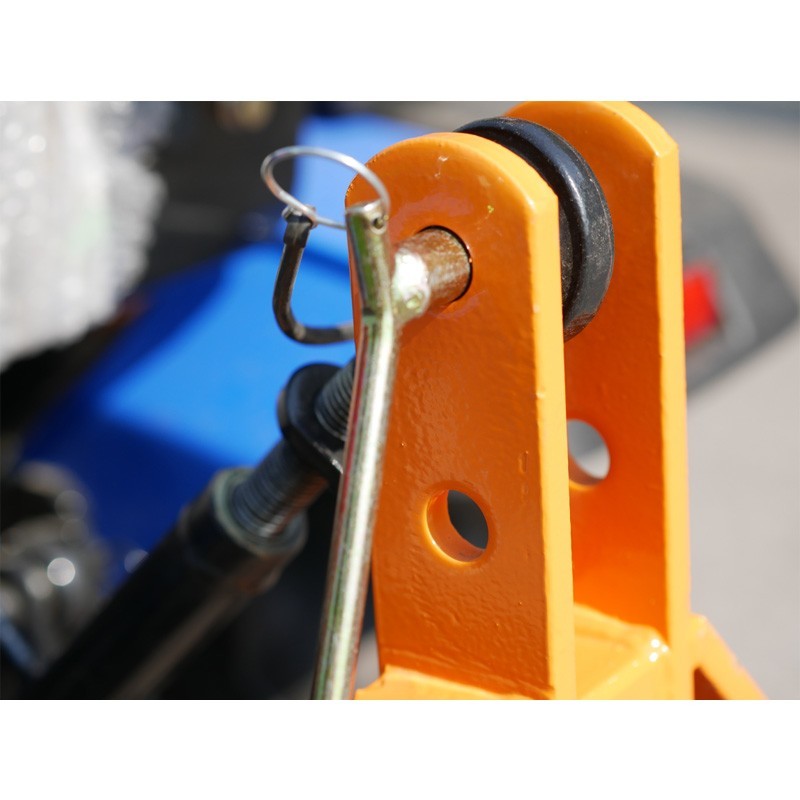

3-point hitch | Cat. 1 (ø 19.0-22.0mm) |

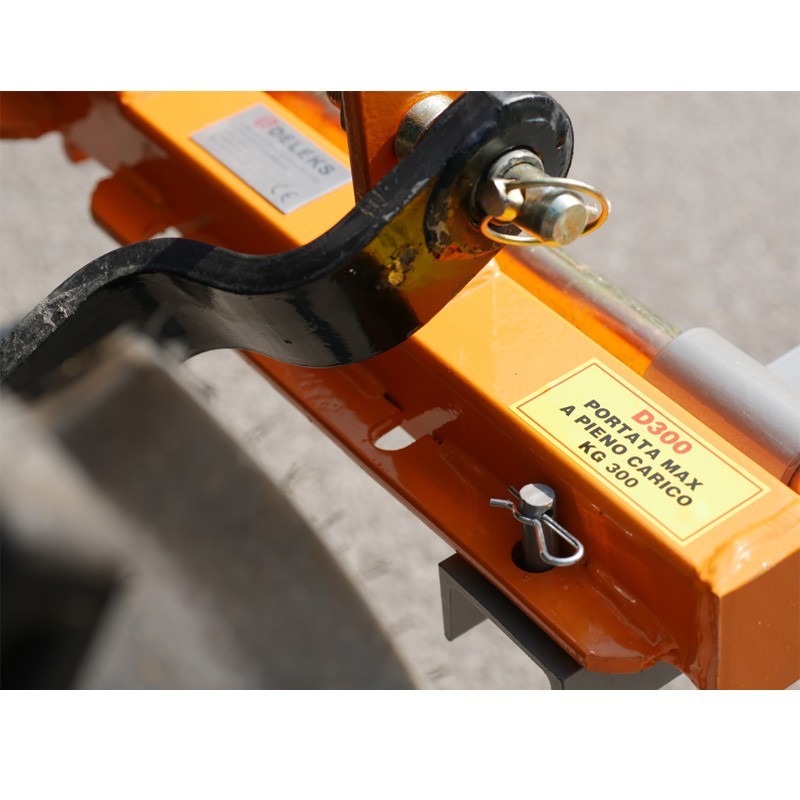

Load capacity | 300.0 kg |
Plate thickness. 3-point hitch | 15.0 mm |
Distance between lower points | 360.0 / 610.0 mm |
Useful length of forks | 750.0 mm |
Length of forks | 900.0 mm |
Fork height | 45.0 mm |
Fork width | 80.0 mm |
Fork thickness | 7.0 mm |
Weight of one fork | 7.6 kg |
Distance between forks (min.max) | 100.0 / 655.0 mm |
Fork position | 4 + 4 |
Horizontal tube diameter | 32.0 mm |
Distance between 2 points and ground | 160.0 / 260.0 mm |
Total length (open and closed) | 900.0 / 210.0 mm |
Packing dimension | 900.0*900.0*300.0 mm |
