Silage cutting bucket EuroCentauro Campello 160 cm
- Working width: 1600 mm
- Load capacity: 0.83 m3
€6,025.36 VAT incl.
Deleks products take about 15 to 25 days. |

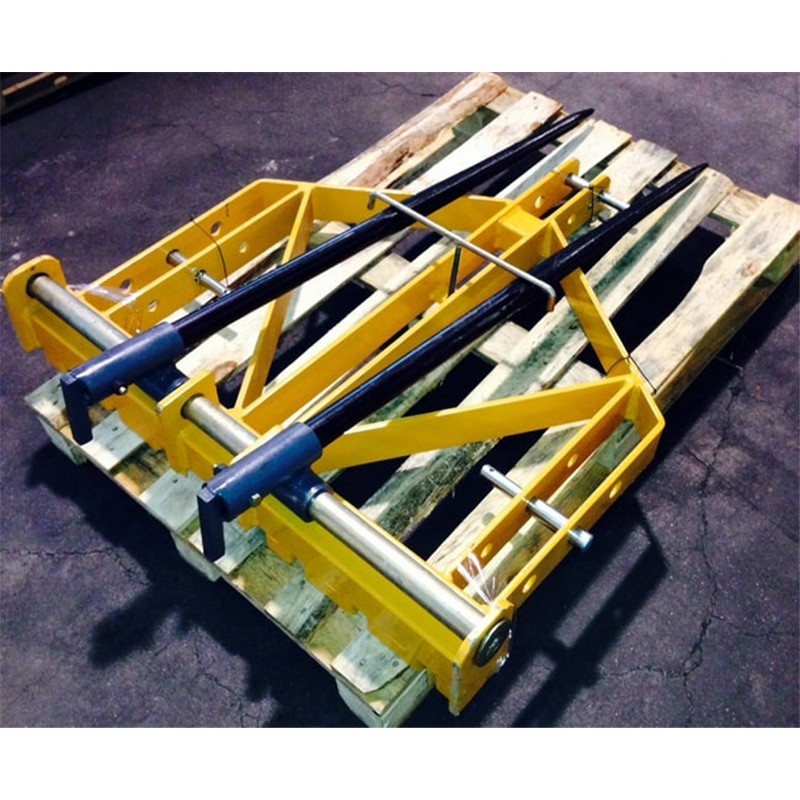

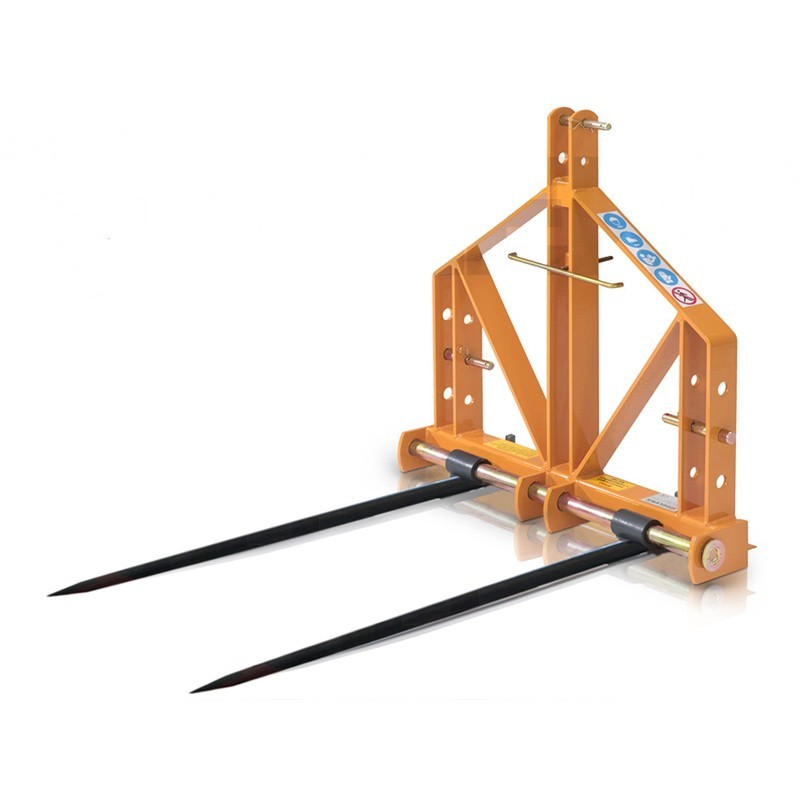

The Deleks D-700 pallet loader is an ideal accessory for tractors with a power range of 20 to 90 HP. Thanks to the 120.3cm long forks with a diameter of 4.2cm; it is possible to load a pallet of up to 700kg. Additionally, each fork weighs only 9.2kg.
This D-700 pallet loader has a distance between the forks ranging from 19.8cm to 67.3cm. This model has overall dimensions of 95cm in width, 98cm in height with the forks raised, and 124cm with the forks open, with a weight of only 77kg.
Total width | 950 mm |
Weight | 77 kg |
Total height | 980 mm (open) |
Tractor power | 20 - 90 HP |
3-point hitch | Cat. 1-2 (ø 19-22mm / 25-28mm) |
Load capacity | 700 kg |
Thickness of 3-point hitch plate | 10 mm |
Distance between lower points | 580 / 840 mm |
Useful fork length | 1165 mm |
Fork length | 1203 mm |
Weight of one fork | 9.2 kg |
Distance between forks (min.max) | 198 / 673 mm |
Fork position | 3 + 3 |
Horizontal tube diameter | 40 mm |
Distance between 2 points and the ground | 185 / 285 / 385 mm |
Total length (open and closed) | 1240 / 280 mm |
Forks: diameter | 42 mm |
Packaging dimensions | 1200*950*300 mm |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
