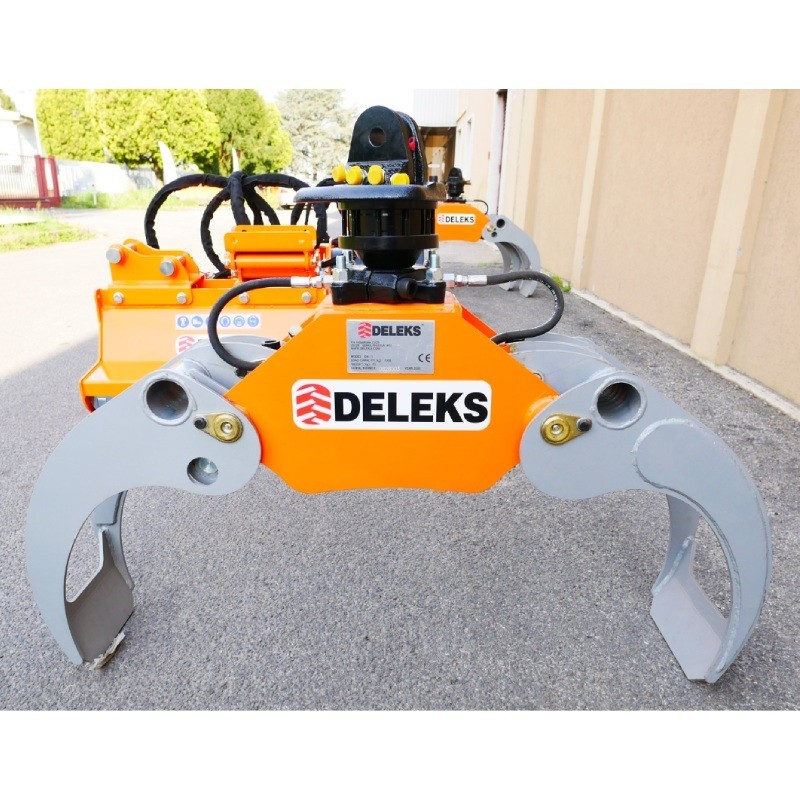

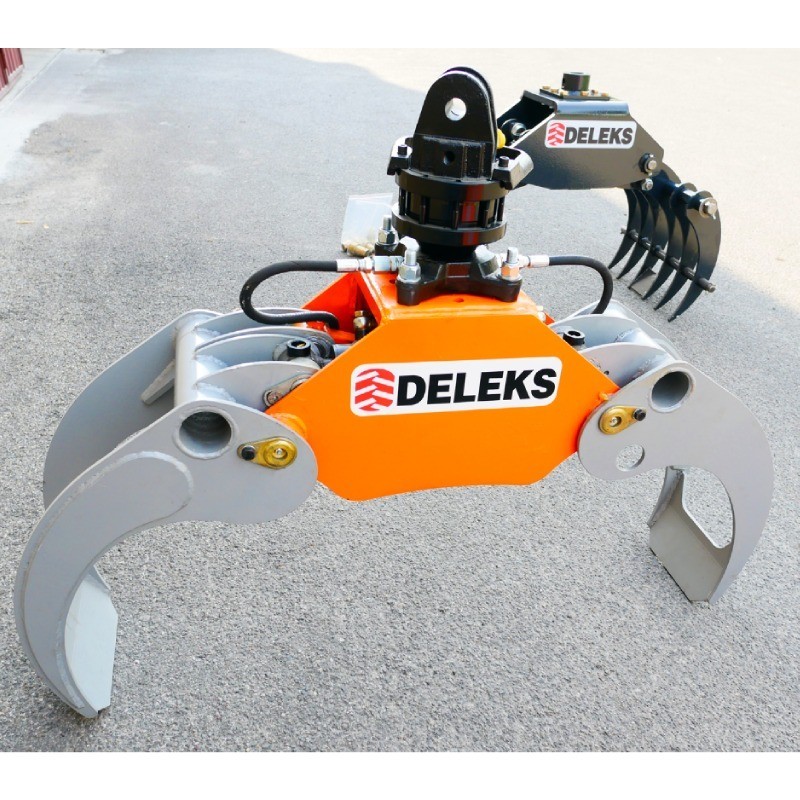

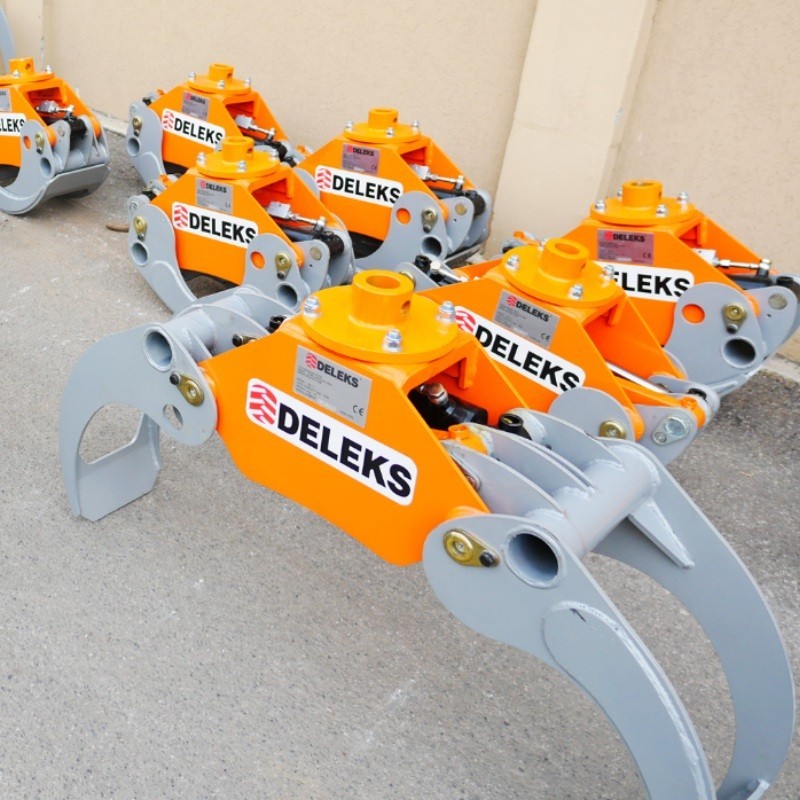

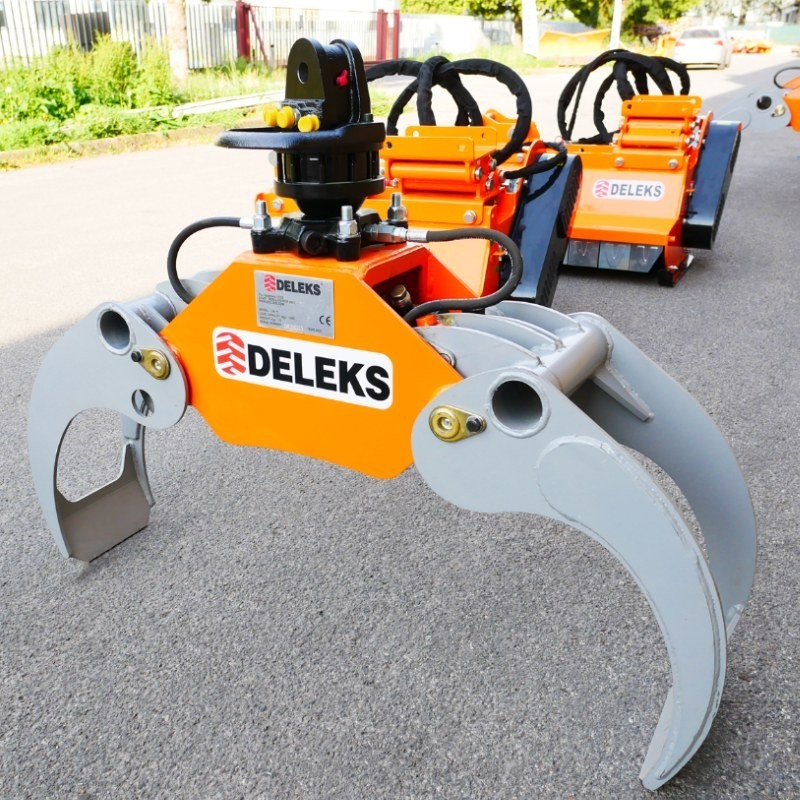

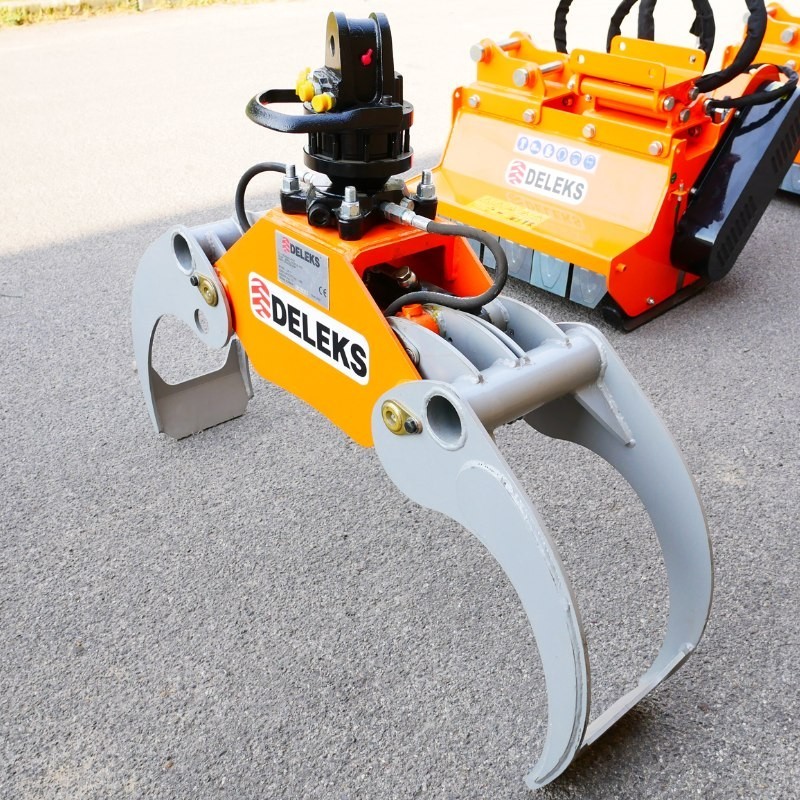

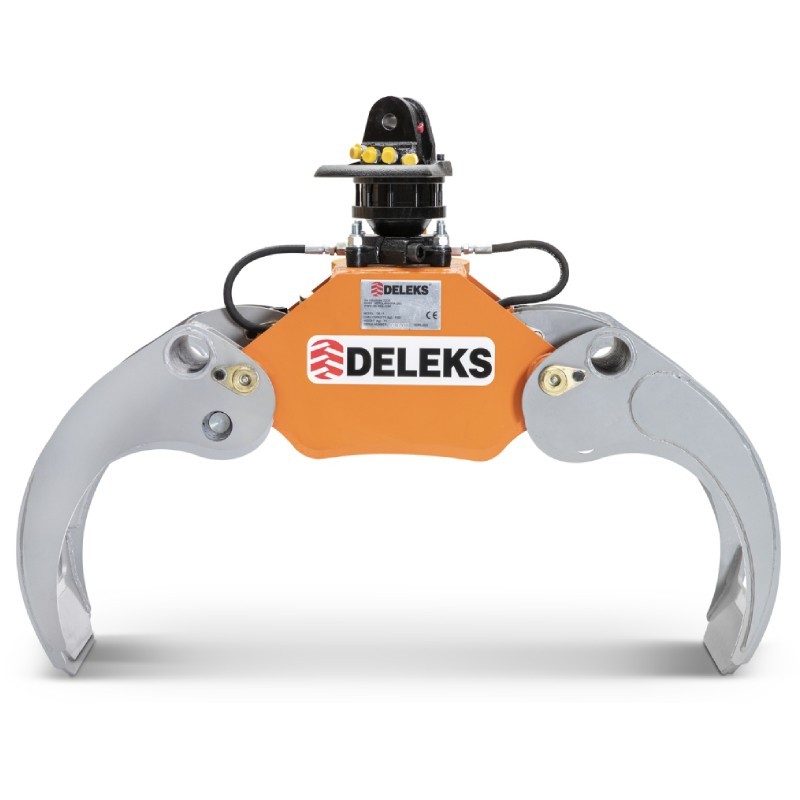

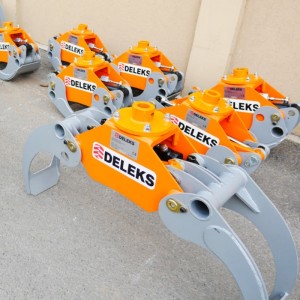

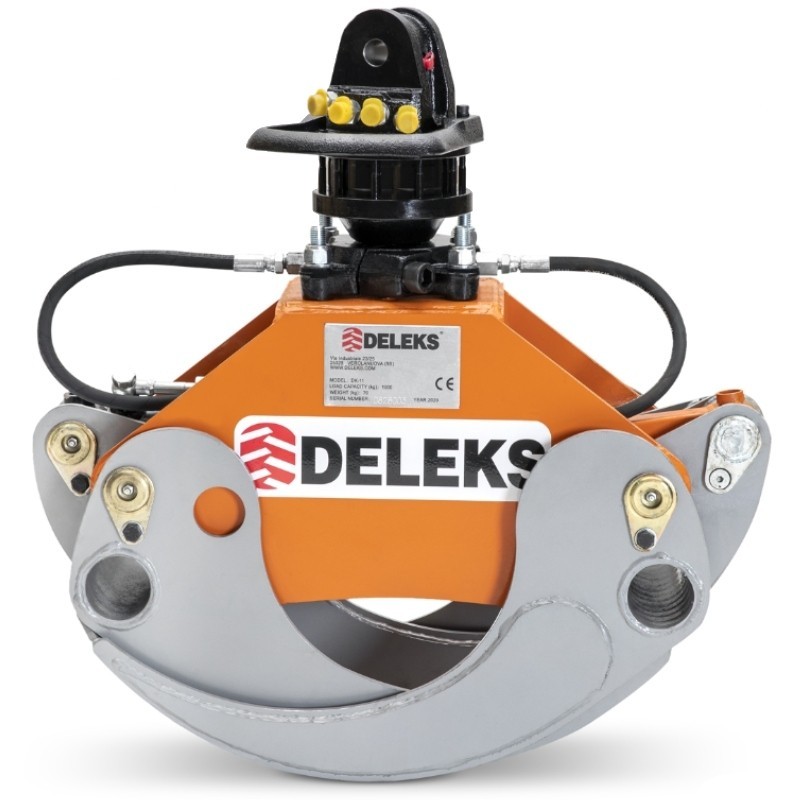

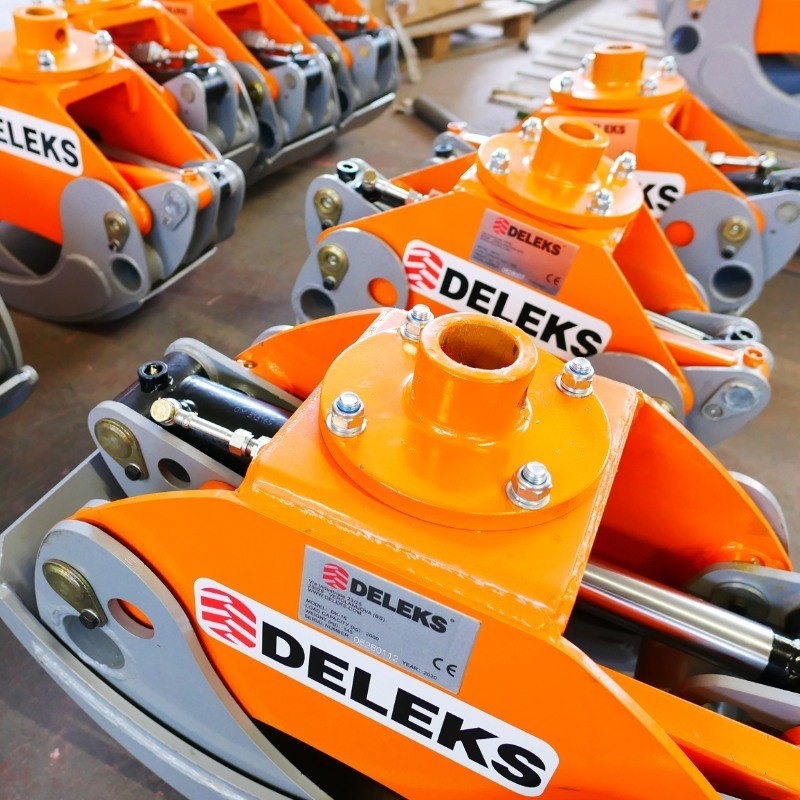

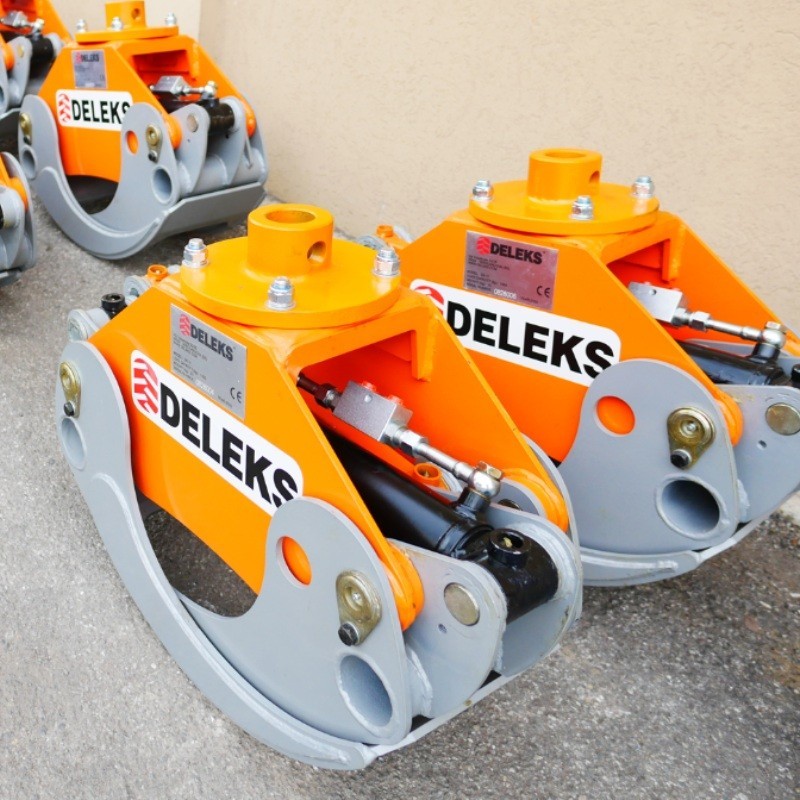

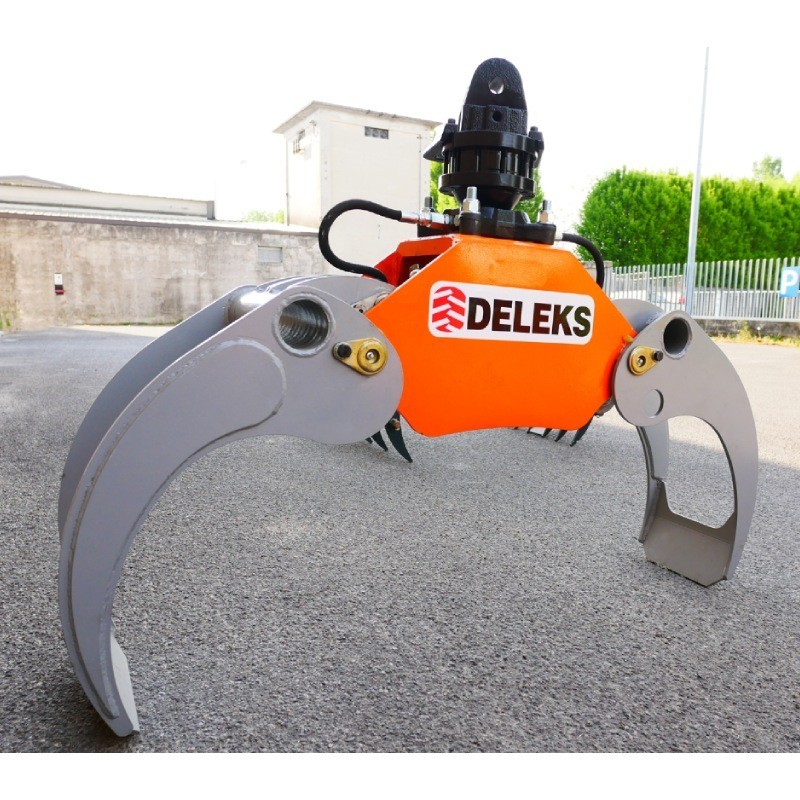

This forestry grapple Deleks DK-11C + GR-30FF is an attachment that you can equip on mini excavators and forestry cranes. This grapple is robust enough to withstand a maximum load of 1000 kg.
This model is a very good tool for transporting wood, rocks, or moving debris that may be in the way. It has a gripping area of 0.16m2 .

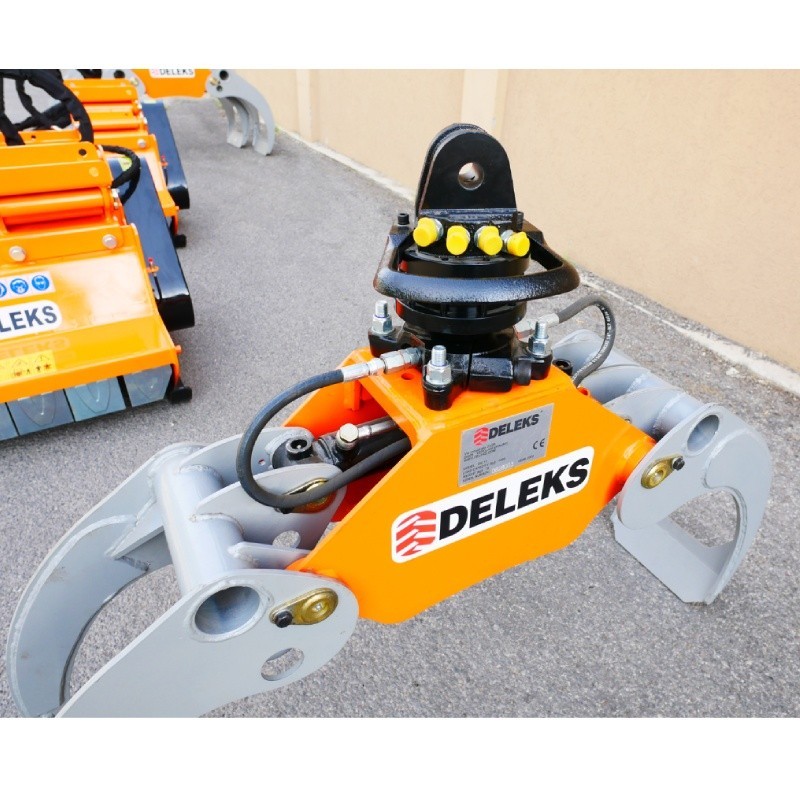

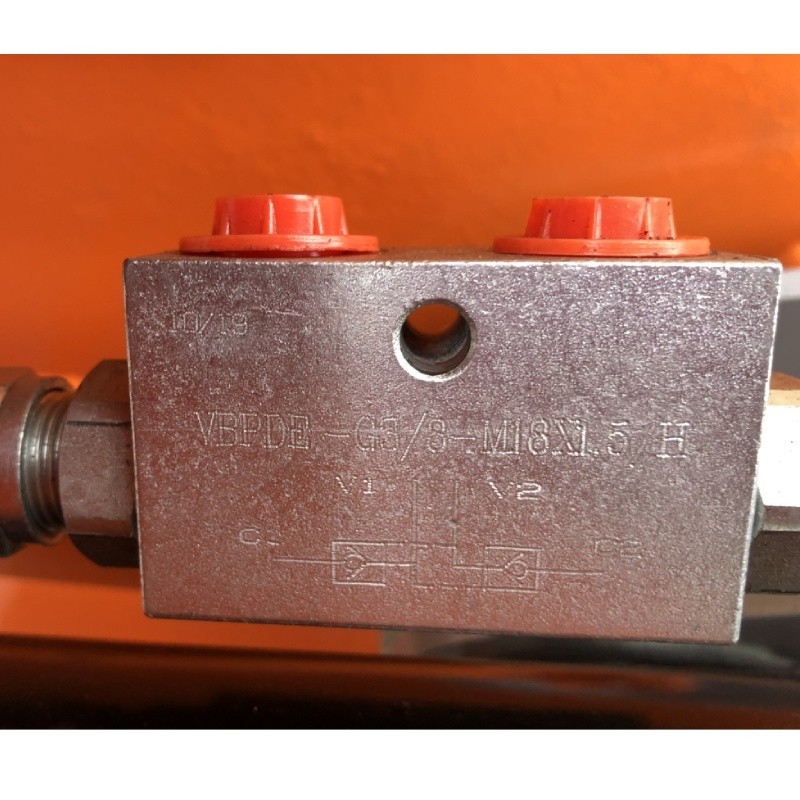

This Deleks grapple has continuous rotation of 360º, which allows us to work more comfortably, in addition to its locking valve on the hydraulic piston.
Weight | 104.5 kg |
Load capacity | 1000.0 kg |

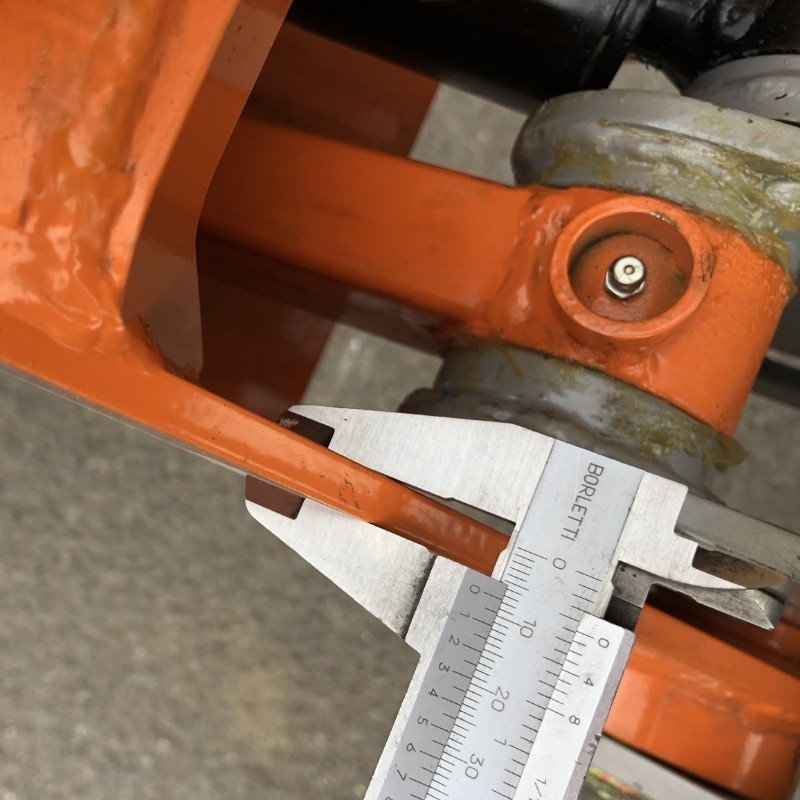

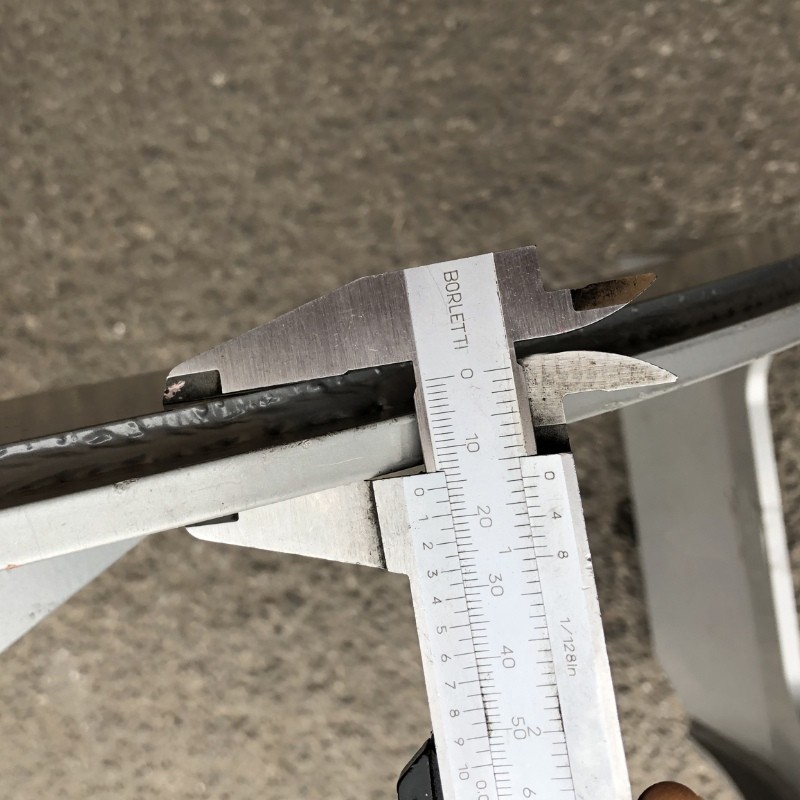

Sheet thickness | 8.0 mm |
Oil pressure min./max | 80 - 120 bar |
Optimal oil flow | 18 - 22 l/min |

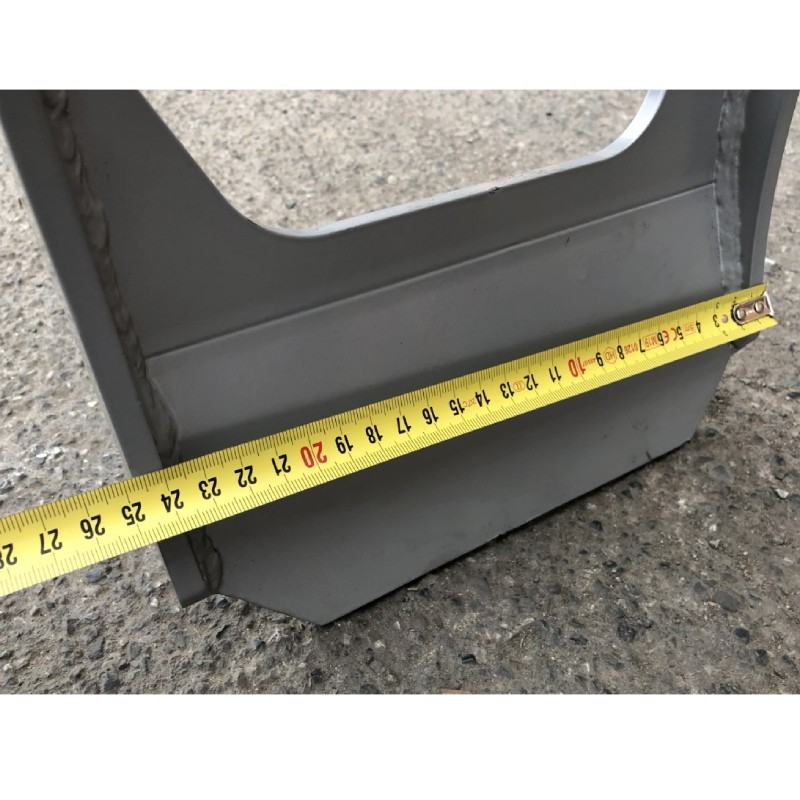

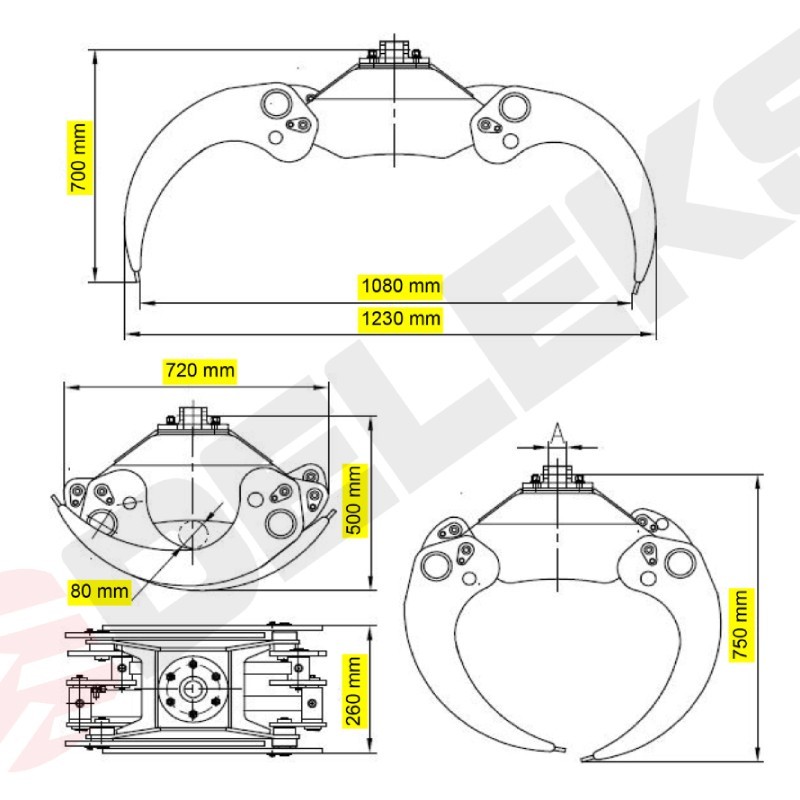

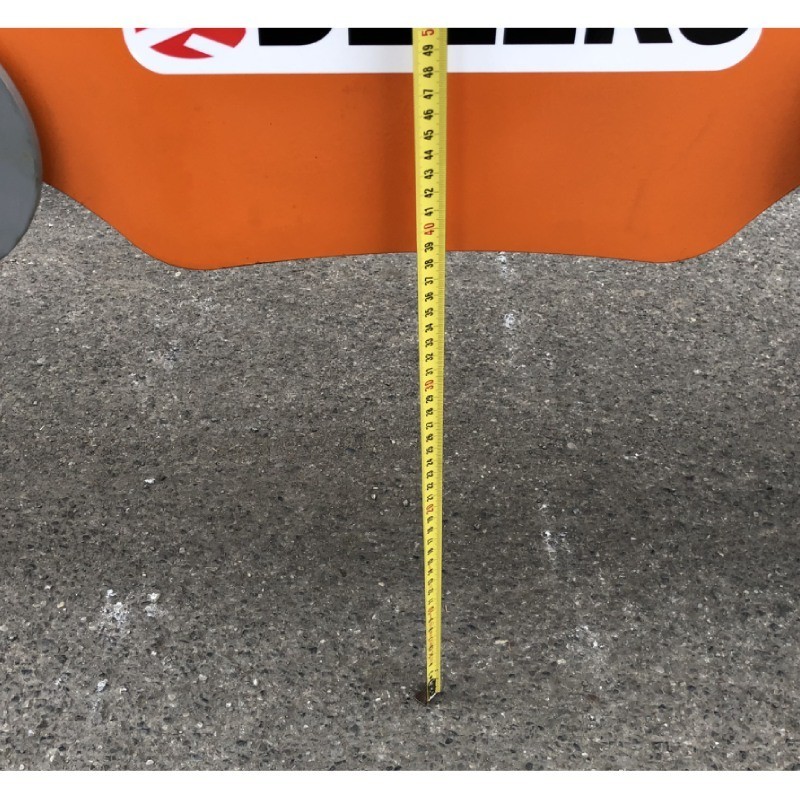

Other dimensions | See photos |
Hydraulic tubes | 400 bar pressure |
Maximum opening | 1080.0 mm |
Height, grapple open | 930.0 mm |
Height, grapple closed | 760.0 mm |
Width, grapple open | 1230.0 mm |
Width, grapple closed | 720.0 mm |
Depth | 260.0 mm |
Minimum branch diameter | 40.0 mm |

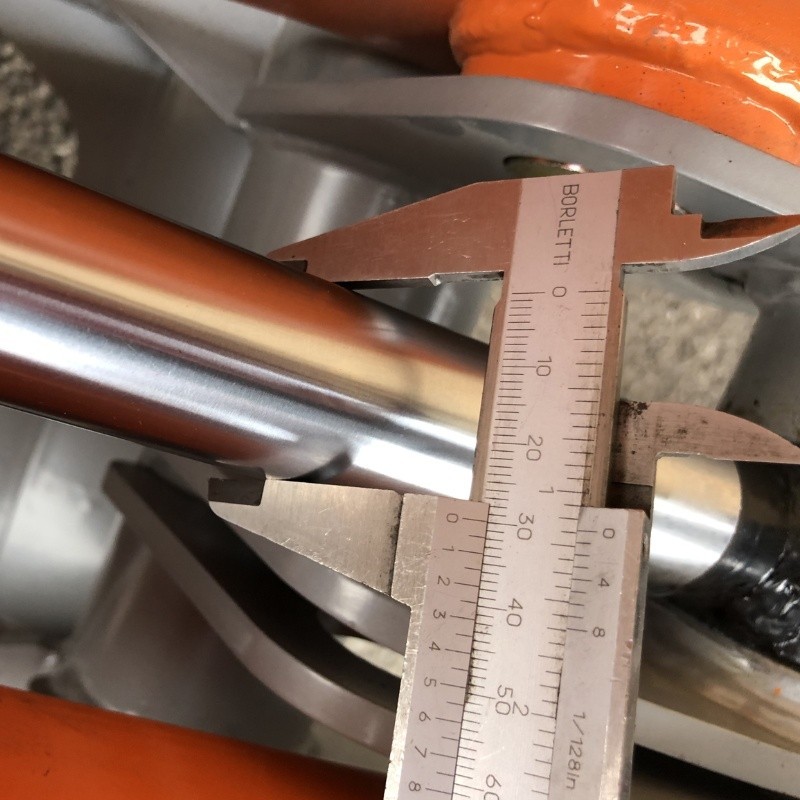

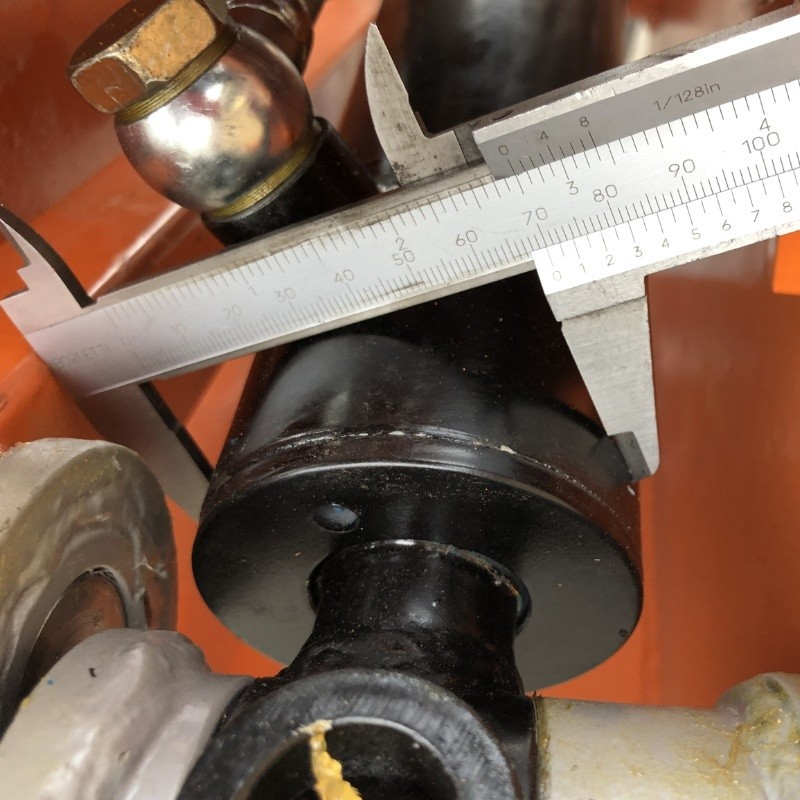

ø hydraulic piston | 70.0 - 30.0 mm |
Maximum pressure | 200 Bar |

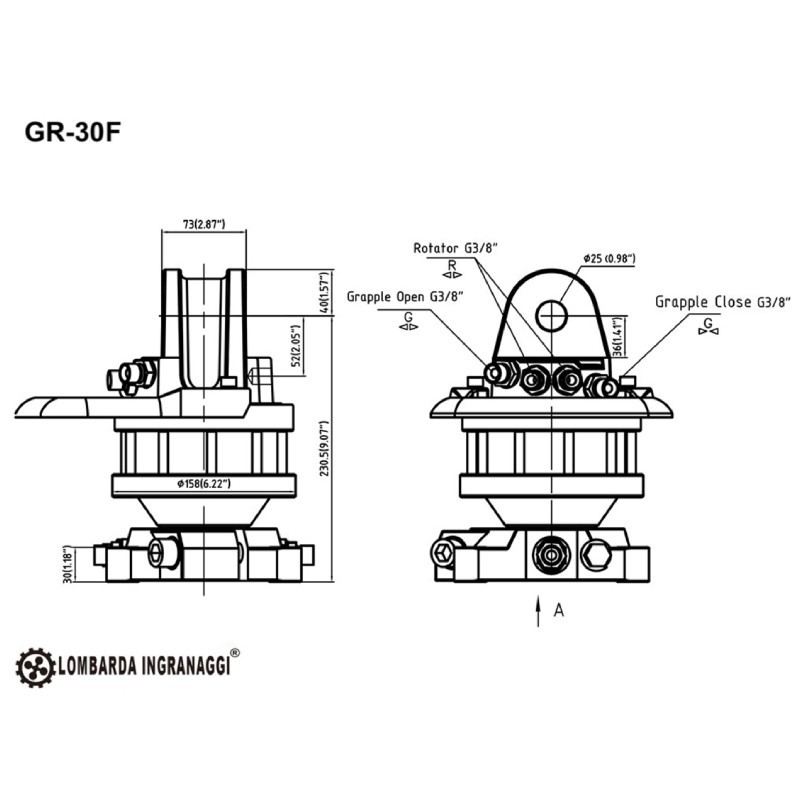

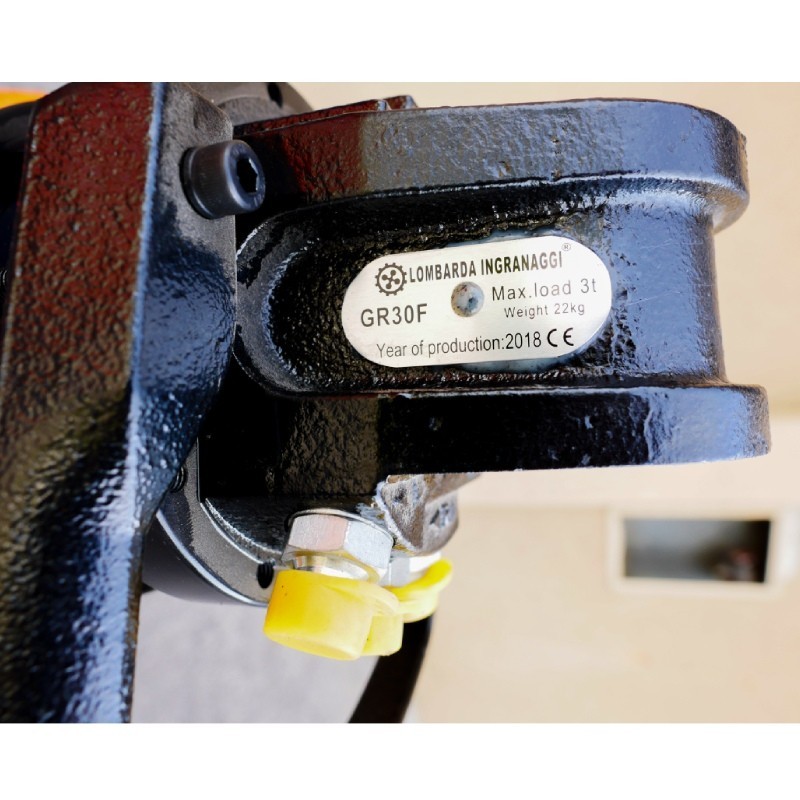

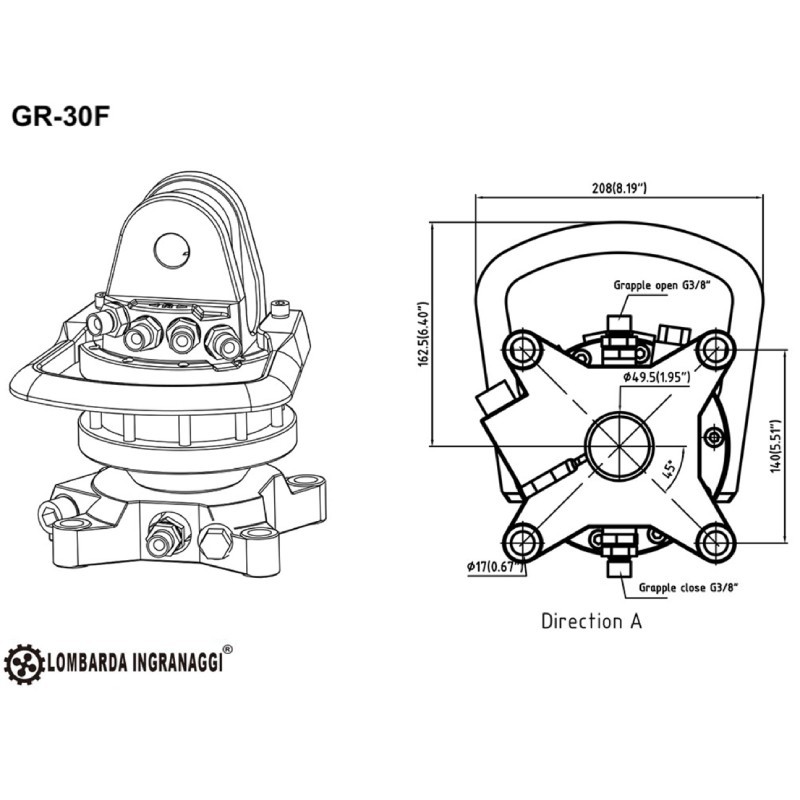

Rotator | Lombarda Ingranaggi GR-30F (3.0 ton) |
Excavator range | 1.8 - 3.5 ton |
Packaging dimension | 600.0*800.0*450.0 mm |
