Disc harrows suspended in V EuroCentauro Yecla 140-220 cm
- Working width: 1400 - 2200 mm
- Required power: 40 / 55-65 Hp
- Disc diameter: 510 - 560 mm
€2,151.09 VAT incl.
Assembly and set-up INCLUDED |

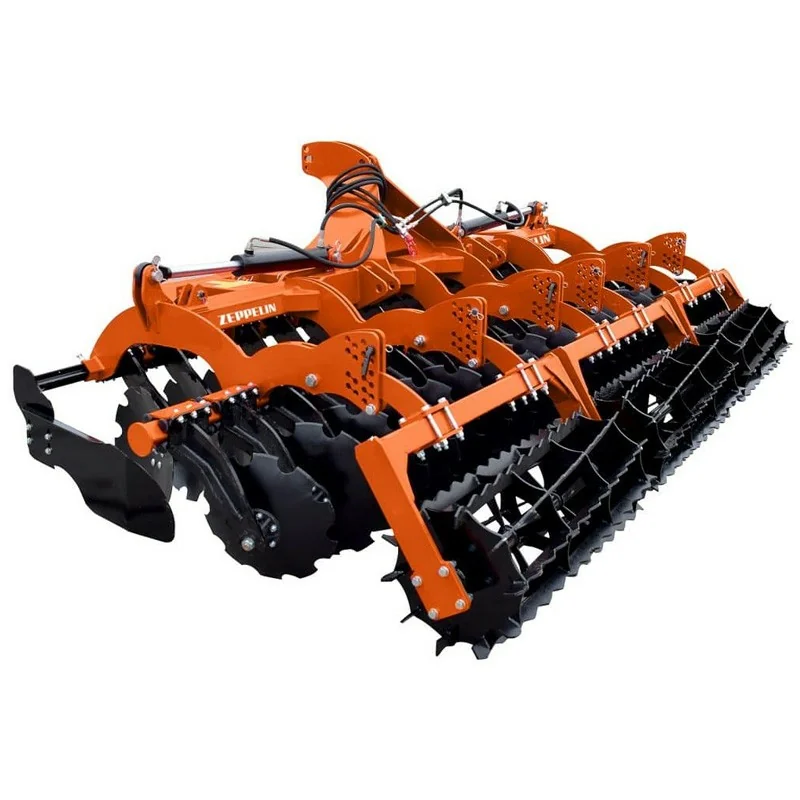

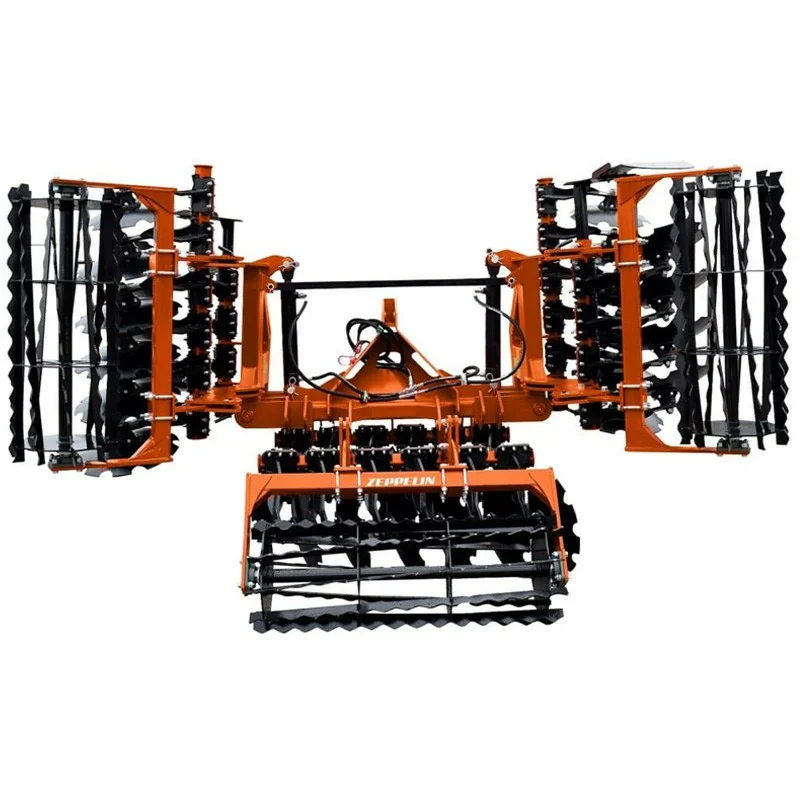

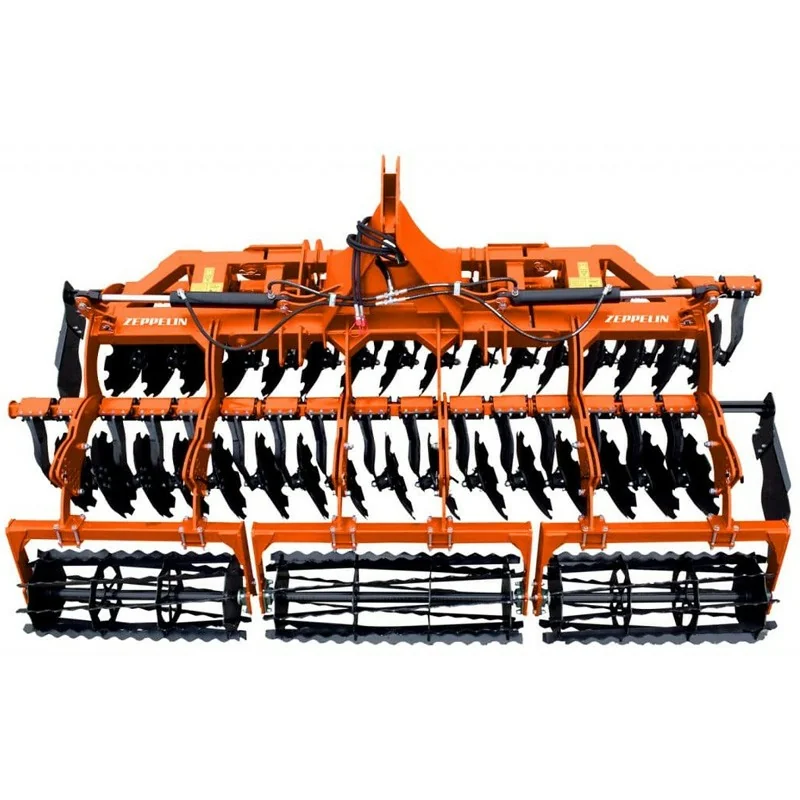

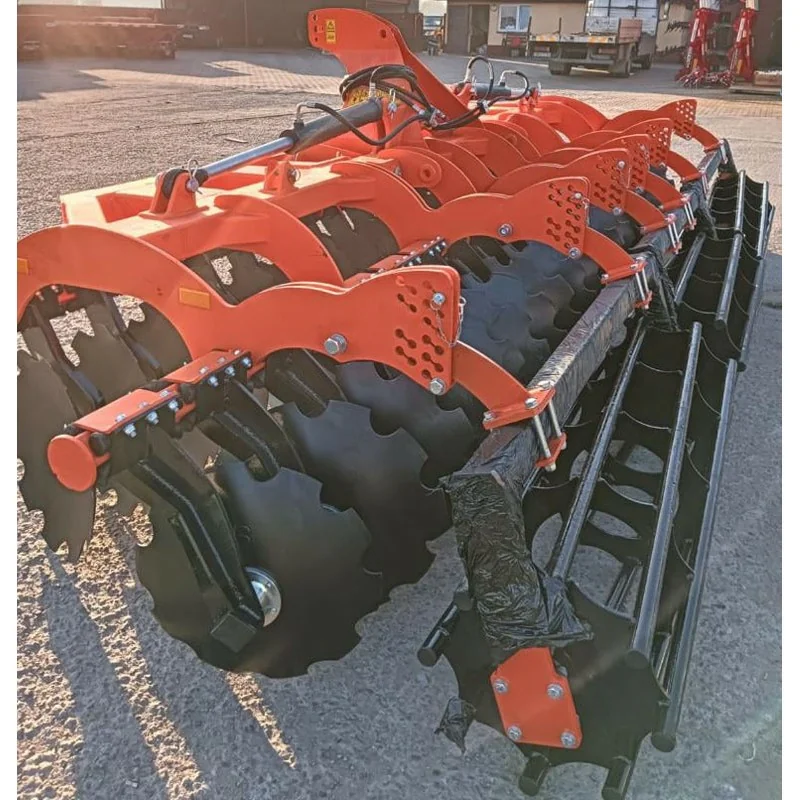

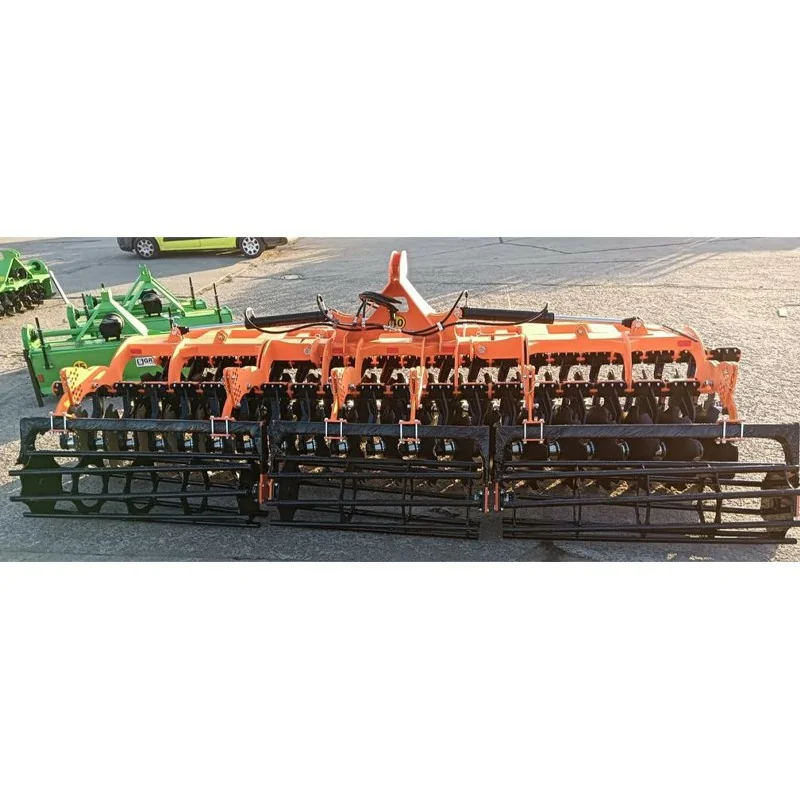

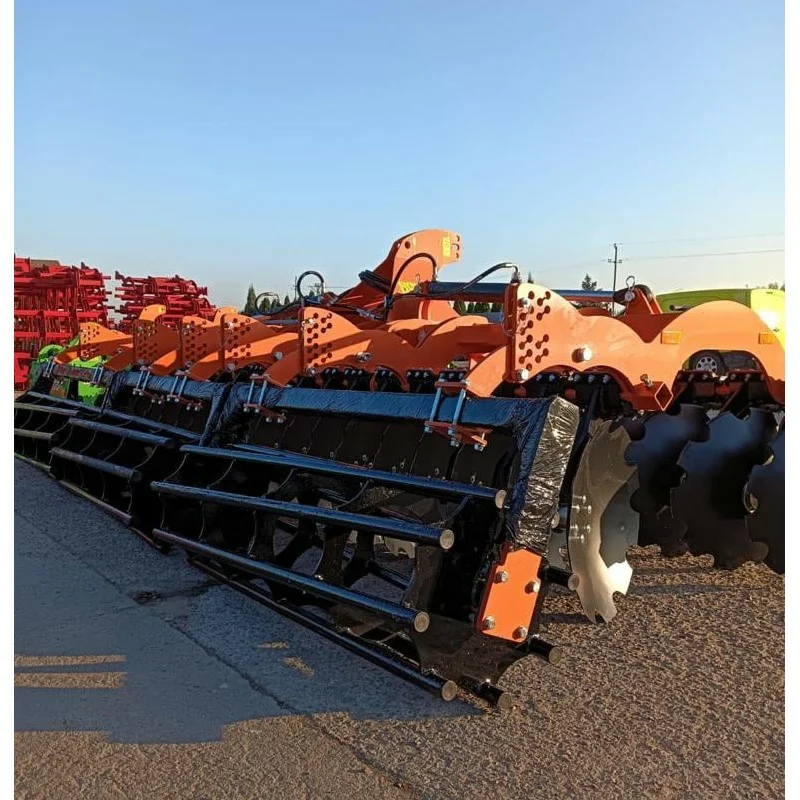

The Zeppelin is an agricultural tool designed to offer an efficient and homogeneous work on large surfaces. With a total working width of 5000 mm and a configuration of three bodies of 1.3, 1.4 and 1.3 meters respectively, this harrow makes it possible to cover more ground in less time, optimizing soil preparation work.
Equipped with 40 discs of 610 or 660 mm diameter, the harrow Zeppelin ensures an adjustable working depth between 100 and 200 mm, ideal for decompaction and mixing of plant residues. The distance between discs of 240 mm and between rows of 90 mm ensures uniform cutting and excellent penetration in all types of soil.
This hydraulic folding harrow requires a tractor power of between 160 and 190 HP and is equipped with two hydraulic cylinders for fast and safe deployment and collection. Its 2500 kg weight and 540 RPM PTO drive make it a rugged and reliable choice for farms looking for efficiency and durability in their implements.
Working width | 5000 mm |
Working width in three bodies | 1.3 - 1.4 - 1.3 m (4 - 5 - 6 ft) |
Tractor power required | 160 - 190 HP |
Number of discs | 40 |
Working depth | 100 - 200 mm |
Distance between discs | 240 mm |
Distance between rows of discs | 90 mm |
Disc diameter | 610 / 660 mm |
Number of cylinders | 2 |
PTO | 540 RPM |
Weight | 2500 Kg |
IMPORTANT WARNINGS |
It is obligatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
