Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
Deleks products take about 15 to 25 days. |

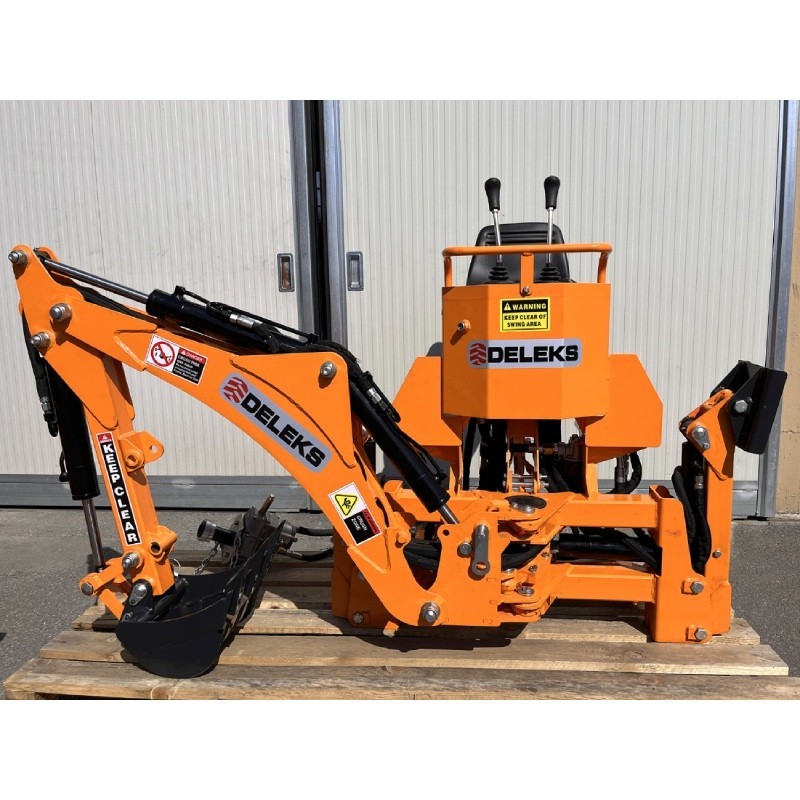

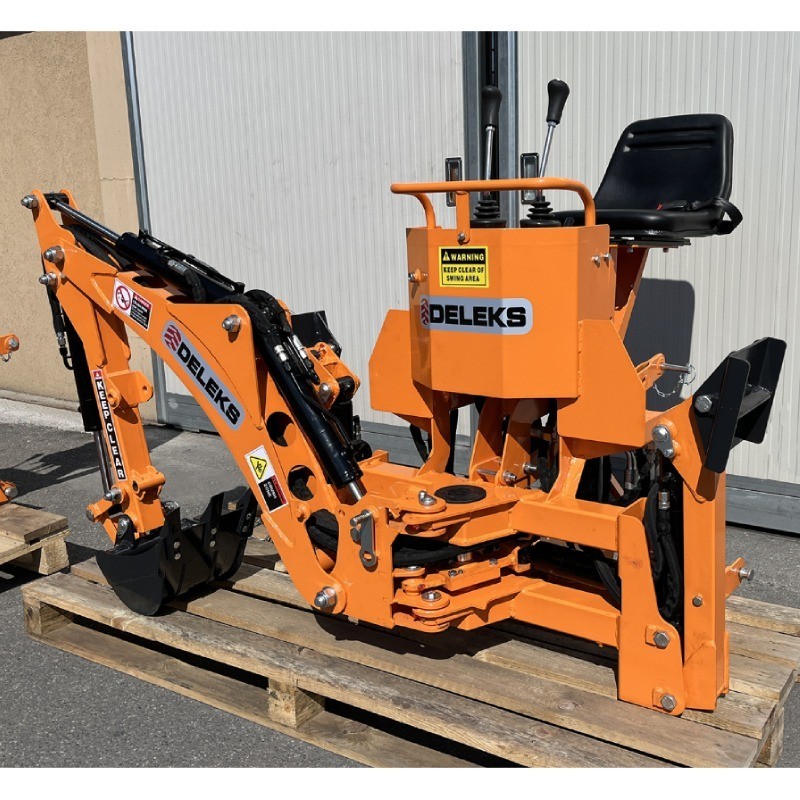

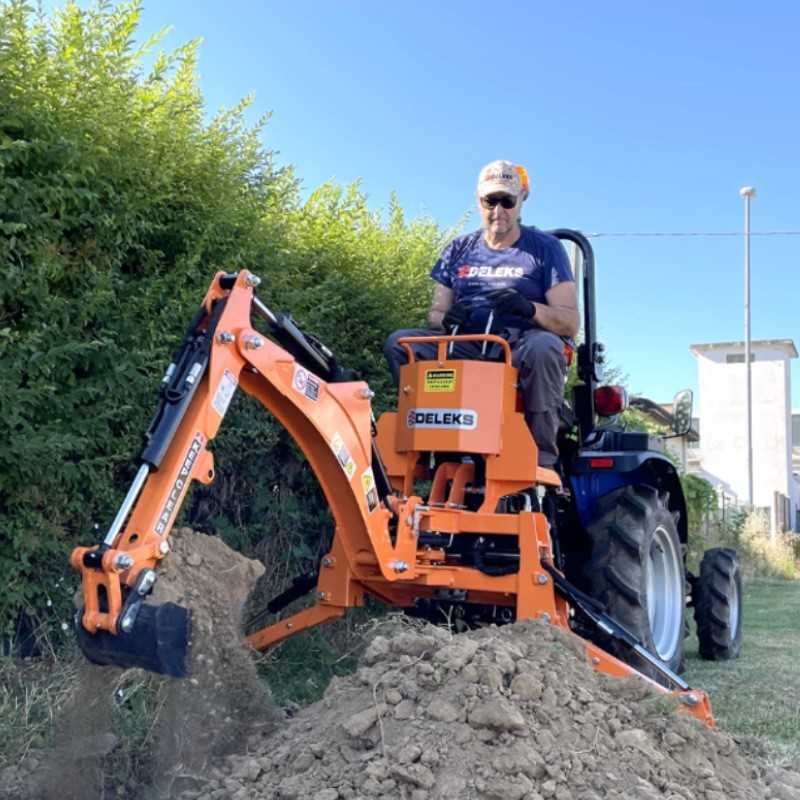

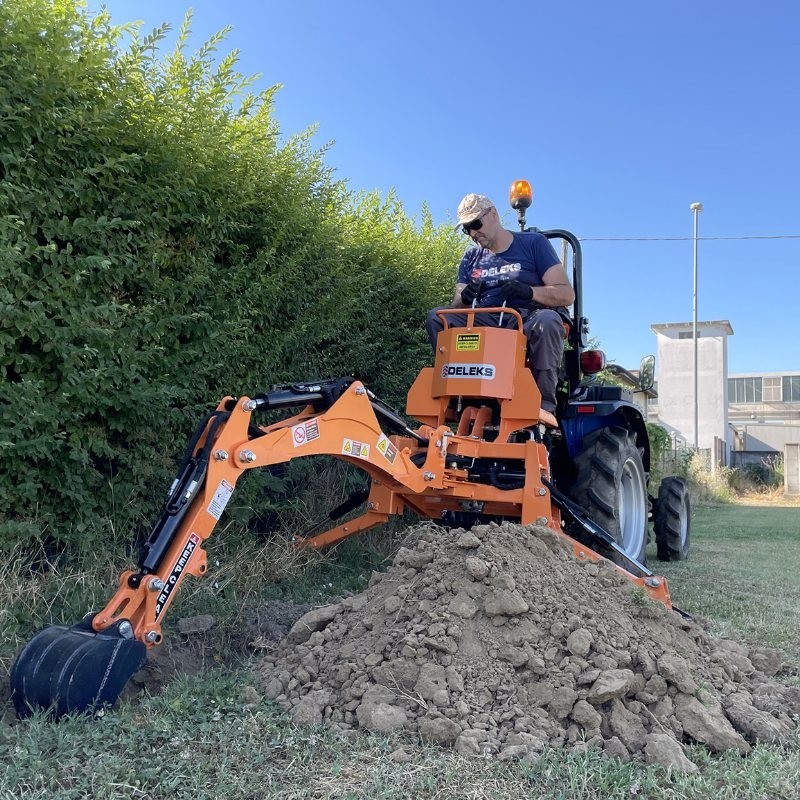

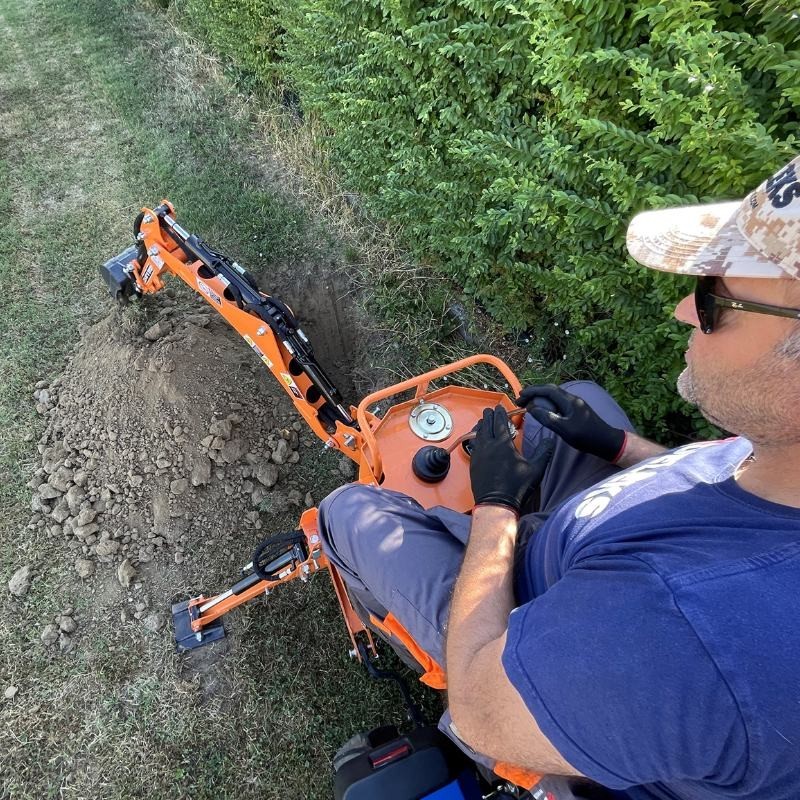

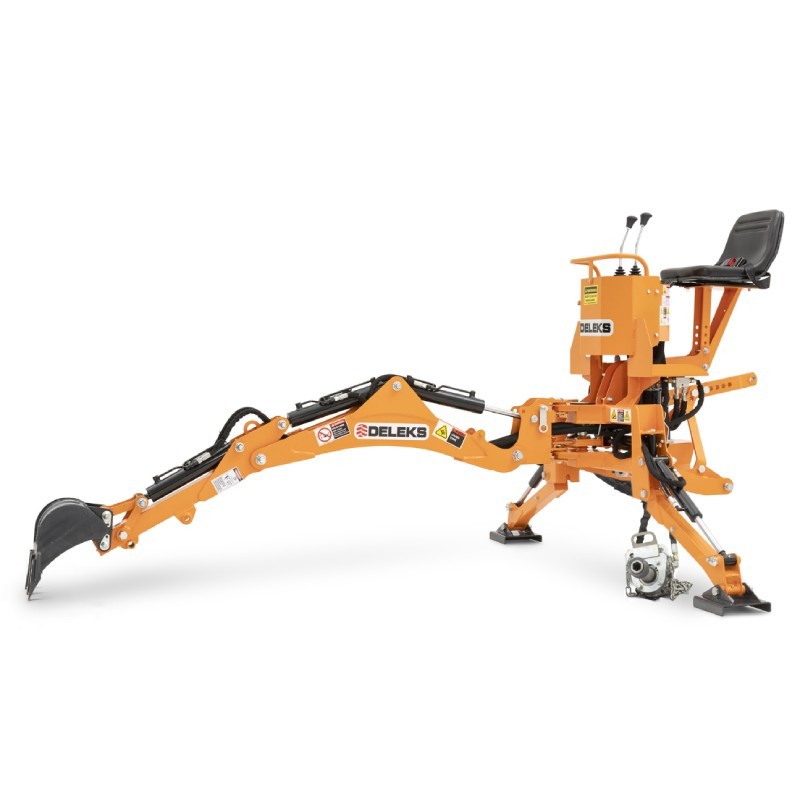

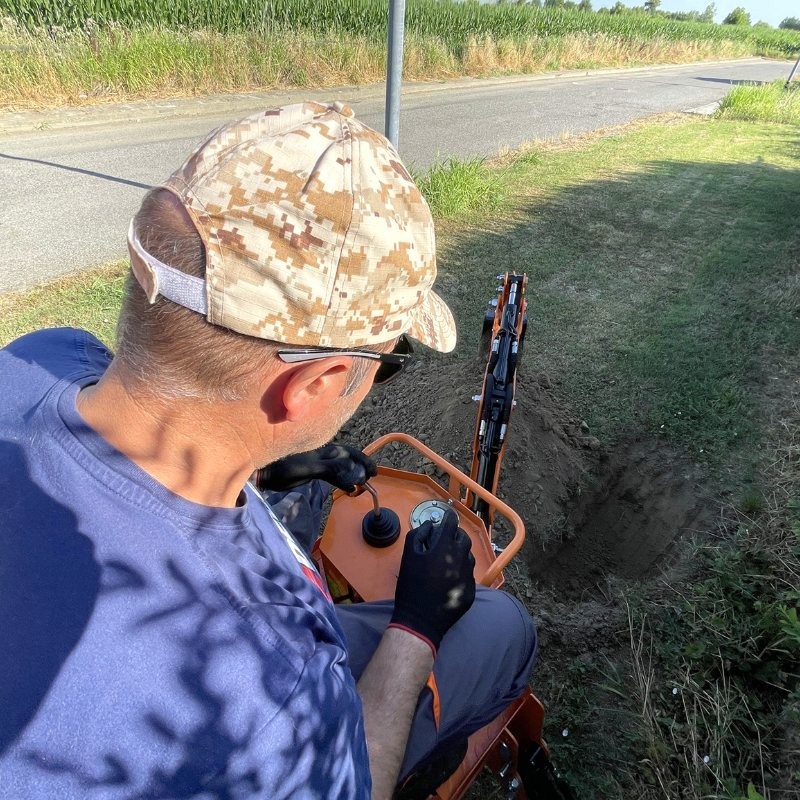

This PTO Deleks DRS-1000 250 kg backhoe is a universal attachment made for compact tractors with a minimum width of 1250 mm and a power between 18 - 45 hp.

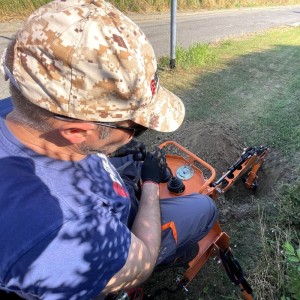

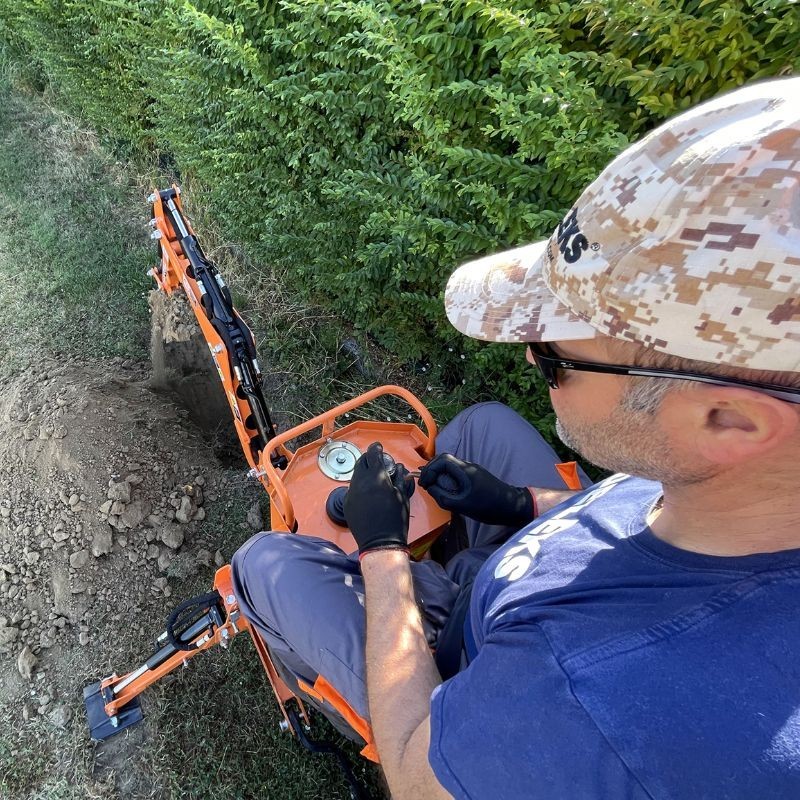

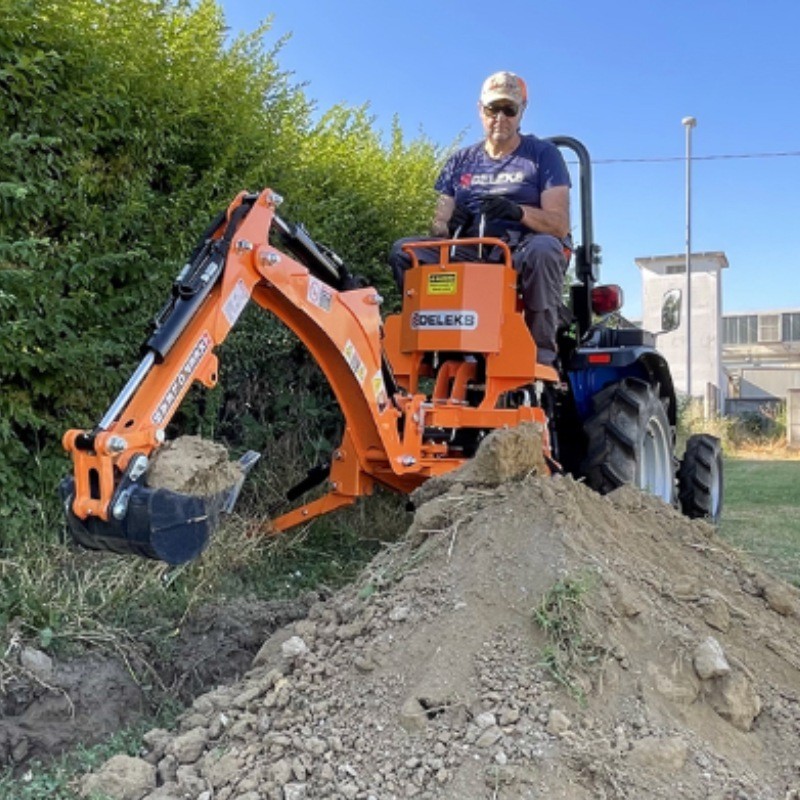

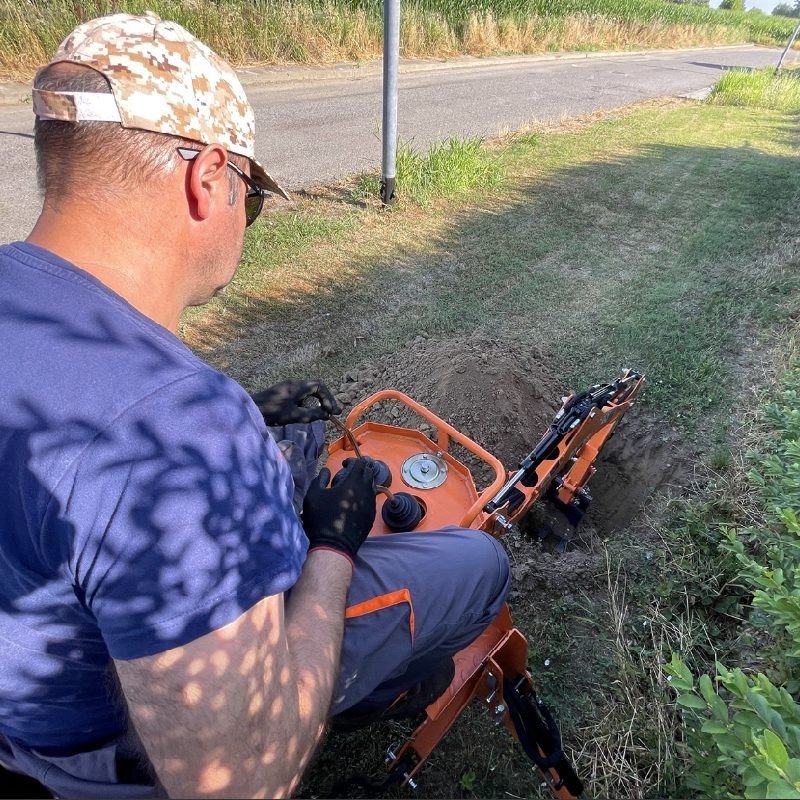

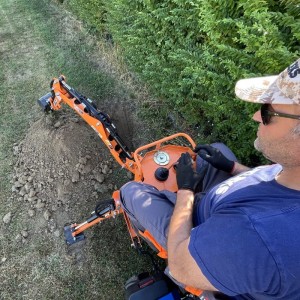

This model features an arm digging force of 1100 kgf, while the bucket digging force is 150 kgf. This excavator has various uses such as digging for transplanting, drainage, removing stones from the path, among others.

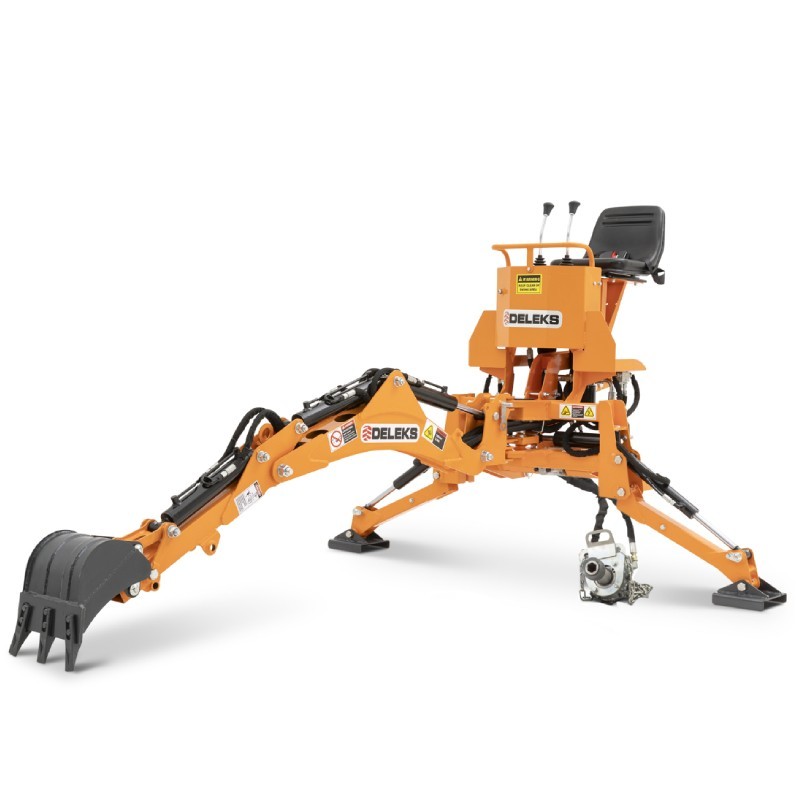

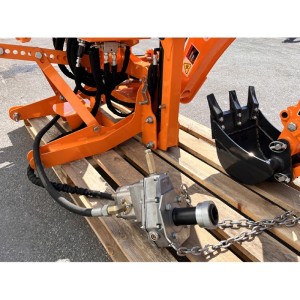

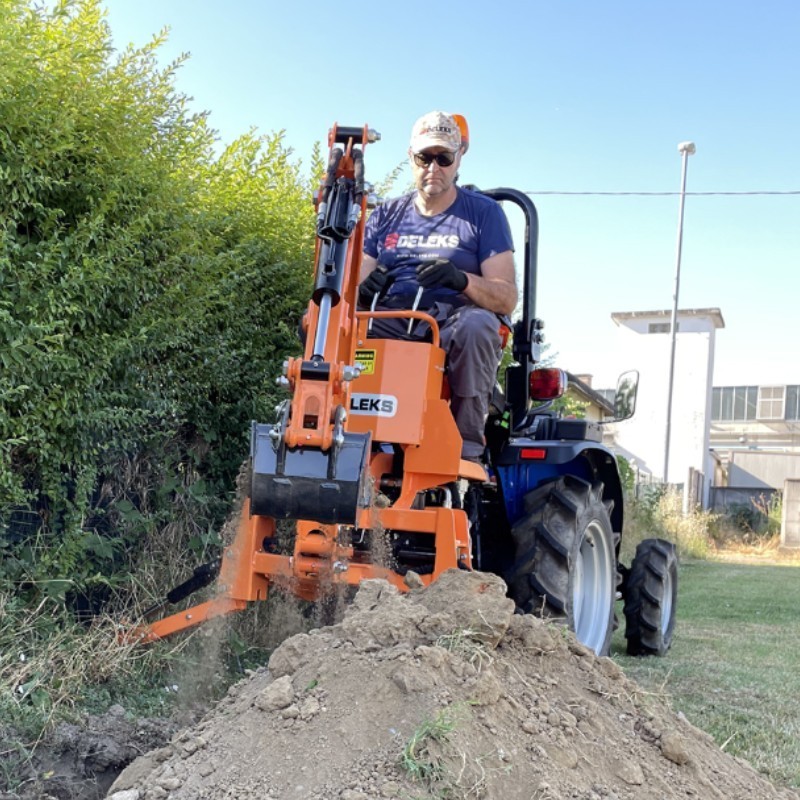

This backhoe is equipped with an independent pump connected directly to the tractor's power take-off. This model is supported by stabilizer legs that can be adjusted individually.

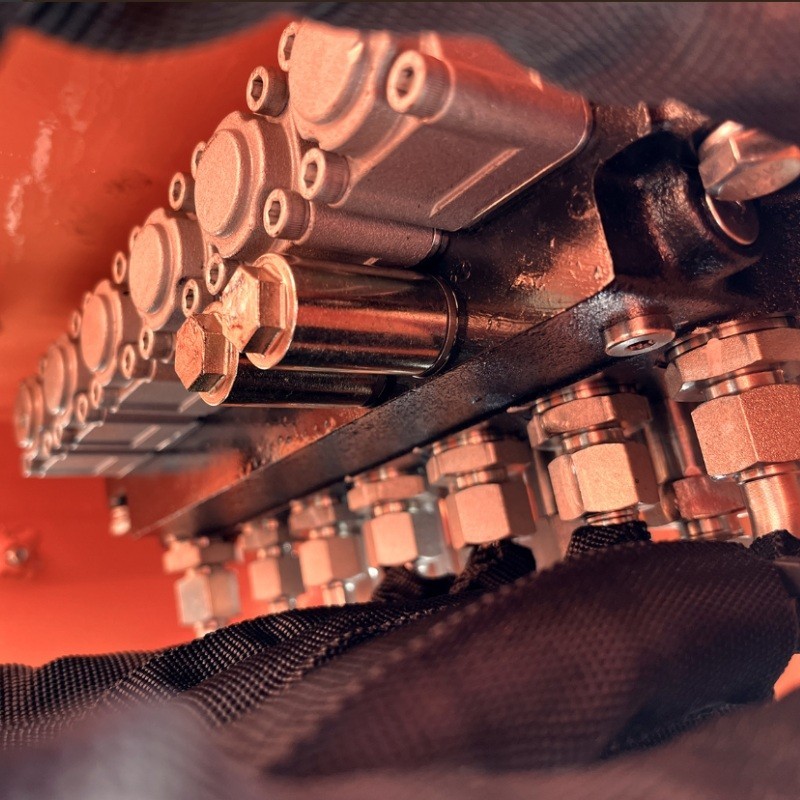

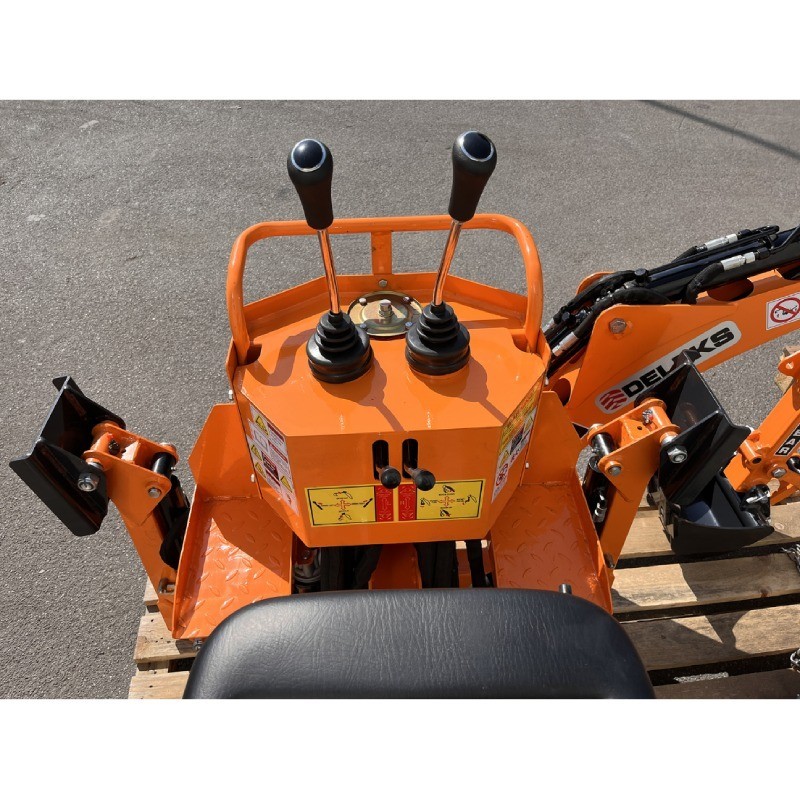

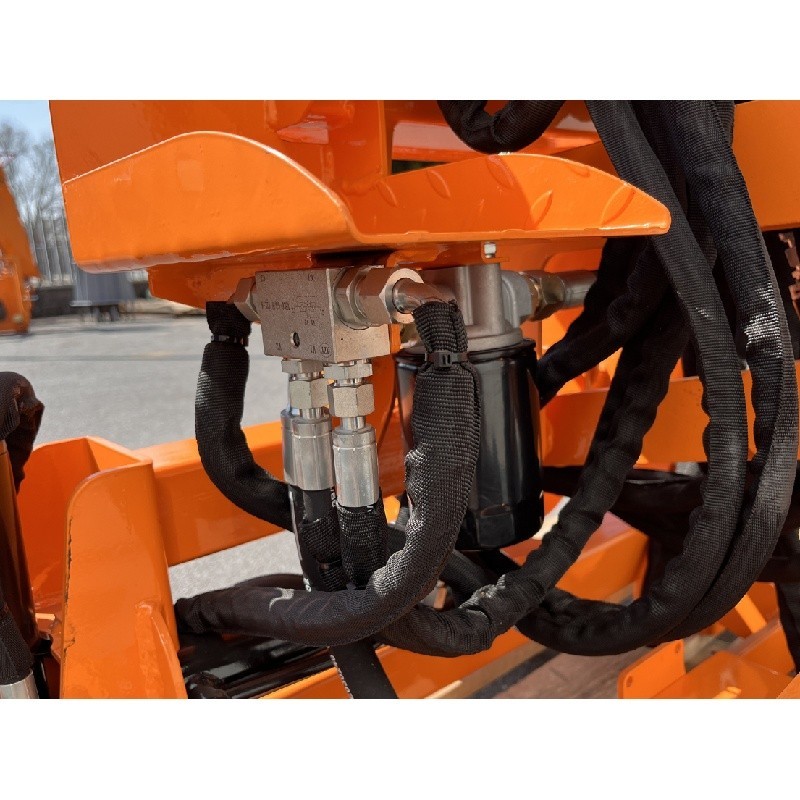

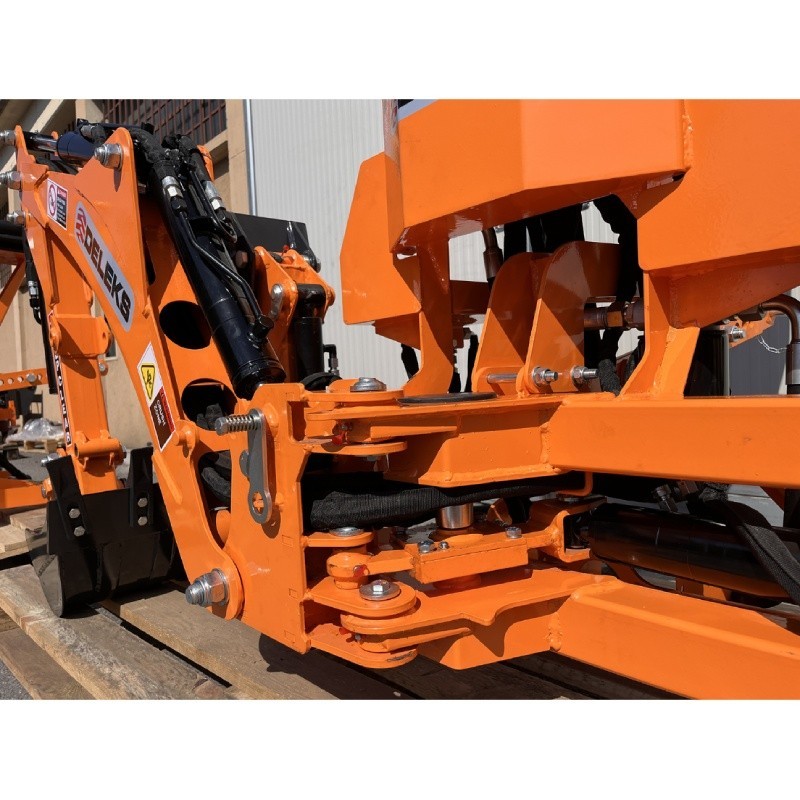

Other components of this excavator model include its locking set, which allows control of the lifting of the 2 arms. It also features a hydraulic distributor with two levers.
Weight | 250.0 kg |
3-point hitch | Cat. 1 (ø 19.0-22.0 mm) |

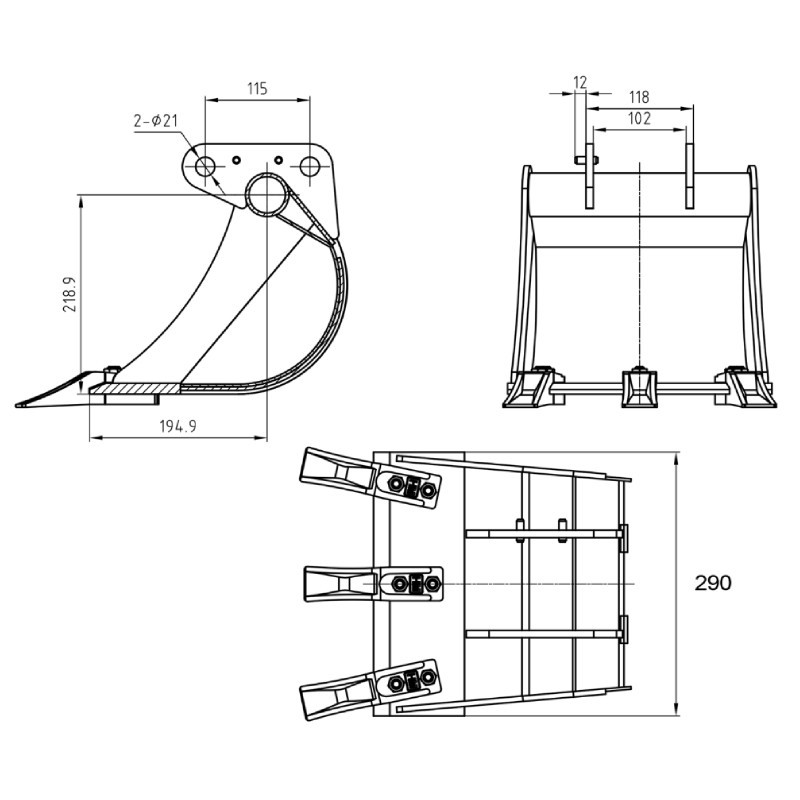

Bucket width | 290.0 mm |
Distance between lower points | 590.0 - 680.0 mm |
Hydraulic hoses (2) | WP-400 bar |
Oil pressure min./max | 120 - 200 bar |
Optimal oil flow | 25 - 40 l/min |
Rotation angle | 180° |
Minimum power | 18 hp |
Hydraulic arm diameter | 63.0 - 25.0 mm |
Stabilizers | 2 |
Stabilizer extension | 2100.0 mm |
Packaging dimension | 1900*860*1200 mm |
Loading height (A) | 1690.0 mm |
Digging depth (B) | 950.0 mm |
Maximum height (C) | 2280.0 mm |
Digging width (D) | 2440.0 mm |
Discharge height (E) | 1800.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before starting. If the merchandise cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer agrees pending examination. |
