Workshop cabinet 9 pieces 3300x472x1925 mm Zeppelin ZBOX
set of workshop cabinets 9 pieces 3300x472x1925 mm Zeppelin ZBOX
workbench with workshop cabinets 9 pieces 3300x472x1925 mm Zeppelin ZBOX
9-piece workshop cabinet 3300x472x1925 mm Zeppelin ZBOX
Workshop cabinet 9 pieces 3300x472x1925 mm Zeppelin ZBOX
Workshop cabinet 9 pieces 3300x472x1925 mm Zeppelin ZBOX
9-piece modular workshop furniture 3300x472x1925 mm Zeppelin ZBOX

Workshop cabinet 9 pieces 3300x472x1925 mm Zeppelin ZBOX


  • Bearing drawer slides
  • Capacity per drawer 45 kg
  • Drawer width 936 mm
En stock
icon Dimensions
Dimensions
330 x 47 x 193 cm
€1,550.47 excl. VAT
€1,876.07 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Workshop cabinet 9 pieces 3300x472x1925 mm Zeppelin ZBOX
€1,876.07
Qty

Set of workshop cabinets Zeppelin ZBOX ESTG512

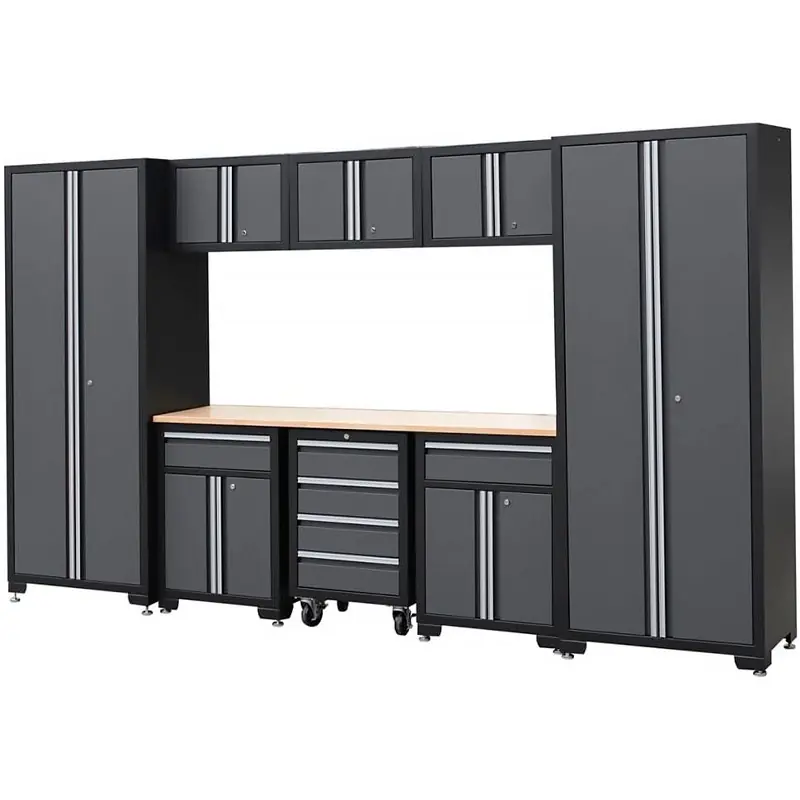

9-piece modular workshop cabinet with workbench designed to organize tools in garages and professional spaces. Overall dimensions 3300 x 472 x 1925 mm with adjustable height between 1910 and 1930 mm thanks to the leveling legs. 24 gauge steel structure with thickness from 0,6 to 0,7 mm and scratch and stain resistant powder coated finish. Black color with dark gray doors and fully welded construction for rigidity.

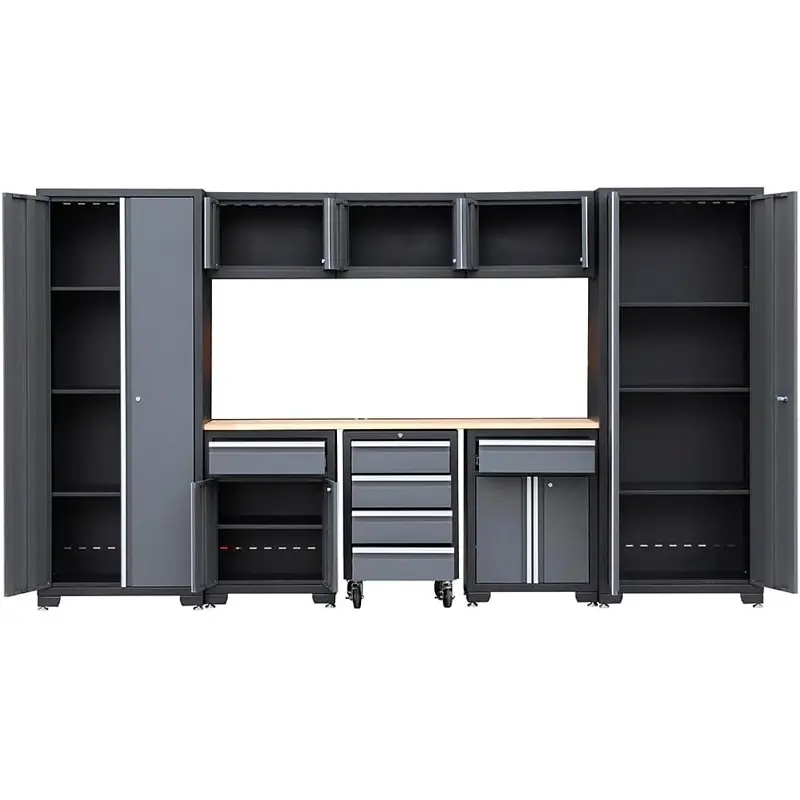

The composition includes two two-door wall units, three base units with a four-drawer mobile pedestal and three wall-mounted upper cabinets. The doors are hinged side-opening, have magnetic latches and key locks. The set incorporates rear slots for anchoring to the wall and side holes to join the modules together, providing security and stability in daily use.

Each tall cabinet has three shelves with a 68 kg load and 75 mm height adjustment to adapt the height to machinery and boxes. The 25 mm wooden worktop creates a sturdy surface for assembly and repairs. The drawer unit on castors has ball bearing slides with a capacity of 45 kg per drawer and a width of 936 mm. Aluminum handles run along the entire front and allow labeling for quick tool identification.

Features

  • Make and model Zeppelin ZBOX
  • Type Modular workshop cabinet assembly with workbench
  • Number of pieces 9

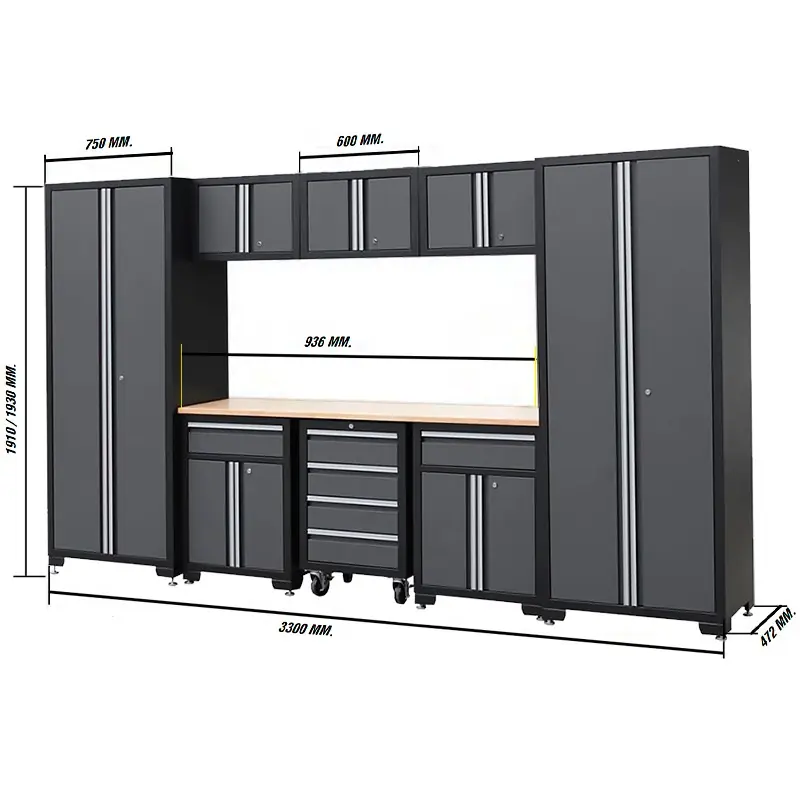

  • Overall dimensions 3300 mm wide x 472 mm deep x 1925 mm high

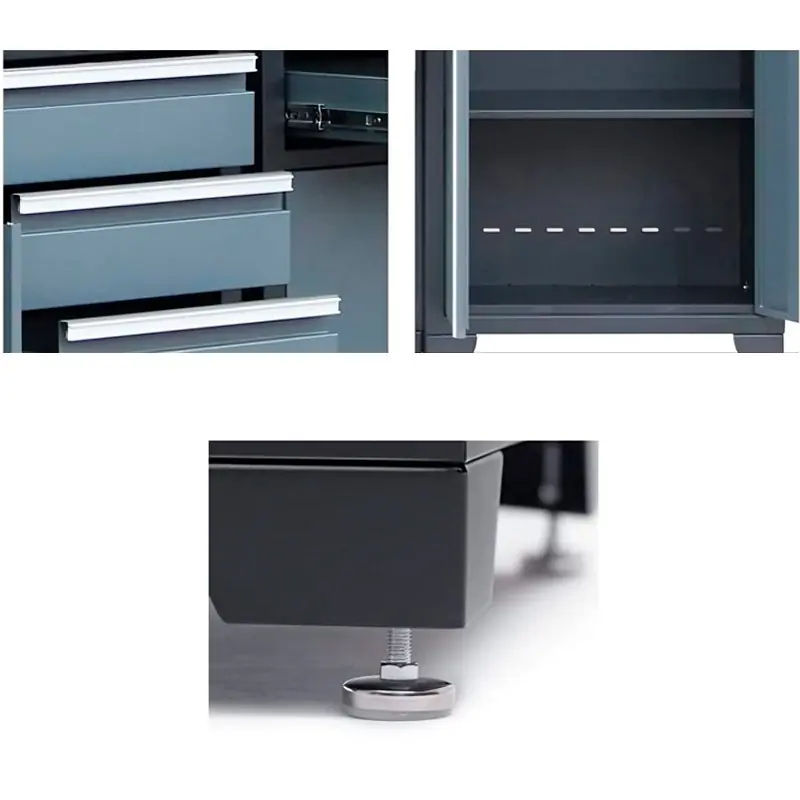

  • Adjustable height 1910 to 1930 mm by means of leveling legs
  • Material 24 gauge steel 0.6 to 0.7 mm thick
  • Fully welded structure
  • Scratch and stain resistant powder coated finish
  • Color black structure with dark gray doors
  • Composition of the set
  • Two two-door wall units
  • Three base units with one four-drawer mobile drawer unit
  • Three wall-mounted upper cabinets
  • Type of doors hinged side-opening with magnetic closure
  • Key lock on all modules
  • 25 mm thick wooden worktop
  • Shelves per cabinet three units per cabinet
  • Load per shelf 68 kg

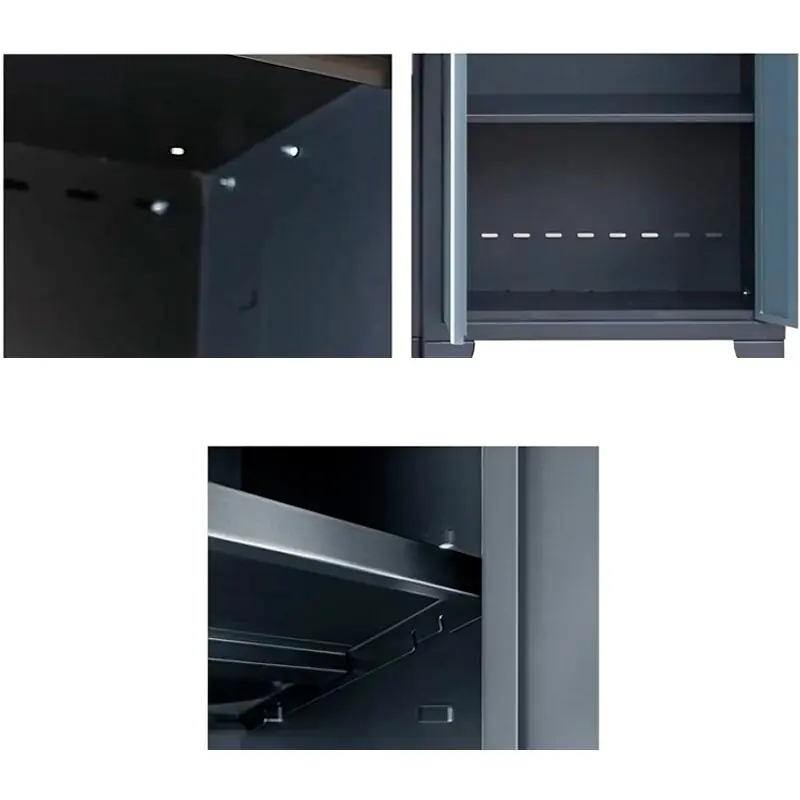

  • Shelf adjustment in 75 mm steps
  • Bearing drawer guides
  • Capacity per drawer 45 kg
  • Drawer width 936 mm
  • Rear slots for wall fastening to prevent tipping over
  • Lateral holes to join modules together
  • Full-length aluminum handles with label holders
262503

Data sheet

Dimensions
330 x 47 x 193 cm

Specific References

MPN
ESTG512
New
