Multi-purpose tiller Zeppelin 505L engine Loncin 15 Hp
- Engine: Loncin 420 cc
- Power: 15 Hp
- Starter: electric
- Gears3 front + 2 rear
- Mixed transmission
€2,237.00 VAT incl.
Deleks products take about 15 to 25 days. |

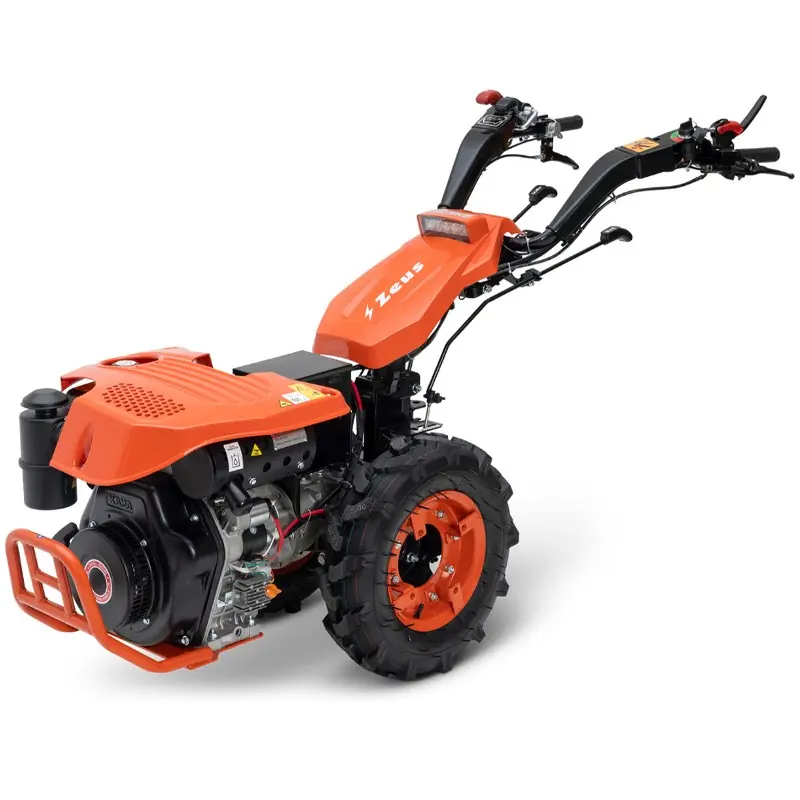

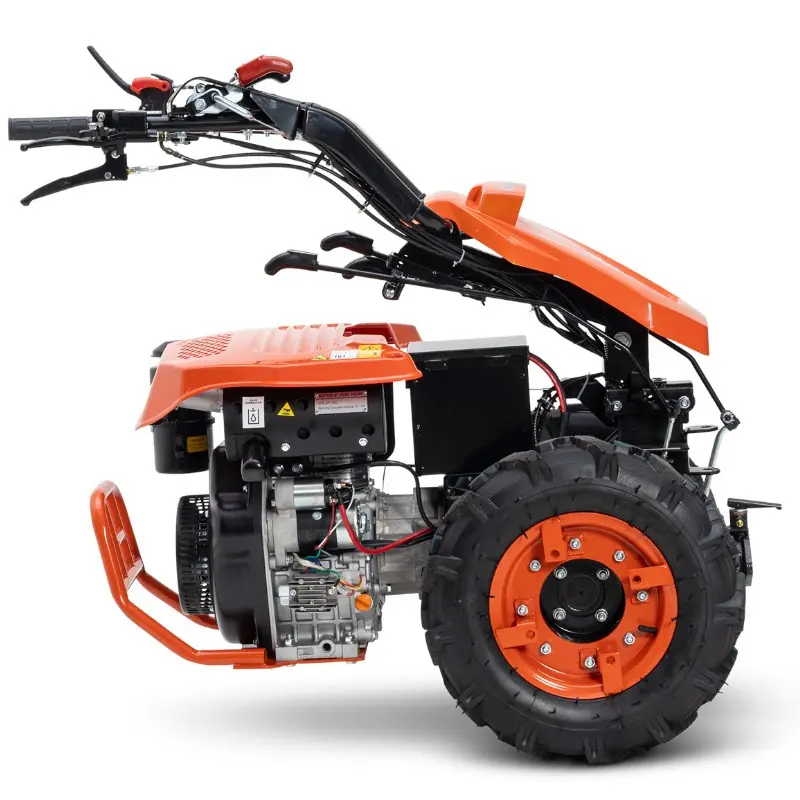

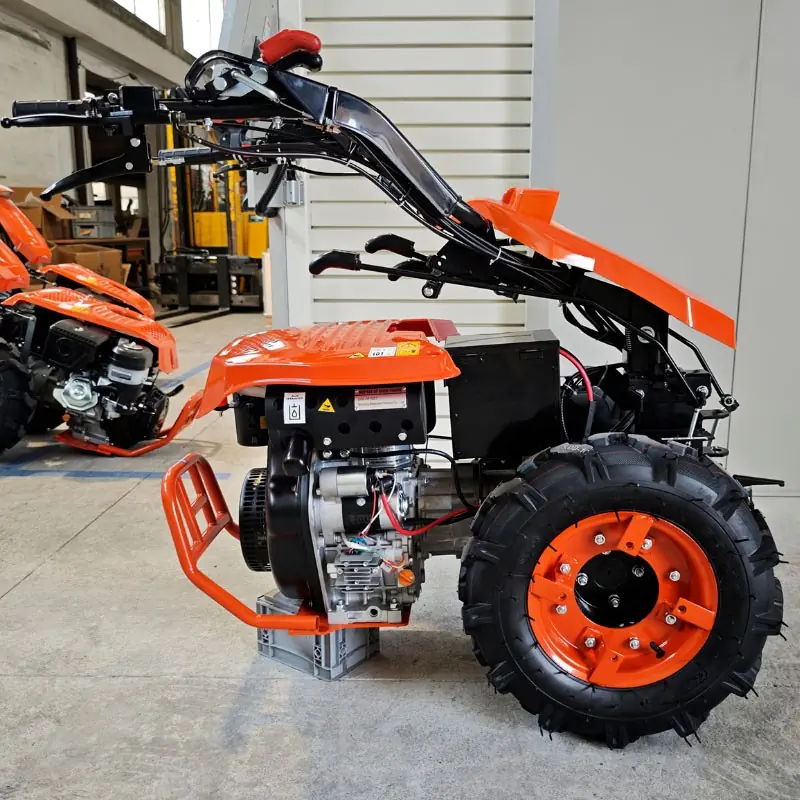

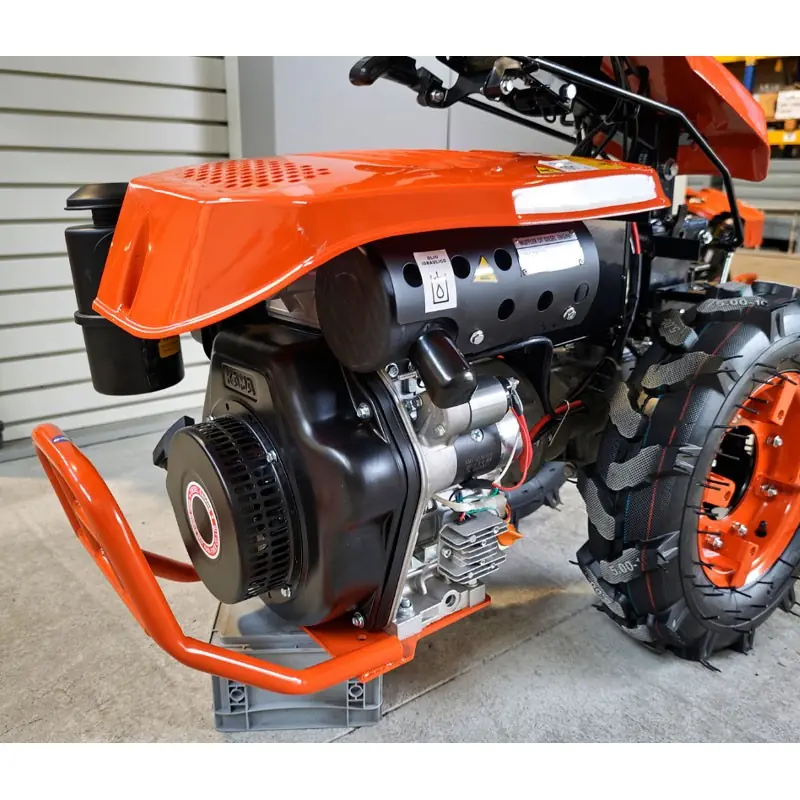

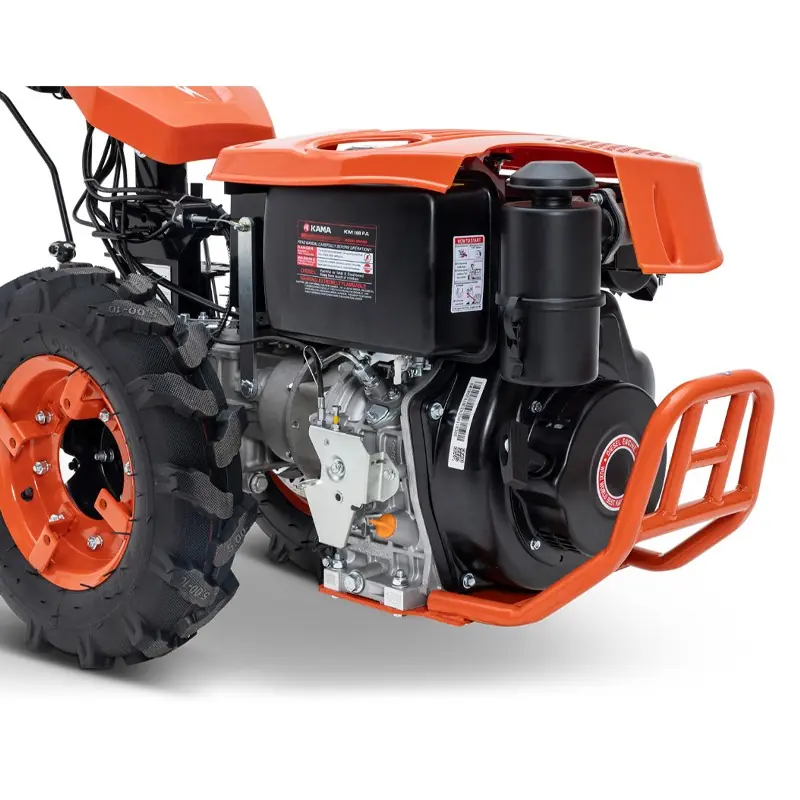

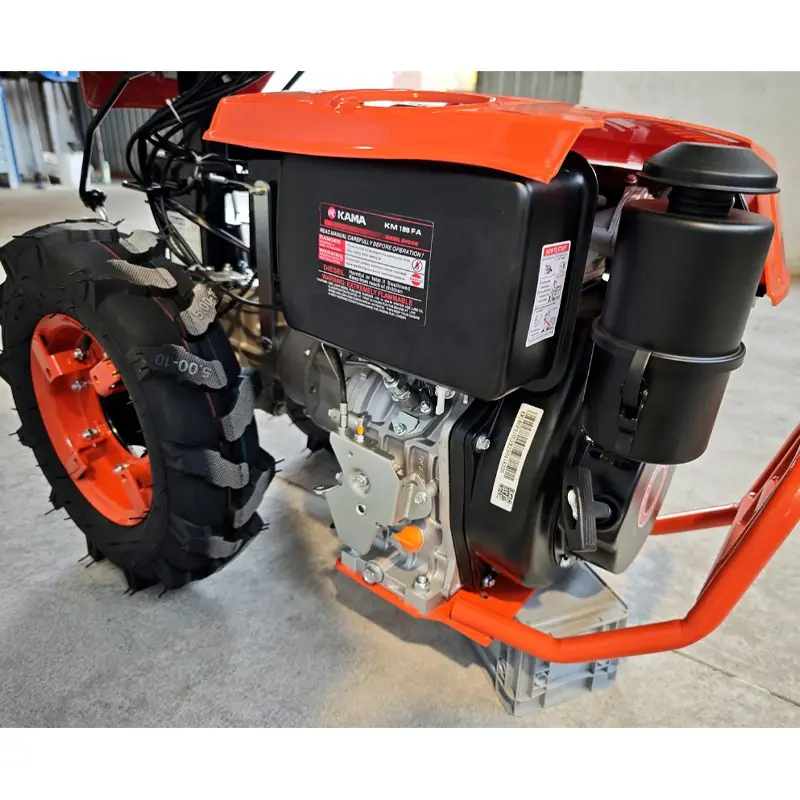

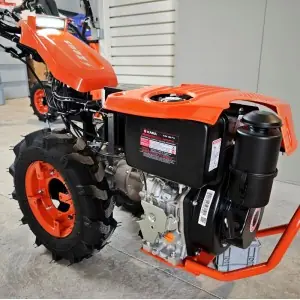

The DELEKS ZEUS multi-purpose diesel-powered multi-purpose tiller is designed for demanding agricultural and private use, with Kama 186FA engine of 9 HP and 418 cc, electric start with key and also by cable. It offers independent traction and PTO at 990 rpm (clockwise) and transmission with gears in oil bath for maximum reliability.

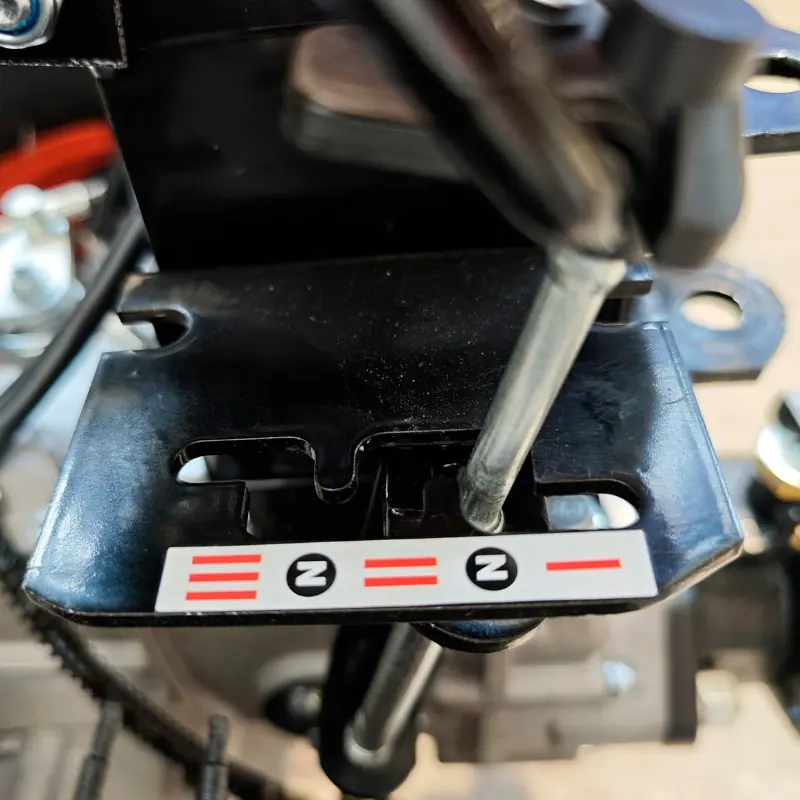

Its 3 + 2 gears gearbox with quick reverse shuttle provides speeds of 1.5 / 3.0 / 11.2 km/h, ideal for adapting the feed to the work. It incorporates double disc brakes and activatable differential lock, improving adherence on slopes and straight line progress, with a robust weight of 130 kg.

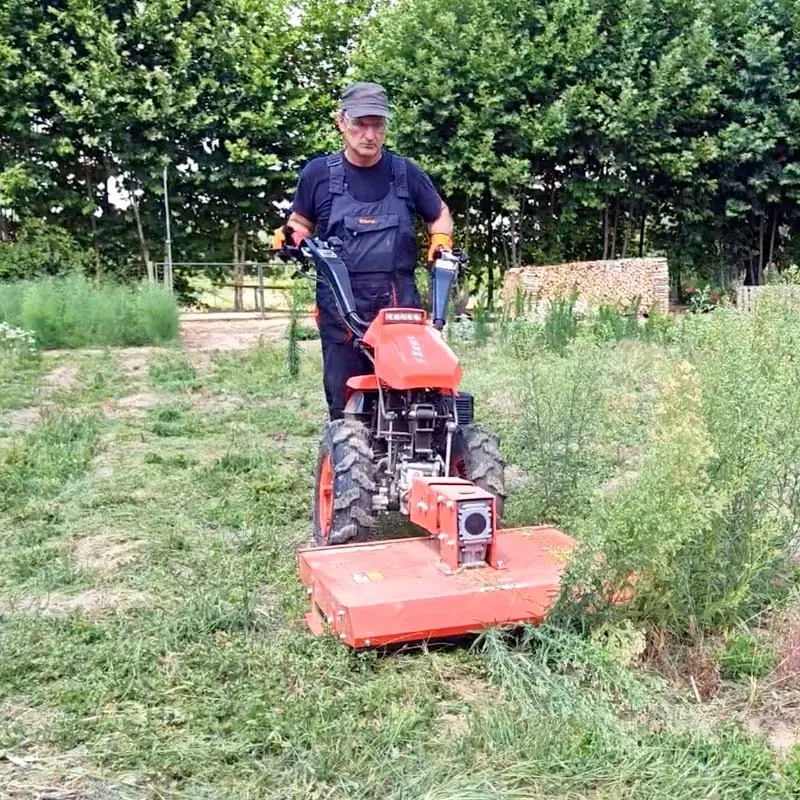

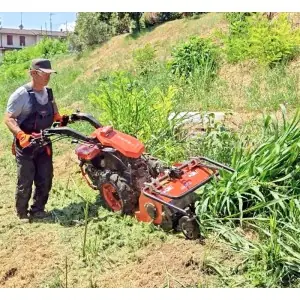

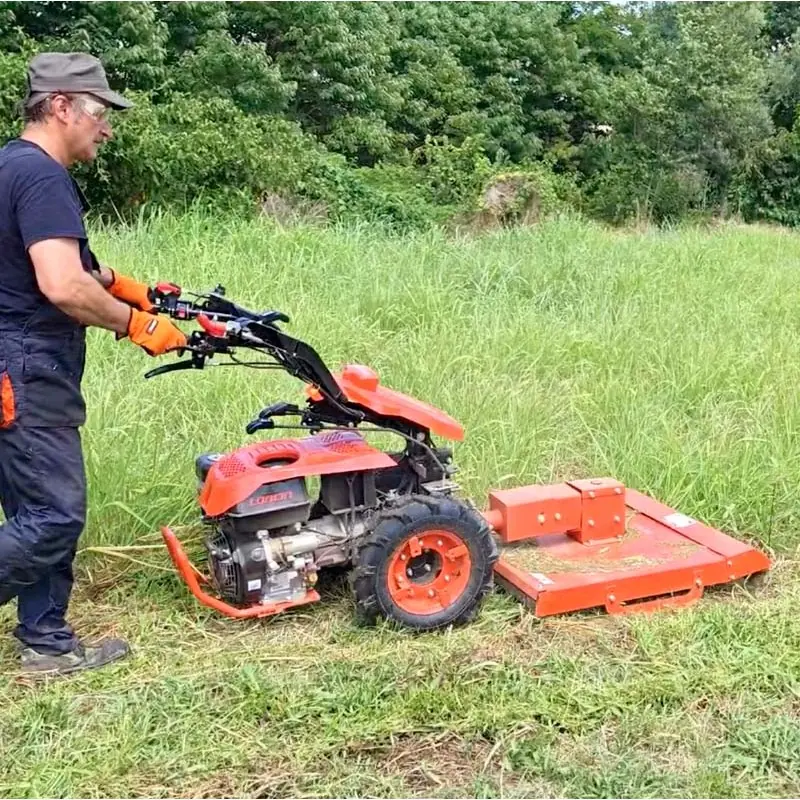

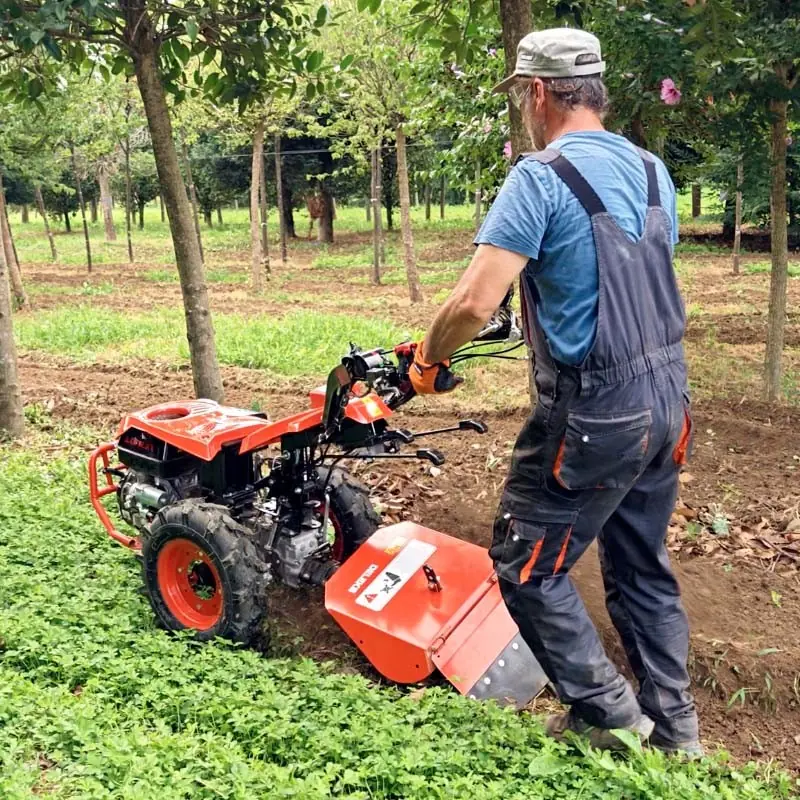

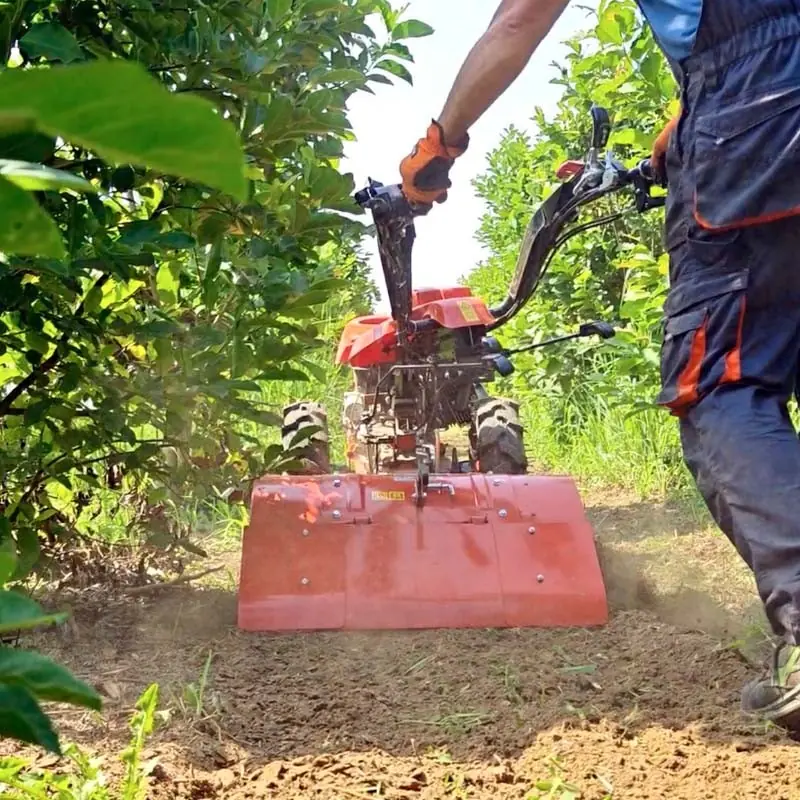

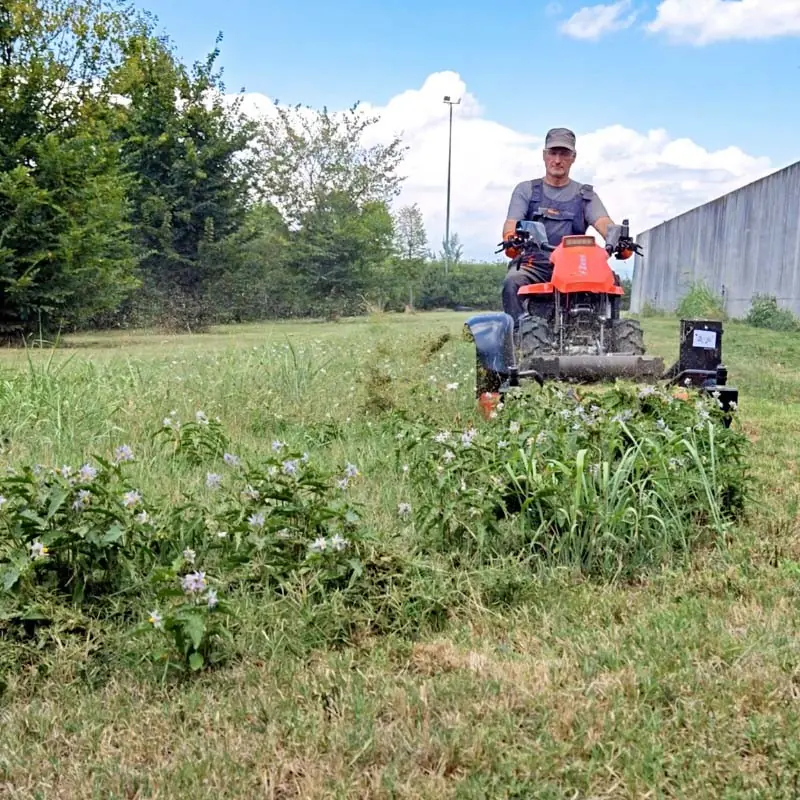

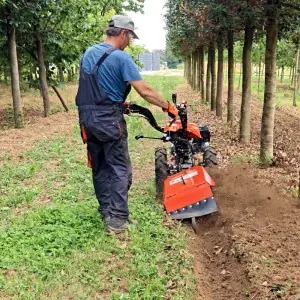

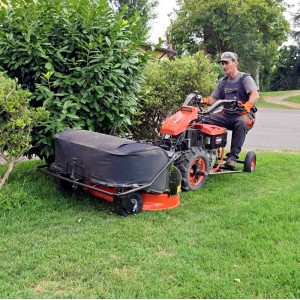

Designed for multiple functions: tillage in orchards and gardens, autumn milling to bury crop residues and provide organic matter, and grass pruning in vineyards and uncultivated areas. It is also suitable for cutting and reclaiming grass, as well as for snow removal and clearing roads and parking lots, thanks to its 180° reversible handlebar , adjustable in height and laterally, with ergonomic controls.

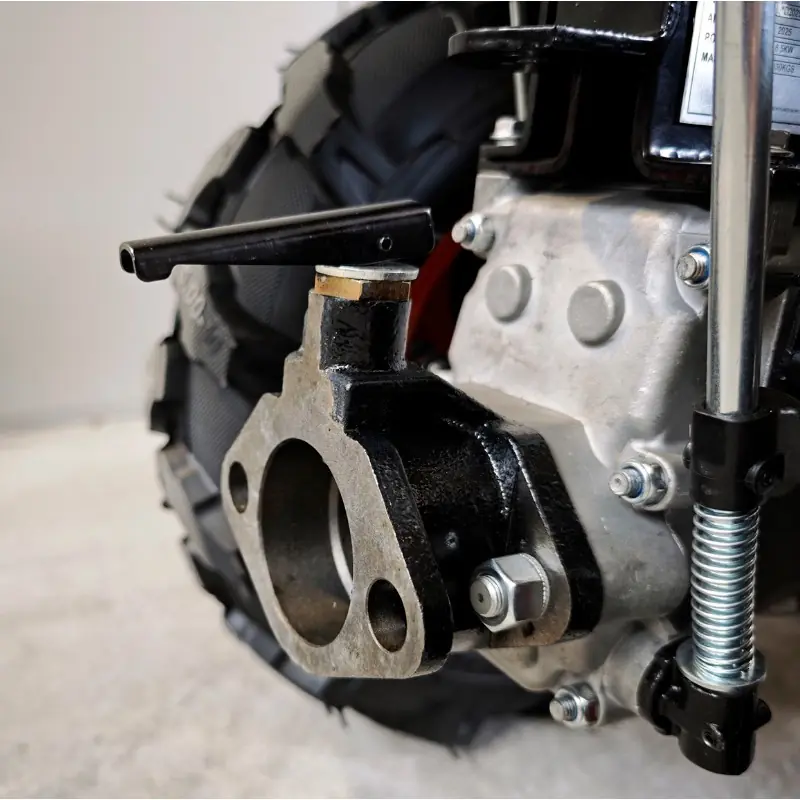

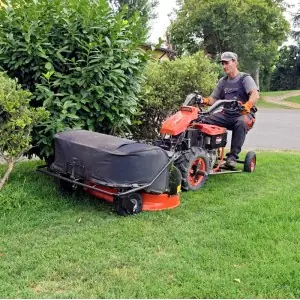

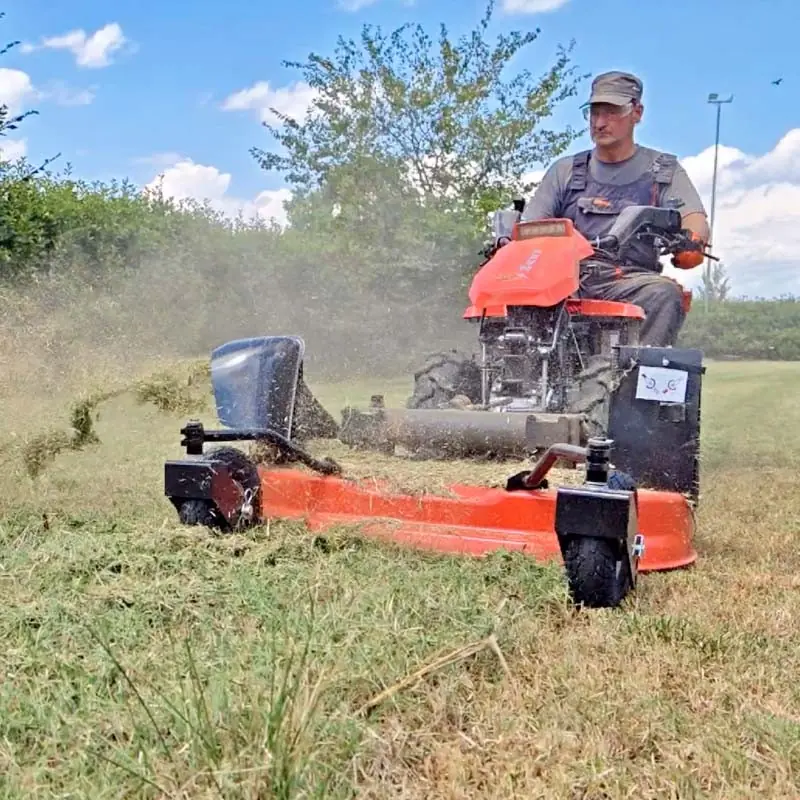

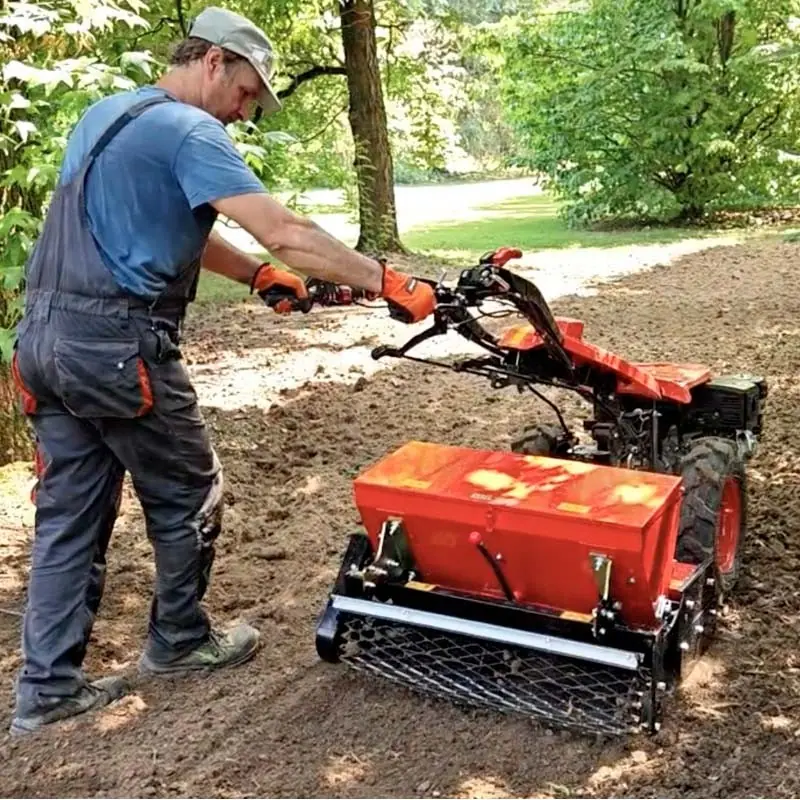

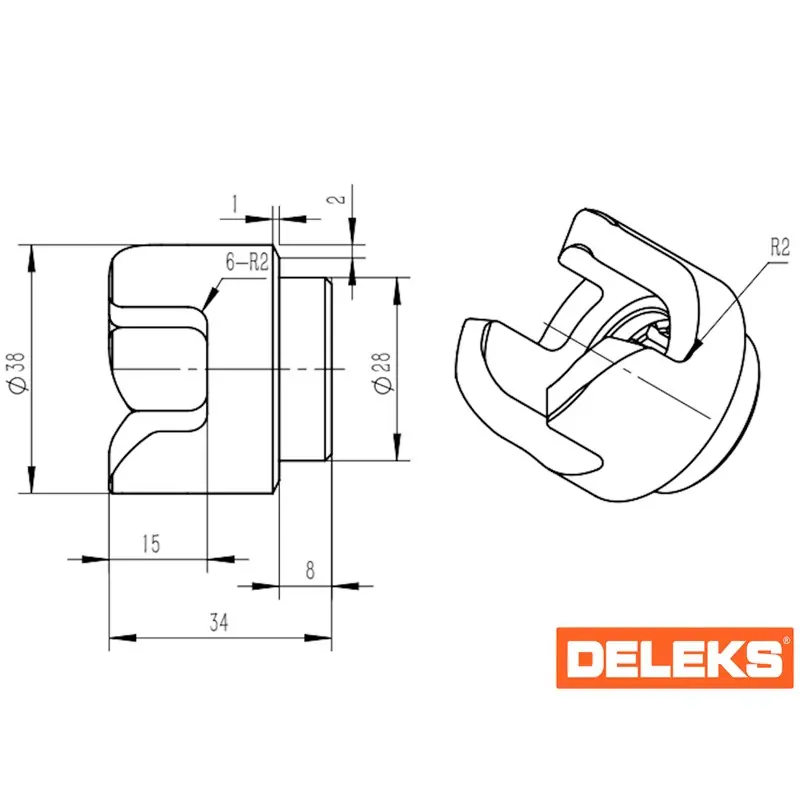

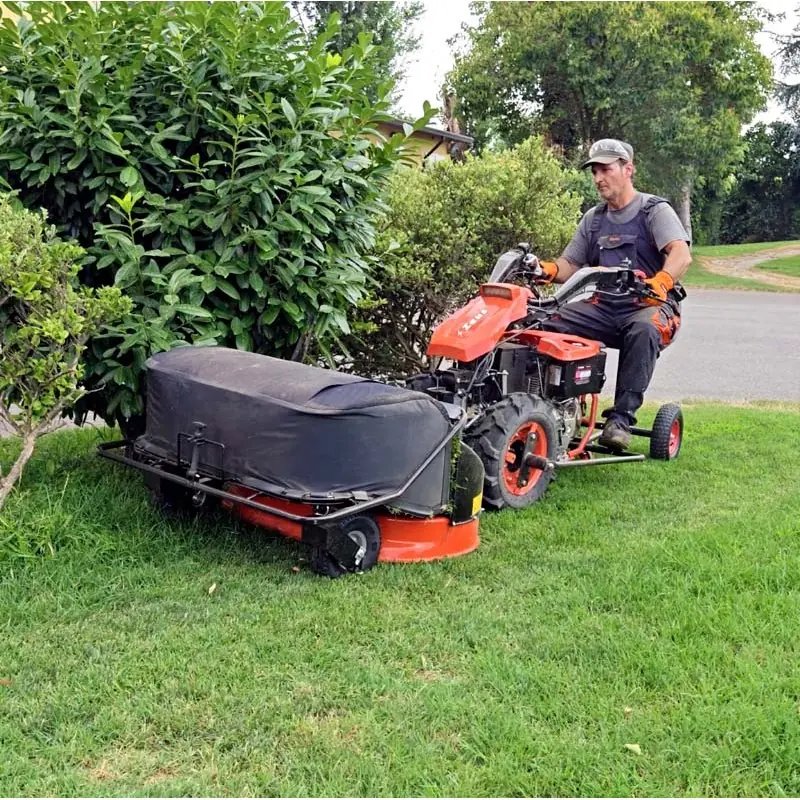

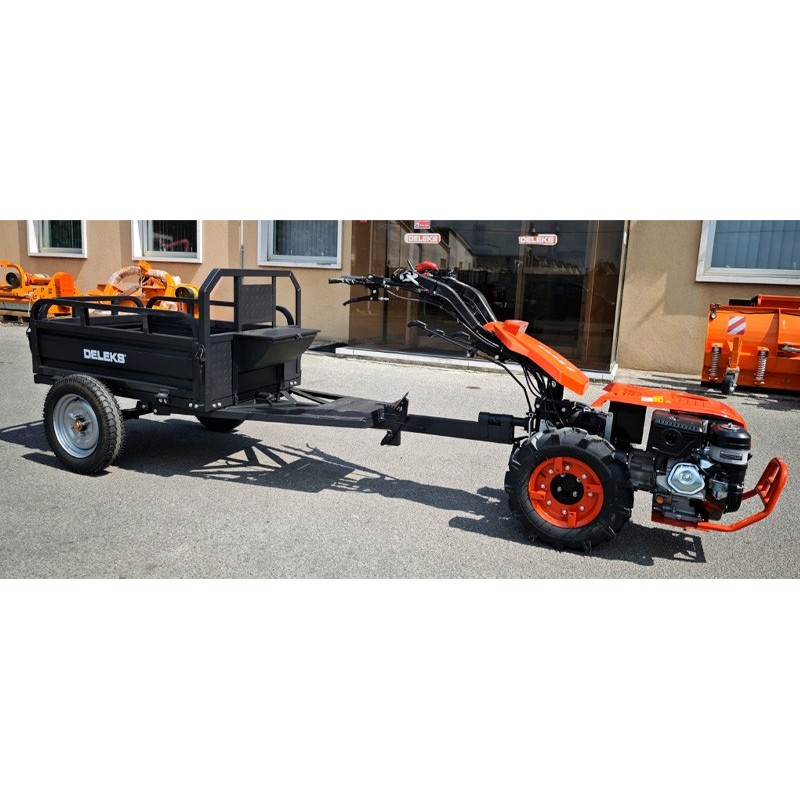

It includes a femalequick coupler and accepts attachments with transmission and male quick coupler: 80 cm rotovator, 70 cm rotary harrow with roller and seed drill, reversible and rotary plow, tiller snow blower and snow plow. Completes its versatility with 60/100 cm mulcher, 80 cm mower, 100 cm sweeper, 120 cm cutter bar, iron wheels, sulky seat and agricultural trailer.
- Accessories not included.
Type | Reversible and multi-function power tiller |

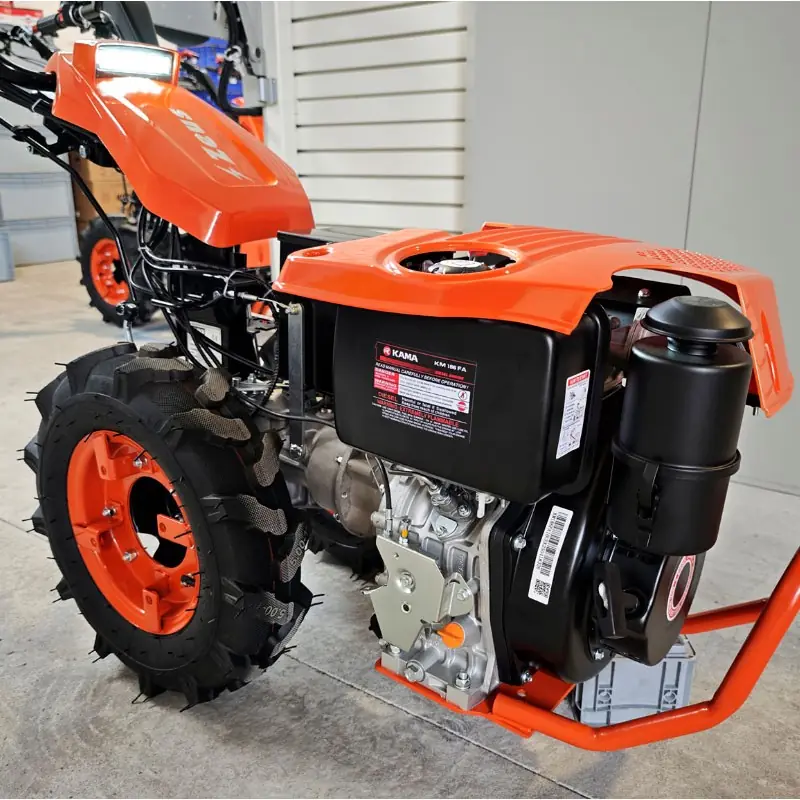

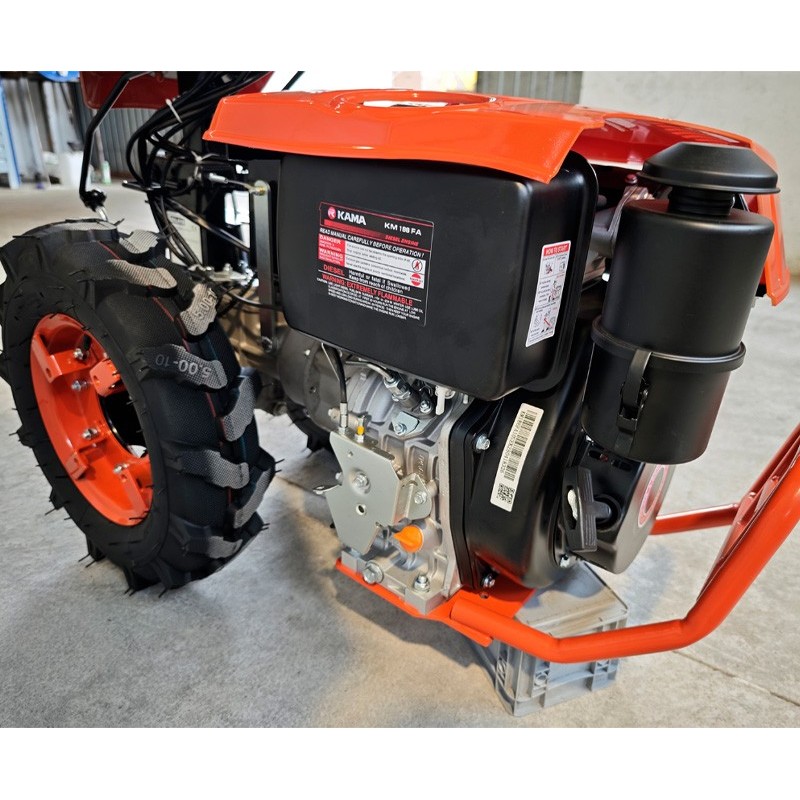

Engine make/model | Kama 186FA |
Fuel | Diesel |
Displacement | 418 cc |
Power | 9 HP |
Starter | Electric with key and manual by cable |
Transmission | 3 gears front + 2 gears rear |
Inverter | Fast |
Gears | Oil bath |
Drive and PTO | Independent |
PTO (power take-off) | 990 rpm |
PTO rotation direction | Time |
Differential | Yes |

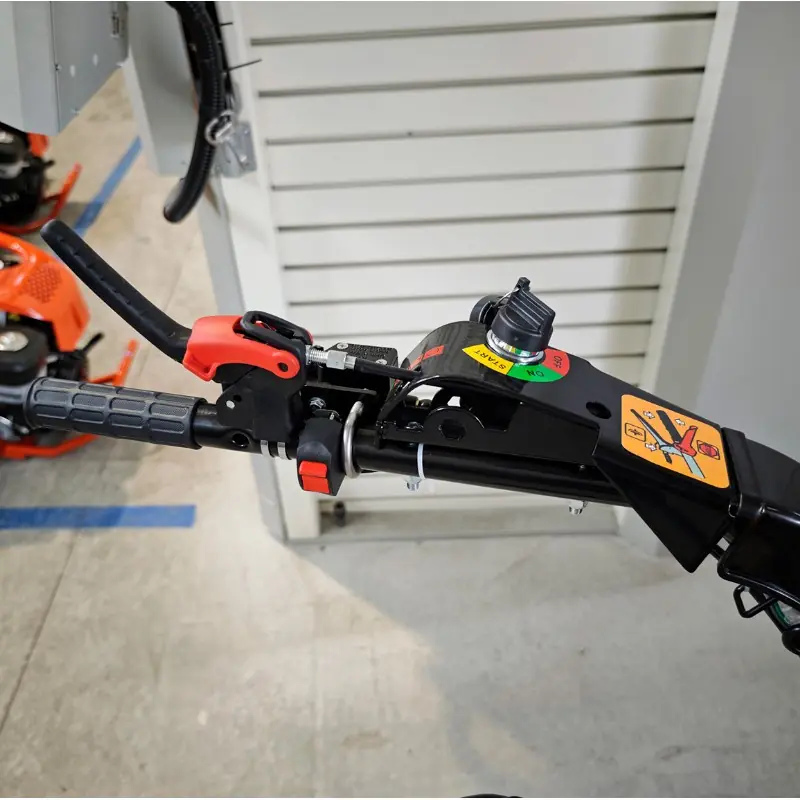

Differential lock | Yes (lever on handlebar) |

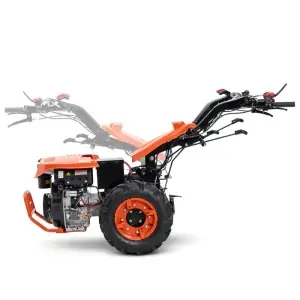

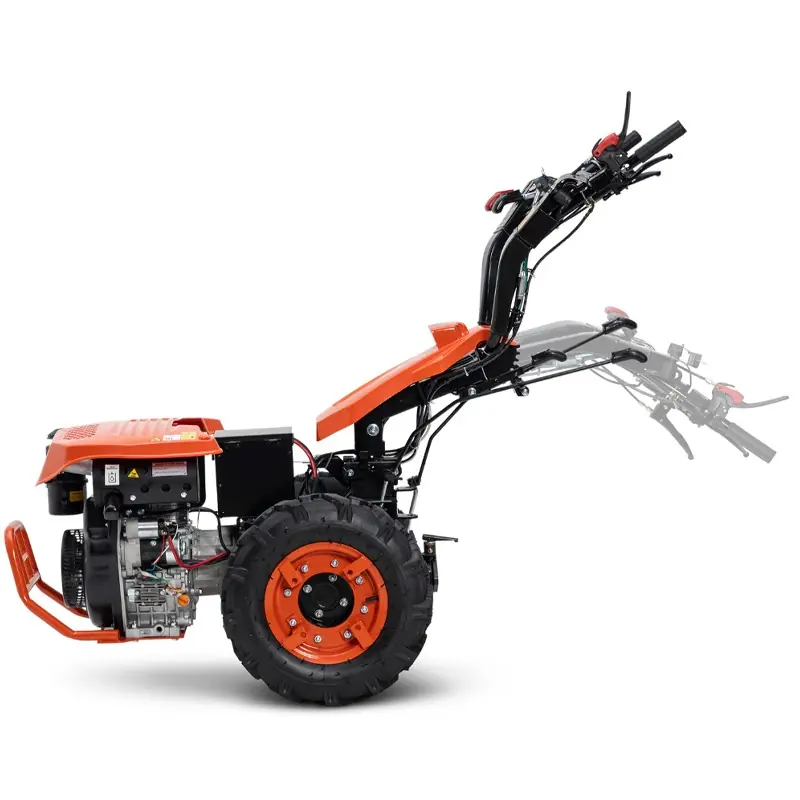

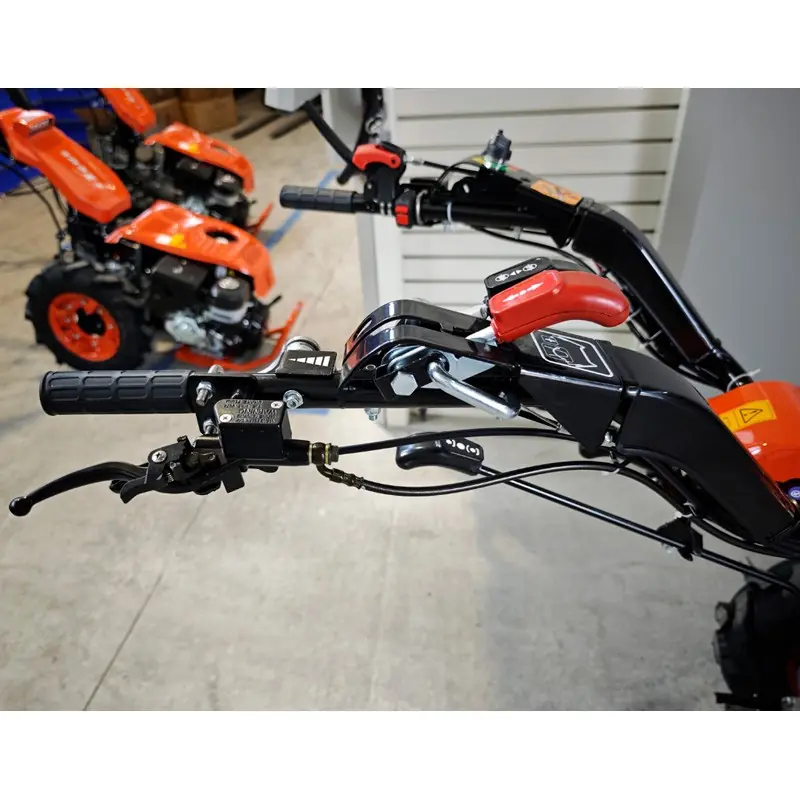

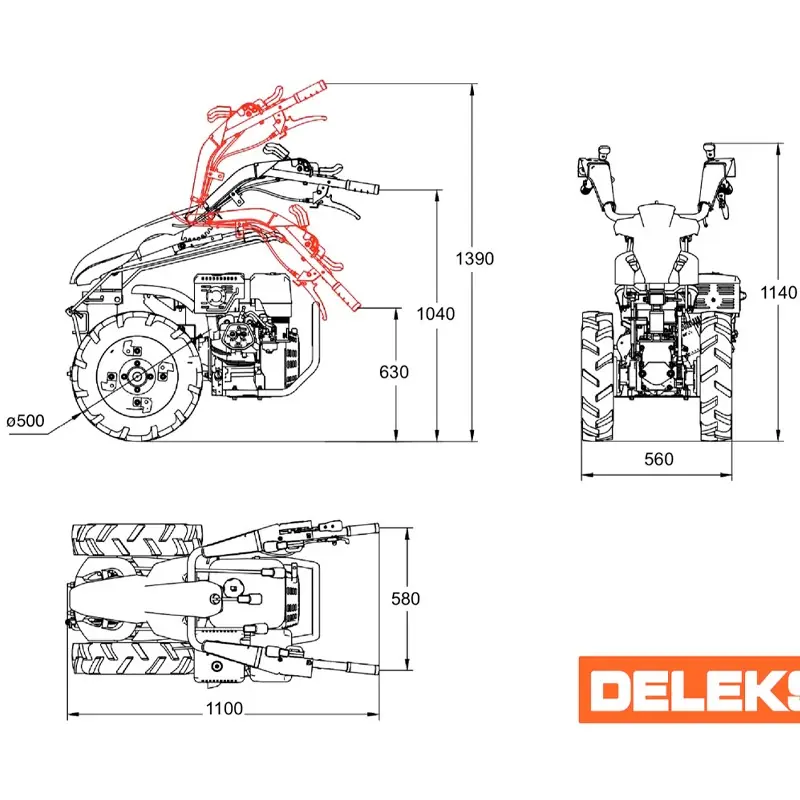

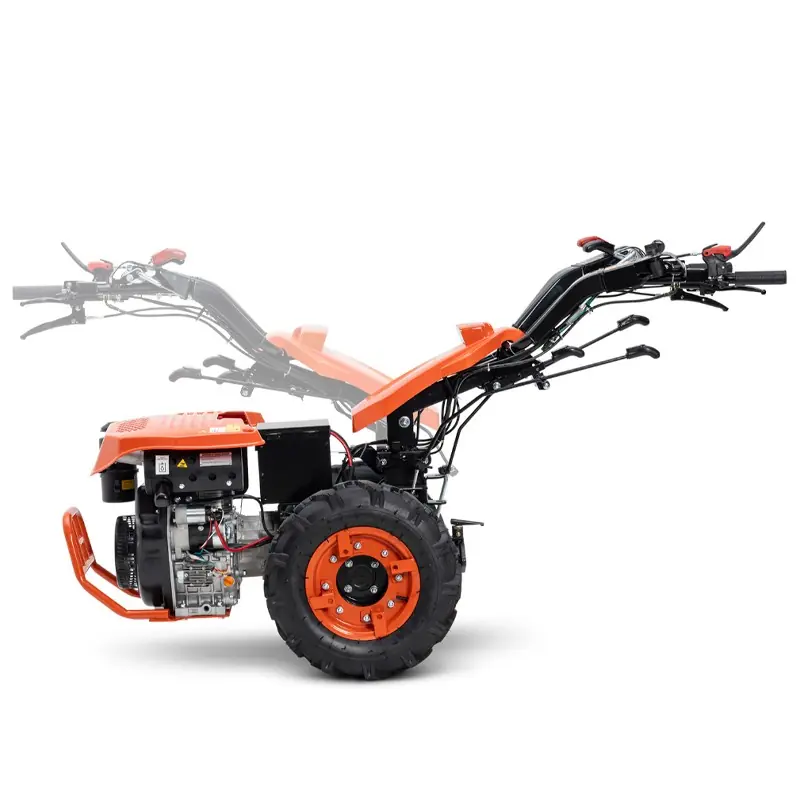

Handlebar | Reversible 180°, adjustable in height and sideways |

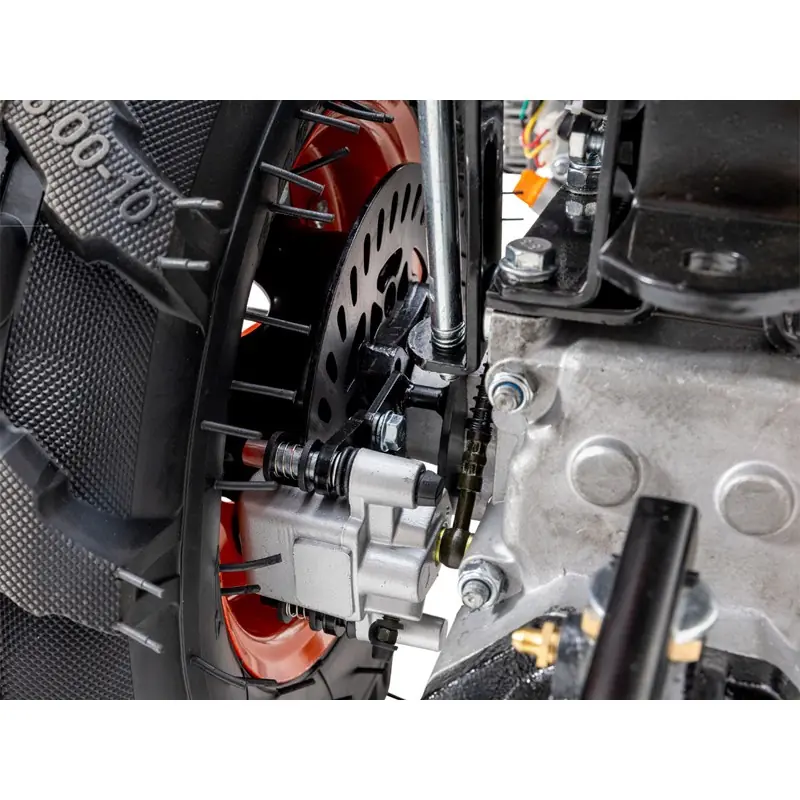

Brakes | Double disc brakes |
Forward speeds | 1,5 / 3,0 / 11,2 km/h |

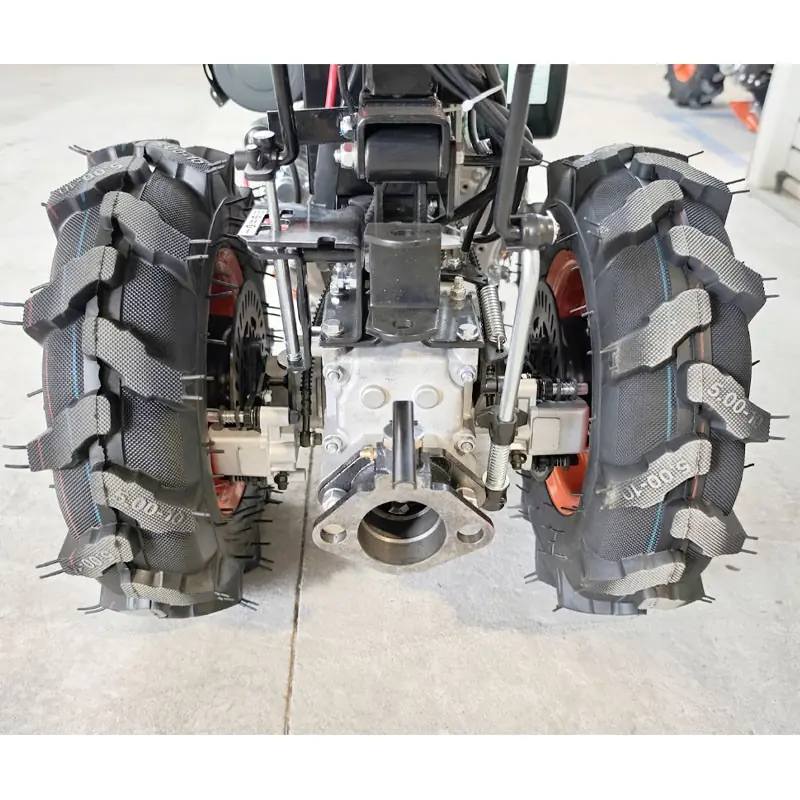

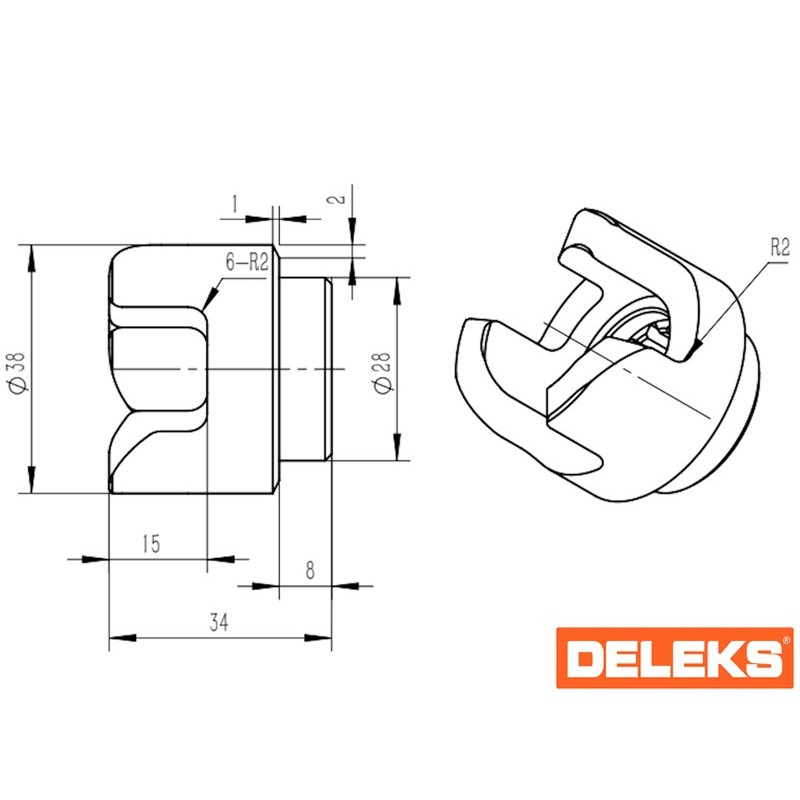

Quick coupling | Female included |
Weight | 130 kg |
Packing dimensions | 1150 x 710 x 950 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
This power tiller DOES NOT INCLUDE THE Tiller, you can select the one that best suits your needs in the accessories. It comes with manual starter by default but if you exceed 9HP it is recommended to purchase the electric starter. |
