Power Tiller Bertolini 401S Honda GX160 Engine

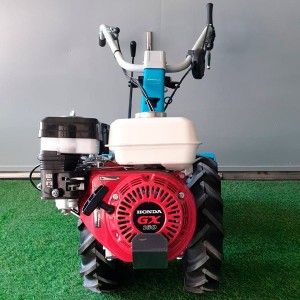

Power tiller Bertolini 401S-1

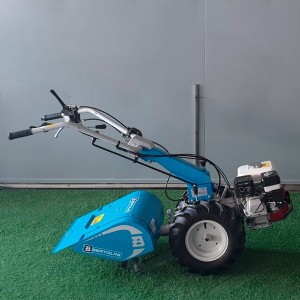

Power tiller Bertolini 401S-2
Power tiller Bertolini 401S-3
Power tiller Bertolini 401S-4
Power tiller Bertolini 401S-5

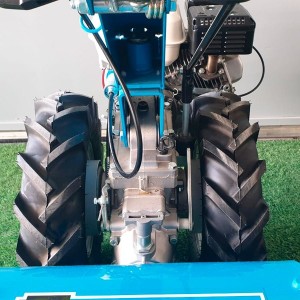

Power tiller Bertolini 401S-6
Power tiller Bertolini 401S-7

Gasoline Tiller Bertolini 401S Honda GX160 Engine 4.9 HP


  • Engine: Honda GX160 of 163 cc
  • Power: 4.9 HP
  • Cutters: 50 cm
  • Speeds: one, one forward and one reverse.
En stock
icon Power Supply
Power Supply
Gasoline
icon Width of tiller
Width of tiller
50 cm
icon Startup
Startup
Manual
icon Engine
Engine
Honda
icon Engine model
Engine model
GX160
icon Displacement
Displacement
163 cc
icon Power
Power
4.9 HP
icon Engine type
Engine type
4 times
icon Gears
Gears
1+1
icon Power take-off quick coupling
Power take-off quick coupling
Yes
icon Transmission type
Transmission type
Oil bath gears
icon Country of manufacture
Country of manufacture
Italy
€1,790.56 excl. VAT
- 4%
€1,718.94
€1,718.94 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline Tiller Bertolini 401S Honda GX160 Engine 4.9 HP
€1,718.94
Qty

Power Tiller Bertolini 401S Honda engine

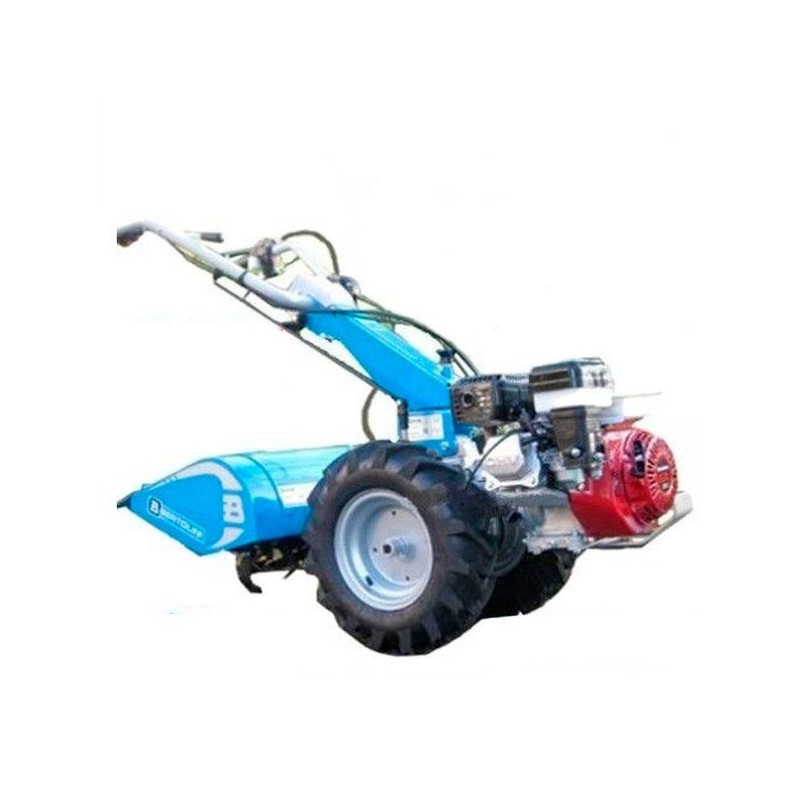

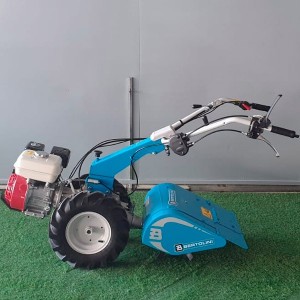

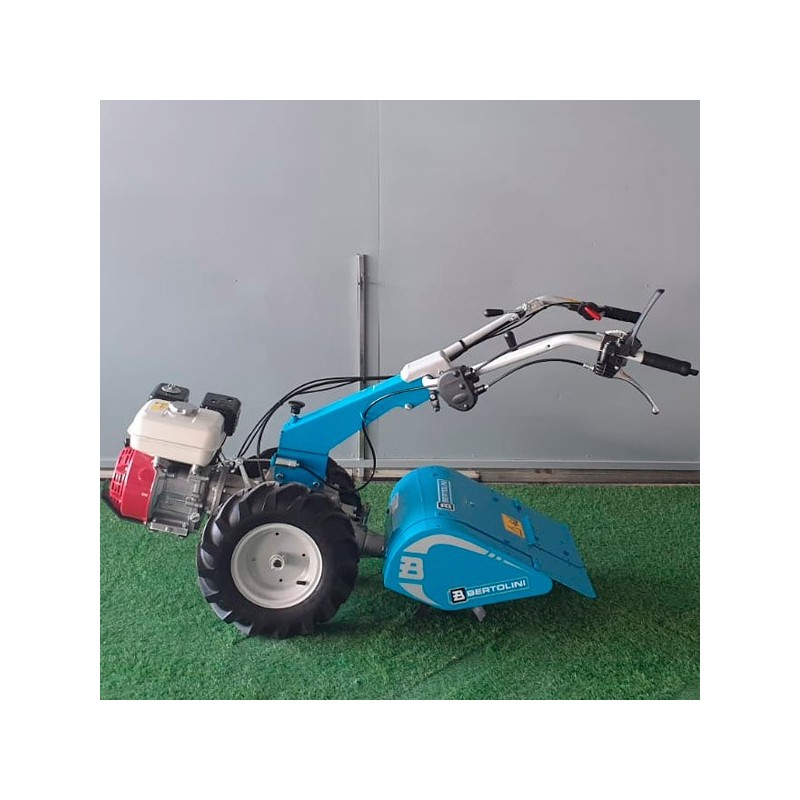

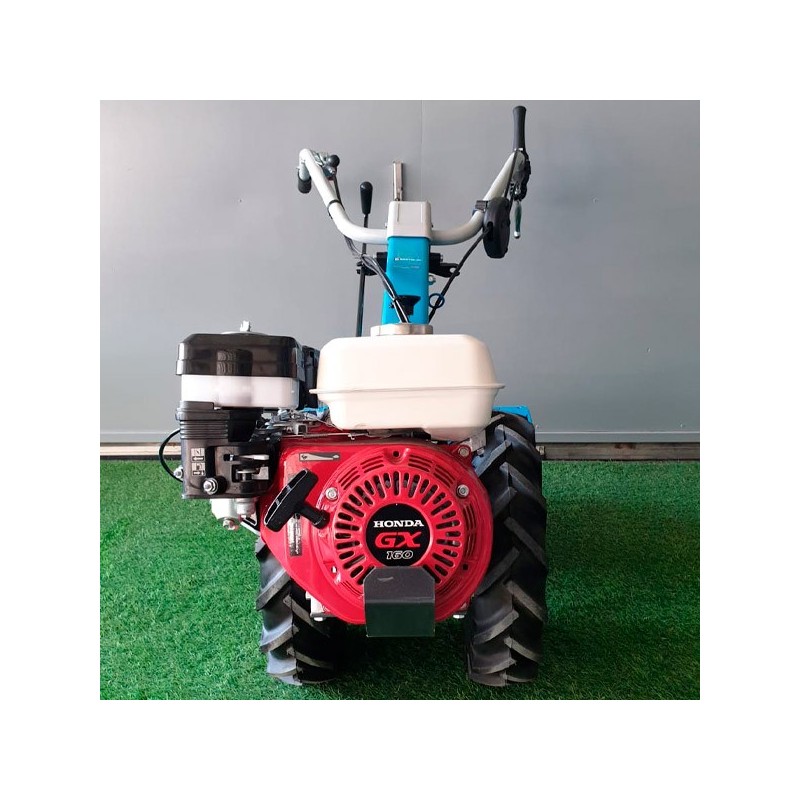

The Bertolini 401S Power Tiller is powered by a Honda GX160 gasoline engine with a power output of 4.9 HP and an independent power take-off. It also has an adjustable handlebar in all directions mounted on shock absorbers. Its efficiency is achieved thanks to its transmission with oil-bath gears and dry disc clutch.

This power tiller is compatible with 50 cm cutters and 4.00-8" wheels. This model has been created for demanding private users, it is characterized by great functionality and an excellent combination of ease of use and safety.

The power tiller is equipped with a gearbox with one forward and one reverse gear. In addition, it includes safety devices for locking the reverse gear insertion when the T.D.F is in function.

This model includes an integral QuickFit system for attaching attachments. The weight of this machine with motor, rotor and wheels is 75Kg.

Features

Engine Honda GX160
Power 4.9 HP-3.6 KW
Displacement 163 cc
Gears 1 front + 1 rear
Differential No
Transmission Gears in oil bath
Clutch Dry multi-plate

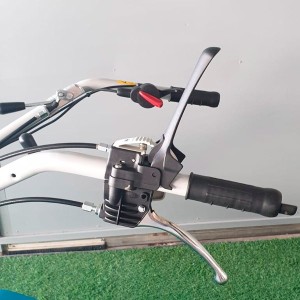

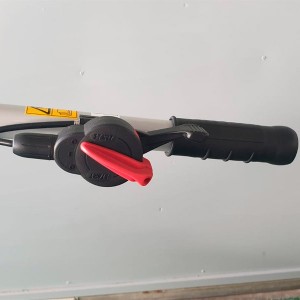

Handlebar Height and width adjustable, 180 ° reversible, with vibration damping device
Brakes No
Accessories Integral QuickFit coupling supplied as standard
PTO Independent at 1004rpm
Trailer hitch Optional
Cover No
Cutters 50 cm
Weight 75 Kg

Motocultor Gasolina Bertolini 401S Motor Honda GX160 4,9 HP

Difference between the oil bath clutch of other brands and the dry multi-disc clutch of other brands Bertolini

Oil immersed clutch brake (Other brands) Disadvantages

  • Hydraulic due to the use of oil.
  • When the machine gets full of debris it is more prone to failure.
  • Practical and functional with good maintenance when needed.
  • First time use requires an oil change in a maximum of 40 hours.
  • The engine has a small oil pump which communicates with the clutch device and lubricates it and makes it work. When this oil is full of debris, the system will stop working and start to fail.
  • In the case of poor maintenance the machine starts to fail. The warranty does not cover the damage so it will be necessary to take it to the workshop and have it done by a professional.
  • In certain points of the machine there could be oil leaks.

Multi-disc dry clutch Bertolini

  • Simpler and more mechanical system and the clutch with brake and a force multiplication system without DHS.
  • This machine is less prone to failures

IMPORTANT
It is mandatory for the customer to check oil and grease levels before start-up !

If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied unless an examination is pending.
