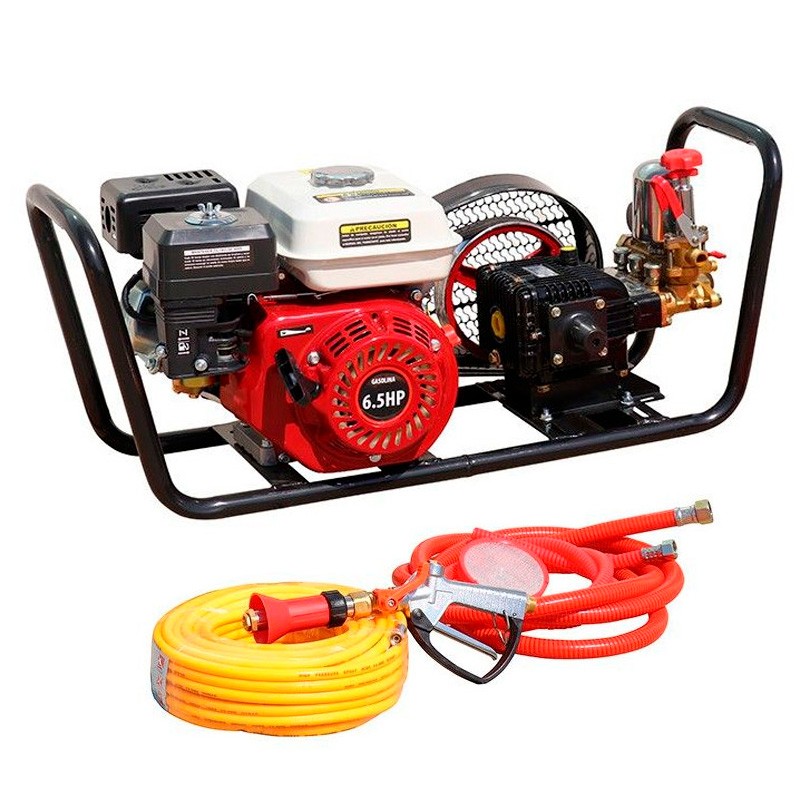

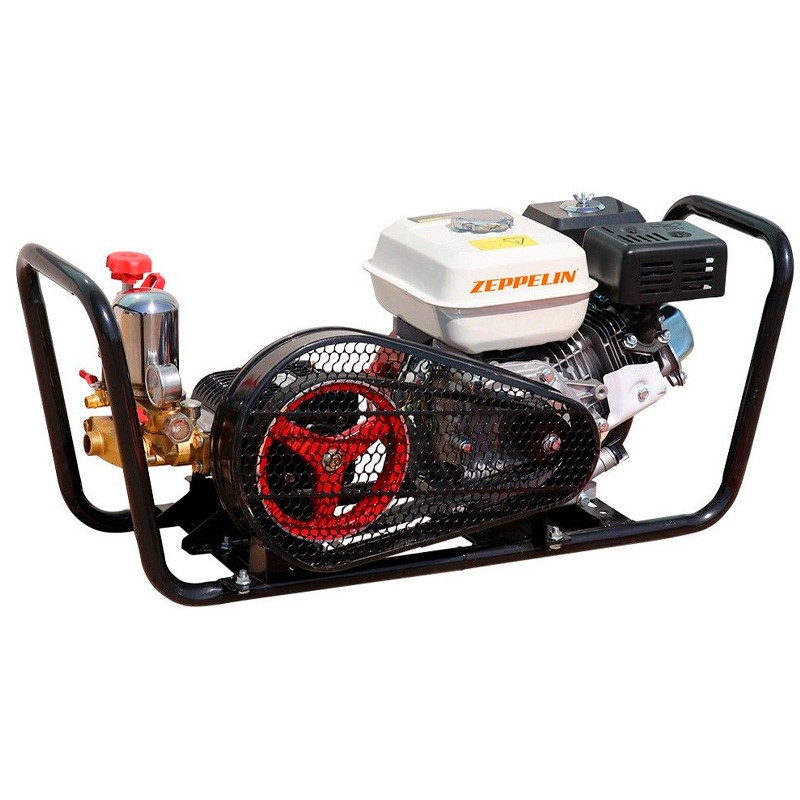

Spraying boom Zeppelin OZR 6,5 HP with hose reel
- Displacement: 196 cc
- Pump type : Pistons
- Pump flow rate : 26 L/min
€463.51 VAT incl.
6.5 HP gasoline sprayer is designed to be mounted on a trailer, pick-up or small platform and to work with total autonomy on farms without PTO or mains power. It is equipped with a 6.5 HP OHV 4-stroke engine with a 196 cc displacement and a maximum speed of 3,600 rpm that drives a high-pressure piston pump.
The pumping unit operates at 800 rpm with adjustable pressure between 2.0 and 3.5 MPa and a suction of 25 to 26 liters per minute, sufficient for intensive treatments in fruit trees, olive groves, citrus or disinfections. The set is supplied on a protected and light tubular chassis, with a 30-meter high pressure hose and spray gun to reach crops at height or areas far from the vehicle.
Its contained weight of about 15.5 kg and size 400 x 235 x 340 mm facilitate loading and storage. It is a very versatile solution for phytosanitary applications, herbicides or moderate pressure washing in agricultural and livestock farms where mobility and mechanical simplicity are valued.
| Model | O2Z bedplate |
| Engine type | 4T OHV |
| Engine power | 6.5 HP |
| Displacement | 196 cc |
| Maximum engine RPM | 3600 rpm |
| Maximum engine torque | 13.2 N-m |
| Fuel | Gasoline |
| Pump type | Pistons |
| Pump RPM | 800 rpm |
| Suction flow rate | 25-26 L/min |
| Working pressure | 2.0-3.5 MPa |
| Hose length | 25 or 30 m |
| Weight | 15.5 kg |
| Dimensions | 400 x 235 x 340 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
