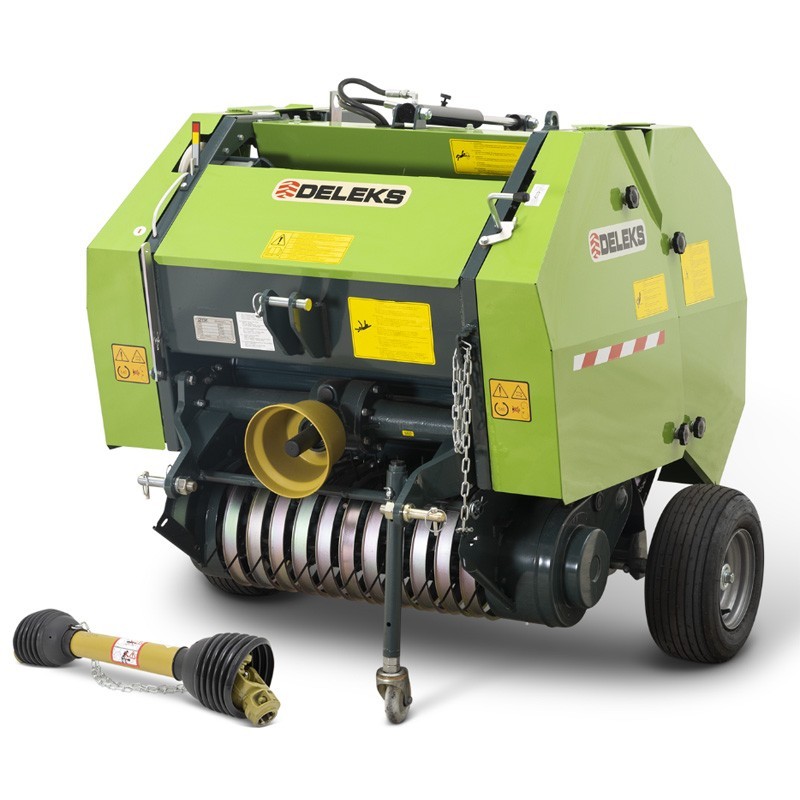

CARDAN SHAFT INCLUDED
| Deleks products take about 15 to 20 days. |

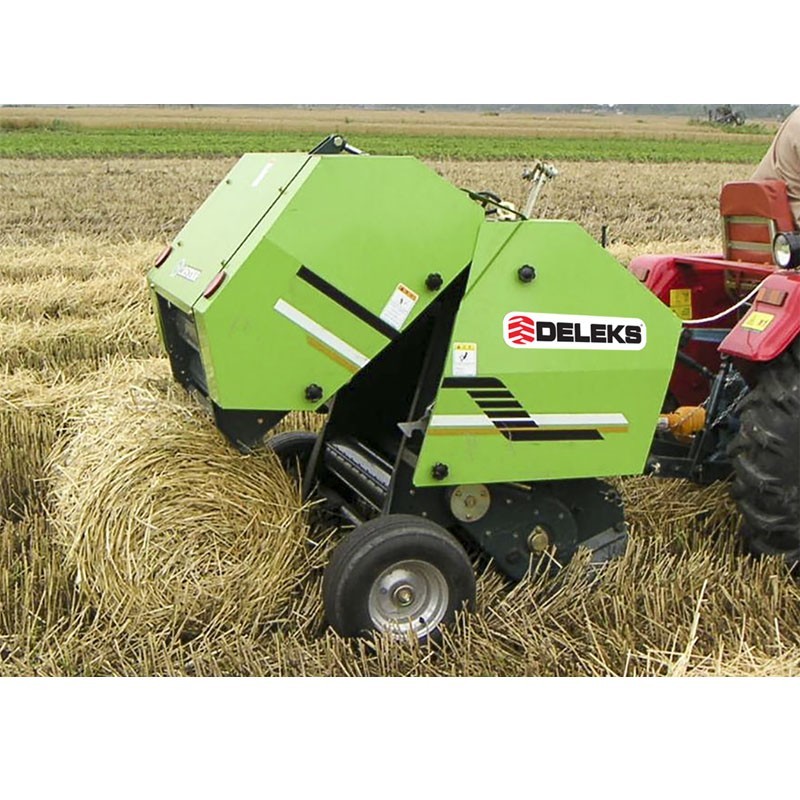

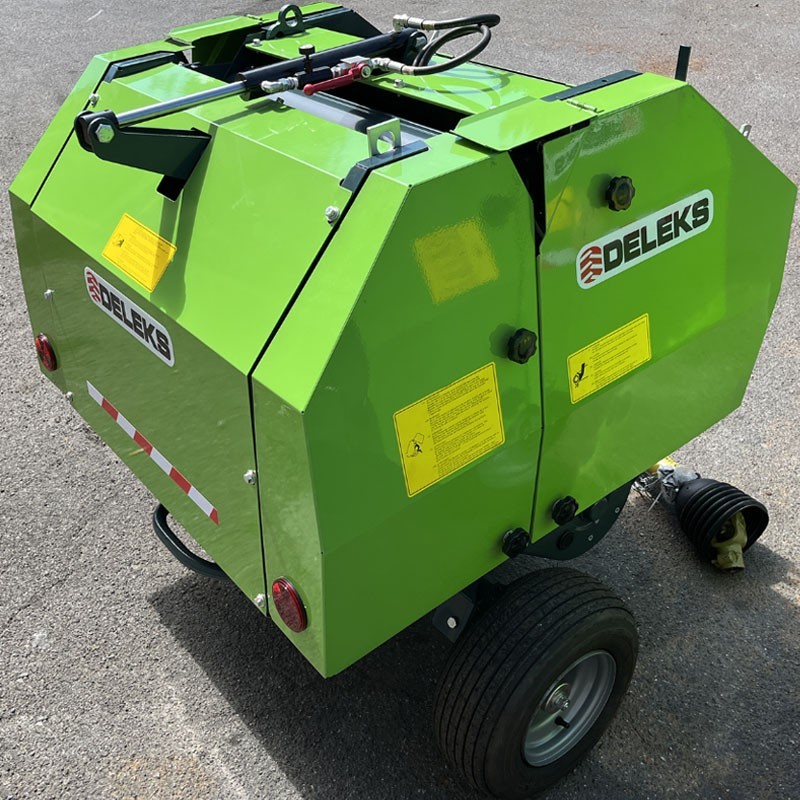

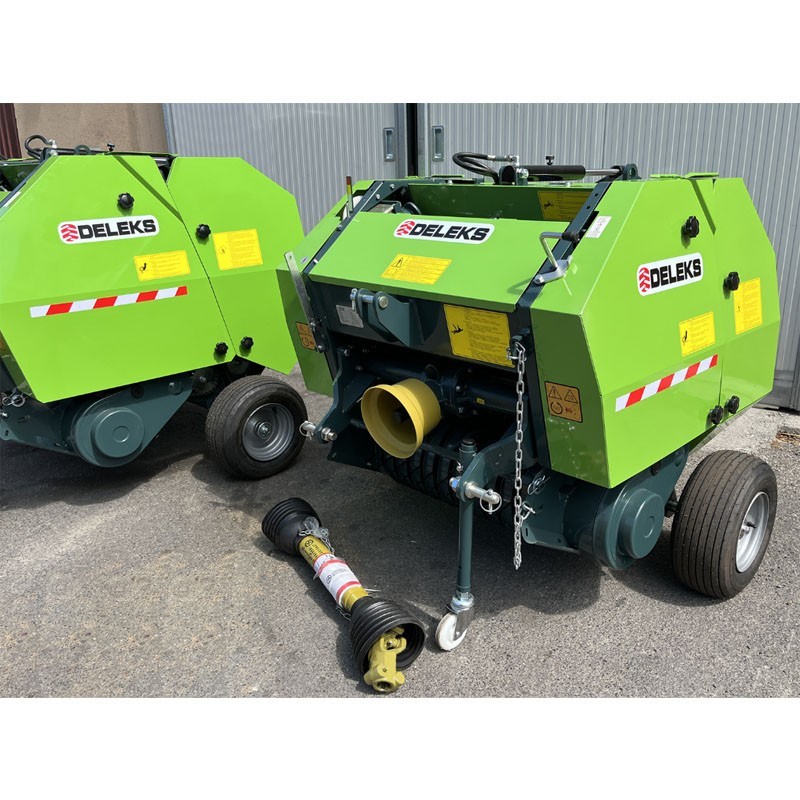

The DELEKS STAR Mini Tractor Baler has a reduced size and weight, ideal for use in mountain areas and for horse breeding. This Mini Baler is for straw and hay, it does not work for vine shoots.

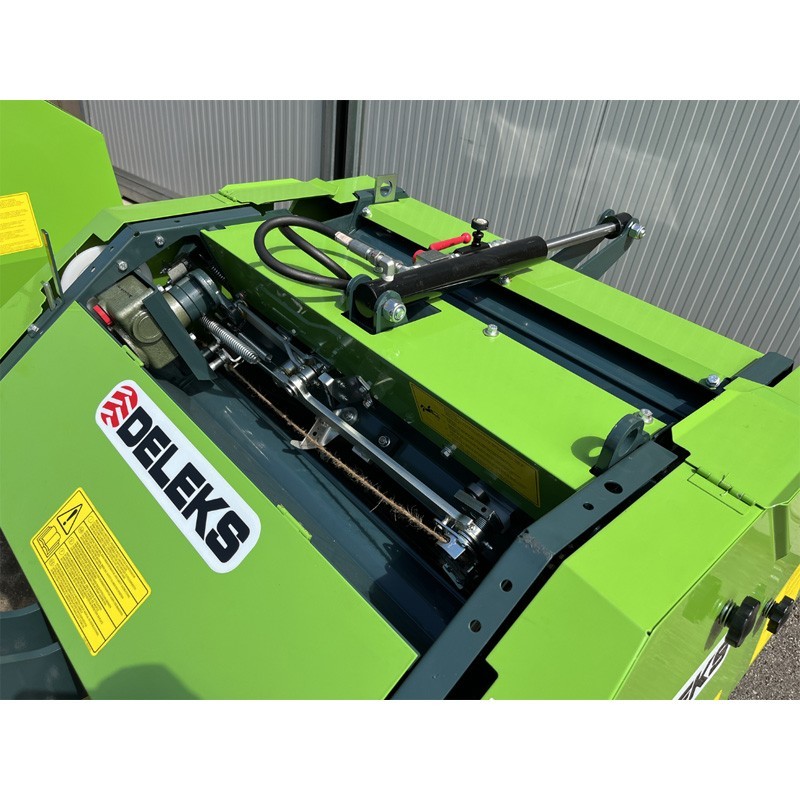

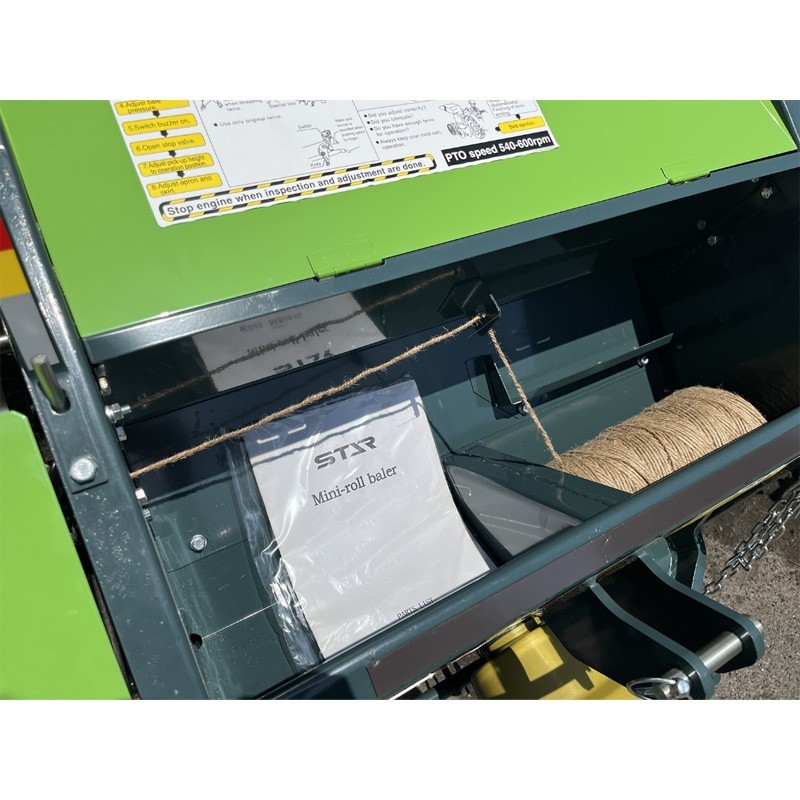

Its rope binding is automatically activated when the pre-selected baling pressure is reached and signaled by an acoustic indicator. The independent hydraulic control unit allows to hydraulically operate the opening and closing of the door without hydraulic connection to the tractor.
The dimensions of the bale depending on the model range from 50 - 60 cm diameter and 70 cm width, the weight of the bale also varies depending on the model, its weight is from 20/25 to 30 kg.
It has a high quality Japanese equipment, it can be coupled to tractors of small dimensions and low power, it has the possibility to be used in sloping areas and / or accessible only through narrow passages.
| Model | STAR 850 | STAR 870 |

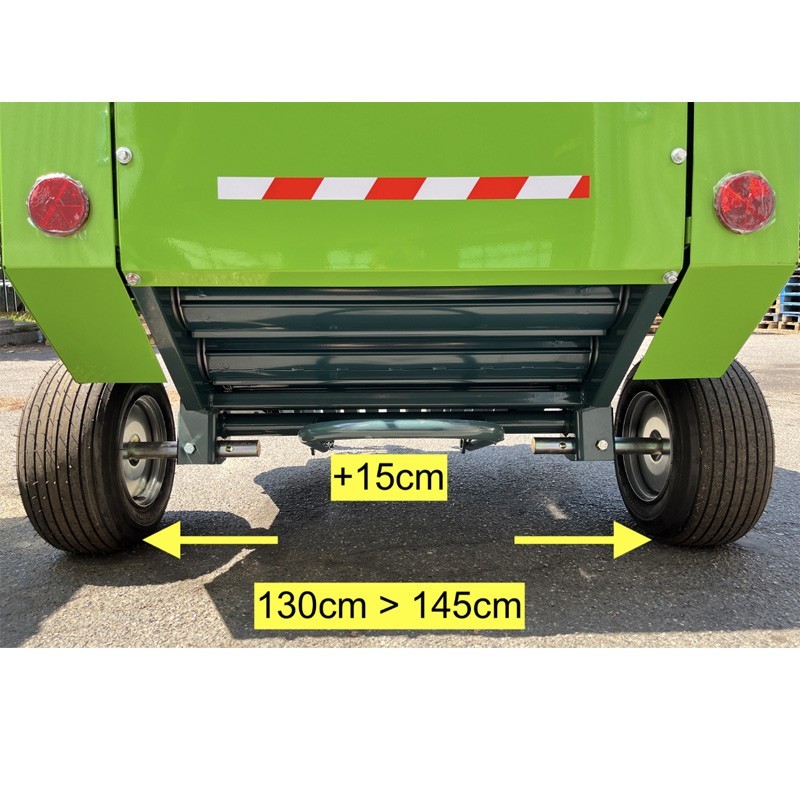

| Total width | 1300.0 mm | 1350.0 mm |
| Tractor power | 24 - 40 HP | 24 - 55 HP |
| Weight | 390.0 kg | 440.0 kg |
| 3-point hitch | Cat. 1 (ø 19.0-22.0mm) | |
| Distance between lower points | 410.0-660.0 mm | |
| Total length | 1150.0 mm | 1300.0 mm |
| Space between ground and transmission box | 550.0 mm | |
| Transmission: PTO | 540 r/min | |
| Transmission: rotation direction | Time | |
| Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 | |
| Working width | 800.0 mm | |
| Cardan shaft | CE 4x800 mm | |
| Wheel dimensions | 16 x 6.50-8-4-4PR | |
| Packing dimensions | 120 x 115 x 125 cm | 145 x 115 x 125 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
