Inter-row Rotovator for Tractor Dimago 70 cm
- 0.70 m working width
- 540 RPM
- Blades 30 (6 x disc)
- 260 kg
- Power 30 - 60 HP
€3,023.79 VAT incl.

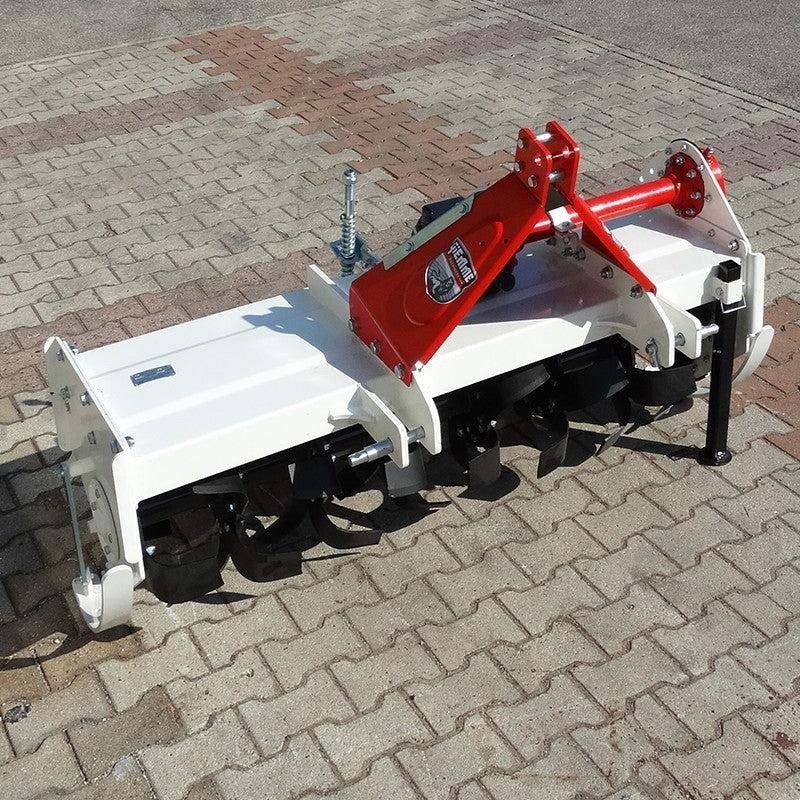

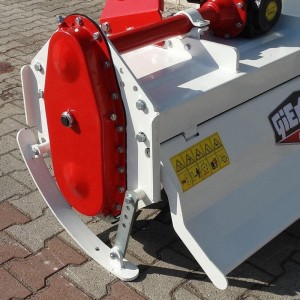

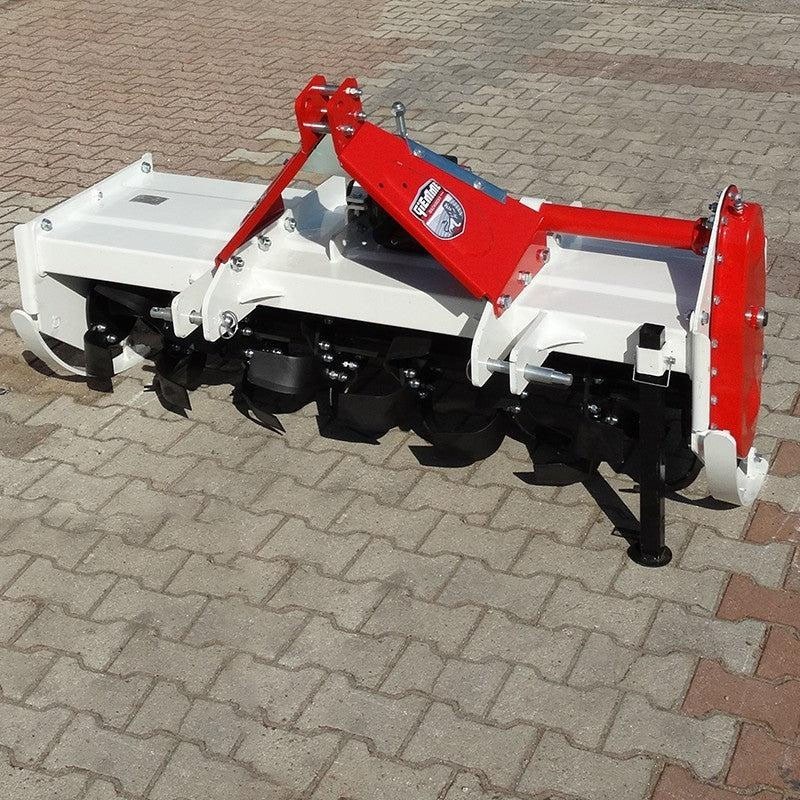

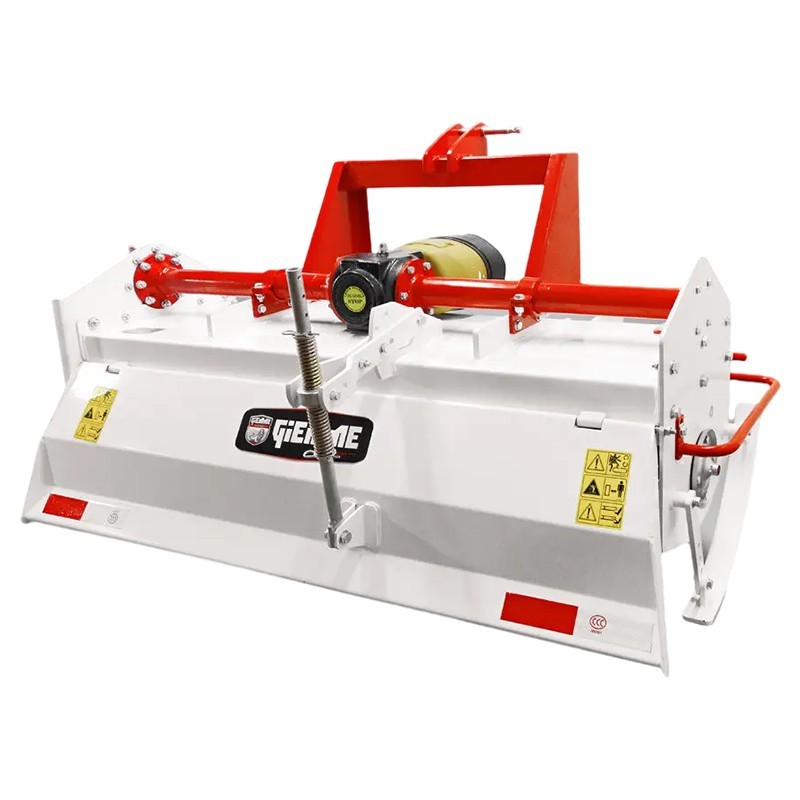

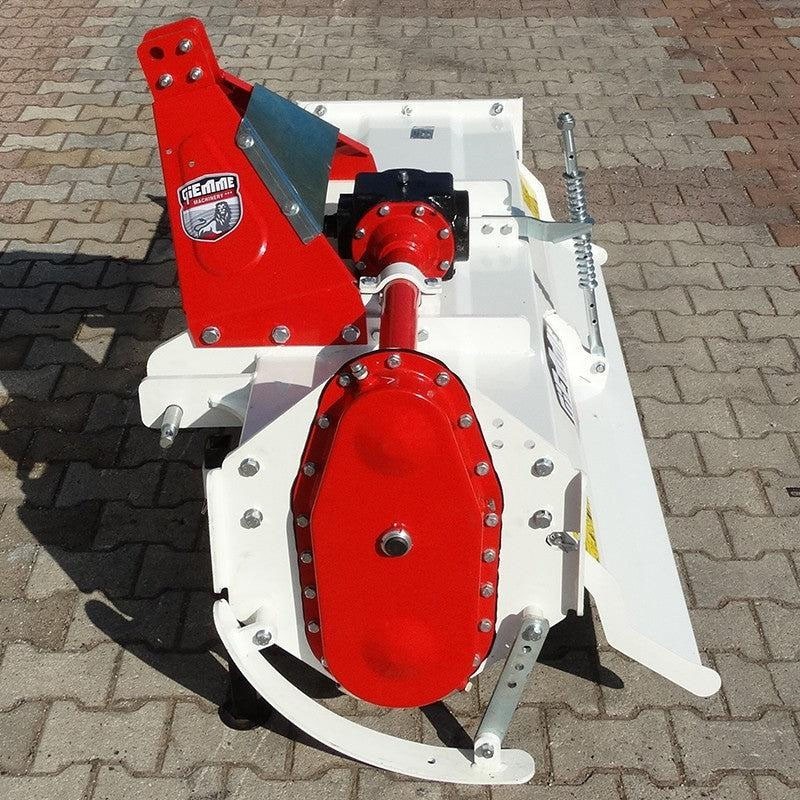

The Giemme IGN PTO Rotovator is a versatile and robust agricultural tool designed to facilitate work in the field. Available in four models with working widths ranging from 125 to 180 cm, this rotovator is ideal for tractors with a power of 40 to 65 HP.

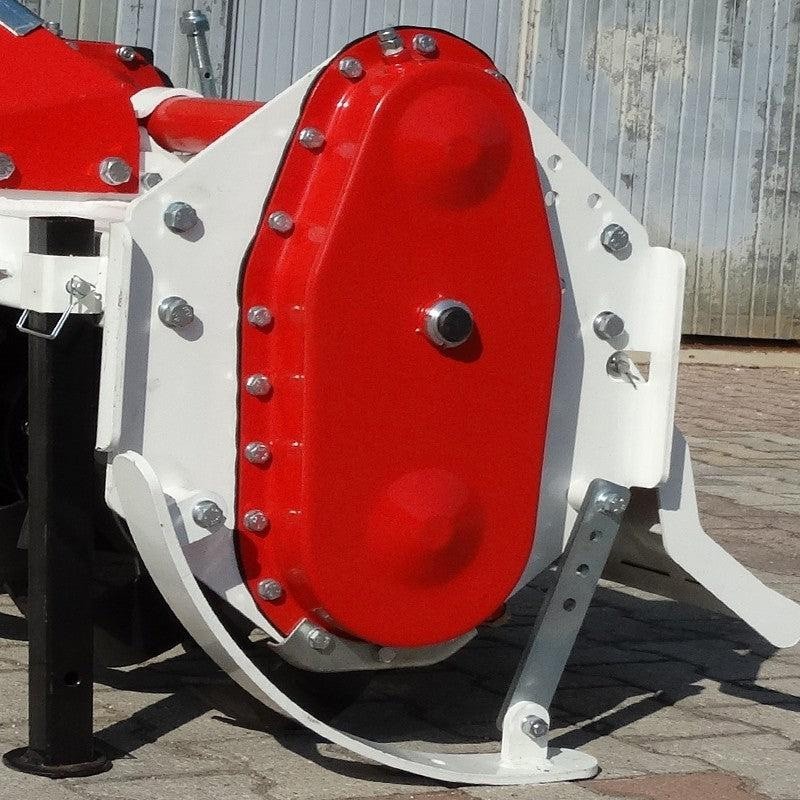

Its universal three-point linkage, compatible with categories I and II, ensures quick and easy connection to the tractor. This equipment stands out for its reinforced chassis and cast iron gearbox, which operates at 540 rpm, providing a lateral transmission of gears in oil bath.

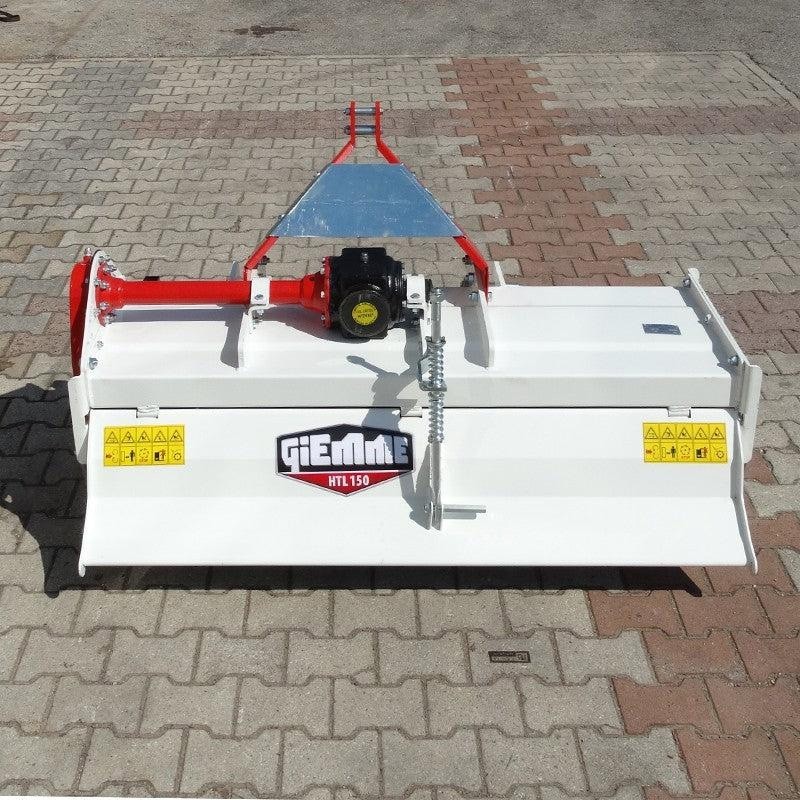

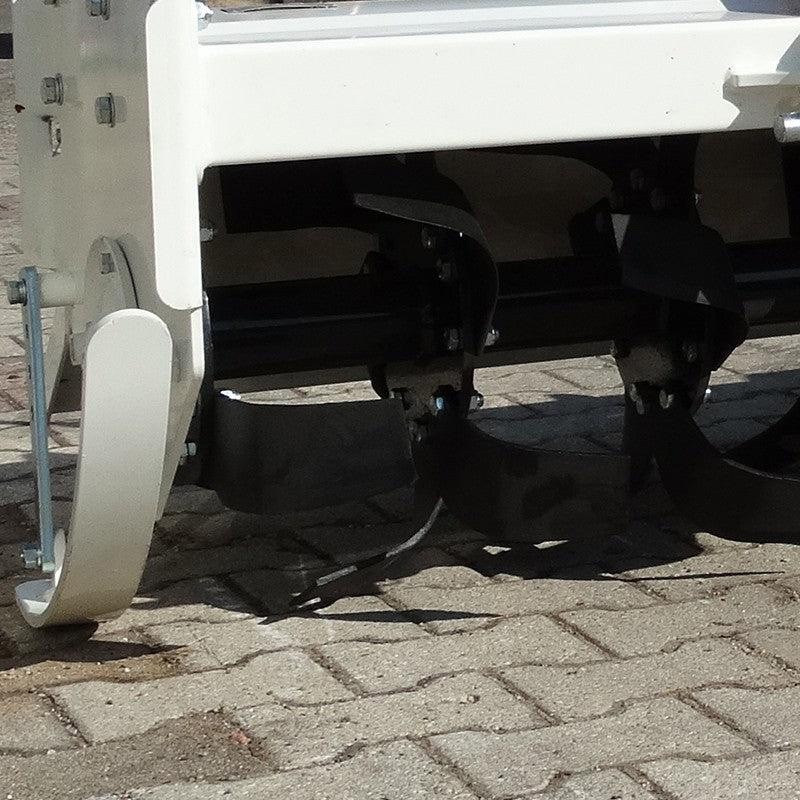

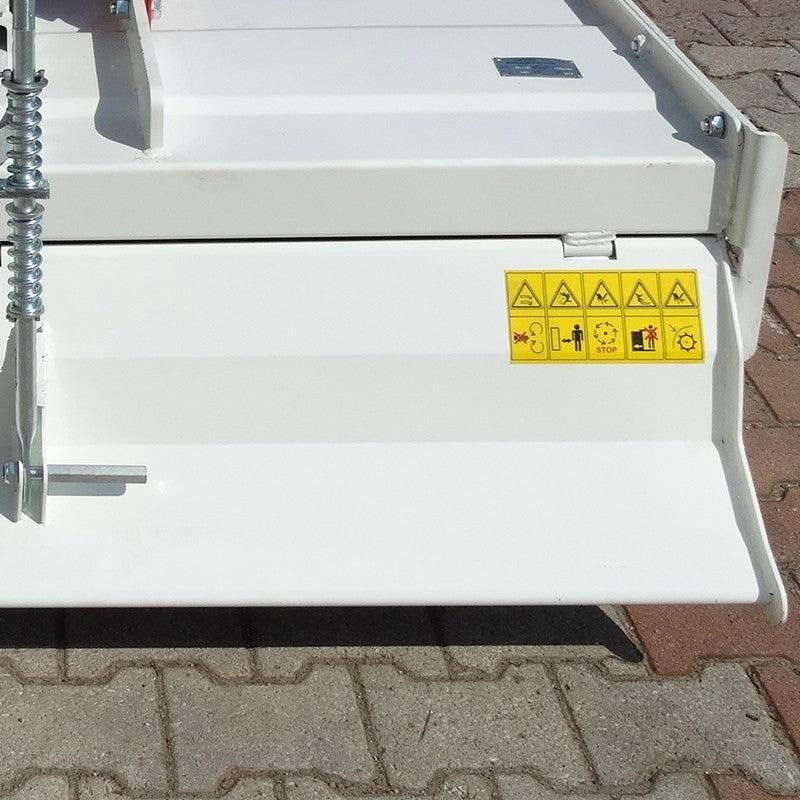

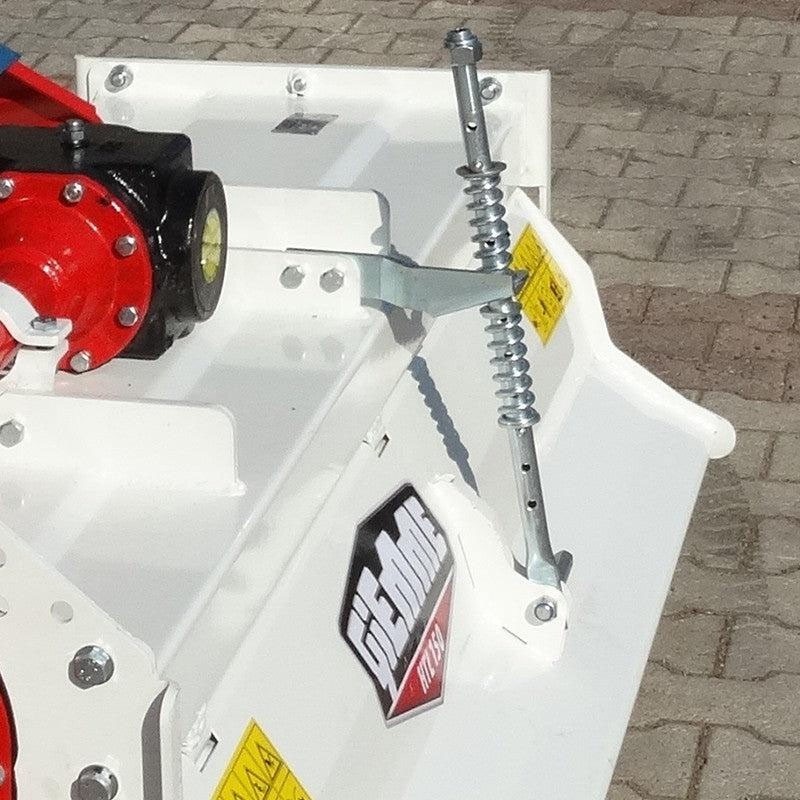

In addition, the Giemme IGN Rotovator PTO includes an adjustable rear hood and height-adjustable side slides, allowing it to adapt to various ground conditions. With its rotor equipped with six helical hoes per flange and the 800 mm T5 cardan shaft with clutch, it guarantees efficient and high quality work in soil cultivation.
Model | IGN 125 | IGN 135 |
Working width | 125 cm | 135 cm |
Total width | 135 cm | 145 cm |
Tractor power | 40/60 HP | 40/60 HP |
Weight | 250 kg | 278 kg |
Blades | 18+18 | 18+18 |
Rotor: No. of sections | 7 | 7 |
Working depth | 16/20 cm | 16/20 cm |
Model | IGN 150 | IGN 180 |
Working width | 150 cm | 180 cm |
Total width | 160 cm | 190 cm |
Tractor power | 40/60 HP | 50/65 HP |
Weight | 296 kg | 326 kg |
Blades | 21+21 | 24+24 |
Rotor: No. of sections | 7 | 7 |
Working depth | 16/20 cm | 16/20 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
