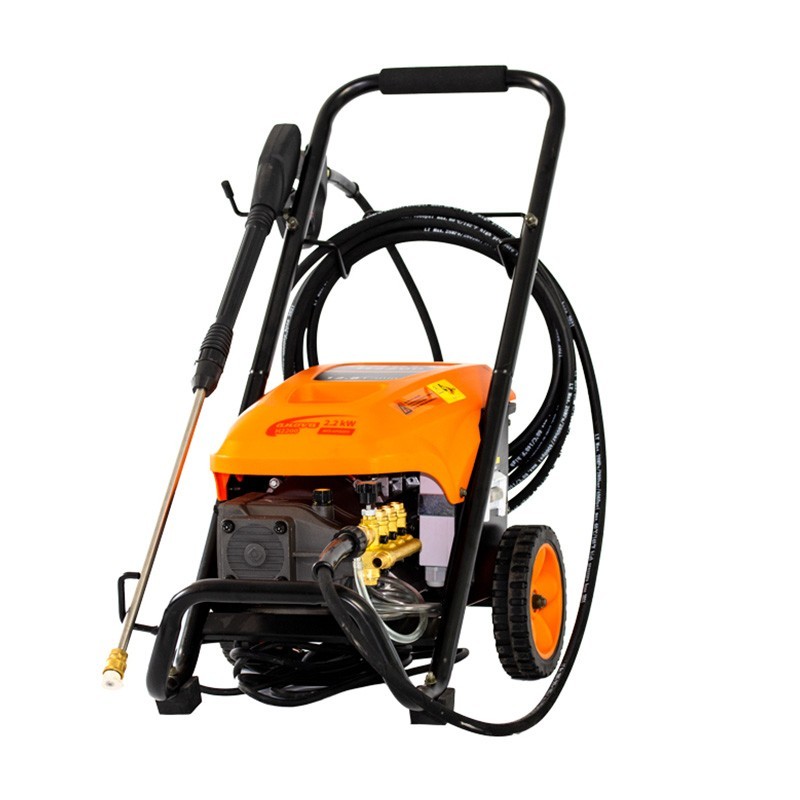

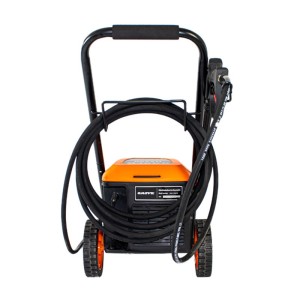

Pressure washer Anova H2200
The pressure washer Anova H2200 has an electric motor, this motor provides a maximum power of 2.2 kW at a frequency of 2900 rpm.

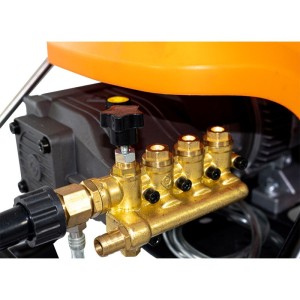

This pressure washer comes standard with the 3WZ-18070B pump, which offers a maximum pressure of 80 bar. In addition to having a flow rate of 12.8 L/min.
The main uses of these pressure washers are to maintain and wash vehicles and agricultural or architectural machinery. In addition to being able to wash, disinfect and sanitize any surface or environment.
Characteristics
|
| Power |
2200 W |
|
| Flow rate |
12,8 L/MIN |
|
| Pressure |
80 bar |
|
| Hose length |
8 M |
|
| RPM |
2900 |
|
| Dimensions |
580 X 420 X 395 mm |
|
| Weight |
33 KG |
Operation of the pump
To use this machine the first thing we have to do is to change the oil inlet plug, since the red plug is only used for transport. Next, we will put the yellow or brass plug included in our pressure washer.
Next, we will regulate the pressure moving away from the surface to exert less pressure to this one, we warn that to increase the factory pressure can damage the pump. For a higher pressure we will change the nozzle of 40º since this generates less pressure but with a wider jet.
We will regulate the pressure of the pump by turning the knob counterclockwise to decrease it and clockwise to increase it. This knob should not be tried to be turned beyond the stop line.

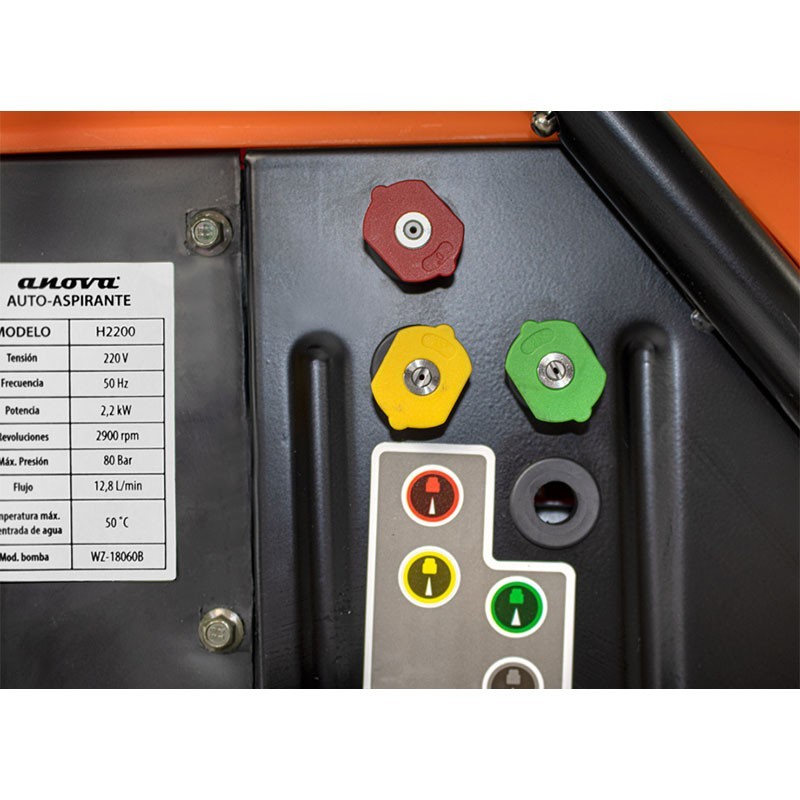

Depending on the nozzle used, we will exert more pressure decreasing the spray diameter and vice versa. The change of nozzles is very simple, we only have to turn off the motor, pull back the quick fix and insert the new one. Then make sure that the quick coupling is engaged.
If the nozzle is clogged with dirt, the pressure level may be exceeded. This can be remedied by cleaning the nozzle immediately using the nozzle kit supplied as standard as follows:
- Turn the unit off and shut off the water supply.
- Squeeze the gun trigger to relieve the water pressure.
- Disconnect the lance from the gun.
- Remove the nozzle from the lance. Remove any clogging with the nozzle cleaning tool provided and flush with clean water.
- Direct the water supply to the end of the spray wand to flush out particles for 30 seconds.
- Reassemble the nozzle to the lance, making sure the attachment is secure.
- Reconnect the lance to the gun and turn on the water supply.
- Turn the unit on and place the lance on the high pressure setting to test.
How to use detergents or chemicals
To use these products we have to deposit them in a separate tank from which the machine will vacuum them. In this case we will attach the black nozzle. After finishing the task, we must deposit clean water in the separate tank and extract it through the chemical injection system. If chemicals are left in the pump, the pump could be damaged.
