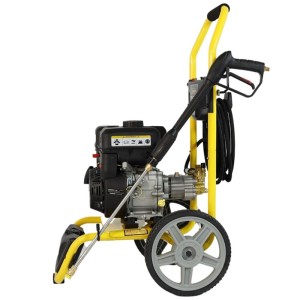

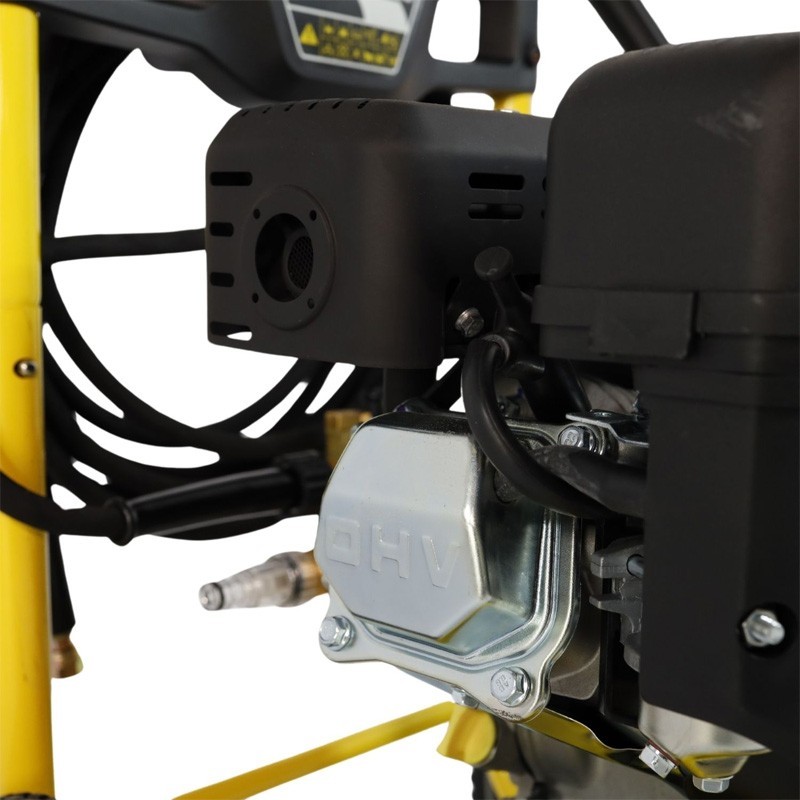

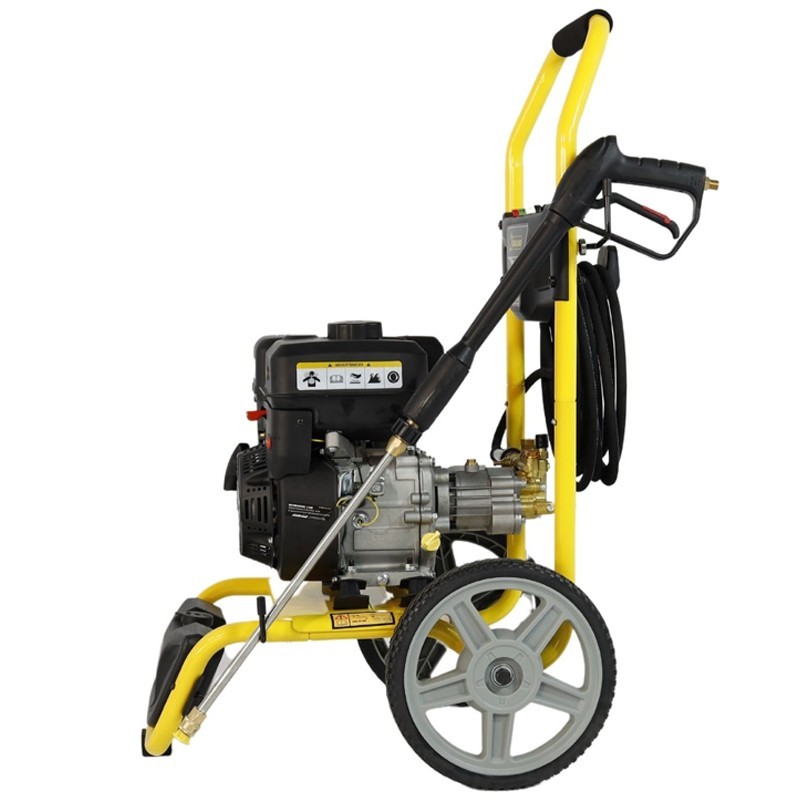

The pressure washer Garland ultimate 820 QG-V23 has a 4-stroke OHV engine, which allows it to exert a pressure of 207 bar.

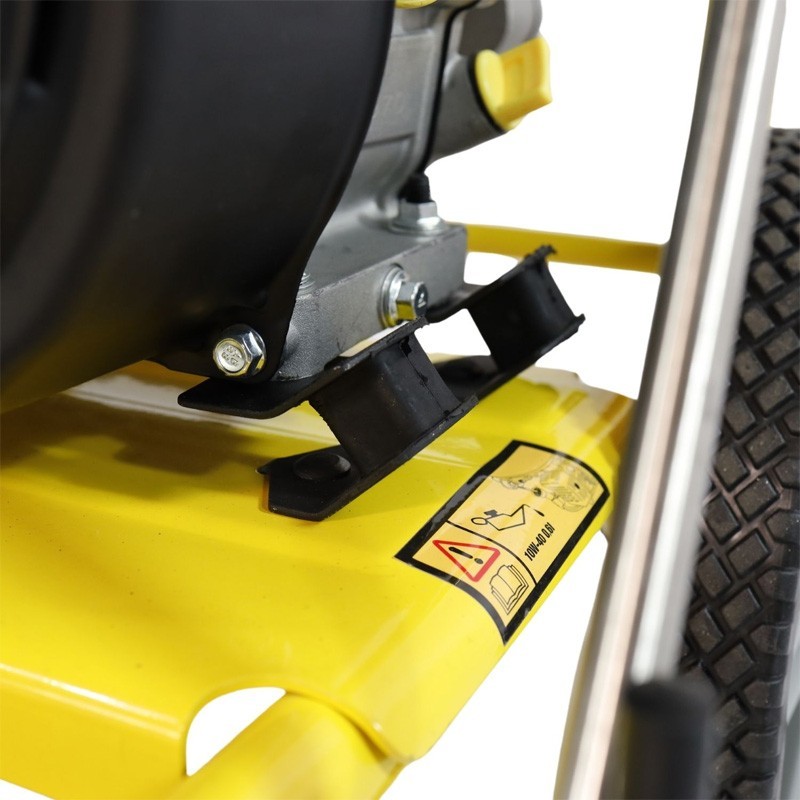

Power which will be safe from damage thanks to the protection provided by having a steel chassis and its reinforced hose.

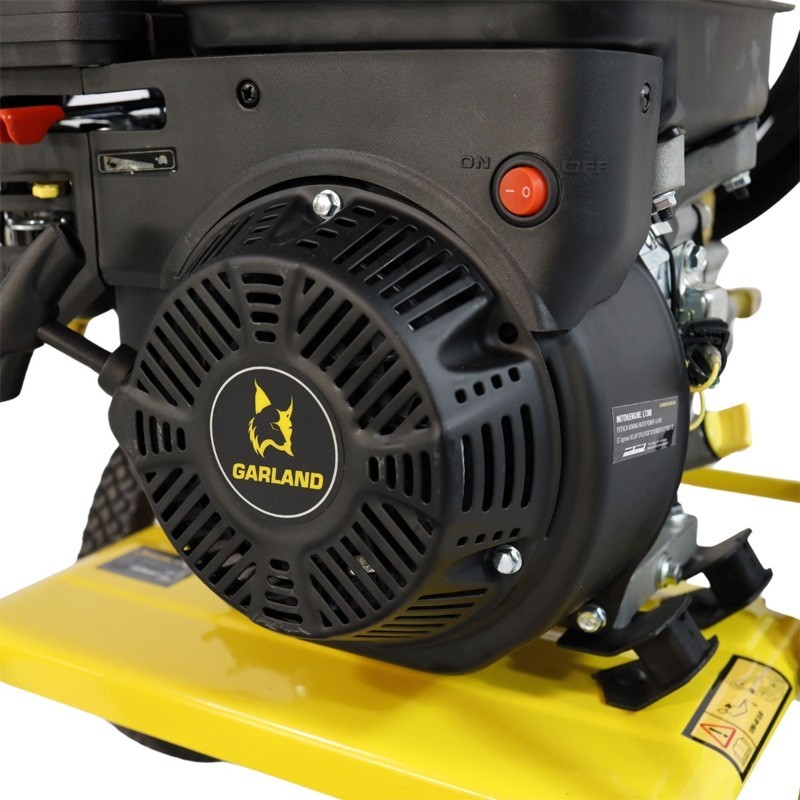

| Engine type. | Garland 4 T OHV |
| Displacement | 208 cc |
| Power | 4,2 kW |

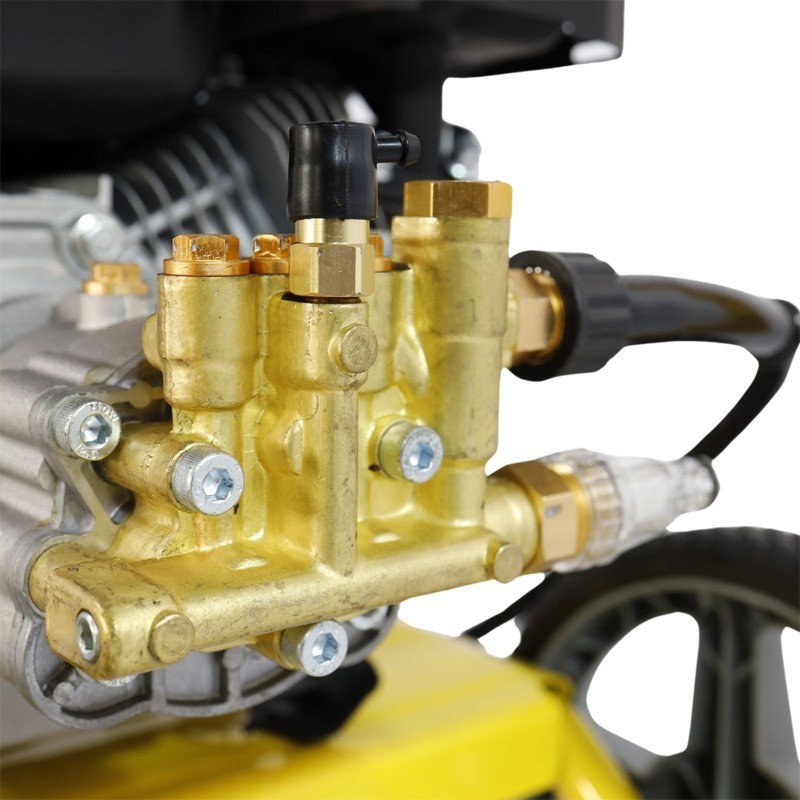

| Water pump type | Axial/brass |

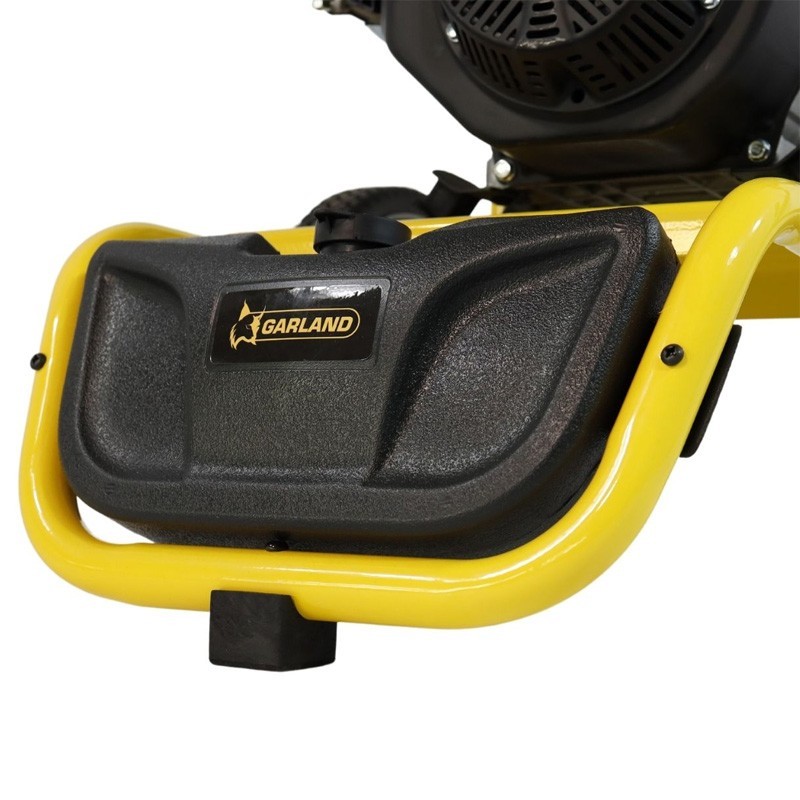

| Soap tank | Integrated |
| Max. flow rate | 600 l/h |
| Max. pressure | 250 Bar |
| Self-priming | Yes |

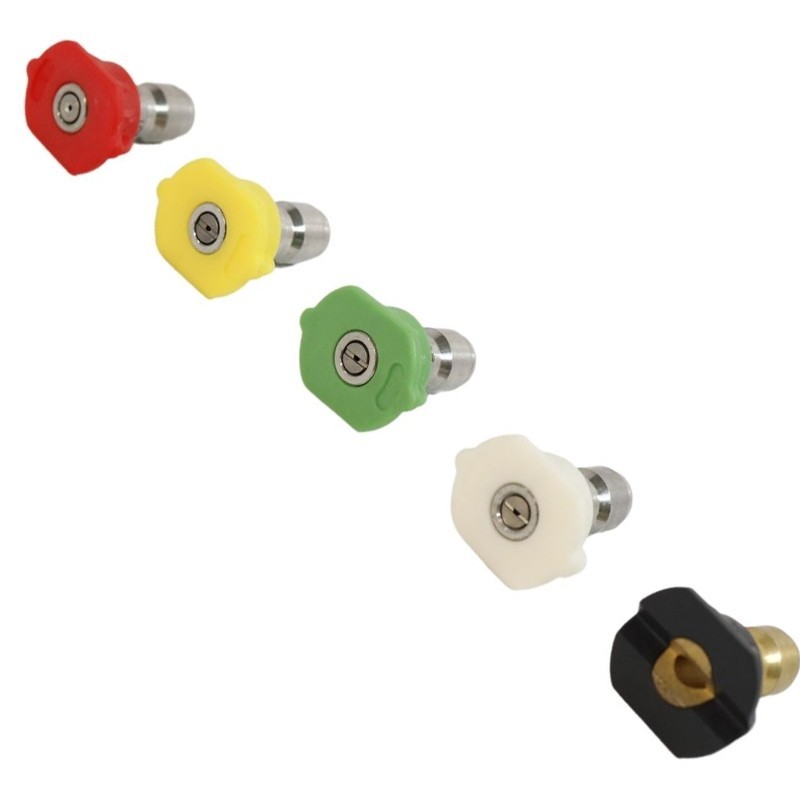

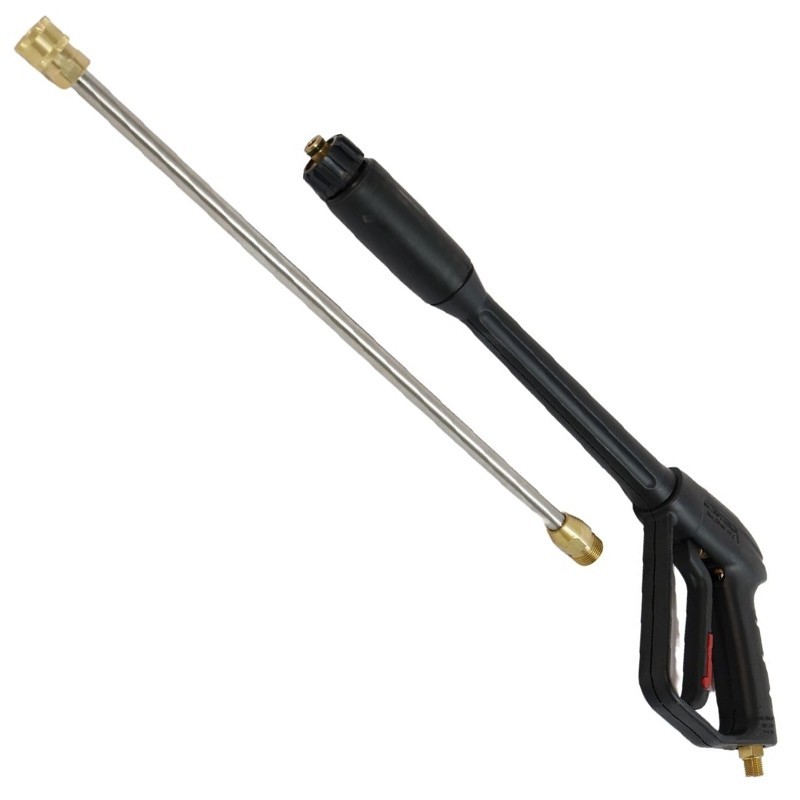

| Standard accessory | Includes multijet lance and 5 nozzles. |
| Maximum engine speed | 3800 min-1 |
| Torque | 13 Nm |
| Consumption | 0.39 kg/kWh |
| Autonomy | 0 min |
| Transport wheel | Yes |
| Carrying handle | Yes |
| Hot water | No |
| Soap vacuum cleaner | No |
| Soap regulation | No |
| Hose reel | No |

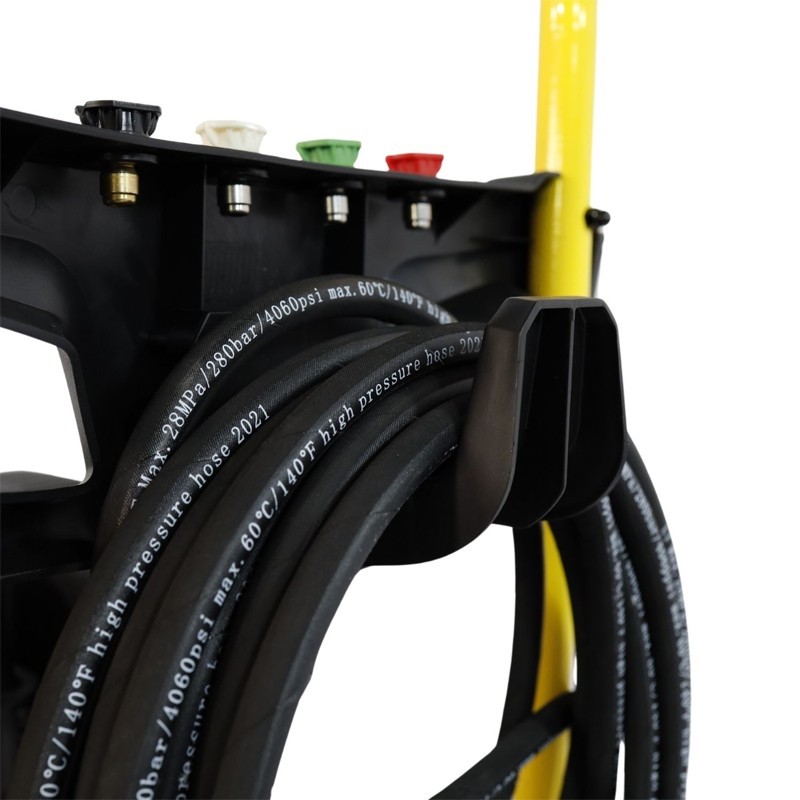

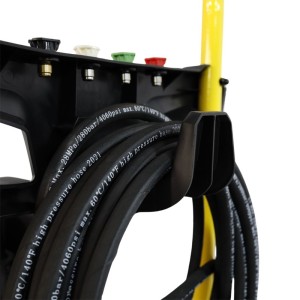

| Hose type | Steel reinforced rubber |
| Pressure hose length | 8 m |
| Pistons | Steel |
| Tss (total stop system) | No |
| Max. water inlet pressure | 12 bar |
| Nominal pressure | 180 Bar |
| Nominal flow rate | 540 l/h |
| Oil sump volume | 0,6 l |
| Engine oil type | 10W-40 |
| Max. water inlet temperature | 50 Celsius |
| Vibration level (average) | 3,14 k |
| Vibration uncertainty k | 1.5 ms-2 |
| Sound pressure | 92.7 dB (A) |
| Cte. uncertainty k | 3 dB(A) |
| Sound power (guaranteed/measured) | 109 dB(A) |
| Length in use | 60 cm |
| Width in use | 49 cm |
| Height in use | 101 cm |
| Packing weight | 34 kg |
| Packing length | 58,4 cm |
| Packing width | 53,8 cm |
| Packing height | 43 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
