Snow plow for tractor Deleks LNV-180-M 1840mm
- Width of slat: 1840 mm
- Slat height: 920 mm
- Inclination: 30 degrees
- Weight: 350 kg
€2,606.00 VAT incl.
Deleks products take about 15 to 25 days. |

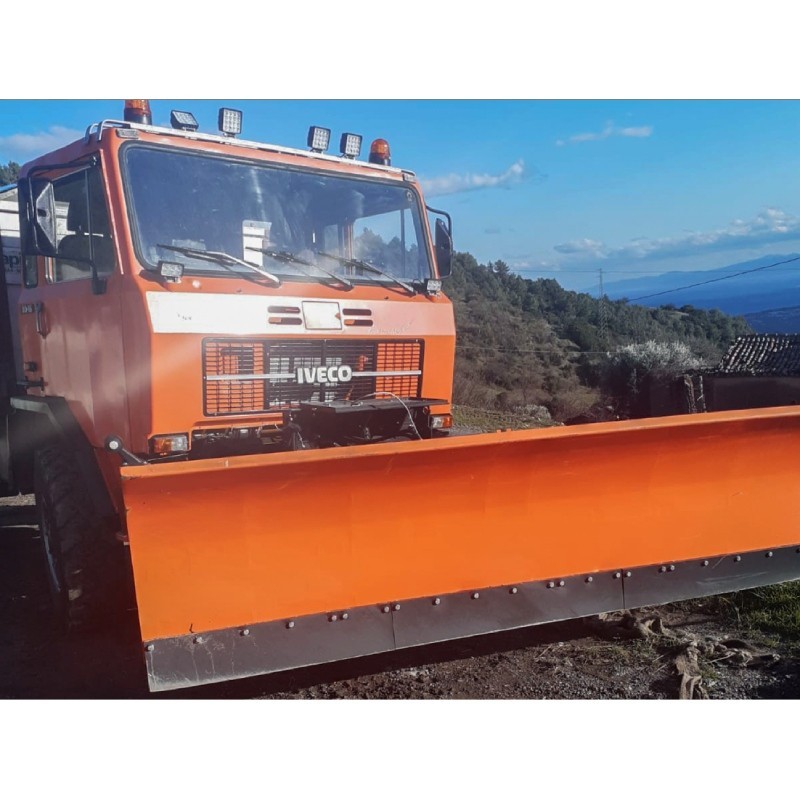

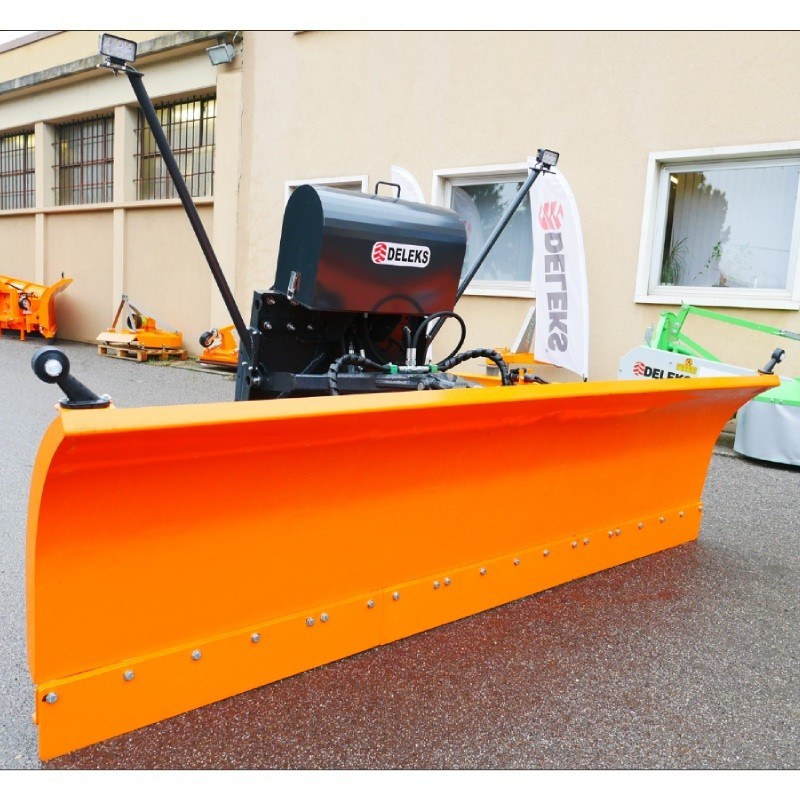

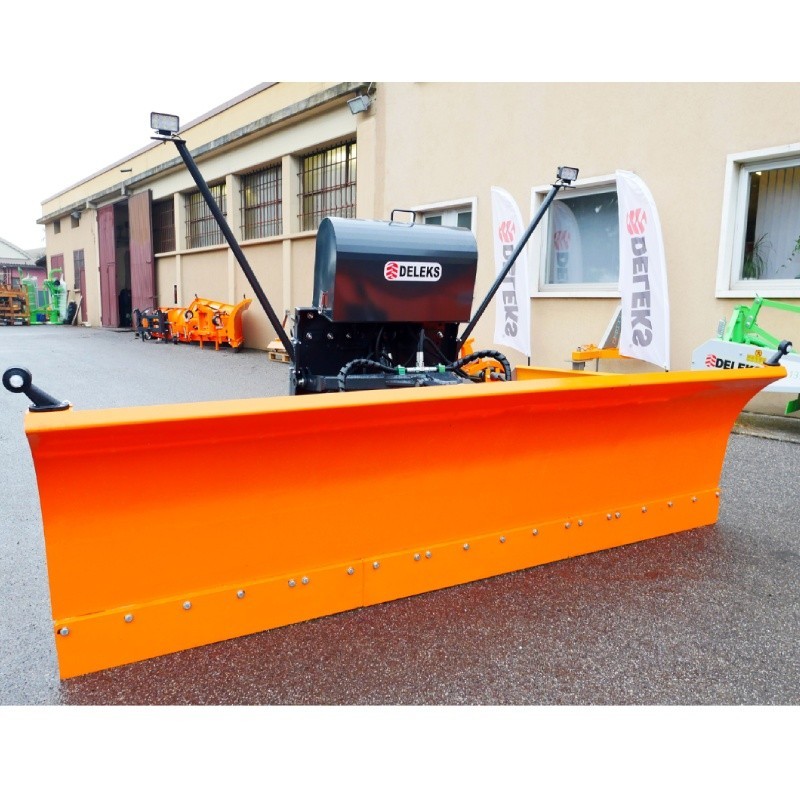

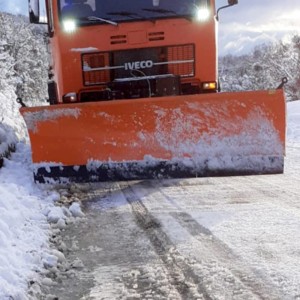

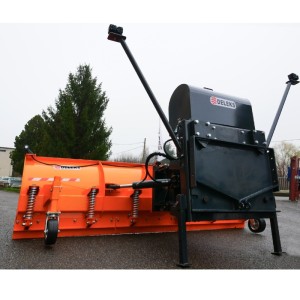

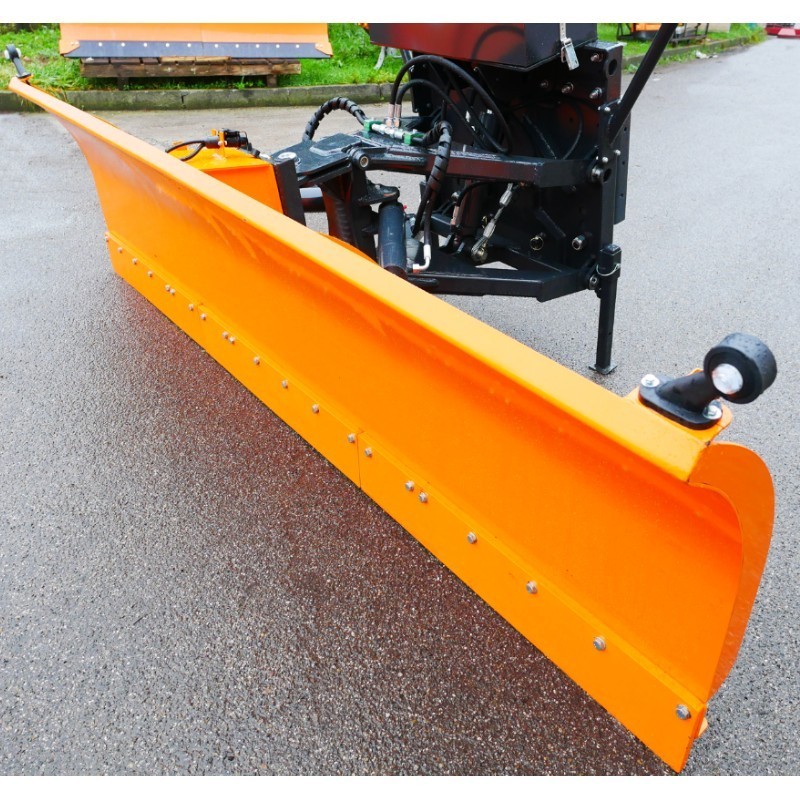

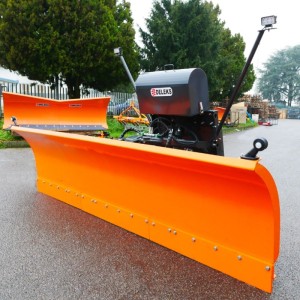

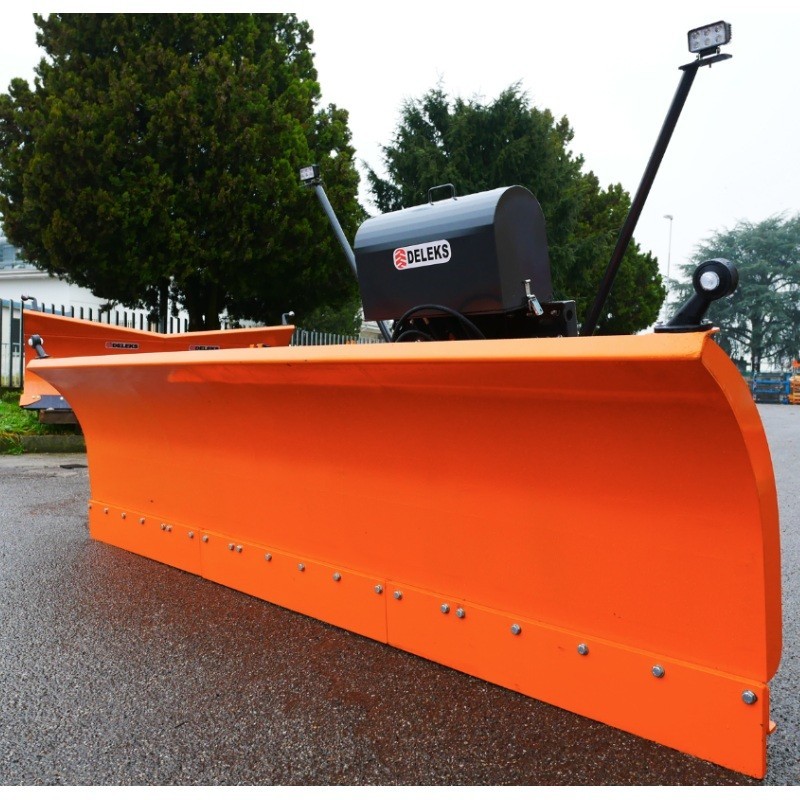

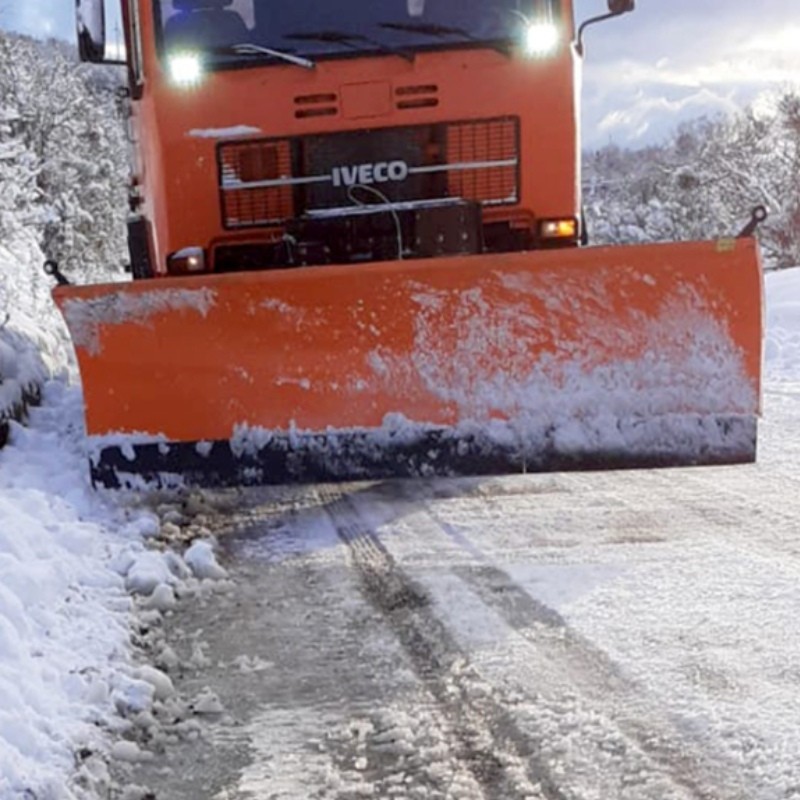

This Deleks snow plow SSH-04-2.6-A comes with a universal plate with hydraulic lifting and orientation, so it can be equipped on tractors with a power of 90 to 130 hp even on 4x4 vehicles like Bremach.

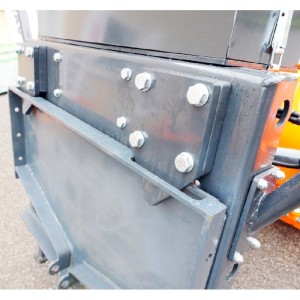

This model is attached to the vehicle with a robust mounting plate, and it also comes with 4 hydraulic hoses of 1.5 meters. The hydraulic hoses come with quick connections that allow them to connect to the 4 outlets of the tractor.

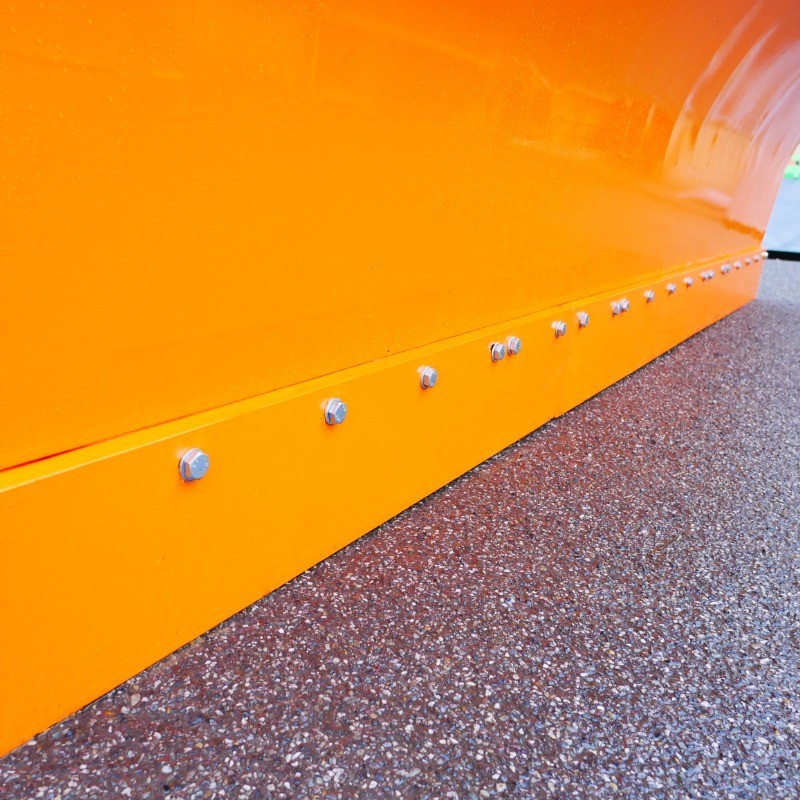

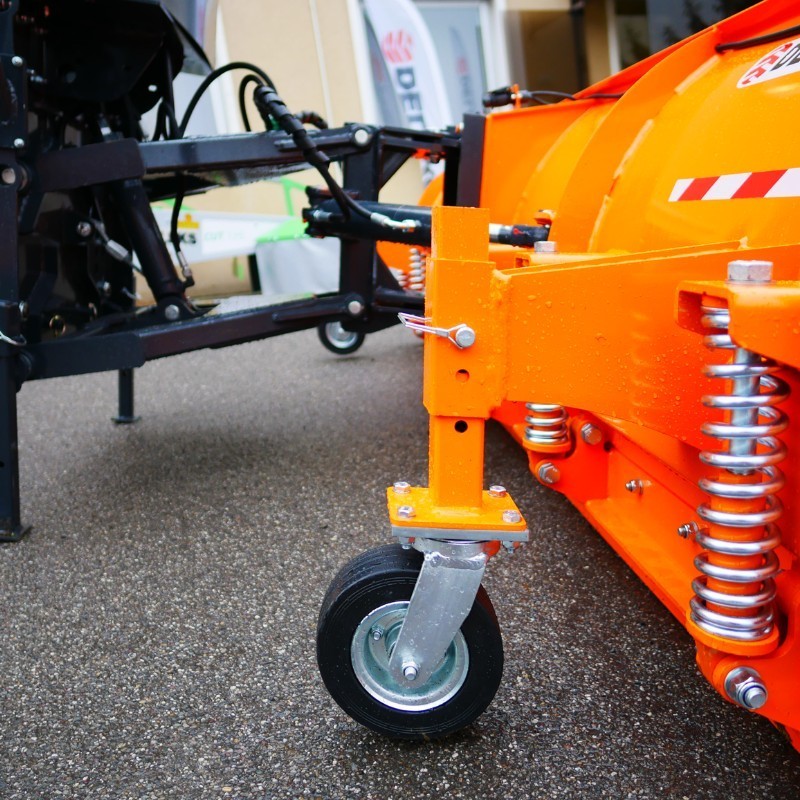

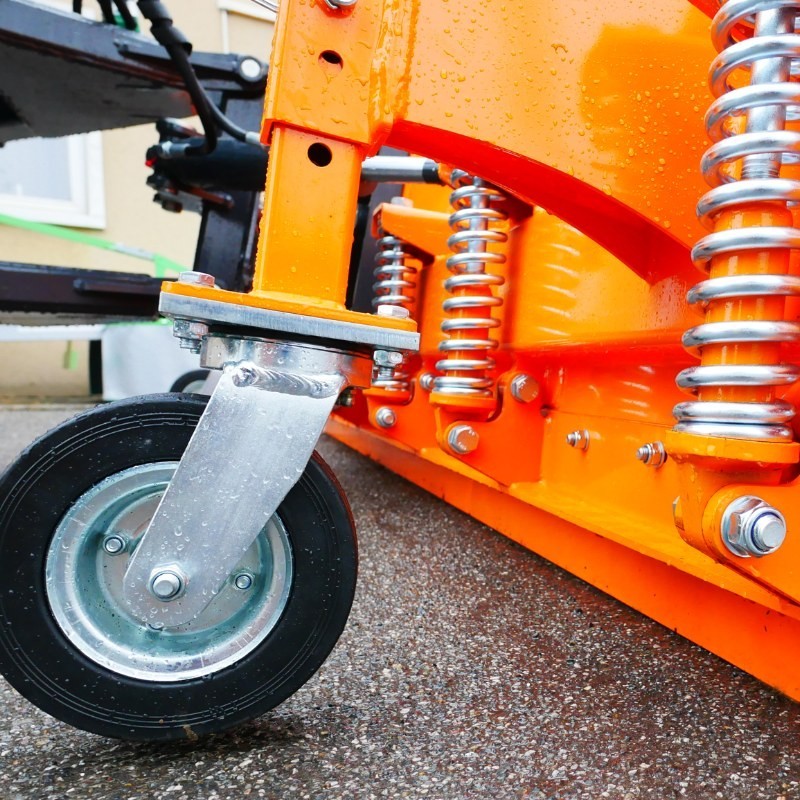

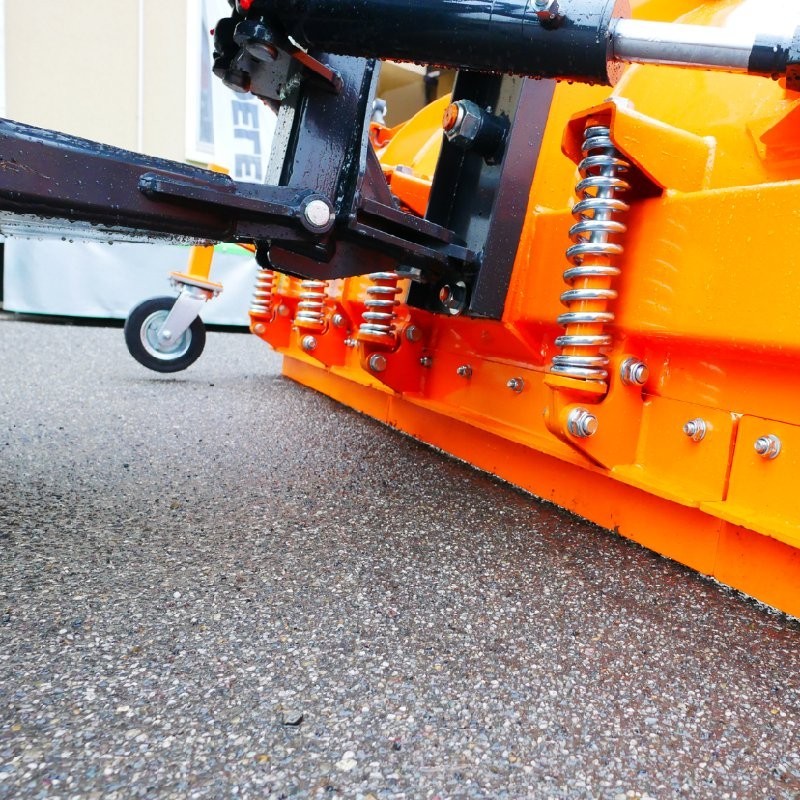

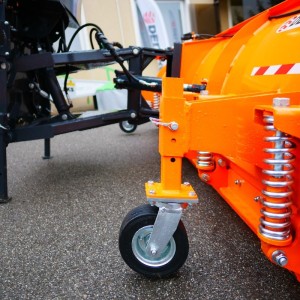

This snow plow model has 6 shock-absorbing springs constantly protecting the plow, 3 steel blades that you can easily replace along with side wheels that adjust the height while maintaining the working depth.
Weight | 490.0 kg |
Total height | 880.0 mm |
Tractor power | 90 - 130 hp |
Total depth | 900.0 mm |
Oil pressure min./max | 110 - 150 bar |
Optimal oil flow | 18 - 22 l/min |
Mounting | UNIVERSAL PLATE |

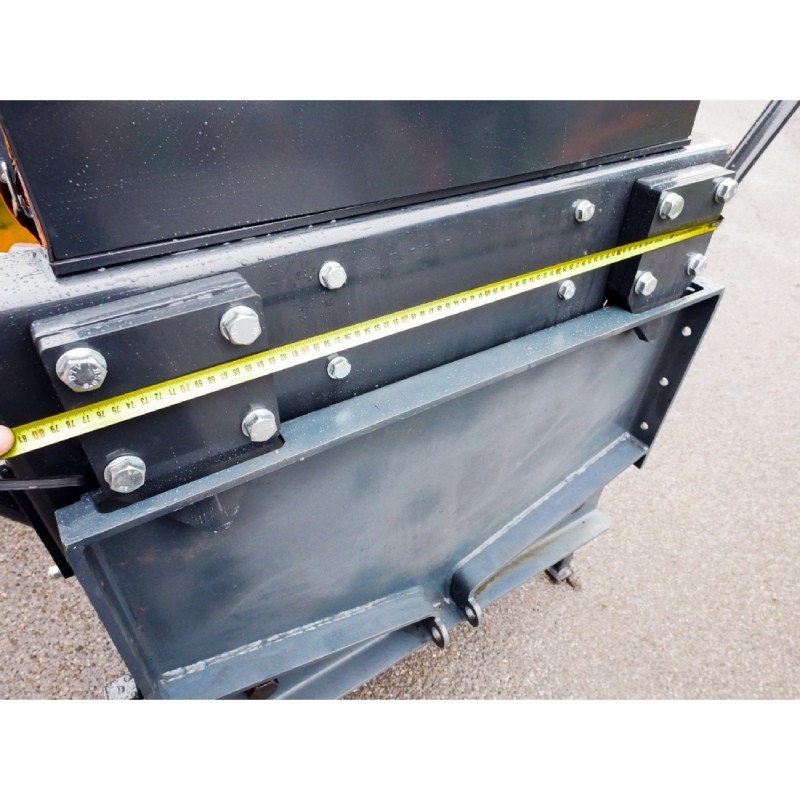

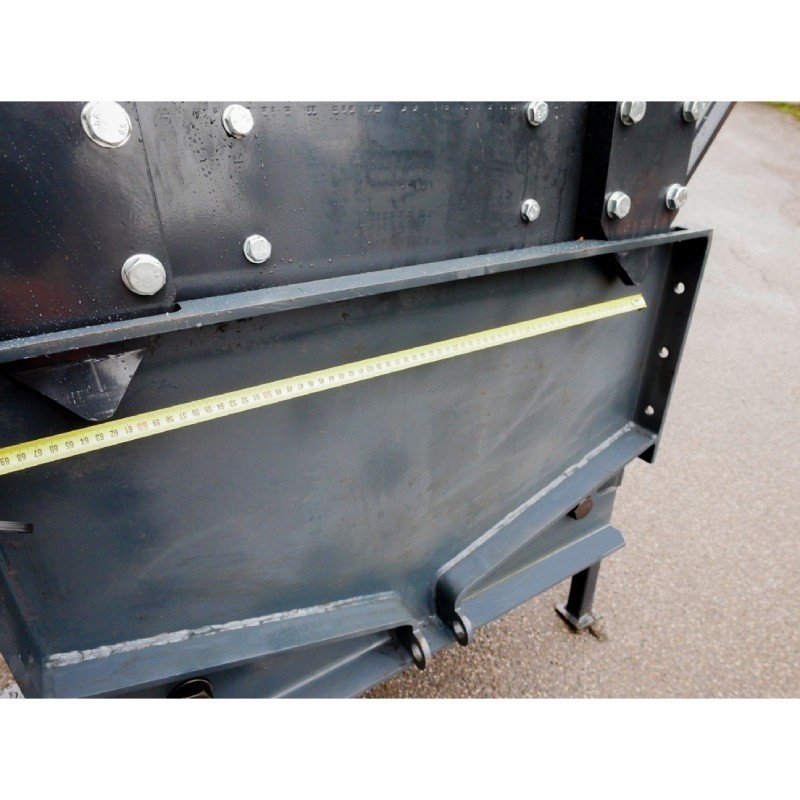

Plate dimensions | 880.0*540.0 mm |
Tilt | 25° |
Float | +/- 4° |

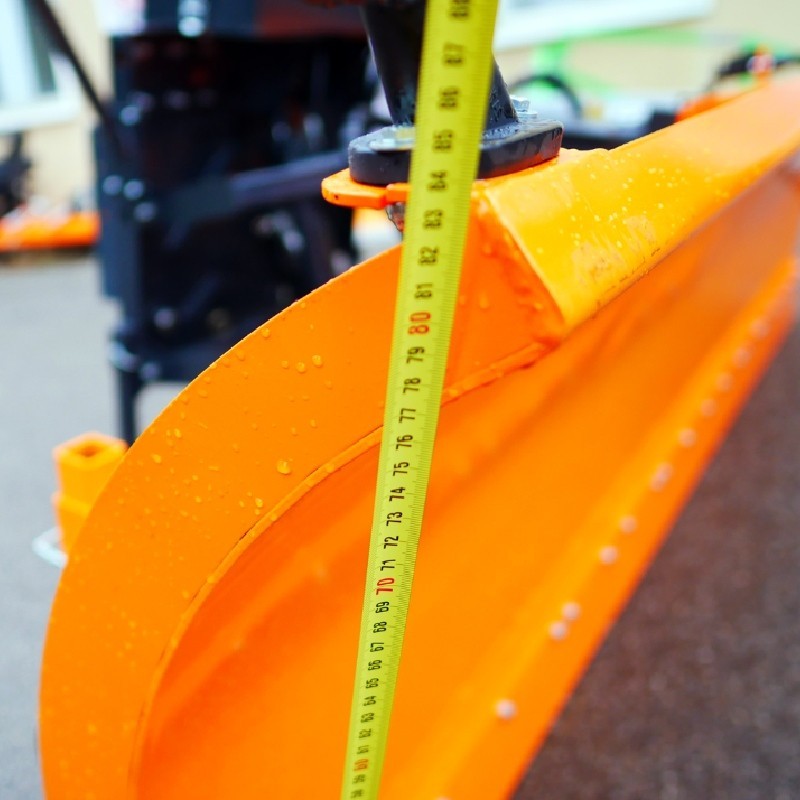

Blade height | 880.0 mm |
Thickness of side reinforcements | 7.0 mm |
Shock absorbers | 6 |
Space between ground and plate | 450.0 mm |

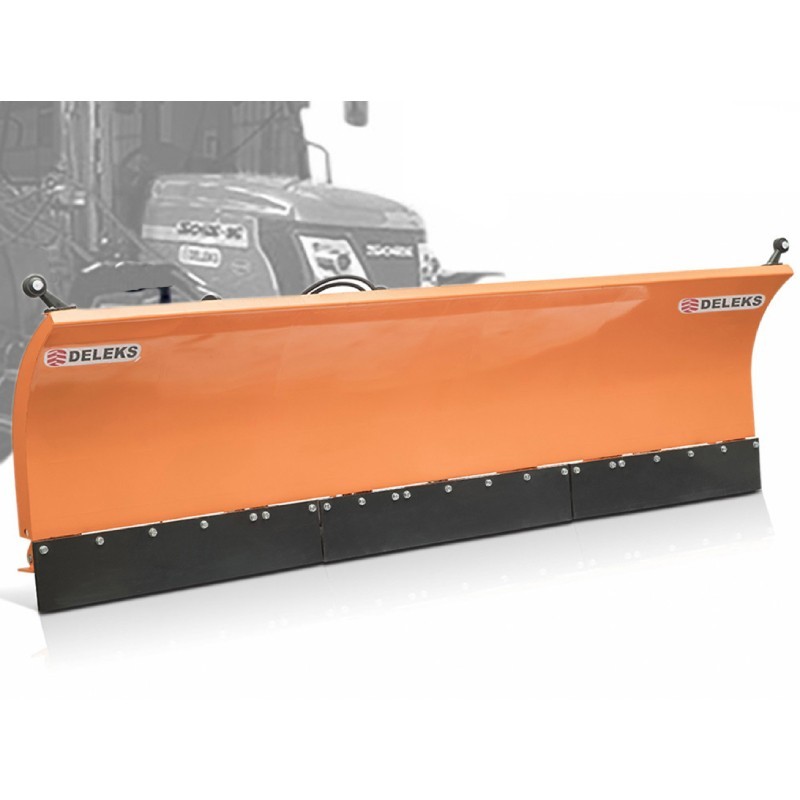

Blade | Steel or rubber |
Blade: height | 200.0 mm / 250.0 mm |
Blade: thickness | 20.0 mm / 55.0 mm |
Sharpening: number | 3 |
Sharpening: space between bolts | 175.0 mm |

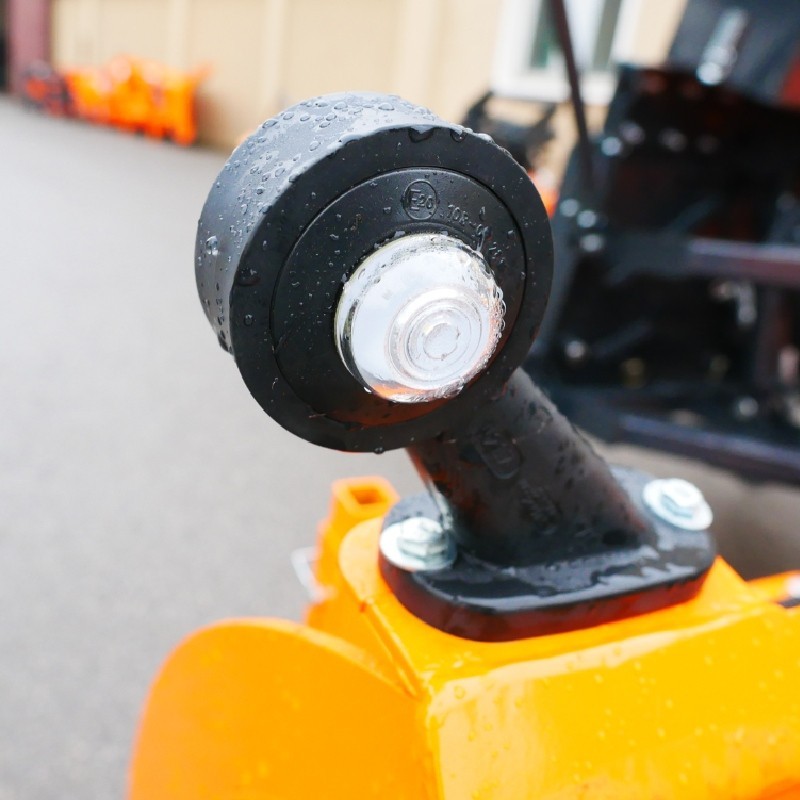

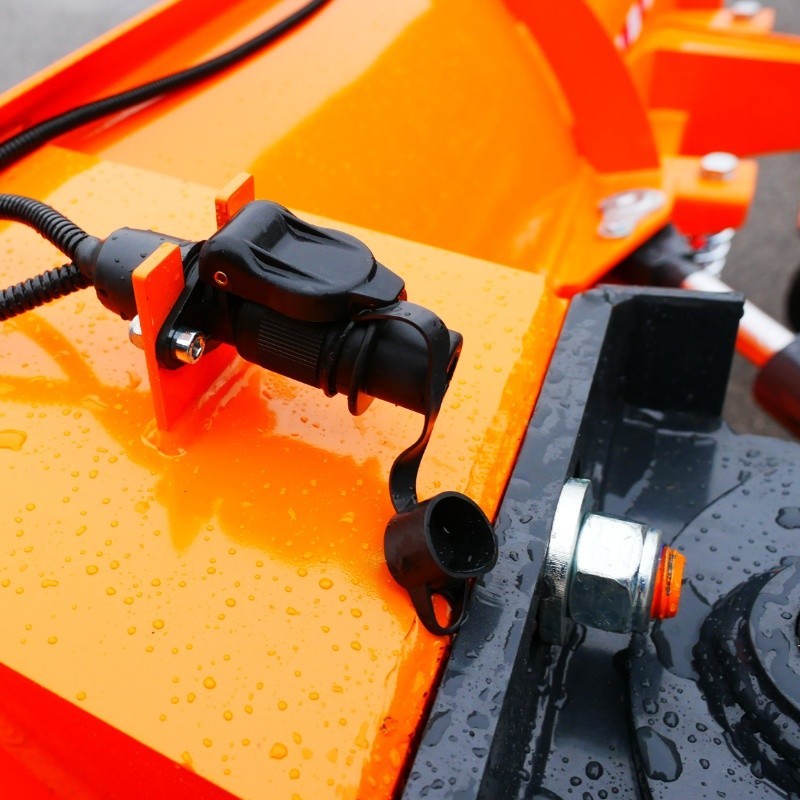

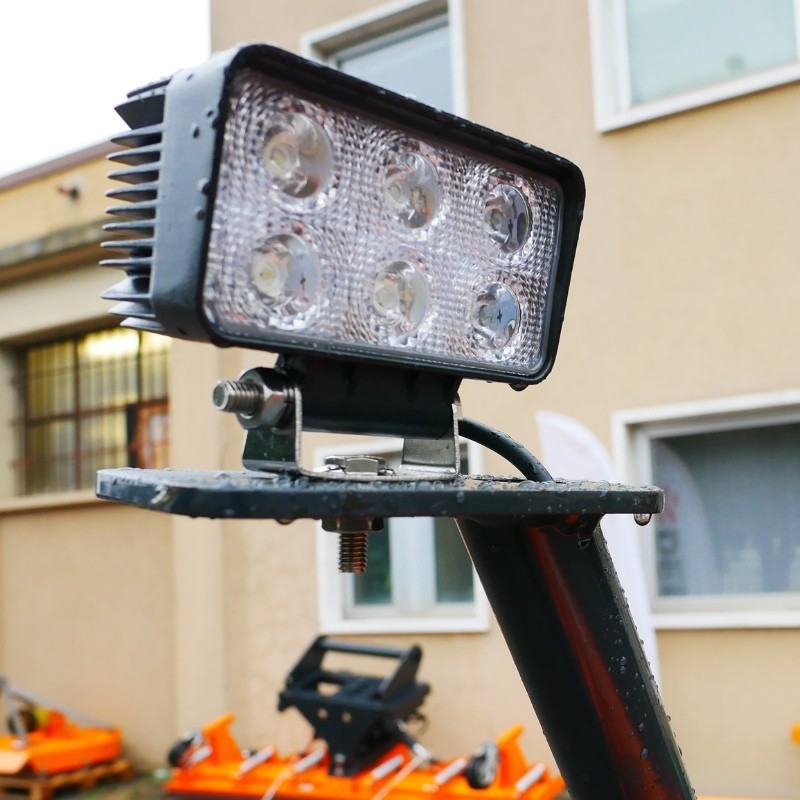

Side lights | √ |
Side skids | Wheels |
Blade width (tilted) | 2400.0 mm |
Hydraulic hoses | 4 x 1500.0 mm / 1.2" AGRI connections, WP 400 bar |
Blade width | 2600.0 mm |
Sheet thickness | 4.0 mm |

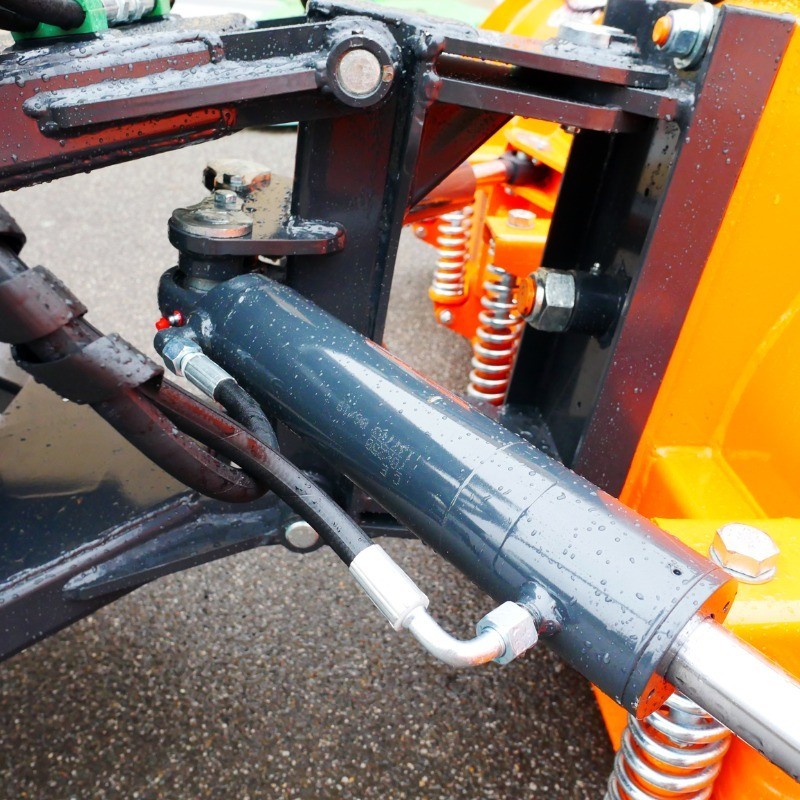

Piston ø/i | 60.0 / 35.0 + 75.0 / 40.0 mm |
Packaging dimension | 2200*1000*1000 mm |
IMPORTANT NOTICE |
For the correct delivery of this product, the customer will need a forklift or similar for unloading this product, and the address must be accessible for a 24t truck. |
