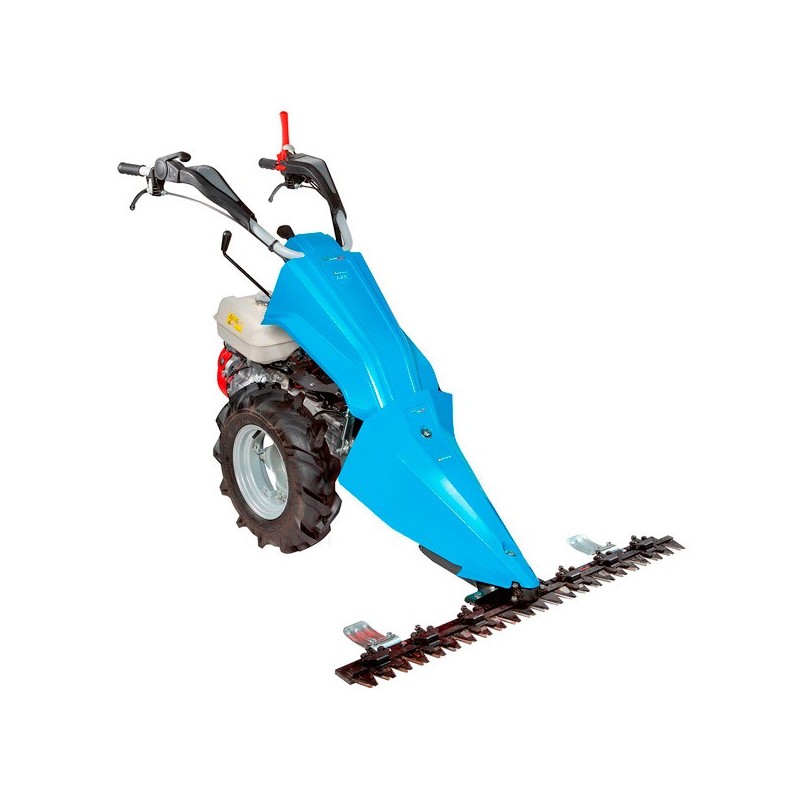

The Motor Mower Bertolini 150 S is powered by a Honda GX 270 OHV gasoline engine . This model offers an oil-bath gear transmission, a spring-loaded dry multi-plate clutch and a 6-speed gearbox, 3 forward and 3 reverse.
It also features a handlebar which is vertically adjustable on shock absorbers. This mower is equipped with a gear shifter with handlebar lever and 5.00-10" DR wheels.
The 150 S mower comes with a 127 cm mowing bar . It has a full center bar and features semi-cushioned tines.
The mower offers an independent PTO of 973 RPM and a weight of 135 kg (complete machine). It also includes a differential and a QuickFit attachment connection as standard.
| Engine | Honda GX 270 OHV |
| Fuel | Gasoline |
| Gears | 6 speeds, 3 forward + 3 reverse |
| Working width | 127 cm |
| Head | Oil bath movement |
| Transmission | Gear transmission in oil bath |
| Clutch | Multidisc dry clutch with spring |
| PTO | independent 973 revolutions per minute |
| Mowing bar | 127 cm. Full central bar with semi-crowded tines |
| Differential | Yes |
| Wheels / Brakes | 5.00 - 10" DR / yes |
| Accessory connection | QuickFit as standard |
| Weight (complete machine) | 135 kg (complete machine) |
Difference between other brands oil immersed clutch and multi-disc dry clutch (other brands) Bertolini
|
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied unless an examination is pending. |
