Anova has always stood out for its great quality in motor hoes and with the Anova MC509 Motor hoe it was not going to be less. This machine is designed for all types of large terrains, from flat to uneven.

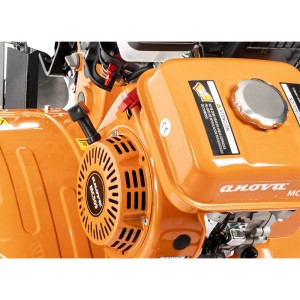

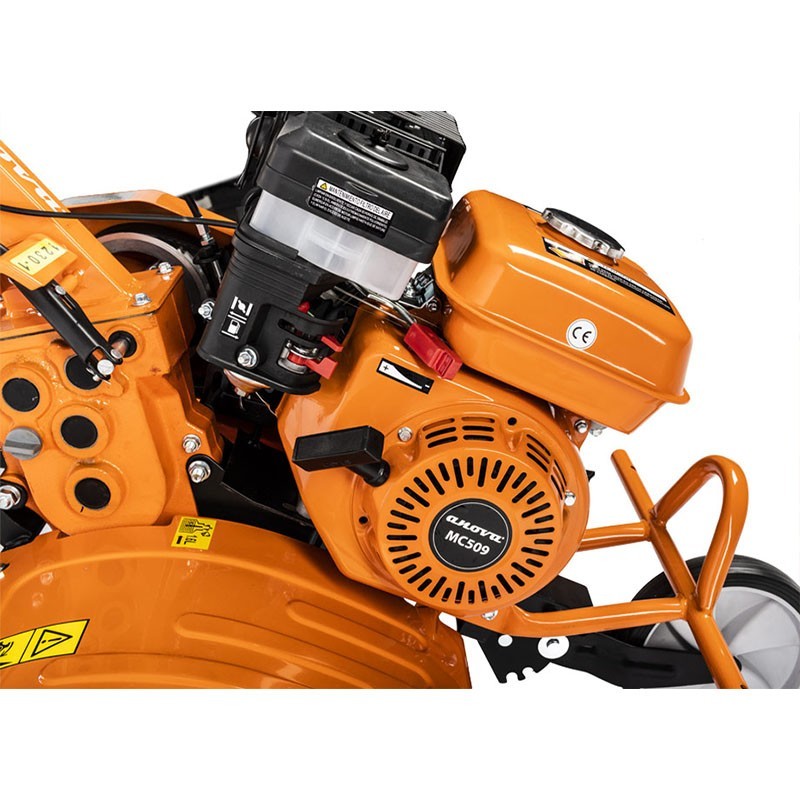

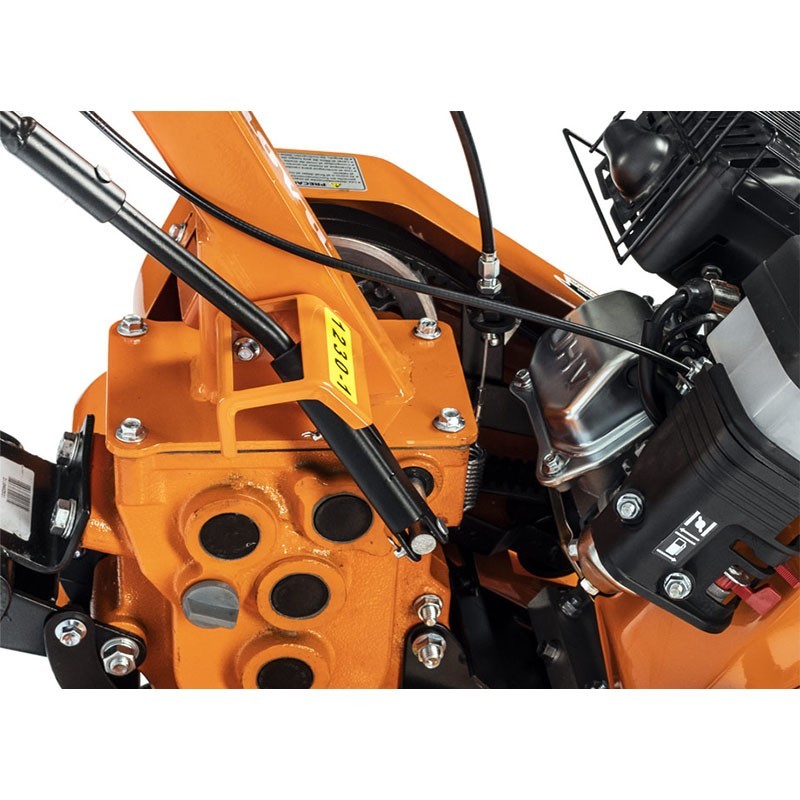

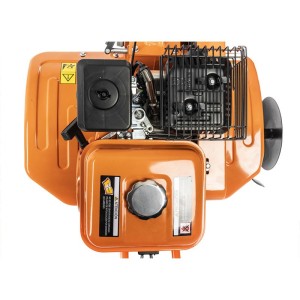

This motor hoe is powered by an engine Anova MA212 with a displacement of 212 cc and a power of 7 HP . It has a cast iron gearbox and offers 3 forward and one reverse gears .

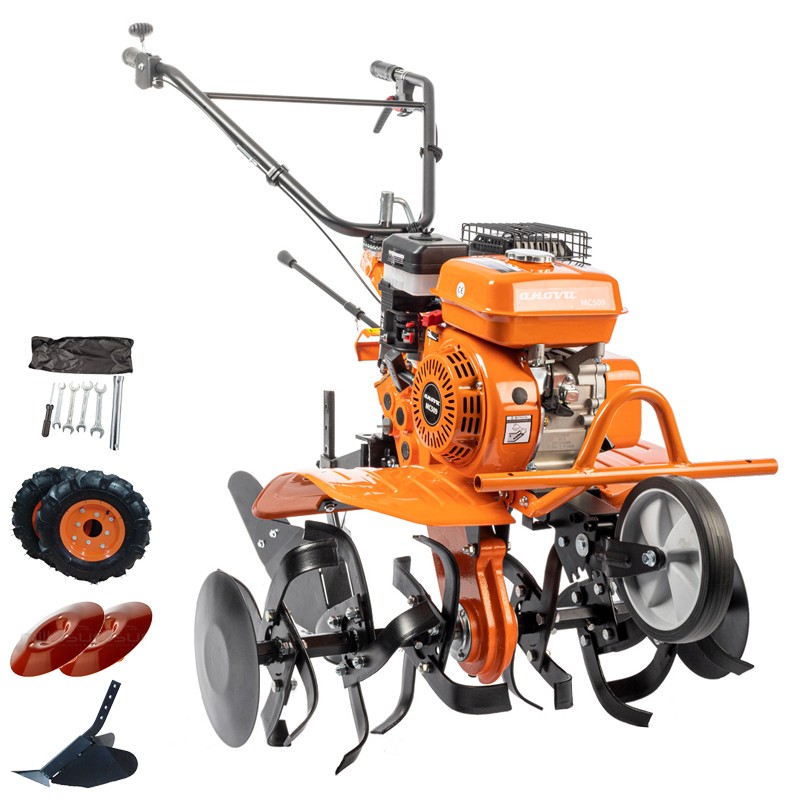

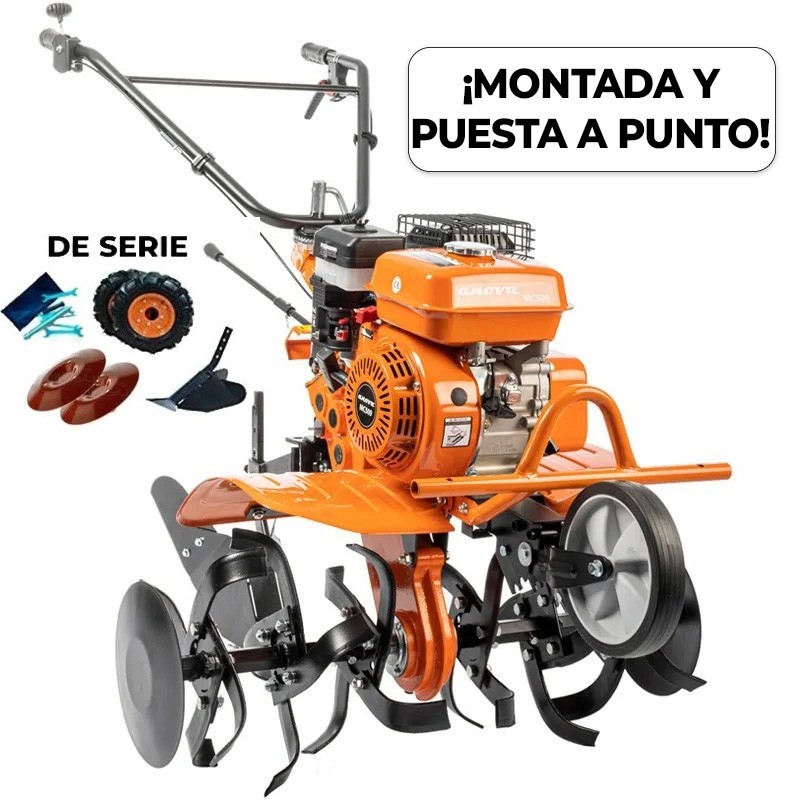

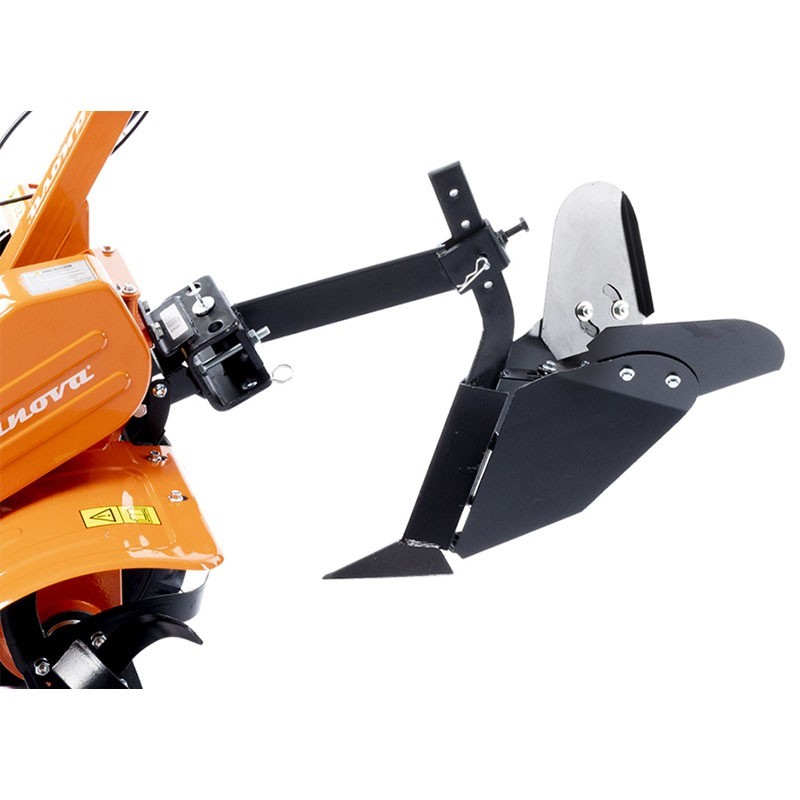

As standard the MC509 motor hoe comes with a set of wheels, side plates, tiller and a depth guide. The maximum engine speed is 3600 rpm.
In addition, this hoe has a wide working width of 80 cm and a working depth of 15 to 30 cm. It is designed to facilitate all types of agricultural work with excellent results.
This Anova MC509 is specially designed for semi-professional users to use it with a professional working result, all this while maintaining the amazing quality/price line of Anova. You will not regret to try it.
| MODEL | MC509 |
| Engine | MA212 |
| Engine type | gasoline 4-stroke |
| Gearbox | Cast iron |
| Air filter | Oil bath |
| Transmission | V-type belt |
| Working speed | 0.14 m/s |
| Engine revolutions | 3600 rpm |
| Displacement | 212 cc |
| Power | 7 HP - 5,3 kW |
| Working depth | 150 - 300 mm |
| Gears | 3+1 |
| Working width | 80 cm |
| Fuel consumption | 1.87 kg/h |
| Weight | 75 kg |
| Engine oil type | SAE 30 |
| Quantity of oil in the engine | 0.6 liters |
| Type of gearbox oil | Valvulin 80W/90 |
| Gearbox oil quantity | 1.6 liters |
| EAN-13 | 8435673702364 |
| Dimensions | 1550 x 800 x 910 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
