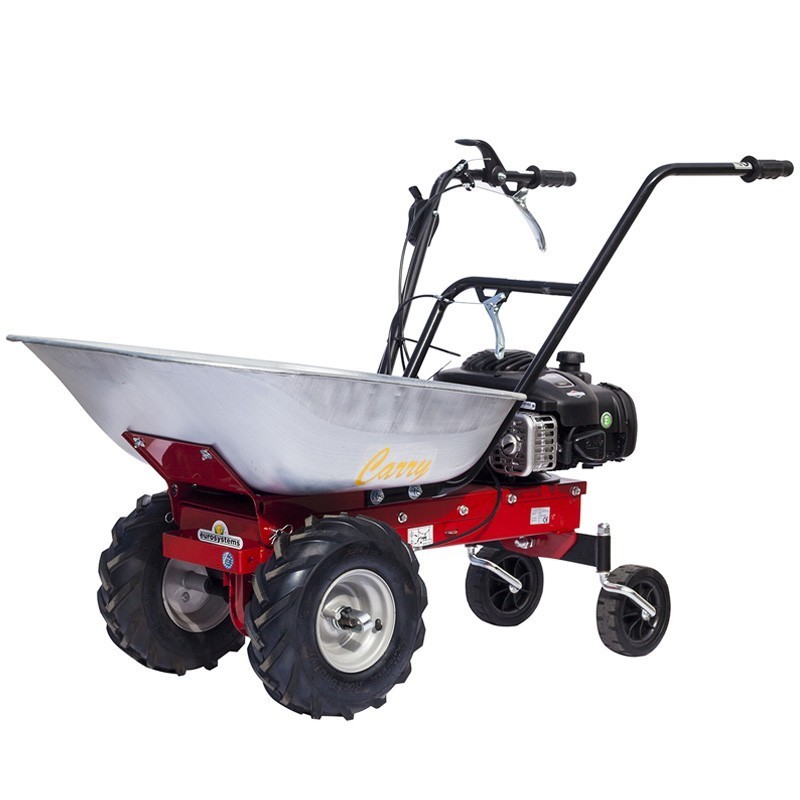

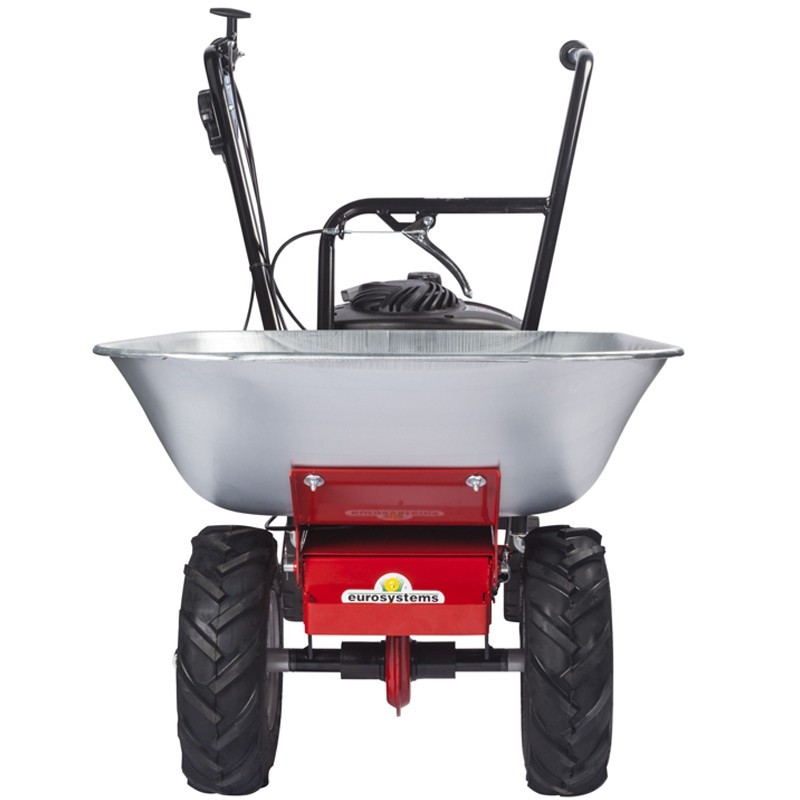

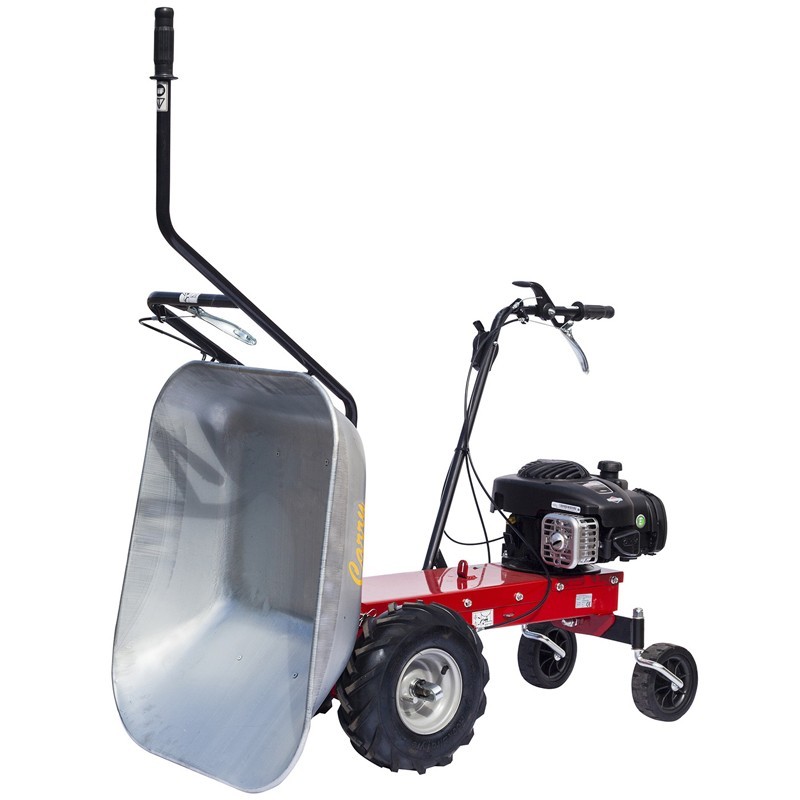

The Eurosystems Carry engine/battery cart offers exceptional versatility with four different models, each designed to meet a variety of needs. With engine options including 125cc Briggs & Stratton 450 E-series, 170cc Honda GCV170, and 170cc Rato RV170 OHV, as well as a 24V battery version with 300W, this truck is suited to a variety of applications.
Equipped with an oil-bath worm and belt drive, the Eurosystems Carry provides efficient and reliable performance. Its forward and reverse system, with speeds of up to 3.6 km/h in forward and 2.0 km/h in reverse (with motor), or 3.0 km/h and 1.7 km/h respectively (with battery), offers precise control and easy operation.
In addition, with a capacity of 85 liters and a maximum load of 100 kg, this truck demonstrates its robustness and transport capacity. Safety and comfort are key features of the Eurosystems Carry, with a belt clutch, a rotary motion with shock-proof blades and a height-adjustable handlebar.
| Transmission | Oil-immersed worm gear and belt drive |
| Gear | FS + R, forward and reverse |
| Speeds (with motor) | (FS) 3,6 Km/h, (R) 2,0 Km/h |
| Speeds (with battery) | (FS) 3.0 Km/h, (R) 1.7 Km/h |
| Capacity | 85 liters |
| Maximum capacity | 100 kg |
| Clutch | With belt |
| Motion | Rotary movement with shock-proof blades |
| Driving levers | With built-in safety system |
| Handlebar | Adjustable in height |
| Drive wheels | Tractor tires 13×5.00-6" with neutral release device |
| Net weight (with engine) | 54 Kg |
| Net weight (with battery) | 93 Kg |
| Dimensions | 65x145x100 cm |
|
B&S 450 E-SERIES
|
|
||||||||||
HONDA GCV 170 |
|
||||||||||

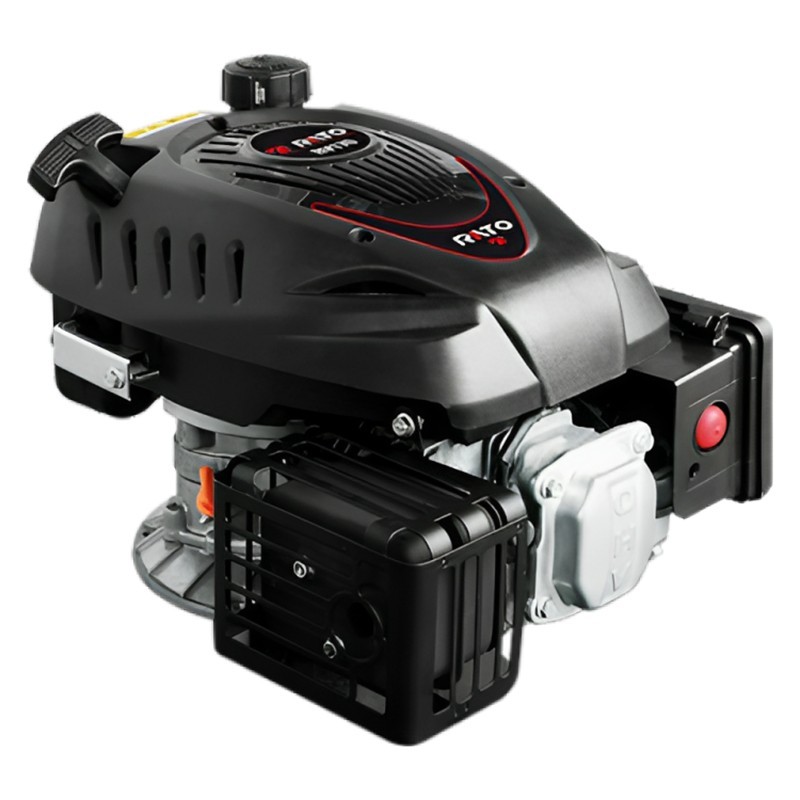

RATO RV170S |
|
||||||||||
Battery 24V |
|
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
