| Assembly and set-up INCLUDED |

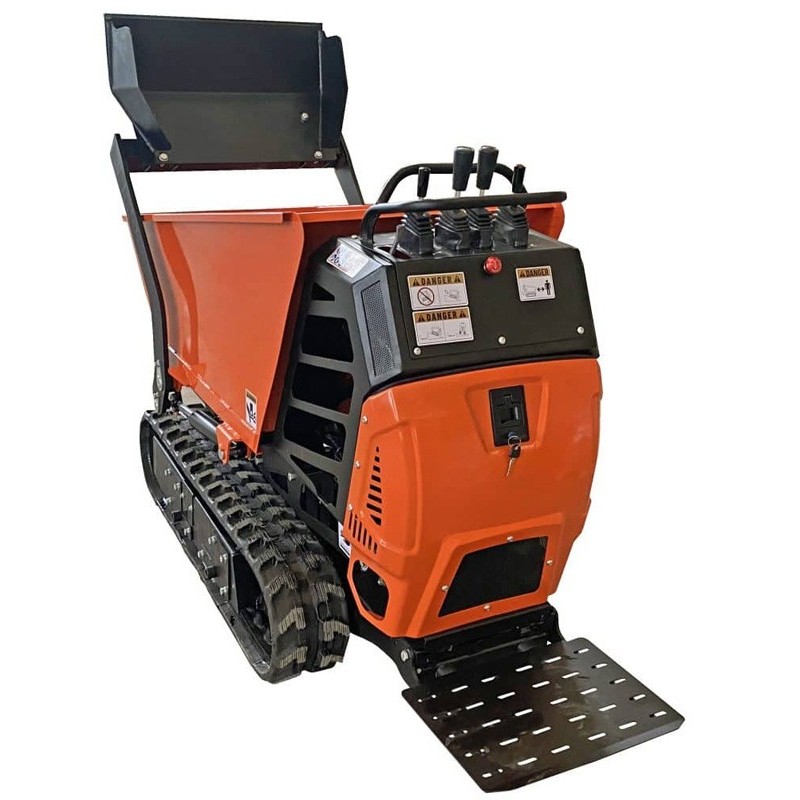

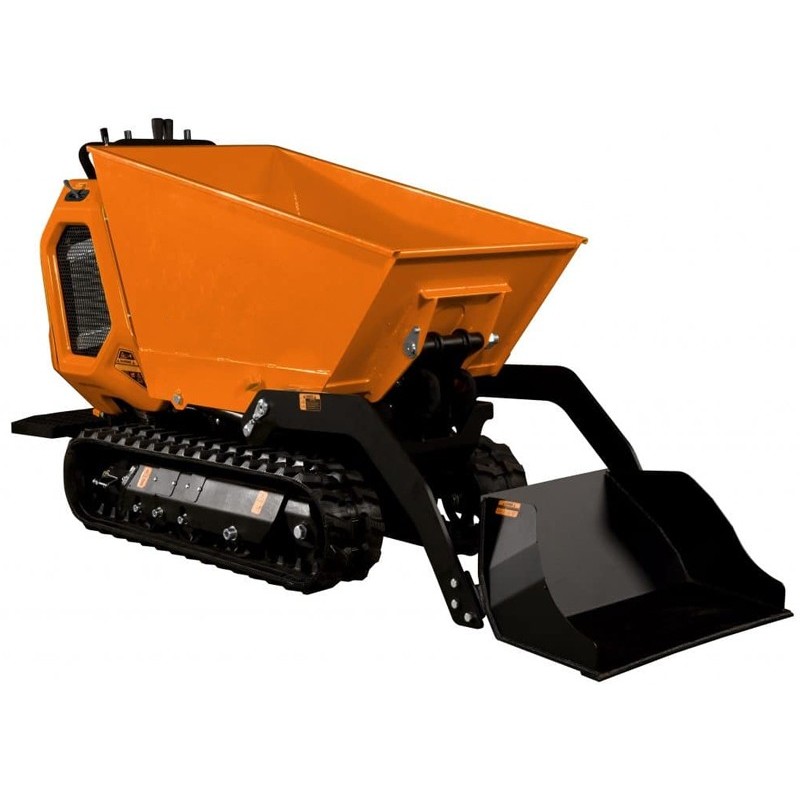

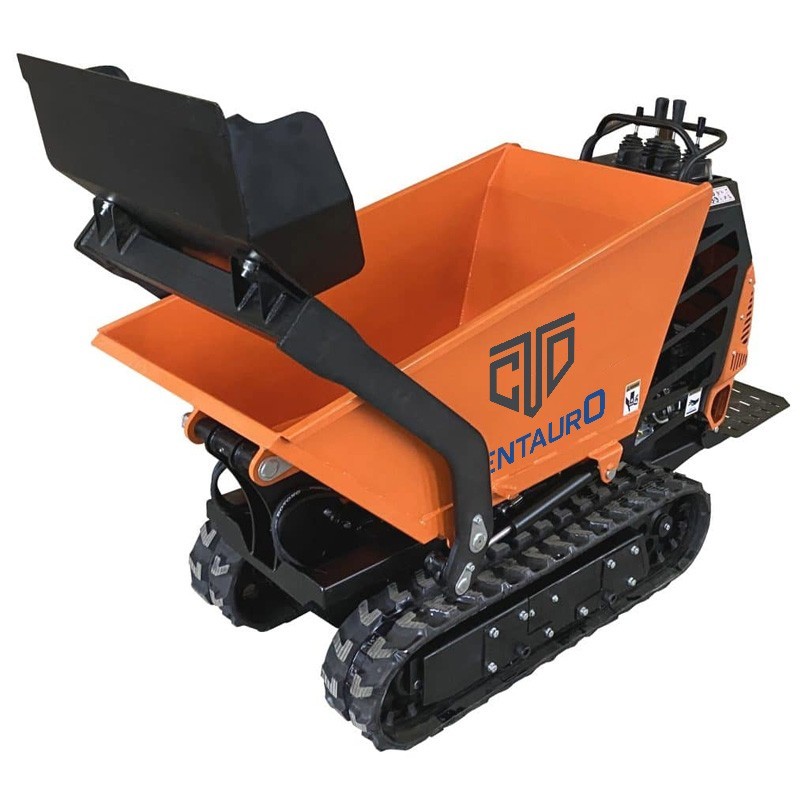

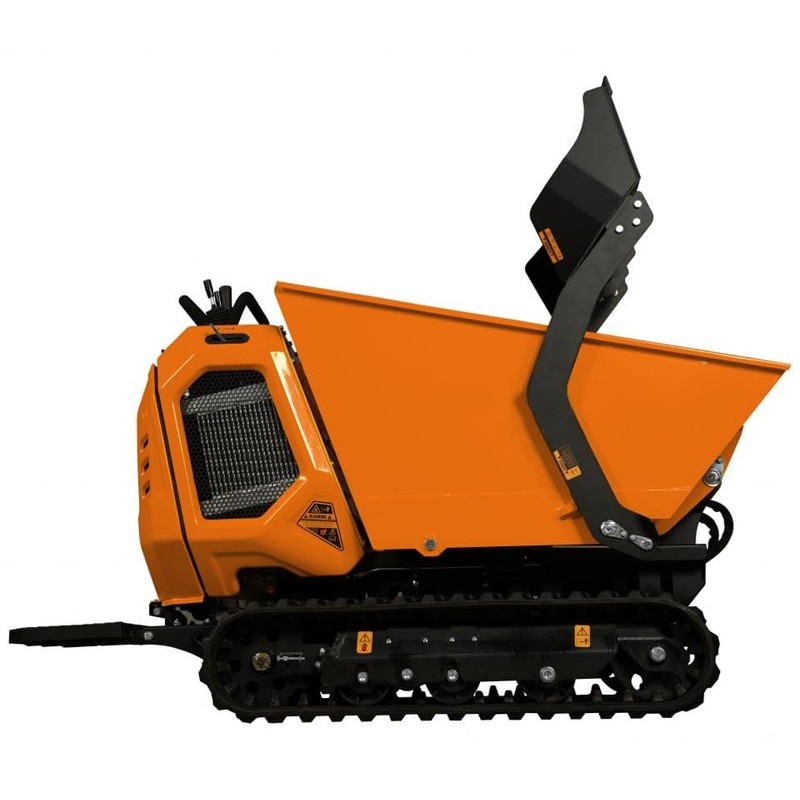

The Minidumper EuroCentauro Castalla is an efficient solution for self-loading and unloading tasks on challenging terrains. Its hydrostatic traction system on tracks ensures stable and safe movement, while the parking brake guarantees maximum safety in any situation.
Equipped with a single-cylinder LONCIN G420F (D) engine of 15 hp and electric start, it offers reliable and powerful performance. Its load capacity of up to 800 kg and its bucket with a volume of 0.3 m³ make it ideal for moving large volumes quickly.
With compact dimensions of 2733 mm in length with the bucket and only 730 mm in width, this Minidumper is perfect for operating in confined spaces. Its robustness and design make it an essential tool for optimizing agricultural or industrial work.
| Engine | Single-cylinder, 4-stroke |
| Model | LONCIN G420F (D) |
| Displacement | 420 cc |
| Power | 15 hp |
| Start | Electric |
| Capacity | 500 kg |
| Maximum torque | 26.5 Nm / 2500 rpm |
| Total length (without bucket) | 2033 mm |
| Total length with bucket | 2733 mm |
| Total height | 1200 mm |
| Total width | 730 mm |
| Load capacity | 800 Kg |
| Weight | 548 Kg |
| Wheelbase | 985 mm |
| Bucket capacity | 0.3 m3 |
| IMPORTANT NOTICES |
| It is mandatory for the customer to check oil and grease levels before starting. If the merchandise cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer agrees pending examination. |
Data sheet
Specific References
- Accessories not included as standard
