Mini small excavator 0.65T Rhinoceros MY660Z engine Loncin


  • Engine : LONCIN 302
  • Maximum digging radius in the ground : 2250 mm
  • Maximum digging radius : 2342 mm
En stock
icon Power Supply
Power Supply
Gasoline
icon Engine
Engine
Loncin
icon Engine model
Engine model
302
icon Power
Power
9.1 HP
icon Standard ladle
Standard ladle
40 cm
icon Operating weight
Operating weight
0,7 T
icon Excavator
Excavator
With roof
icon ✔️
✔️
Multifunction
icon Position of controls
Position of controls
Front joysticks
icon Weight
Weight
663 kg
€4,411.32 excl. VAT
€5,337.70 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Mini small excavator 0.65T Rhinoceros MY660Z engine Loncin
€5,337.70
Qty

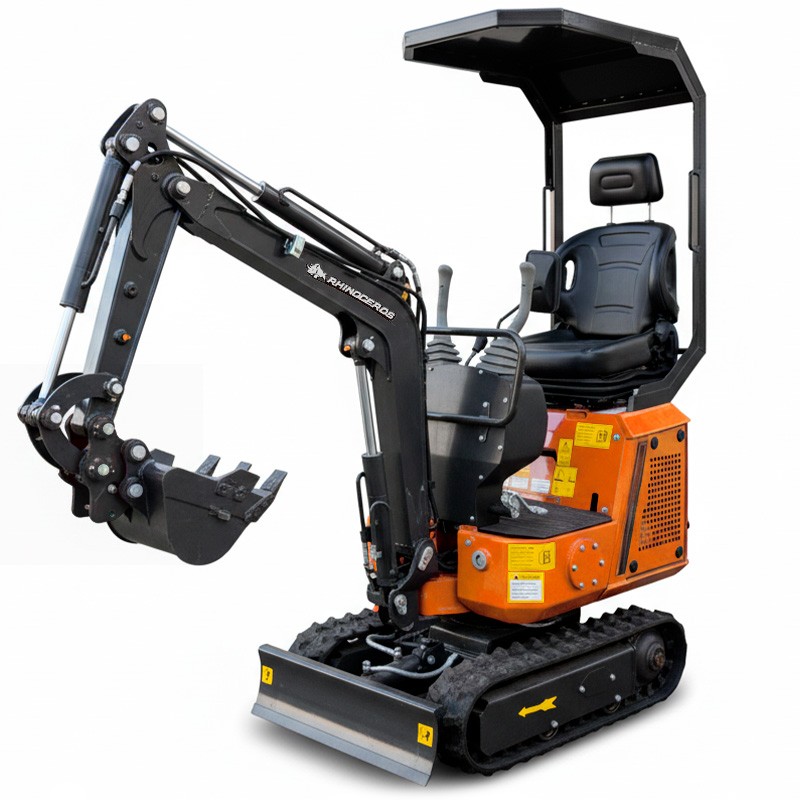

Mini excavator Zeppelin Rhinoceros MY660Z

The Rhinoceros MY660Z is a very compact mini excavator that goes where others cannot. The chassis is only 70 cm wide and 1.71 m high, allowing it to pass through doors, work in gardens, farms and interior renovations with total agility. It weighs 663 kg, mounts tracked rubber to protect the road surface and is equipped with a pusher blade for quick leveling.

It performs above its size. It reaches a maximum digging radius of 2.34 m and a depth of 1.25 m, with discharge at 1.44 m and crown rotation at 8 rpm. The arm works with a 48-degree left and 45-degree right swing, the advance rate reaches 2.5 km per hour and overcomes slopes of up to 30 degrees with stability.

The 302 cc LONCIN gasoline engine delivers 6.8 kW at 3600 rpm with 20.3 N-m torque at 2500 rpm, clear response and low fuel consumption. Hydraulics with 16 MPa gear pump and 26.6 L per minute flow delivers smooth and precise movements. 12 liter hydraulic tank and 6 liter fuel tank for long shifts without stops.

It is a simple machine to use and maintain. Straightforward controls, compact structure and a design built to last make it a practical solution for individuals, freelancers and small businesses that need real power in tight spaces. Ideal for gardens, renovations, farms and farm maintenance.

Technical Specifications

Machine weight 663 kg
Standard bucket capacity 0,018 m³
Engine
Model LONCIN 302CC
Displacement 302cc
Rated power 6.8 kW at 3600 rpm
Maximum torque 20.3 N-m at 2500 rpm
Speed and working force
Maximum travel speed 2.5 km/h
Turning speed 8 rpm
Maximum gradeability 30°
Material of tracked
Tracked Rubber
Hydraulics and capacities
Pump type Gear
Working pressure 16 MPa
Flow rate 26.6 L/min
Hydraulic oil tank 12 L
Fuel tank 6 L


Main dimensions

a. Wheelbase 807 mm
b. Track length 1117 mm
c. Ground clearance of upper chassis 406 mm
d. Counterweight turning radius 730 mm
e. Chassis width 700 mm
f. Track width 150 mm
g. Track height 320 mm
h. Length of machine 2170/2785 mm
i. Height from seat to ground 1390 mm
j. Height 1711 mm

Operating dimensions

A. Maximum digging radius in the ground 2250 mm
B. Maximum digging radius 2342 mm
C. Maximum digging depth 1250 mm
D. Maximum digging height 2107 mm
E. Maximum discharge height 1442 mm
F. Maximum vertical digging depth 350 mm
G. Minimum turning radius 1112 mm
H. Maximum bulldozer blade lift height 96 mm
I. Maximum bulldozer blade depth 116 mm
J. Arm rotation (left) 48º
K. Arm swing (right) 45º
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case
