Desktop lathe Fortex FTX-350X180 TO VARIO 230 V
- Power Supply: 230V/F1
- Power: 0.75 kW - 1 HP
- Gear shift: Variable
- Speed range: 100 - 2250 r.p.m
€845.40 VAT incl.
Your cart is empty!

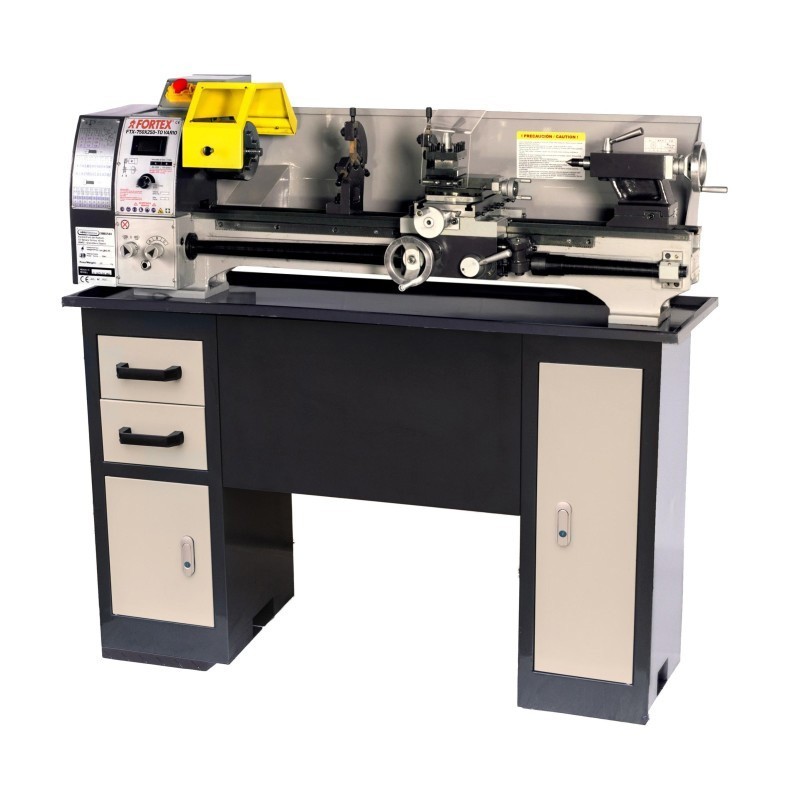

The Fortex FTX-750X250 TO VARIO tabletop lathe has 2 variable speeds ranging from 50 to 2000 revolutions per minute. The weight of the machine is 140 kilograms and it measures 1500 x 560 x 570 mm.
The power of its electric motor is 1.1 kW in single-phase mode. As a remarkable feature we can mention that the two speed bands that it has allow a greater tightening in the lower revolutions.
Another noteworthy factor is that the Fortex FTX-750X250 TO VARIO lathe has a stop button in case of emergency as well as a microswitch for opening the pulley cover or plate protector. This as well as its little brother the Fortex FTX 350X180 TO VARIO are CE compliant.
MODEL | FTX-750X250 TO VARIO |
X/Y coordinate display | No |
Power Supply (V) | 230-F1 |
Power (kw-HP) | 1,1-1,5 |
Gear shift | Variable |
Diameter over bed | 250 mm |
Diameter over neckline | - |
Diameter on carriage | 140 mm |
Spindle inside diameter | 26 mm |
Distance between points | 750 mm |
Point taper | MT4 |
Tailstock taper | MT2 |
Tailstock diameter | 30 mm |
Tailstock travel | 70 mm |
Number of speeds | 2 - Variable |
Speed range | 50 - 2000 r.p.m |
Longitudinal feed range | 0,07 - 0,40 mm/rev |
Transverse feed rate range | - |
A. Longitudinal rapid traverse intermediate slide | - |
A. Rapid transverse intermediate slide | - |
Metric pitch range | 18 TYPES / 0,2 - 3,5 mm |
Inch pitch range | 21 TYPES / 8 - 56 tpi |
Diameter pitch range | - |
Modular pitch range | - |
Net/Gross Weight | 140 Kg |
Dimensions | 1500X560X570 mm |
