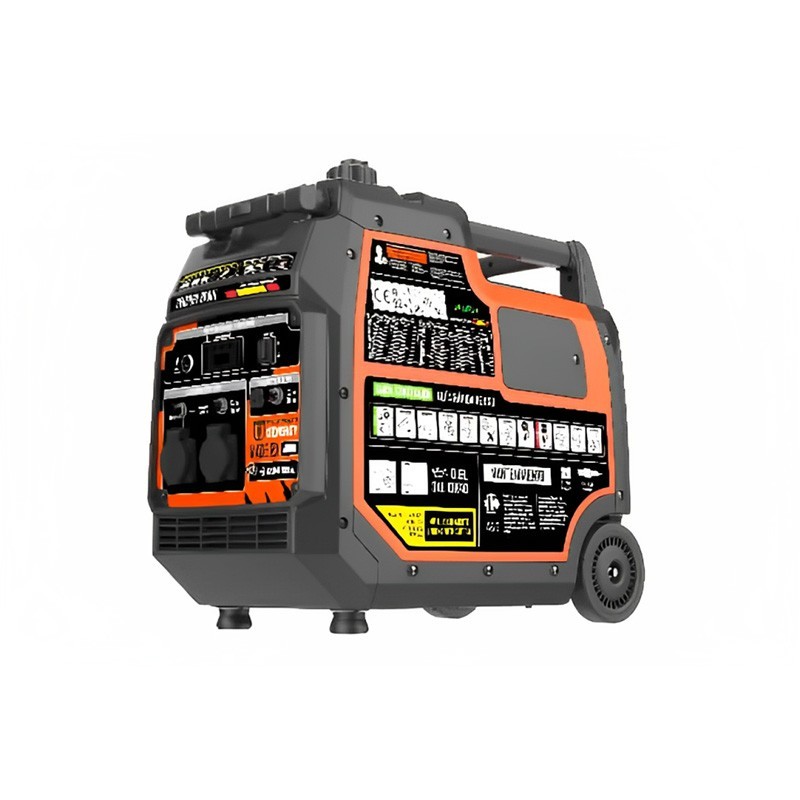

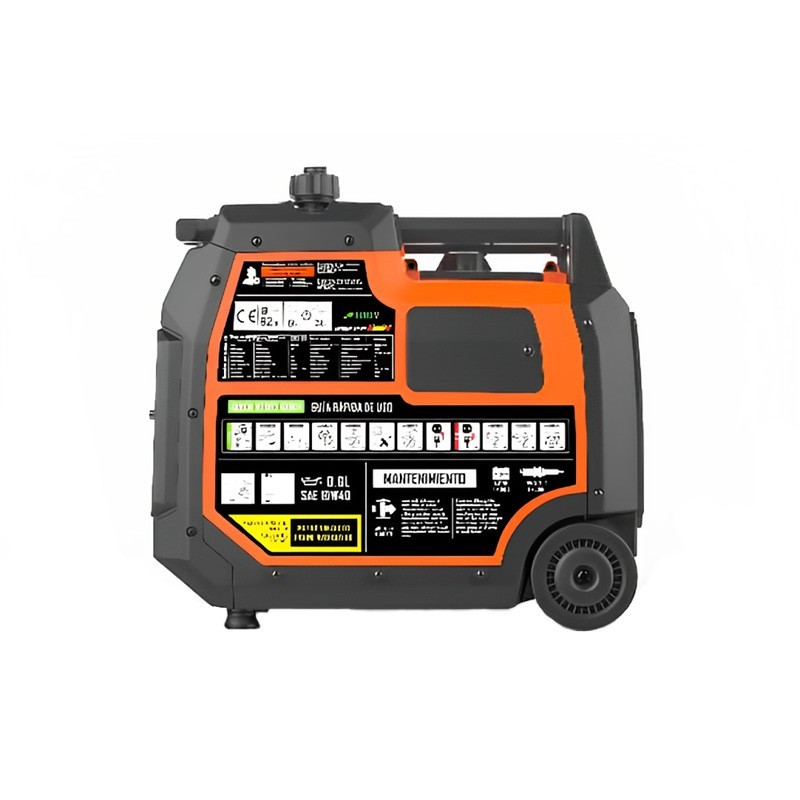

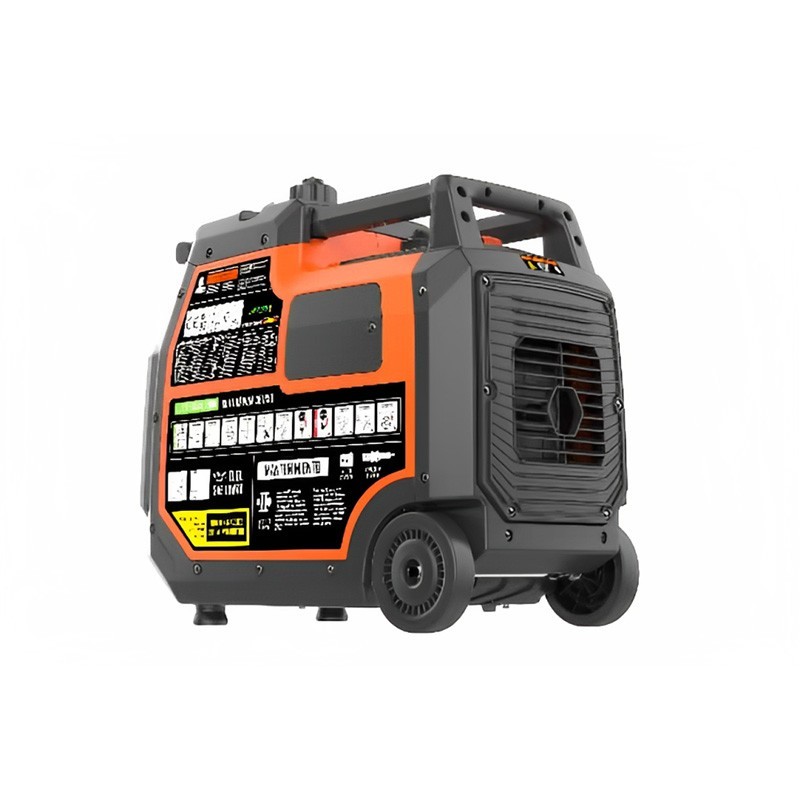

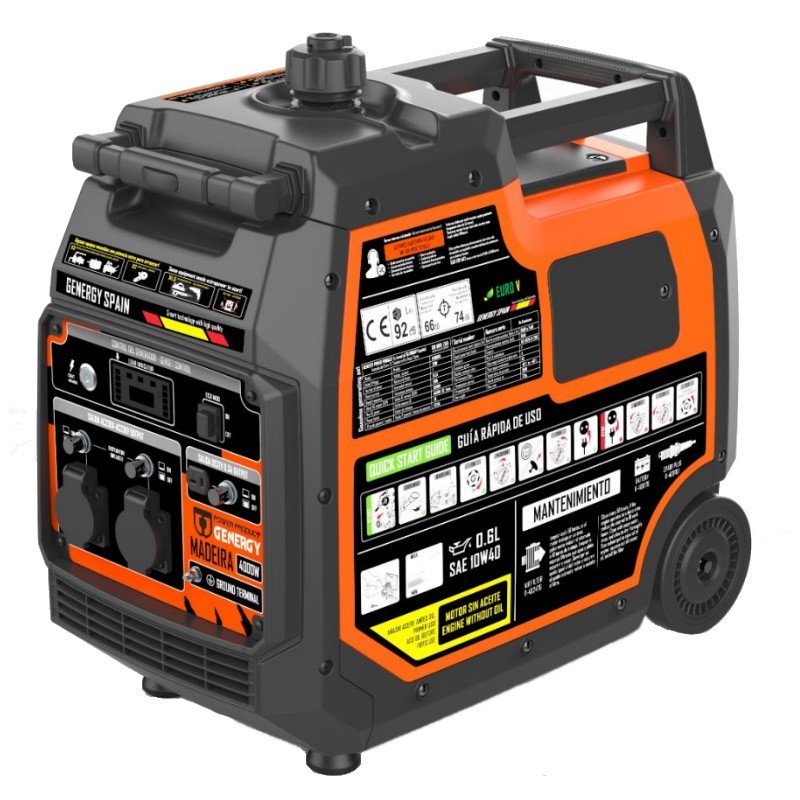

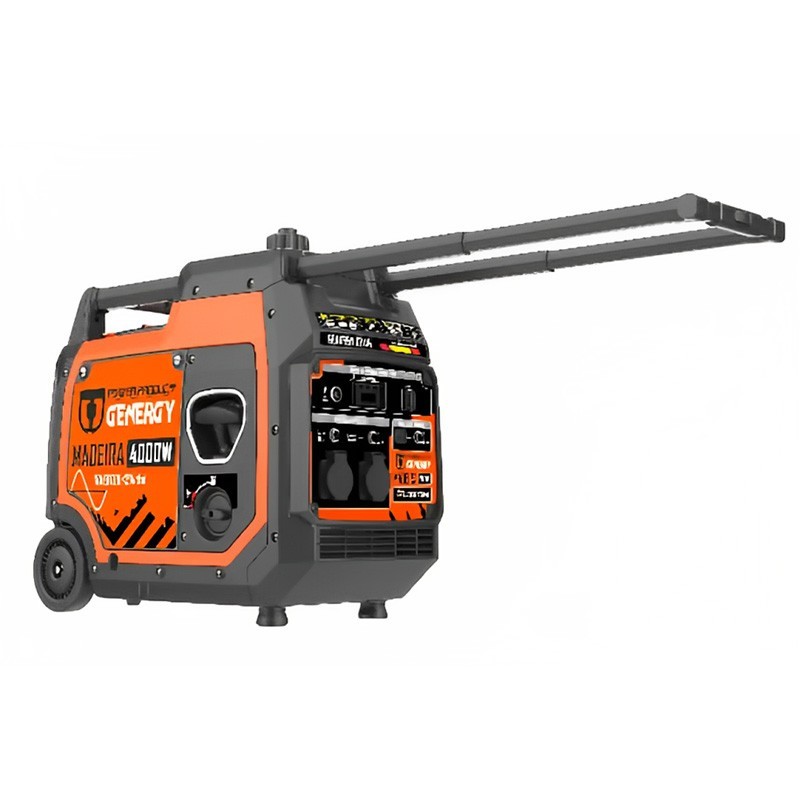

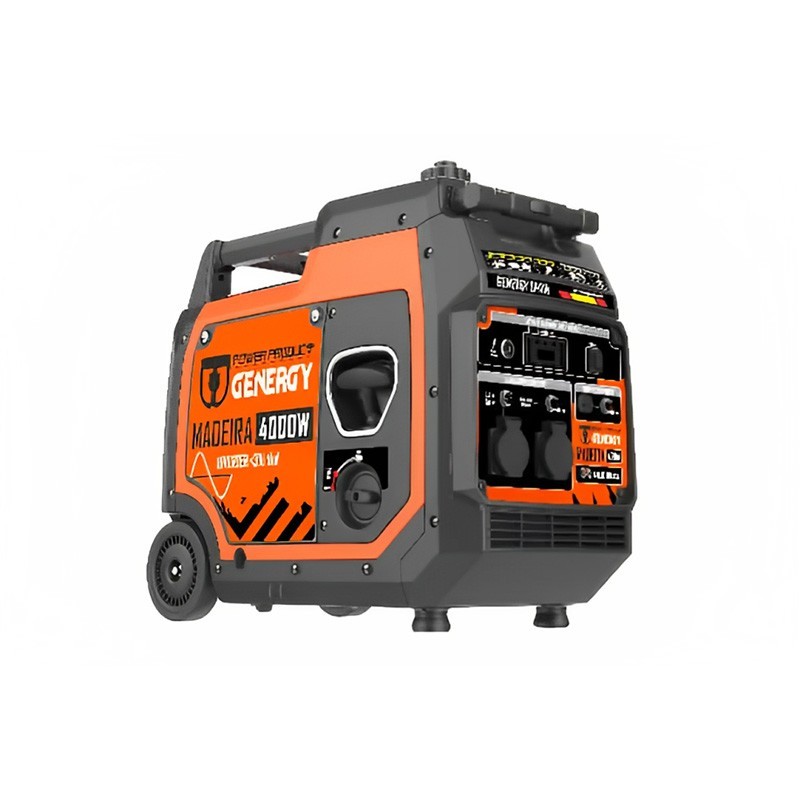

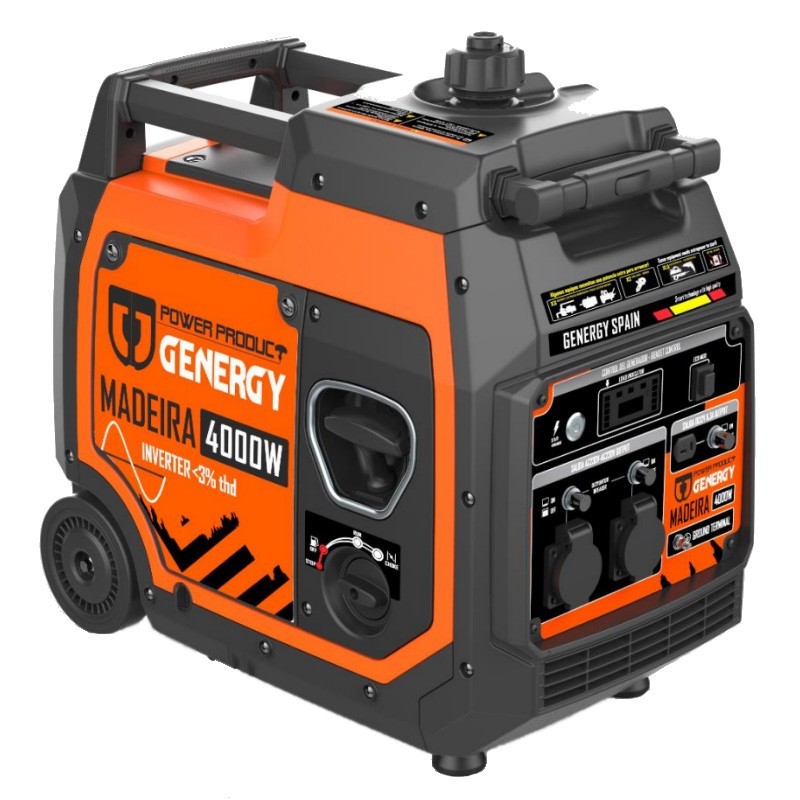

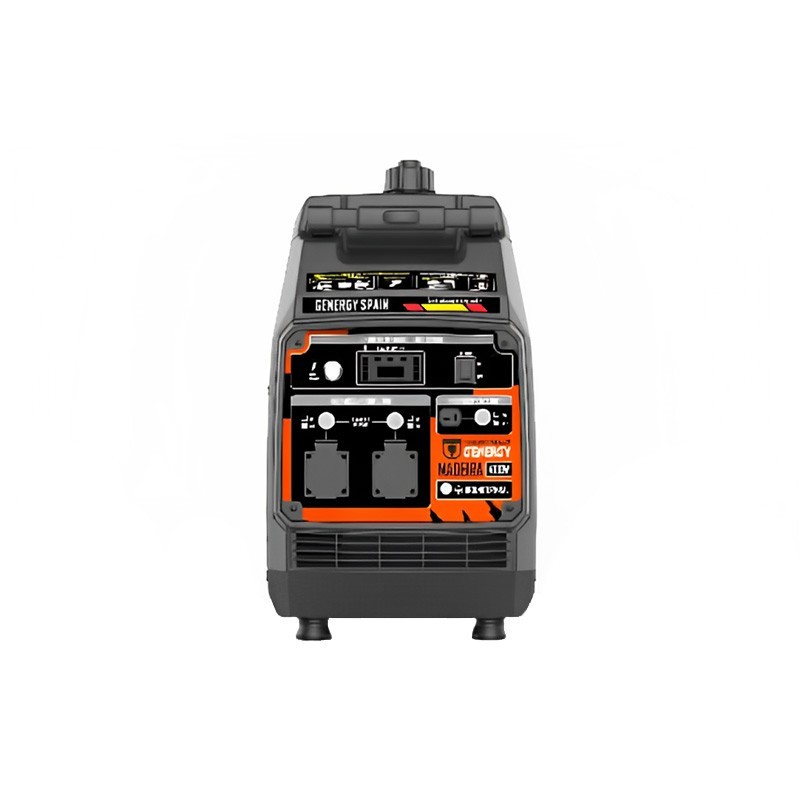

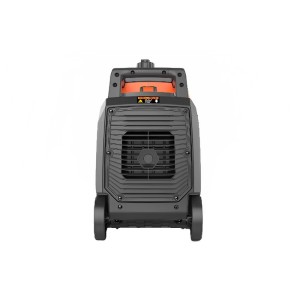

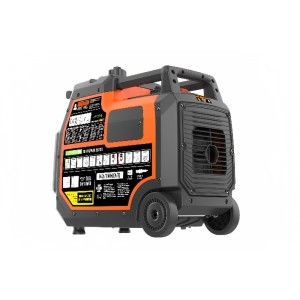

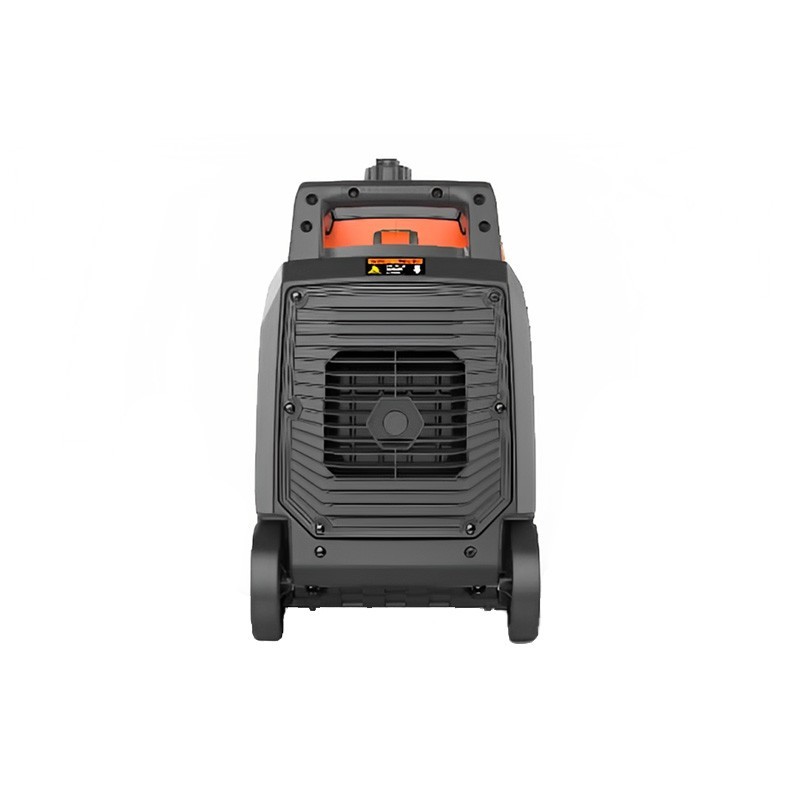

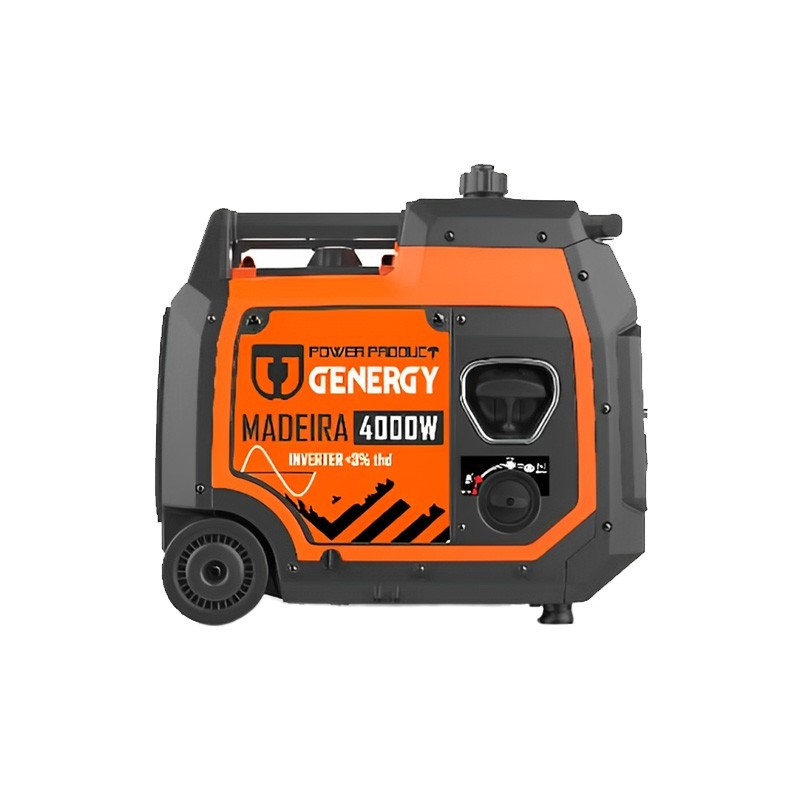

The Madeira 4000W electric generator has an efficient and highly reliable engine that guarantees a smooth and easy start regardless of the working condition. It has a"PUSH ST" start, which allows you to start it at the push of a button.
It also has an"ECO drive" mode that self-adjusts the engine speed and allows significant fuel savings, especially at low loads. In case of oil shortage, the Madeira 4000W generator has an automatic stop to protect the engine from serious damage.
The engine has a low noise level being more respectful in both urban and semi-urban environments. This inverter generator has a forced air recirculation system that allows a better cooling as well as an optimal air intake temperature for combustion.
| Voltage | 230V - 50Hz |
| Displacement | 224cc |
| Capacity | 0.6L |
| Stabilization system | Inverter |
| AC 230V Maximum | 4000W |
| AC 230V Nominal | 3600W |
| Type by number of phases | Single phase |
| Power factor | 1 |
| Motor model | SGH225E |
| Engine Type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 57dB - 71 dB |
| Guaranteed sound power level LwA | 91dB |
| Starting type | Electric and manual |
| Fuel tank capacity | 7.8L |
| Consumption at 25%-50%-75% load | 0.71L/H - 1.05L/H - 1.46L/H |
| Autonomy 25%-50%-75% load | 11.3H - 7.6H - 5.5H |
| Insulation level | F |
| Class according to insulation quality | A |
| Efficiency class | G2 |
| Standard | ISO 8528-13:2016 |
| Transport kit | SI |
| Dimensions | 605x320x560mm |
| Weight | 35kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
