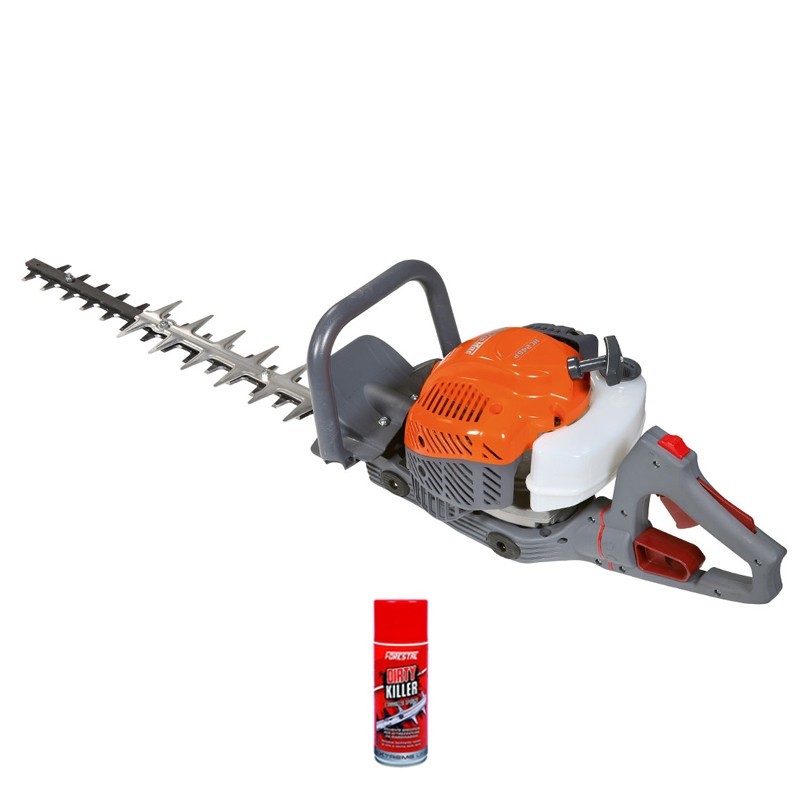

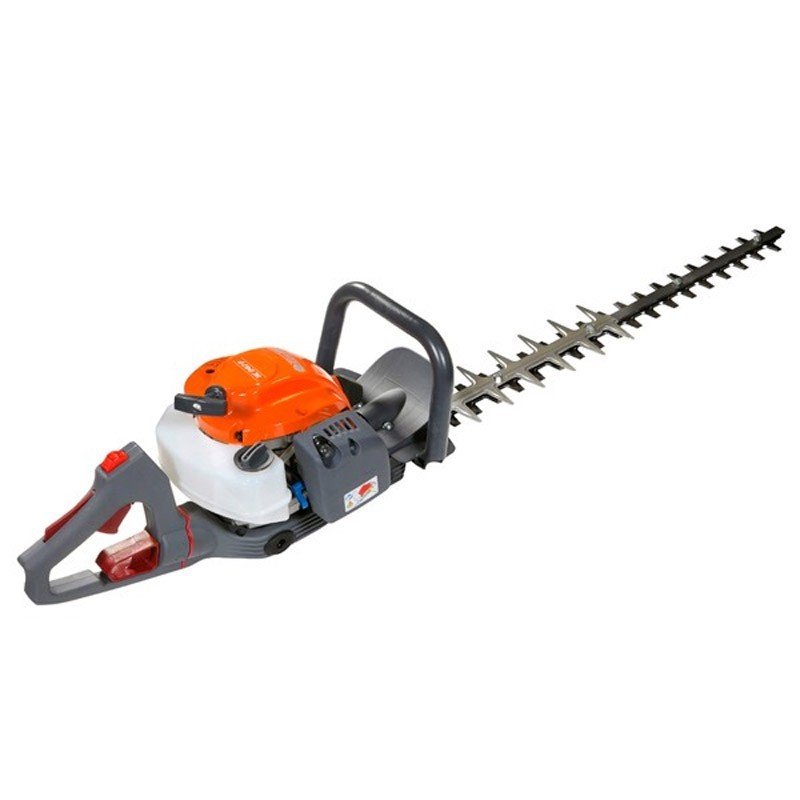

The Gasoline Hedge Trimmer Oleo Mac HC 247 P is powered by a 2 stroke Emak EURO engine. It provides a power of 1.5 HP / 0.77 kW and a displacement of 21.7 cc.
This model also has a minimum engine speed of 3100±100rpm and a maximum idle speed of 10200±200rpm. It has an hourly fuel consumption at maximum power of 380 rpm.
The gasoline hedge trimmer Oleo Mac HC 247 has a digital electronic ignition system . It has an 11000 rpm limiter and a NGK CMR7H spark plug. It also offers a transmission system with a 0.245 kinematic group and a centrifugal clutch with 4100rpm engagement.
The HC 247 P model from Oleo Mac features a power Supply and lubrication system with Walbro WT-1223 carburetor and Mix 4% (25:1) fuel - with PROSINT 2% (50:1) oil. It also has a capacity of 0.5 L, a primer and a paper air filter.
This hedge trimmer guarantees good safety. It has a sound pressure of 98.8 dB(A) and a sound power of 108 dB(A). It has a vibration level Front 6.6 m/s2 Rear 8.6 m/s2.
This machine of Oleo Mac offers good ergonomics. It includes two front handles of Circular-Handle and a rear rotating at 180 °. It has EASY ON system.
The hedge trimmer Oleo Mac HC 247 P has a cutting system with a blade length of 750mm. In addition to a blade pitch of 35 mm. This model has a weight of only 5.4 Kg.
| Engine | 2-stroke Emak EURO 1 |
| Power | 1,5 HP / 0,77 kW |
| Displacement | 21,7 cc |
| Minimum speed | 3100 ± 100 rpm |
| Maximum idle speed | 10200 ± 200 rpm |
| Hourly fuel consumption | 380 rpm |
| Spark plug | NGK CMR7H |
| Transmission | 0.245 kinematic group |
| Clutch | Centrifugal with engagement at 4100 rpm. |
| Carburetor | Walbro WT-1223 |
| Capacity | 0,5 L |
| Acoustic pressure | 98.8 dB(A) |
| Acoustic power | 108 dB(A) |
| Vibration level | Front 6.6 m/s2 Rear 8.6 m/s2 |
| Front Handle | Circular-Handle |
| Rotating Handle | 180° rotatable |
| Blade length | 750 mm |
| Blade pitch | 35 mm |
| Weight | 5,4 Kg |
 |
Piston with two rings, shaft and connecting rod in forged and machined steel, roller cages and cylinders coated with nickel, to guarantee long-term efficiency even in the face of intensive use. |
 |
High-quality steel blades with cutting edges on top. These ensure a clean and precise cut that does not damage the branch. Adjustable blades to adapt to any type of plant. |
 |
Professional gearbox, made of aluminum (a), with pinion in bearings and connecting rods with rollers (b). This is to guarantee a long service life, low noise level and low vibrations. |
 |

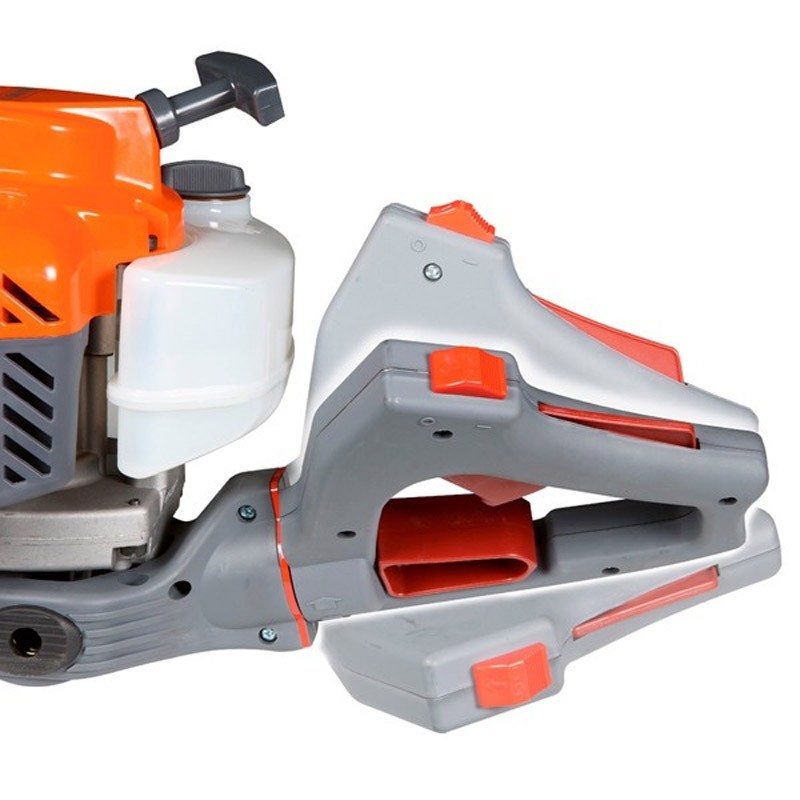

180° rotating handle (only on double-blade models). The handle ensures a comfortable and secure grip even when using the machine for side cuts. |
 |
Paper filter, for increased filtering capacity and motor longevity. |
 |
Anti-vibration system, consisting of 4 shock-absorbing springs, placed between the movement box and the handles, which reduces stress for the user. |
 |
The nylon mixing tank complies with the strictest safety standards, thanks to its transparency, allowing immediate control of the fuel level. |
 |
Easy maintenance: a screw cap allows access to clean the paper filter with air, while another cap allows access to the starter housing and the muffler. |
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
