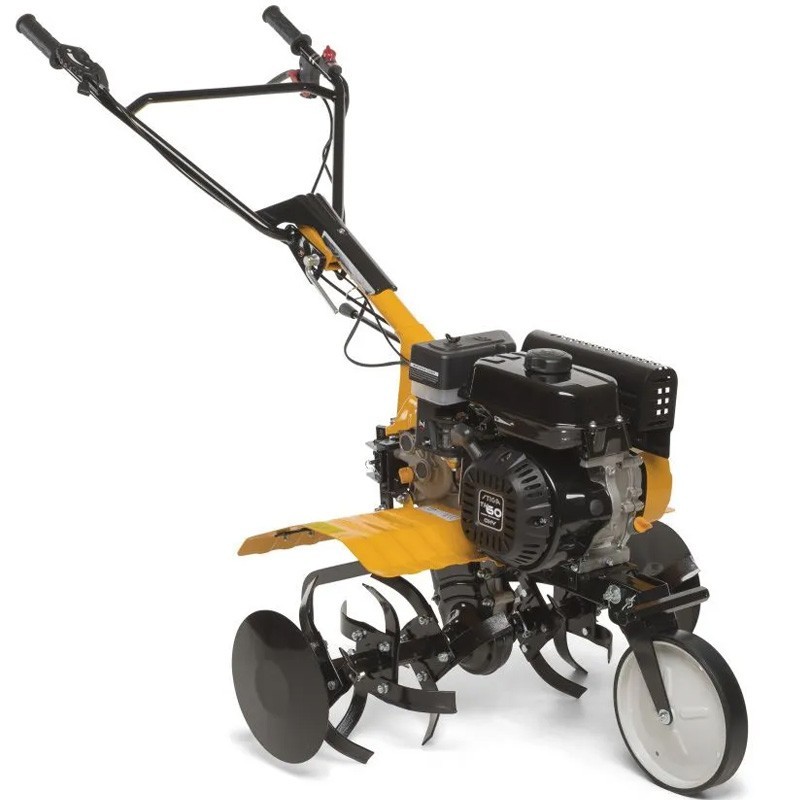

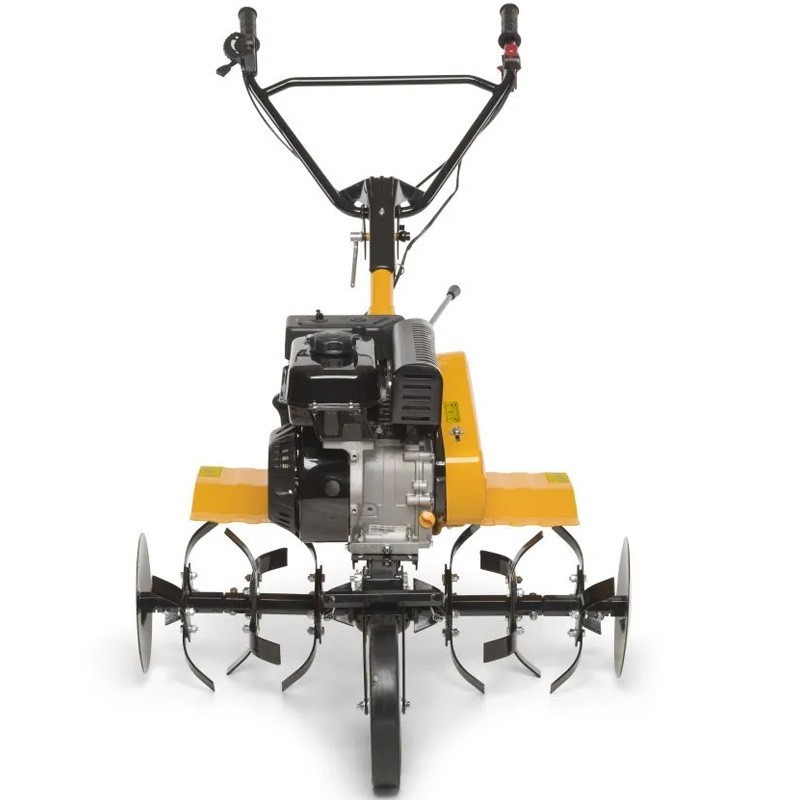

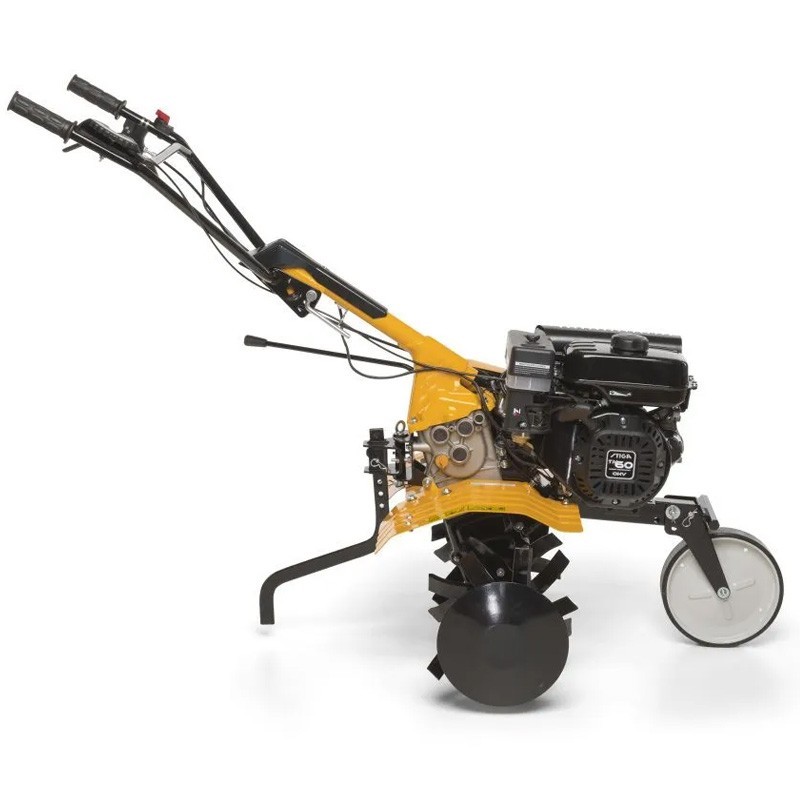

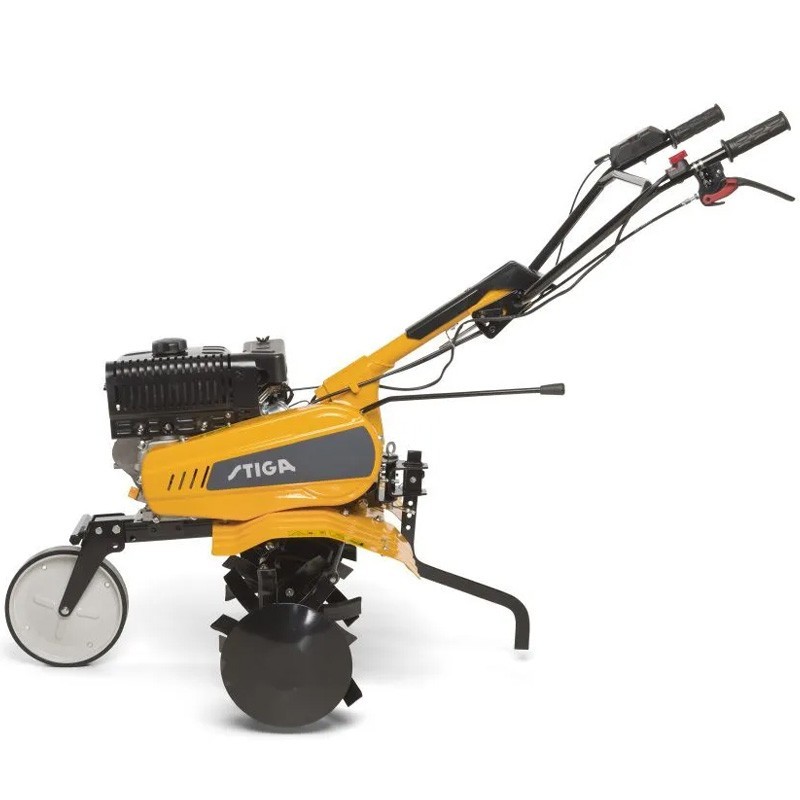

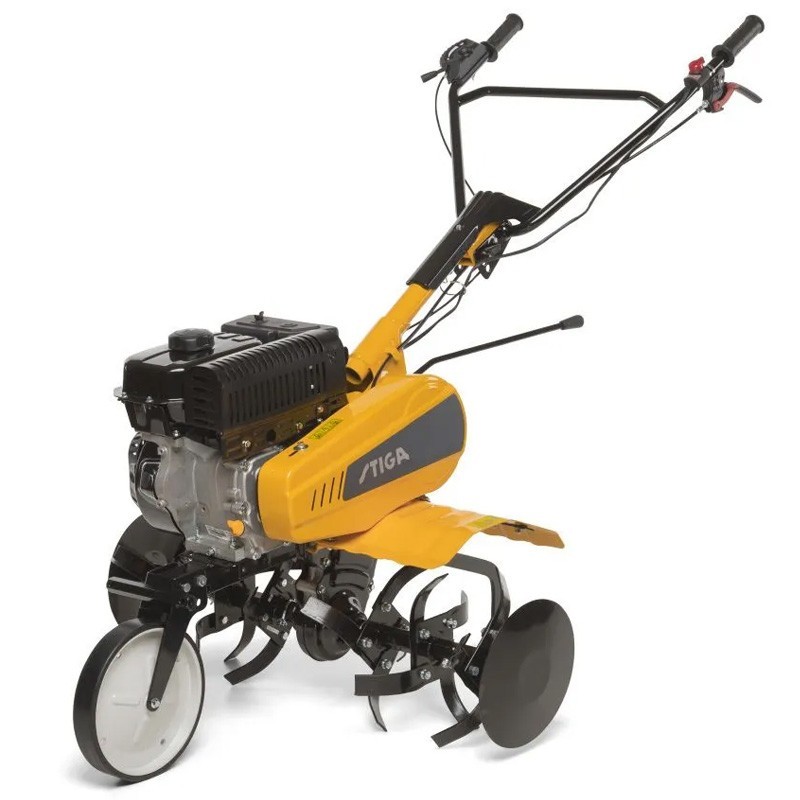

The garden tiller with Stiga 4-stroke TM 60 engine is a powerful and reliable machine designed for efficient tillage work. With a 182 ccdisplacement and a rotation speed of 3300 rpm, it offers optimum performance.
Equipped with 6 rotors of 245 mm diameter, a working width of 85 cm and a working depth of 15 cm, it guarantees accurate results in various conditions. Its transmission system with 2 forward and 1 reverse gears, together with a disc guard, provides versatility and safety.
Compact and stable, with dimensions of 1680 mm in length, 850 mm in width and 1050 mm in height, it is ideal for agricultural and gardening work.
| Power Supply | Gasoline |
| Engine | Stiga 4-stroke TM 60 |
| Displacement | 182 cc |
| Engine rotation speed | 3300 rpm |
| Fuel tank capacity | 3l |
| Gear oil box capacity | 0.5l |
| Air filter type | Oil bath |
| Working system | |
| Working width | 85 cm |
| Working depth | 15 cm |
| Number of rotors | 6 |
| Rotor diameter | 245 mm |
| Disc protector | Yes |
| Transmission | |
| Transmission | Chain and toothed gear in oil bath + belt |
| Number of gears | 2 forward + 1 reverse |
| Dimension | |
| Weight | 62.5 kg |
| Length | 1680 mm |
| Width | 850 mm |
| Height | 1050 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
