Garden tiller gasoline Kuril KZ700 212cc
- Working width: 105 cm
- Displacementworking width: 212 cc
- Working depth: 36 cm
- Weight: 73 Kg
€586.96 VAT incl.
The unauthorized use, copying or distribution of the information, images or links contained on this website constitutes a violation of intellectual property rights and will be prosecuted in accordance with the Law. If any improper use of any link or any type of data from our website is detected, legal action will be immediately initiated, as well as notification to the Spanish Data Protection Agency for the relevant purposes.
Included: 400x8 pneumatic wheels with rear PTO and rear PTO

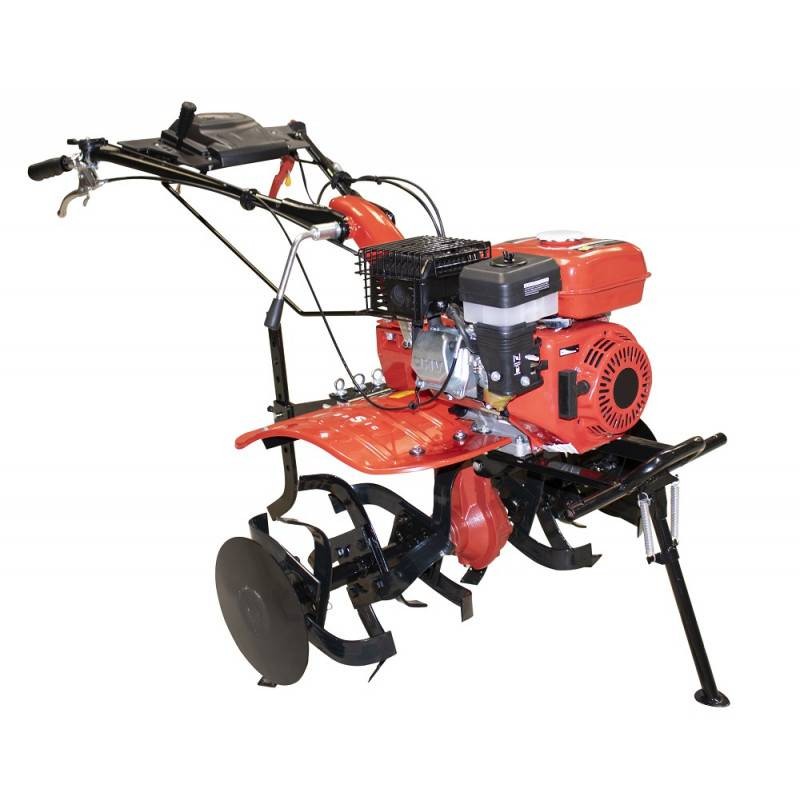

The EuroCentauro CVSR1Z-100 is a high-end, extremely reliable and robust garden tiller, specifically designed to meet the requirements of professional farmers and green space maintenance experts. Its technical architecture is characterized by a direct gear transmission on the crankshaft housed in a reinforced cast iron case, which guarantees exceptional resistance to the most severe stresses on hard and compact terrain.

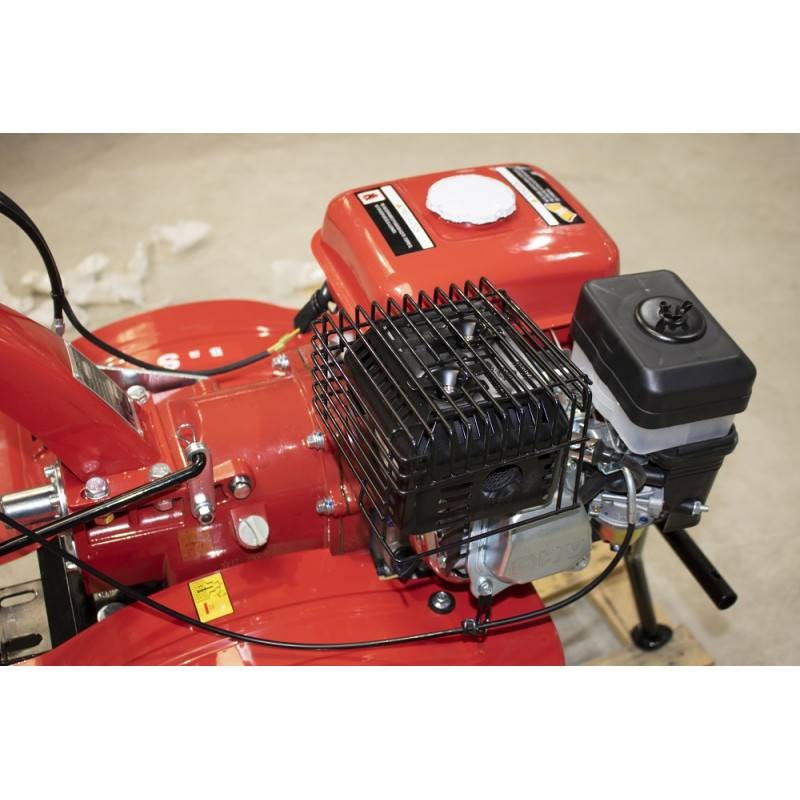

This model incorporates an advanced oil-immersed multi-plate clutch, which offers superior smoothness of actuation and extended service life compared to conventional systems. Its 7 HP, 208 cc OHV gasoline engine provides excellent performance with low maintenance.
It is totally versatile thanks to its 3-speed gearbox (2 forward + 1 reverse), allowing power to be adapted to the consistency of the ground, while the reverse gear facilitates maneuvering in rough terrain.

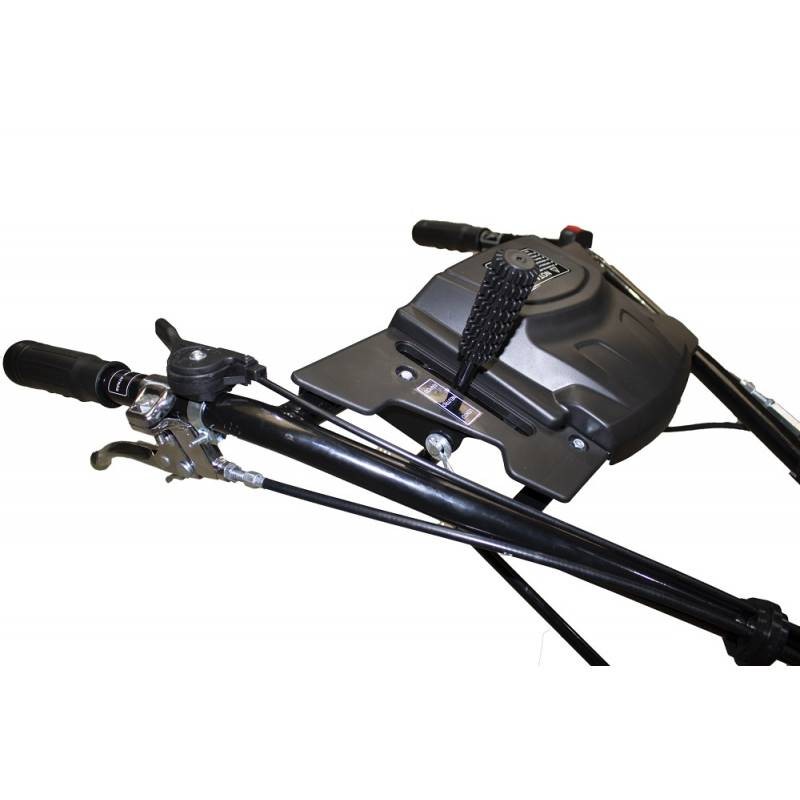

Ergonomics have been taken care of in detail with a new vertically and laterally adjustable handlebar, which includes the integrated gears lever for total control. The EuroCentauro CVSR1Z-100 is equipped as standard with a wide 105 cm tiller and 400x8 pneumatic wheels, as well as a rear PTO for attachment application of accessories and a reinforced spur support for tine cultivators, making it the ultimate tool for intensive agricultural work.
| Model | CVSR1Z-100 | |
| Engine type | 4-stroke OS170 / OHV (3600 rpm) | |
| Displacement | 208 cc | |
| Maximum power output | 7.0 HP (5.0 kW) | |
| Rated power | 5.4 HP (4.0 kW) | |
| Ø piston x stroke | 70 x 55 mm | |

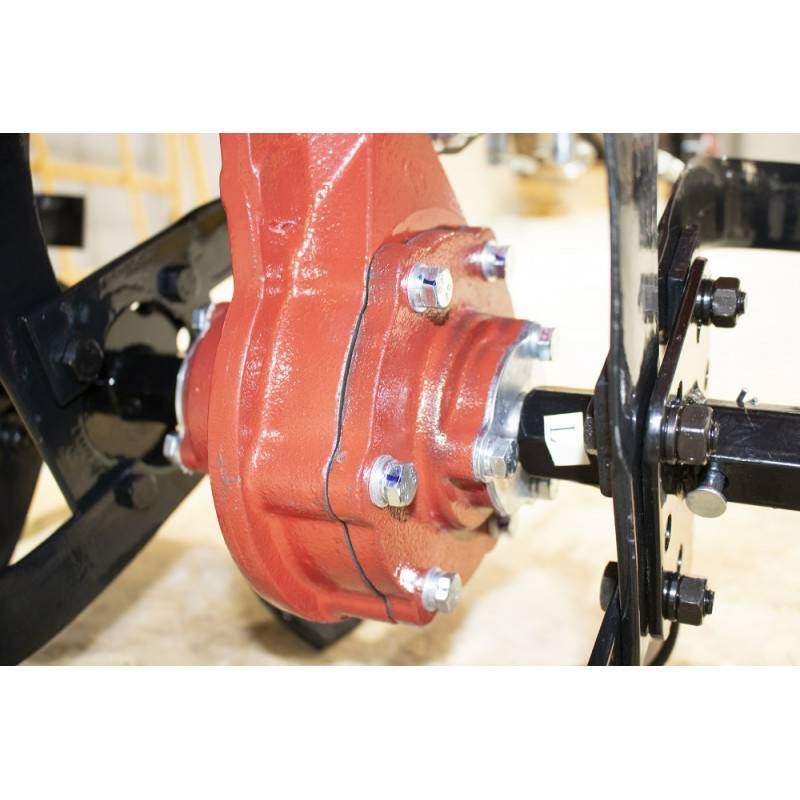

| Transmission type | Direct gear transmission in oil bath | |
| Gearbox | Reinforced cast iron | |
| Gears | 2 forward + 1 reverse | |
| Clutch | Multidisc in oil bath | |
| Fuel tank | 3,6 liters | |
| Oil tank | 0,60 liters | |
| Approximate consumption | 1,50 l/h | |
| Width of tiller | 105 cm (with side discs) | |
| Wheels included | Pneumatic 400x8 with hubs | |

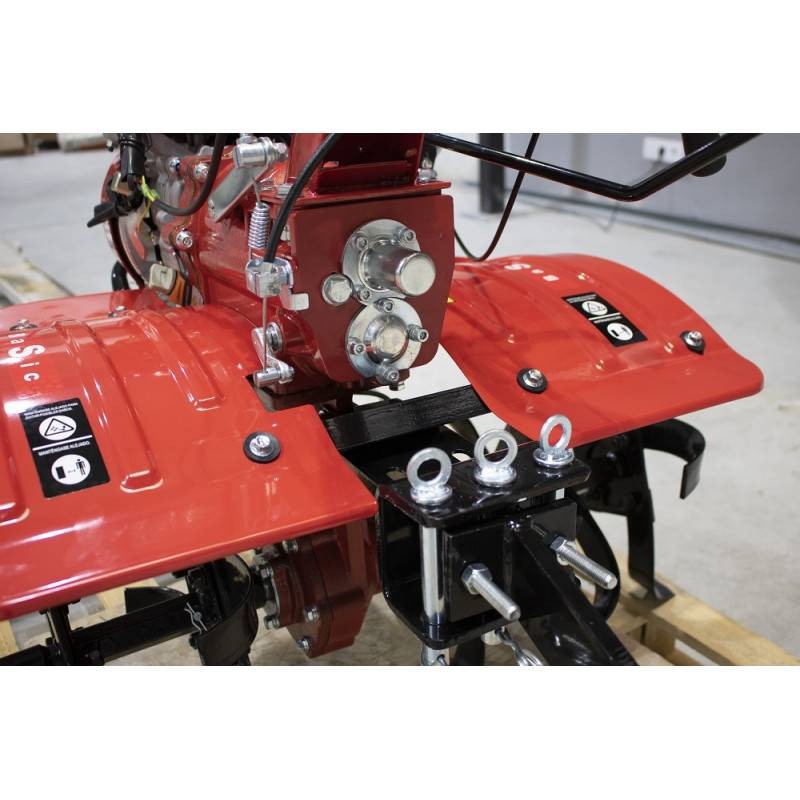

| Power take-off | Rear (for accessories) | |
| Handlebar | Vertical and lateral adjustment | |
| Safety systems | Automatic and immediate engine stop | |
| Total weight | 94 kg | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
