Universal Quad / ATV hitch Geo Italy

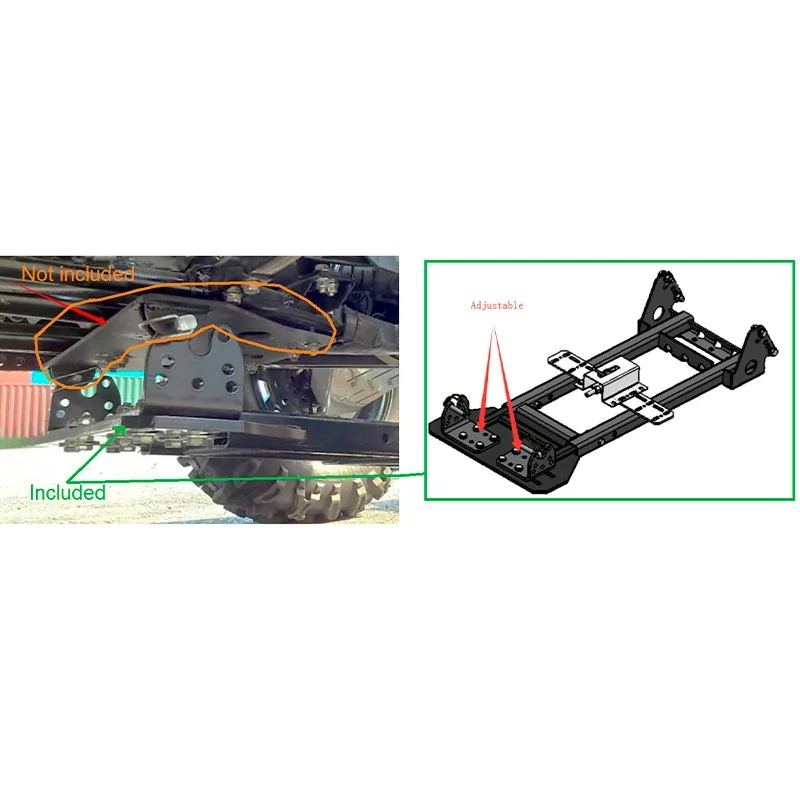

- Universal fixing kit for the brand geo italy
€220.30 VAT incl.

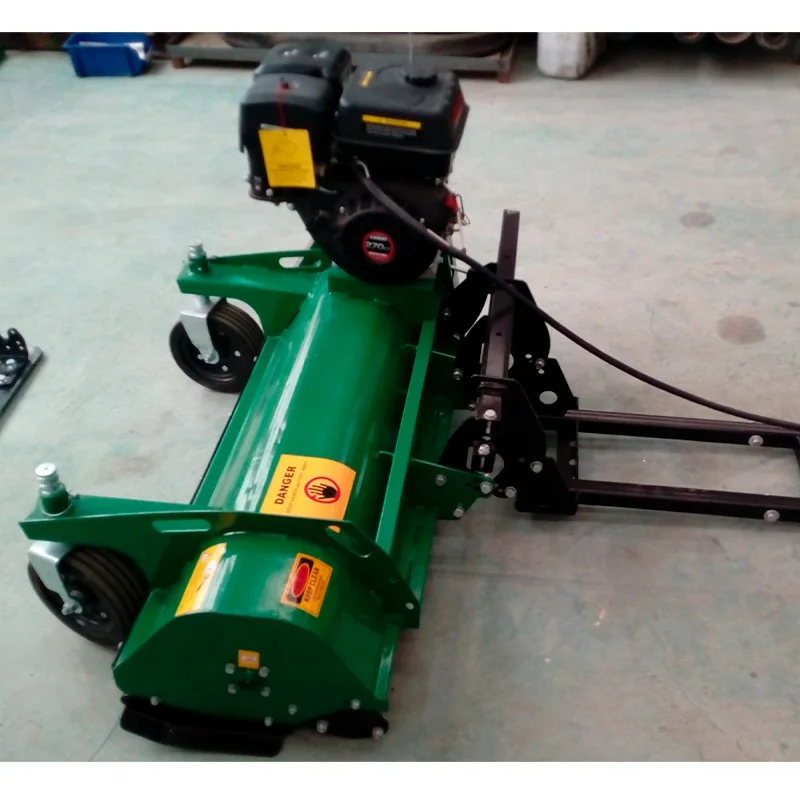

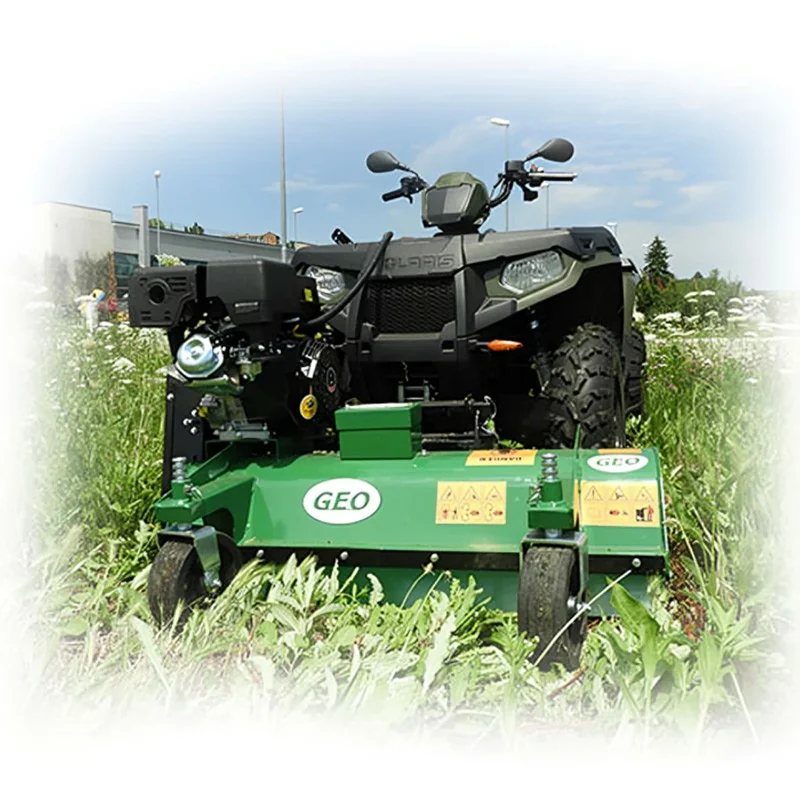

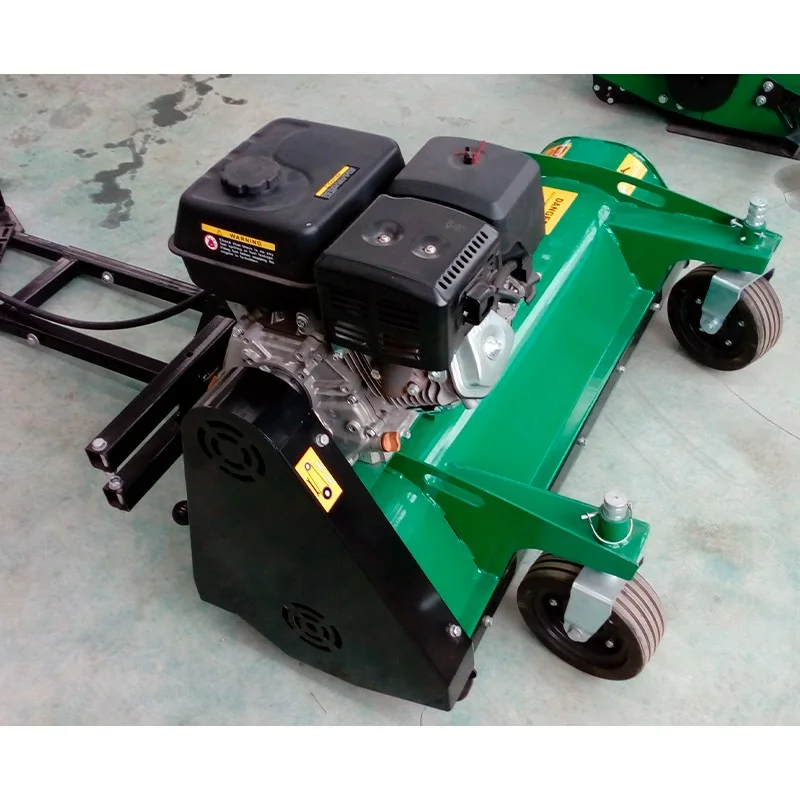

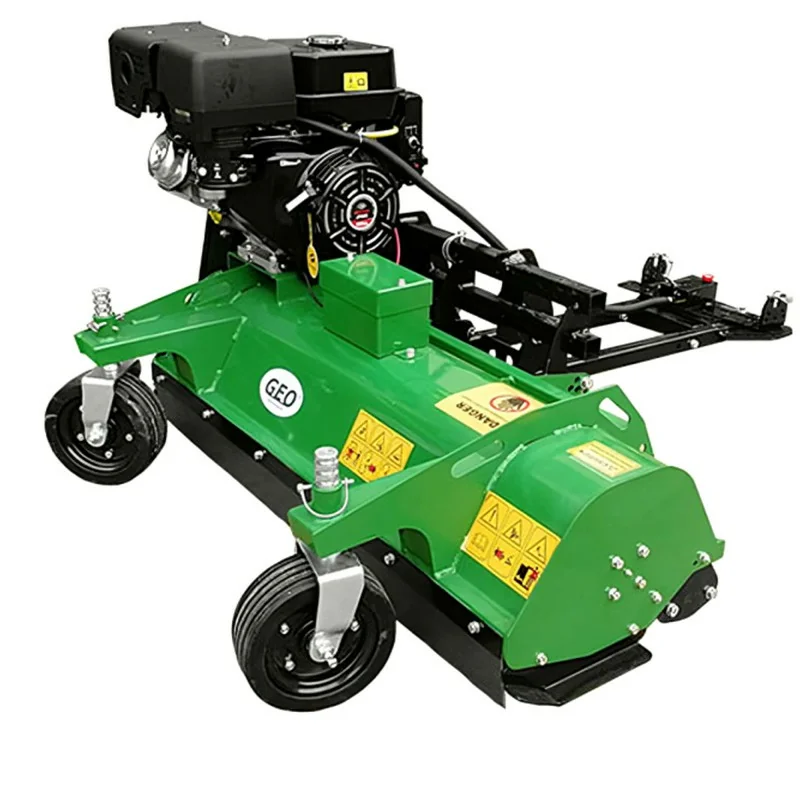

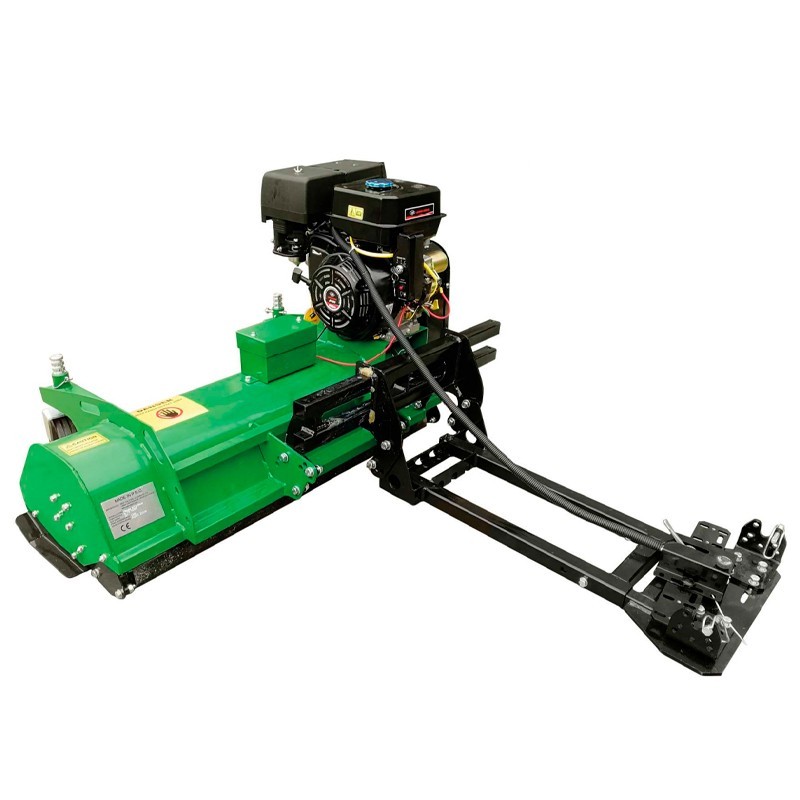

The Geo Italy F100 ATV Mulcher is a front-mounted ATV brushcutter with center-mount undercarriage, ideal for meadows, ditches and plots. Its frame is fixed to the ATV chassis for stable and safe guidance, and the set weighs 135 kg with measures 165×123×79 cm for maximum robustness.
It is equipped with a 15 HP gasoline engine with electric starter and 2-belt transmission, operated by manual ON/OFF lever. The center-mount system improves traction and control of the implement against rear hitches, allowing it to work with precision even on uneven terrain.
It offers a working width of 1000 mm and cutting height adjustment from 10 to 60 mm, with adjustable wheels and 8×3.5-5 front wheel to adapt to the terrain. The electronically balanced rotor keeps vibration low and ensures an even cut.
The blade-holding cylinder mounts 48 high-speed blades for a clean finish in dense grass and underbrush. If you're looking for an undercarriage center hitch quad brushcutter, the Geo Italy F100 combines a 15 HP engine, 1000 mm of travel and 2-belt drive for professional performance and reliability.
Engine | Gasoline |
Power | 15 HP |
Starter | Electric |
Working width | 1000 mm |
Cutting height | 10-60 mm (adjustable) |
Wheels | Adjustable height |
Front wheel | 8x3.5-5 |
Rotor | Electronically balanced |
Blade tip speed | High |
Transmission | Manual ON/OFF control |
Transmission belts | 2 |
Number of blades | 48 |
Type of blade | Hammer (2 inch) |
Dimensions | 165 x 123 x 79 cm |
Weight | 135 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
