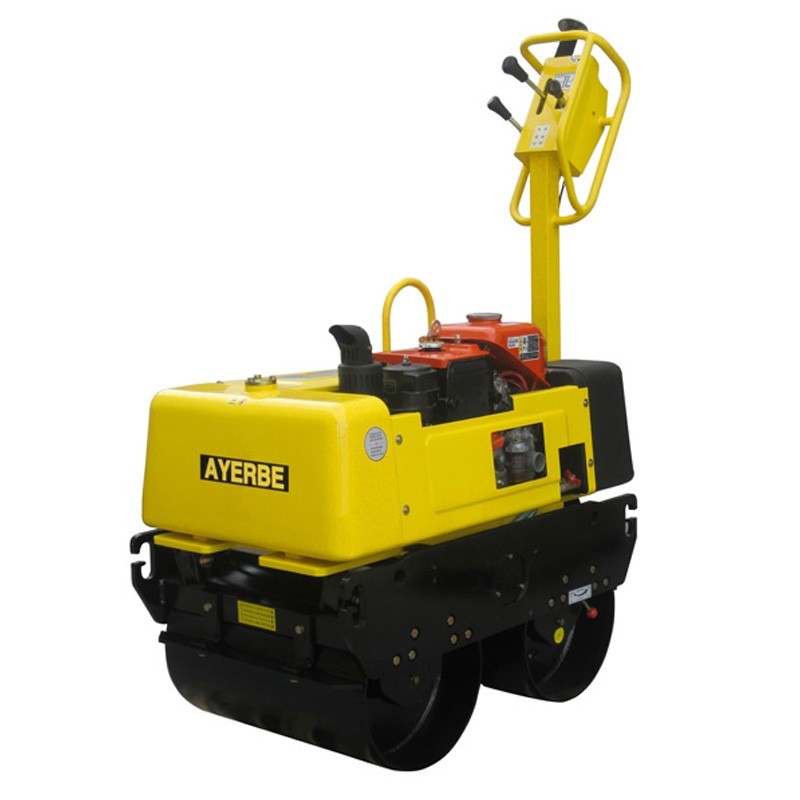

Vibratory roller Ayerbe BWR 650 with Kubota engine

Rating:
(0)
  • Engine: Kubota E75 NB3
  • Power: 6.5 HP
  • Centrifugal force: 20 kn
  • Cooling: water-cooled
En stock
icon Power Supply
Power Supply
Diesel
icon Startup
Startup
Manual
icon Engine
Engine
Kubota
icon Engine model
Engine model
E75 NB3
icon Displacement
Displacement
325 cc
icon Power
Power
6.5 HP
icon Engine type
Engine type
4 times
€11,726.45 excl. VAT
- 4%
€11,257.39 excl. VAT
€13,621.44 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Vibratory roller Ayerbe BWR 650 with Kubota engine
€13,621.44
Qty

Vibratory Roller Ayerbe BWR 650 with Kubota Engine

The vibratory roller from the famous brand Ayerbe model BWR 650 features a Kubota diesel engine that generates a power of 6.5 horsepower, displacing the cylinders in 325 cubic centimeters.

Regarding its most notable specifications, we can say it has an exclusive anti-vibration system on the handle. The engine cooling is done by water and it has a 47-liter water tank.

The speed and direction of this vibratory roller are controlled by a hydraulic servo control located on the handle. The centrifugal force that this machine can generate at full operation is 20 kN.

Finally, we will mention that it has a forward speed of 3.6 km/h and a reverse speed of 2.5 km/h, and the width of its drum is 650 mm.

Technical Specifications

MODEL BWR 650
Engine Kubota E75 NB3
Power 6.5 HP
Displacement 325 cc
Anti-vibration system on the handle
Speed and direction control hydraulic by servo control on the handle
Drum Ø 402 mm
Drum width 650 mm
Centrifugal force 20 kN
Forward speed 3.6 km/h
Reverse speed 2.5 km/h
Cooling water
Tank 47 liters
Weight 675 kg
Roller width 650 mm
Roller diameter 402 mm
Dimensions 2385 x 700 x 1150 mm
IMPORTANT NOTICE
It is mandatory for the customer to check oil and lubrication levels before starting. If the merchandise cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied pending examination.
