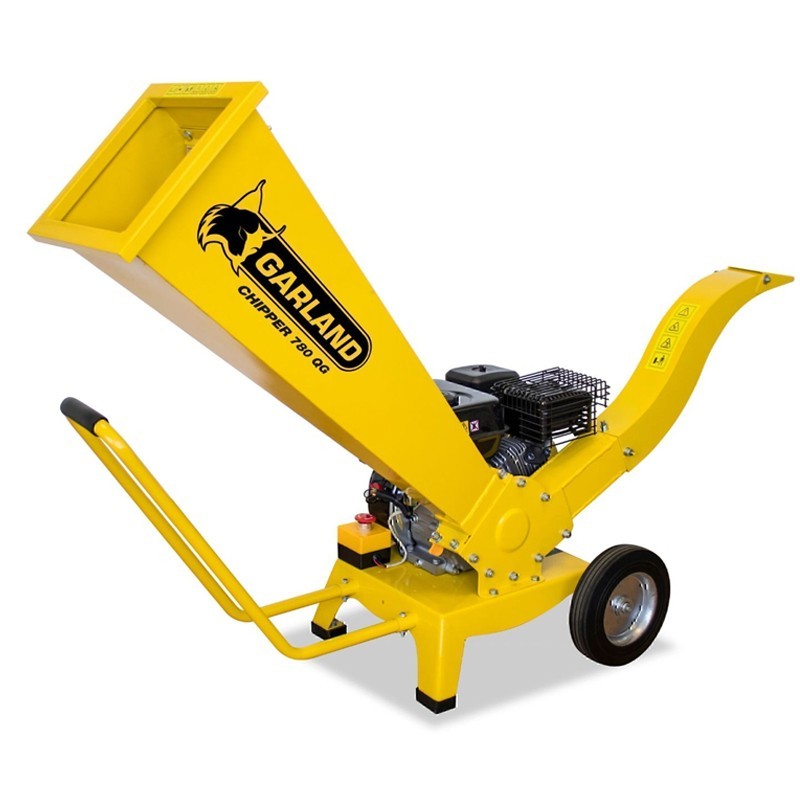

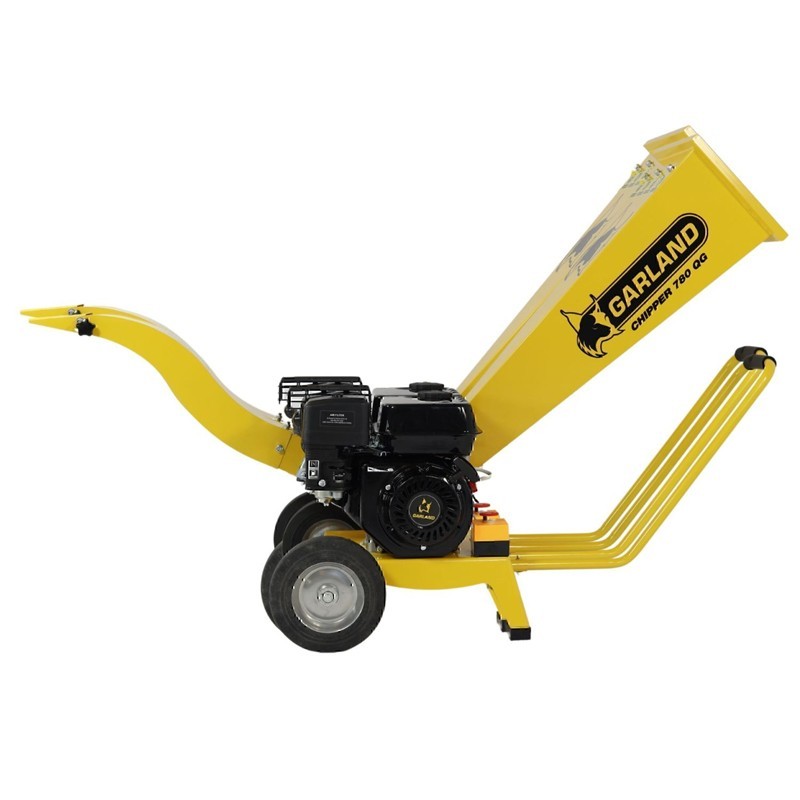

The Electric branch shredder Garland Chipper 780 QG-V23 it has an electric motor. This provides us with a Total power of 4300 W and a displacement of 212 cc.
The wood chipper model It offers us a Maximum engine speed of 3600 rpm and has a 6 cm crushing diameter. This crusher model has a lightweight of only 50 kg.
Basic axial roller shredder ideal for small domestic crushing tasks. Its crushing system is effective even with palm leaves.

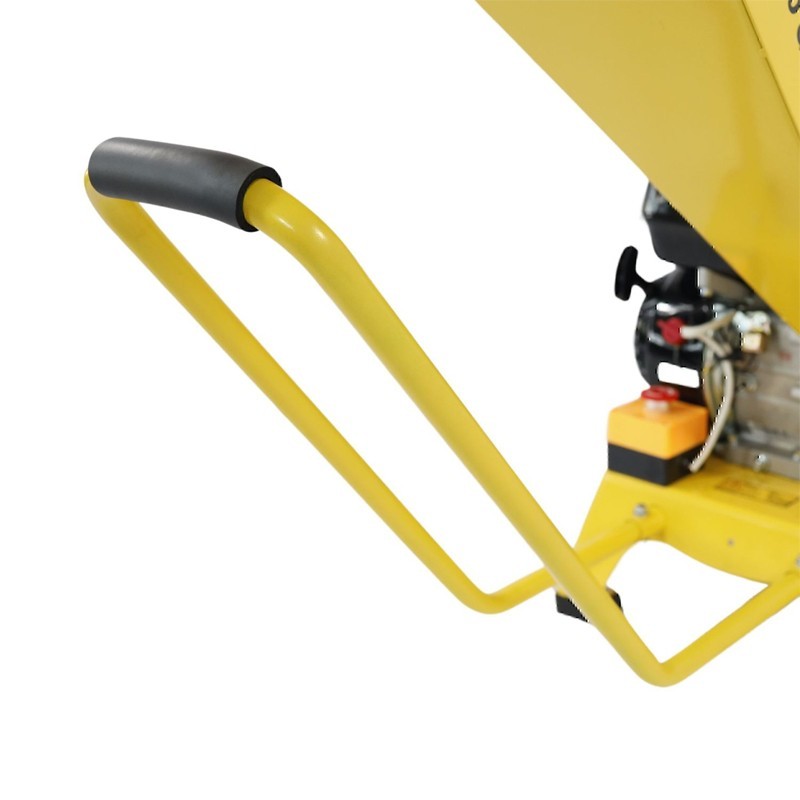

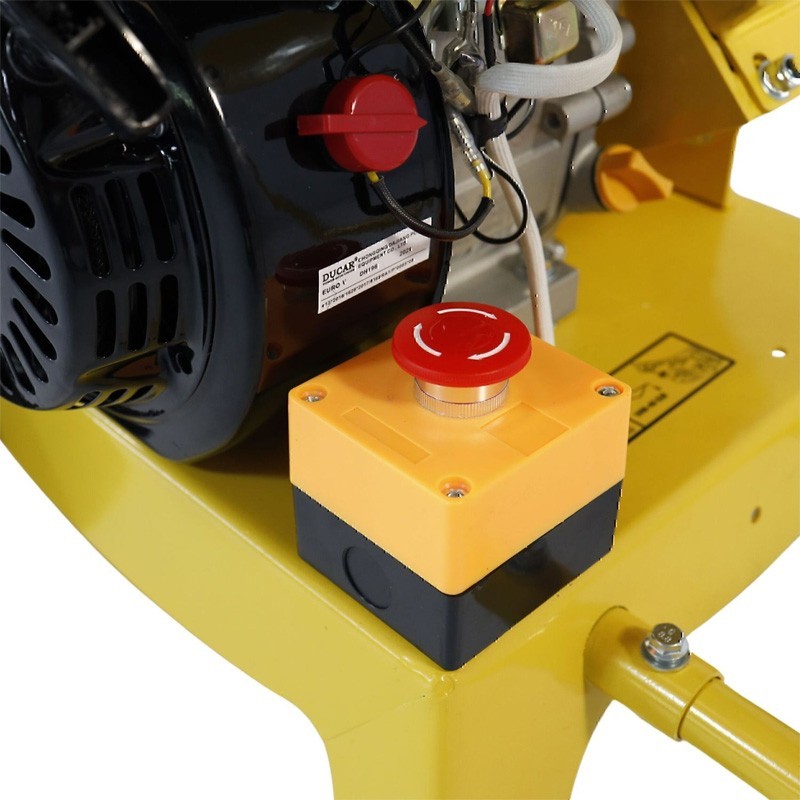

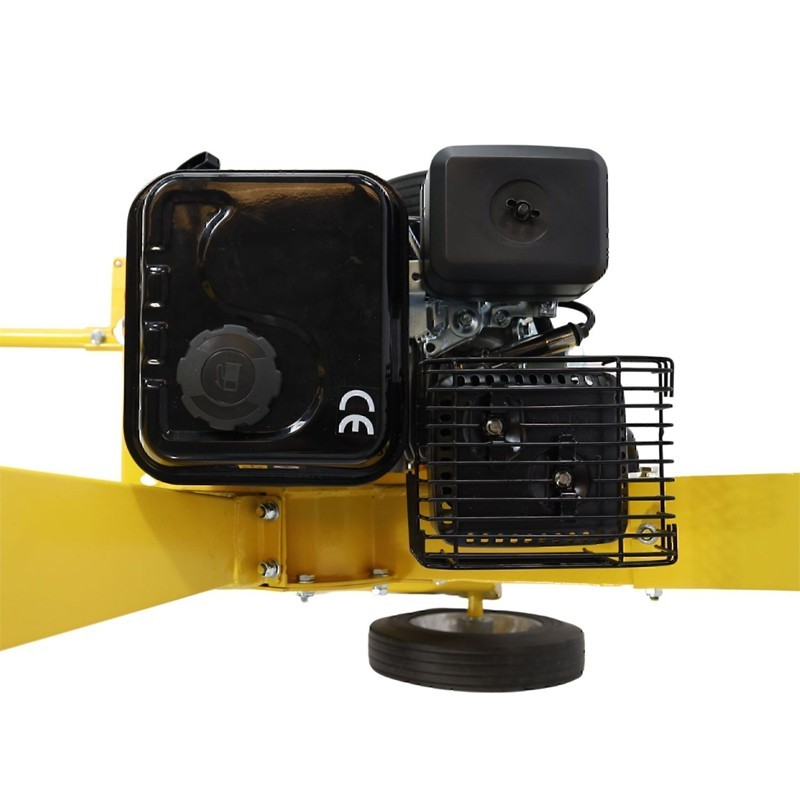

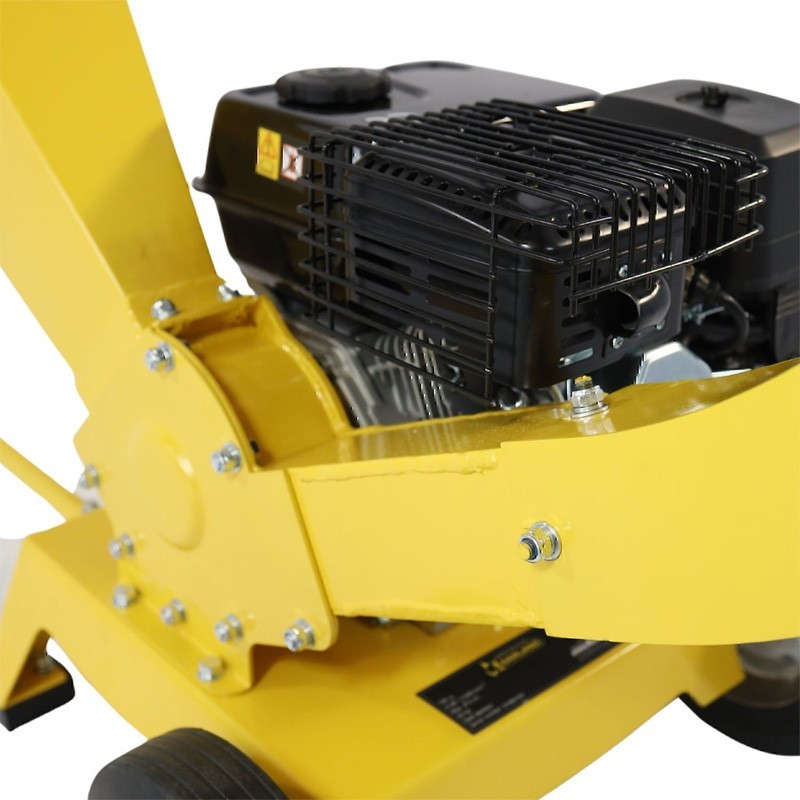

Compact motor, transport wheels, and handle allow for easy movement. It has a rotating nozzle and an emergency stop button.

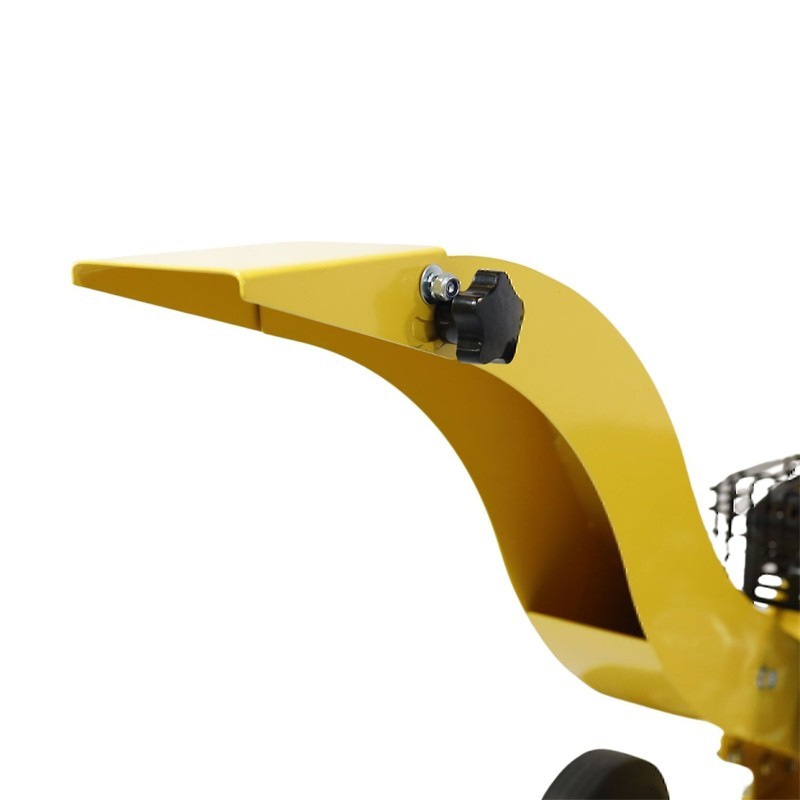

It allows for the shredding of branches. up to 6 cm in maximum diameter, depending on the hardness of the wood. With an adjustable deflector to regulate the distance of the shredded material output.

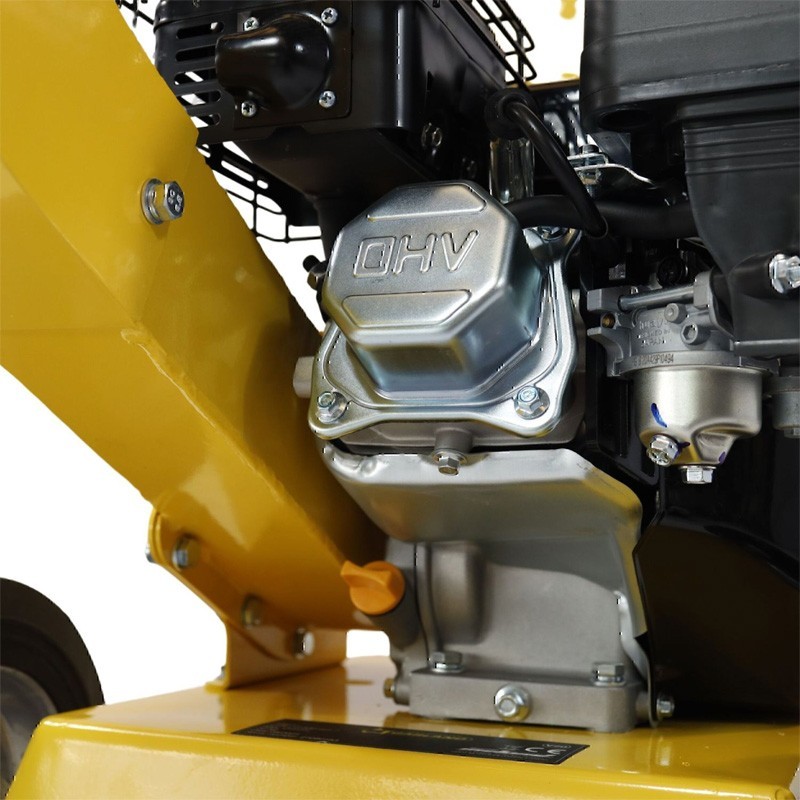

| Engine Type | Garland 4 T |
| Displacement | 212 cc |
| Power | 4.3 kW |
| Feeder without tools. | No |
| Type of cut | 2 opposing blades on a rotor |
| Wide work | 60 mm |
| Wheel transport | Yes |
| Empty machine weight | 50 kg |
| Maximum engine revolutions | 3600 min-1 translates to 3600 rotations per minute. |
| Consumption | 0.395 kg/kWh |
| Autonomy | 86.48 minutes |
| Hopper discharge without tools | No |
| Addressable expulsion | No |
| Transport handle | Yes |
| Tow hook | No |
| Admission system | Manual |
| Number of hoppers | 1 |
| Grid | Yes |
| Fuel tank capacity. | 3.6 liters |
| Oil pan volume | 0.6 liters |
| Type of motor oil | 10W-40 refers to a type of motor oil viscosity grade. The "10W" indicates the oil's flow characteristics in cold temperatures, with the "W" standing for winter. The number before the "W" (10 in this case) represents how well the oil flows when the engine is cold. The "40" indicates the oil's flow characteristics at high temperatures, representing its viscosity when the engine is running hot. |
| Sound pressure | 92.2 dB (A) |
| Uncertainty coefficient k | 2.5 dB (A) |
| Sound power (guaranteed/measured) | 116 dB (A) |
| "By" | 12.5 Nm |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before starting. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's document that the customer is in agreement. except for pending exam. |
Before transporting this machine, always unplug the power cord. Always transport the machine with the engine turned off.
Take into account the weight of the device if you are going to lift it. Check the technical specifications of the machine for the weight of the device. To lift the device, grab it by the handle.
To transport the device, use its wheels. Hold the device by the handle and pull it.
If you are going to transport the device in vehicles, make sure to secure it firmly to prevent it from sliding or tipping over.
Store inactive power tools in a place inaccessible to children and secure in a way that does not endanger anyone. The out-of-use machine should be stored clean, on a flat surface. Store the machine in a place
where the temperature range is not lower than 0ºC or higher than 45ºC.
Unplug the power cord. power Supply Before storing this machine, clean all the parts and store the machine in a safe and dry place.
Always respect the maintenance chapter points before storing the machine.
