PTO brush cutter disc Zeppelin control unit and radiator 63 cm
PTO brush cutter disc Zeppelin control unit and radiator 63 cm
PTO brush cutter disc Zeppelin control unit and radiator 63 cm
PTO brush cutter disc Zeppelin control unit and radiator 63 cm

PTO brush cutter disc Zeppelin control unit and radiator 63 cm

Rating:
(0)
  • Multiplier
  • Double pump
  • 2 double acting solenoid valves
Assembly and set-up INCLUDED
En stock
icon Type of cut
Type of cut
Floating blades
icon Working width PTO
Working width PTO
62 cm
icon Tractor power
Tractor power
30 - 50 HP
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Includes
Includes
Interfila Disc
icon Number of floating blades
Number of floating blades
2
€4,303.87 excl. VAT
- 7%
€4,002.60 excl. VAT
€4,843.14 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


PTO brush cutter disc Zeppelin control unit and radiator 63 cm
€4,843.14
Qty

PTO brushcutter disc Zeppelin control unit

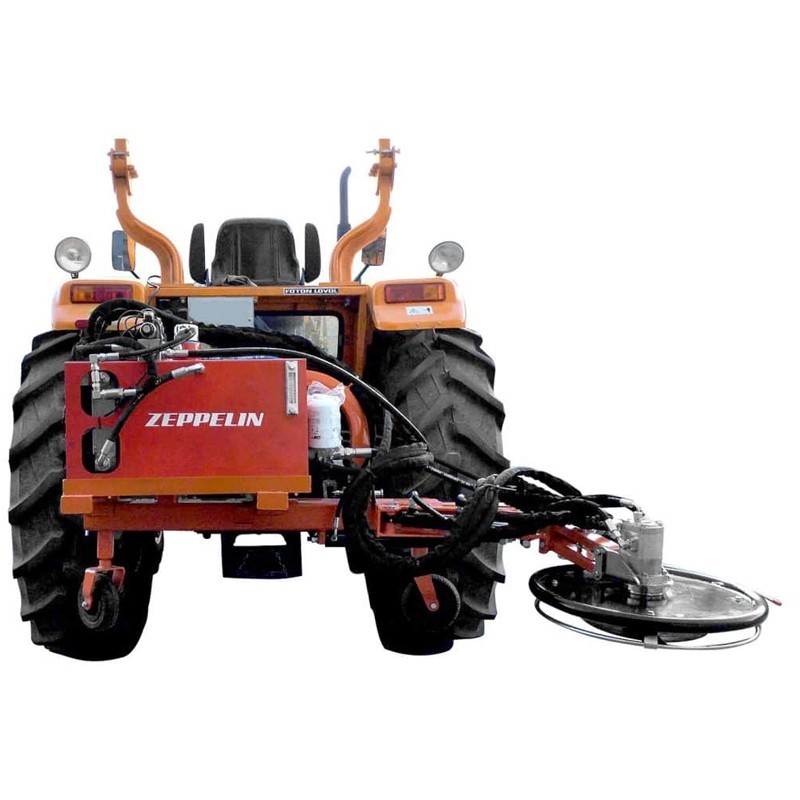

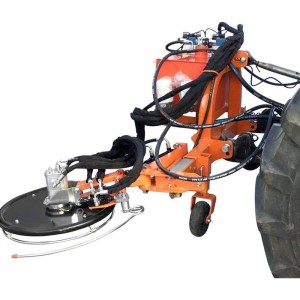

The PTO brushcutter disc from Zeppelin is a robust tool designed for demanding agricultural work, ideal for tractors with a power between 30 and 50 HP.

This device has a 630 mm diameter disc and two blades, which guarantee an efficient and precise cut. Its hydraulic displacement allows easy adjustment of the disc position, adapting to different working needs.

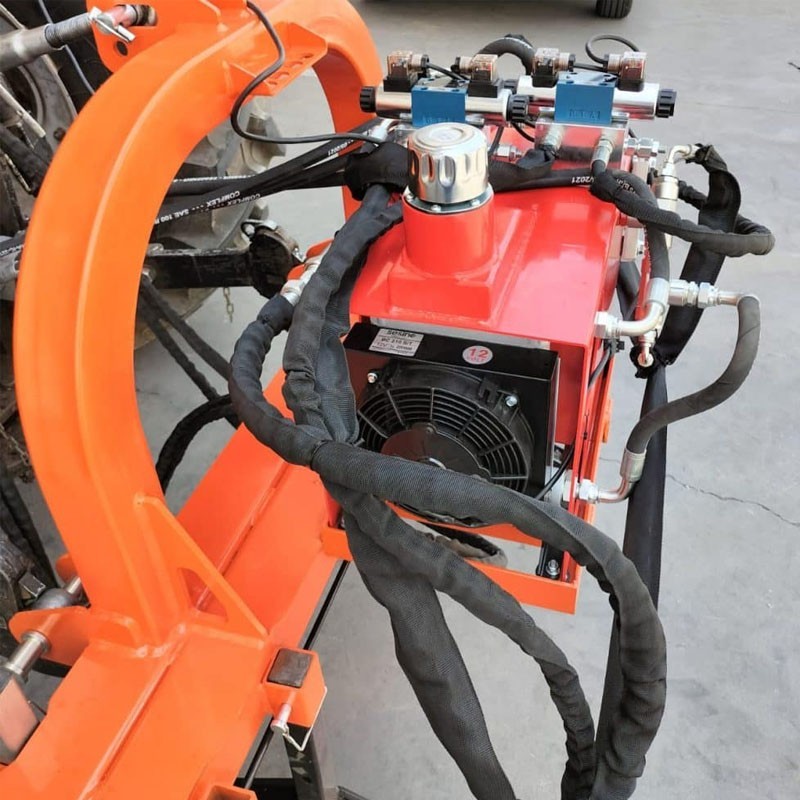

The equipment's control unit is equipped with a multiplier, a double pump and two double-acting solenoid valves, which optimizes the brushcutter's performance and efficiency.

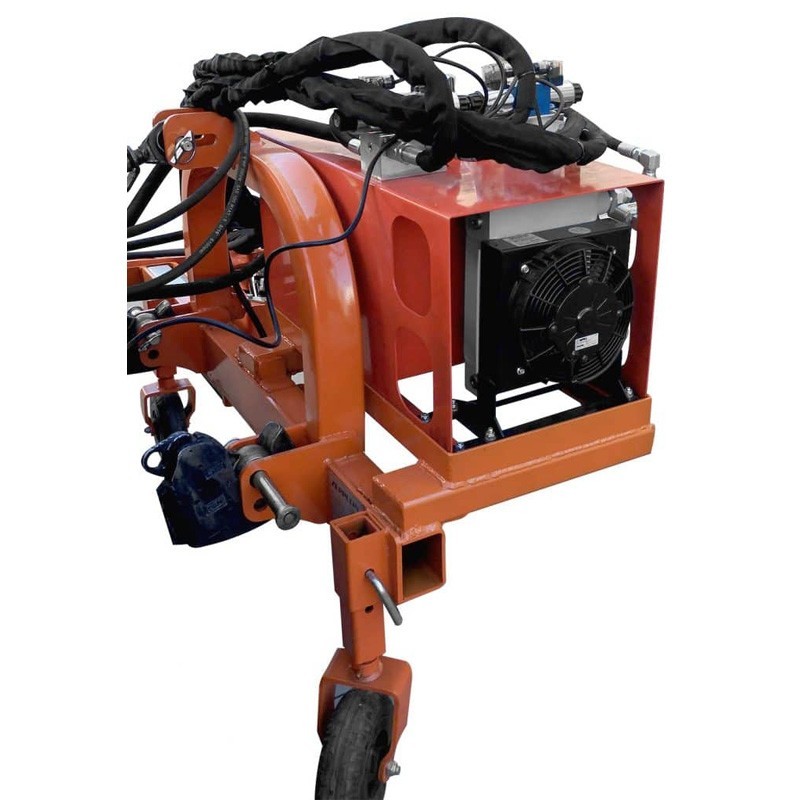

In addition, it has an oil tank with a capacity of 45 liters, ensuring continuous and prolonged operation. To maintain the ideal temperature and prolong the life of the components, the system includes a radiator that ensures adequate cooling during intensive use.

Features

Model ESDESBHDISC2Z
Working width 630 mm
Tractor power (HP) 30-50
Blades 2
Oil tank 45 l
Displacement of the disc Hydraulic

Dimensions


A (cm) 95
B (cm) 214 - 257
C (cm) 94
D (cm) 150 - 193
E 83 º
F (cm) 135
G (cm) 630
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
261129

Data sheet

Type of cut
Floating blades
Working width PTO
62 cm
Tractor power
30 - 50 HP
Type of coupling
Lateral displacement
Displacement
Hydraulic
Working width (cm)
less than 79 cm
Includes
Interfila Disc
Number of floating blades
2

Specific References

MPN
ESDISCHPZ
New
