Branch shredder for tractor Deleks DK-1300

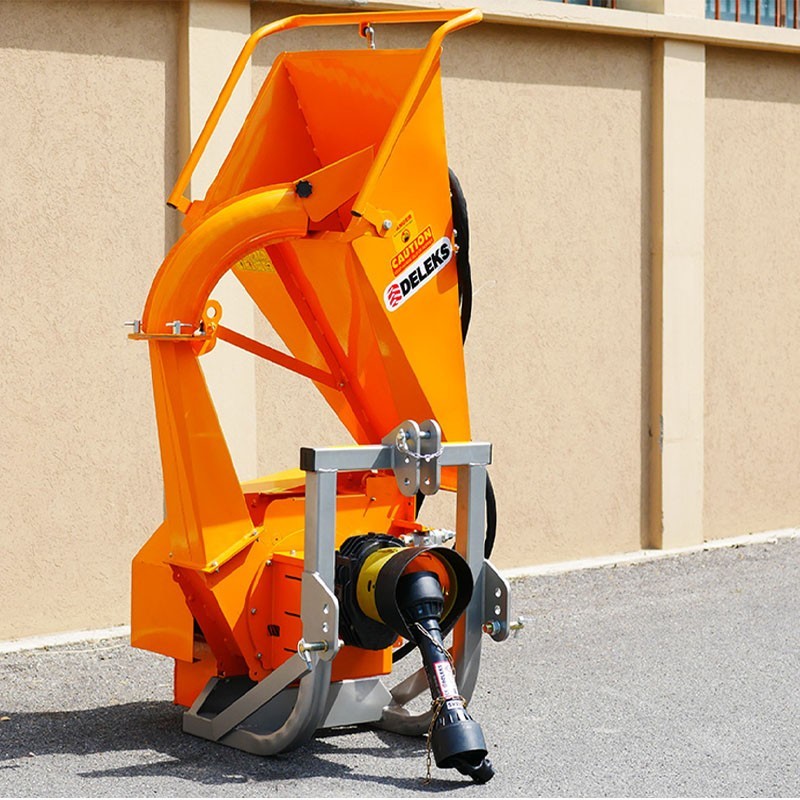

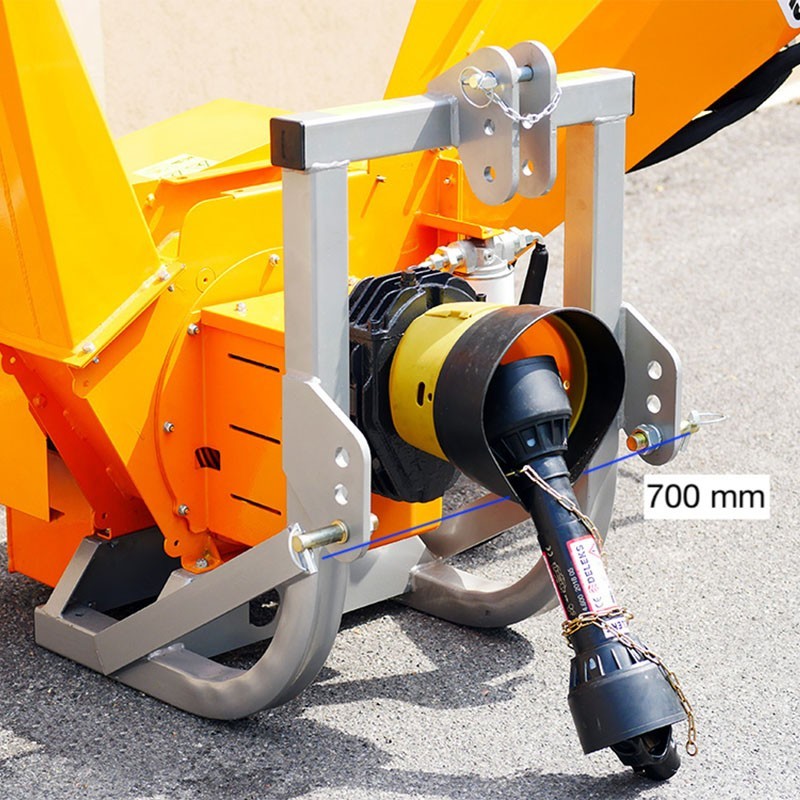

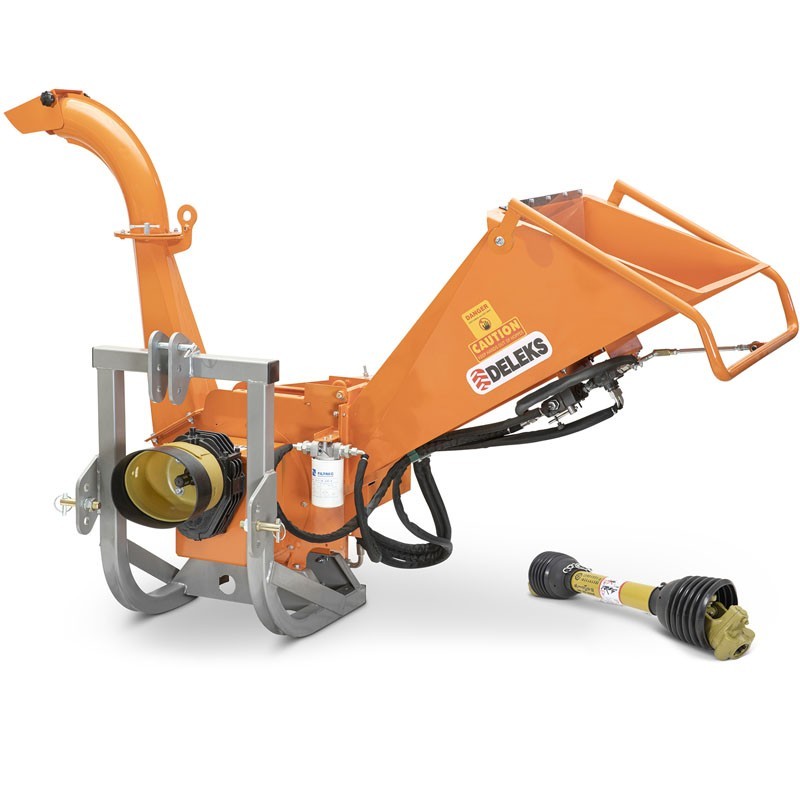

The branch shredder Deleks DK-1300It is a tractor attachment that is specially designed for tractors with a power range of 18-50HP. Additionally, this shredder also includes a CE 4x800 mm PTO shaft + pin.

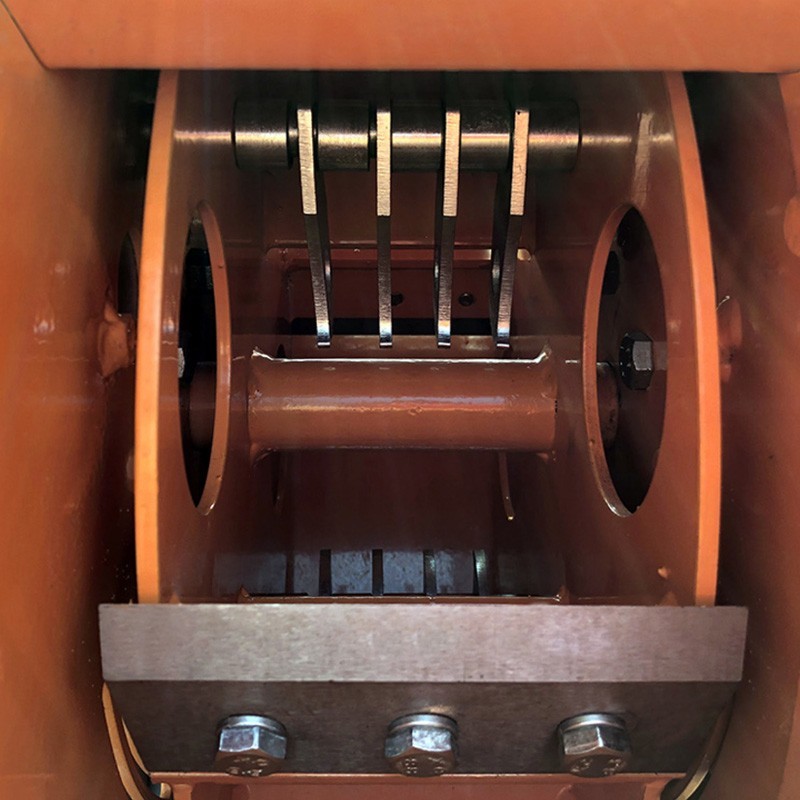

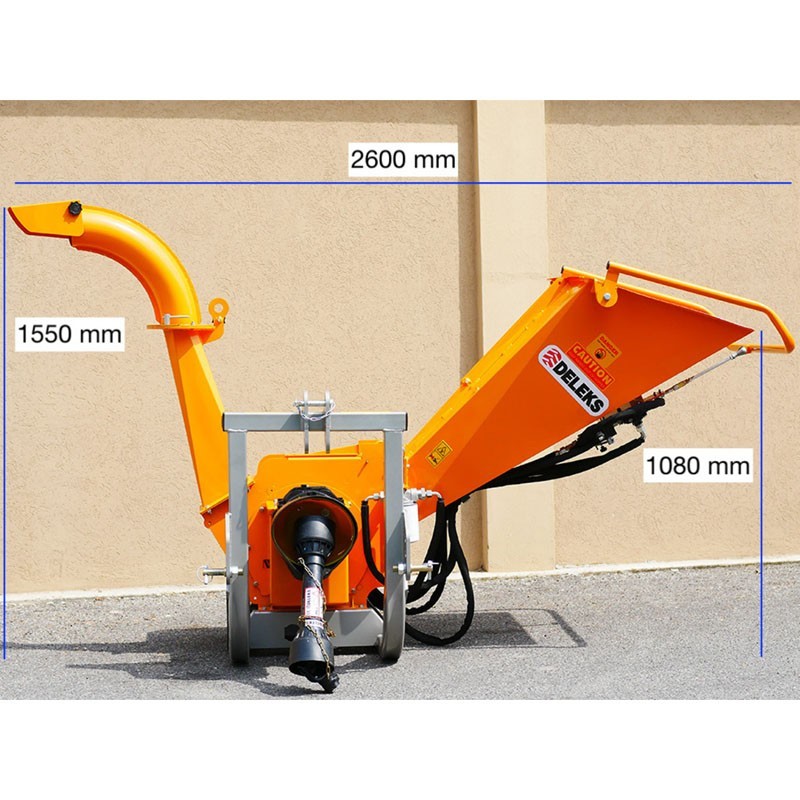

The DK-1300 crusher model of Deleks It provides us with a good cutting system. It features a drum with two blades and 8 hammers. It also offers an ejection height of 1550 mm.
This Shredder Deleks It is ideal for shredding a wide variety of dry and green wood with a diameter of 10cm. The expelled residues measure between 1 and 2 cm, ensuring good combustion. It is adapted for all CAT1 tractors and with a 3-point hitch.

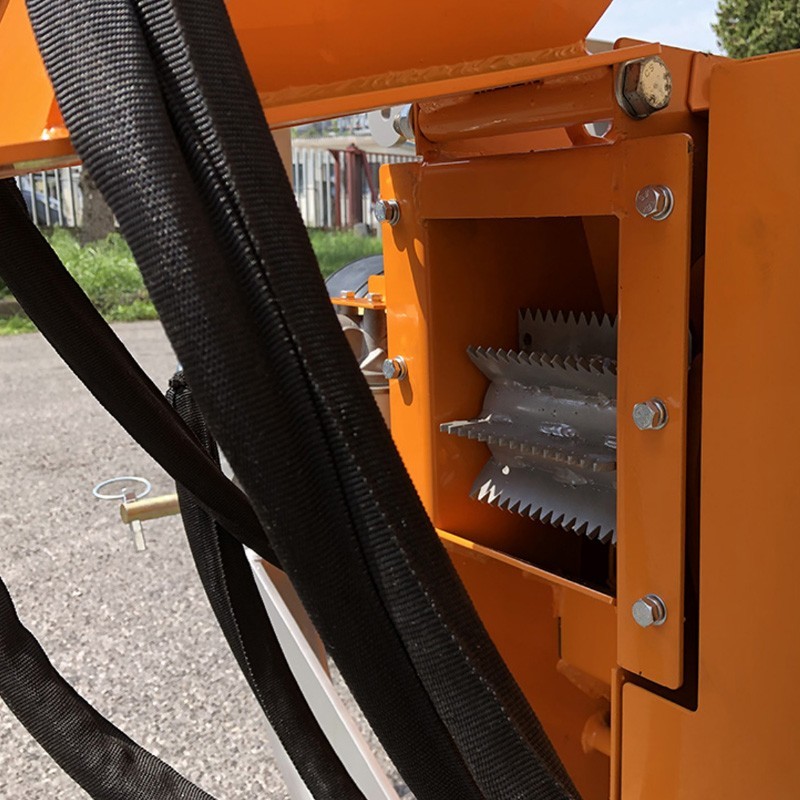

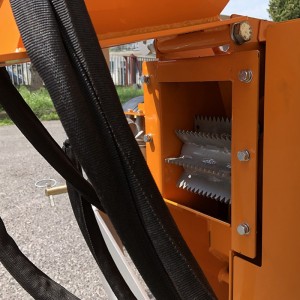

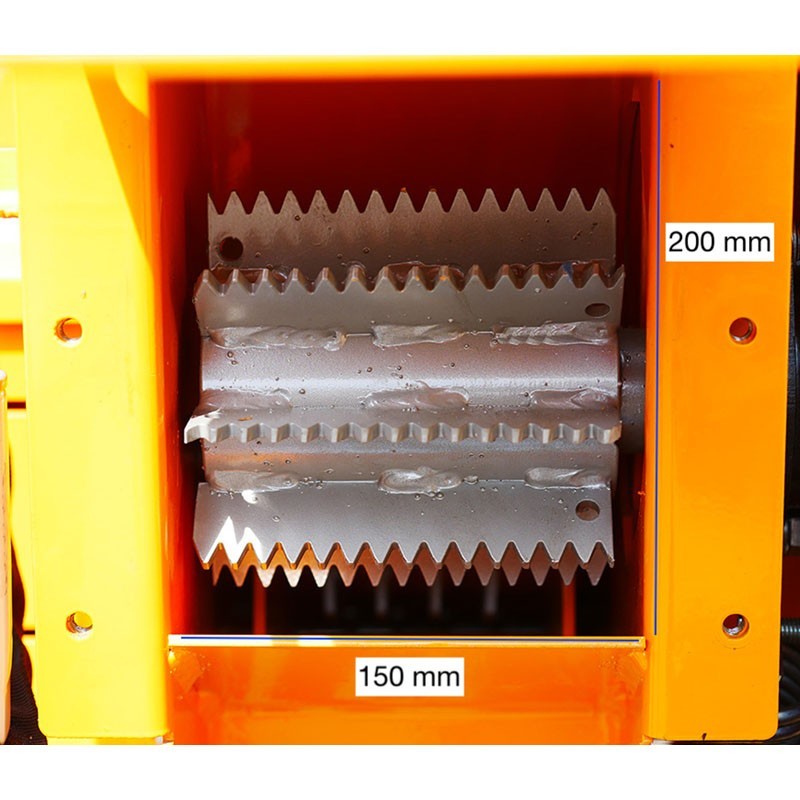

The model DK-1300 it has a roller of power Supply to facilitate the insertion of the branches. The roller is controlled by operating the safety control. The direction of rotation of the roller can be stopped or reversed easily.

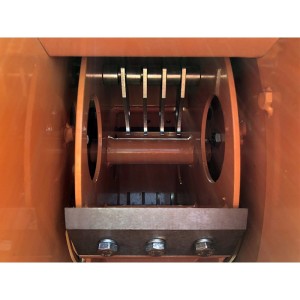

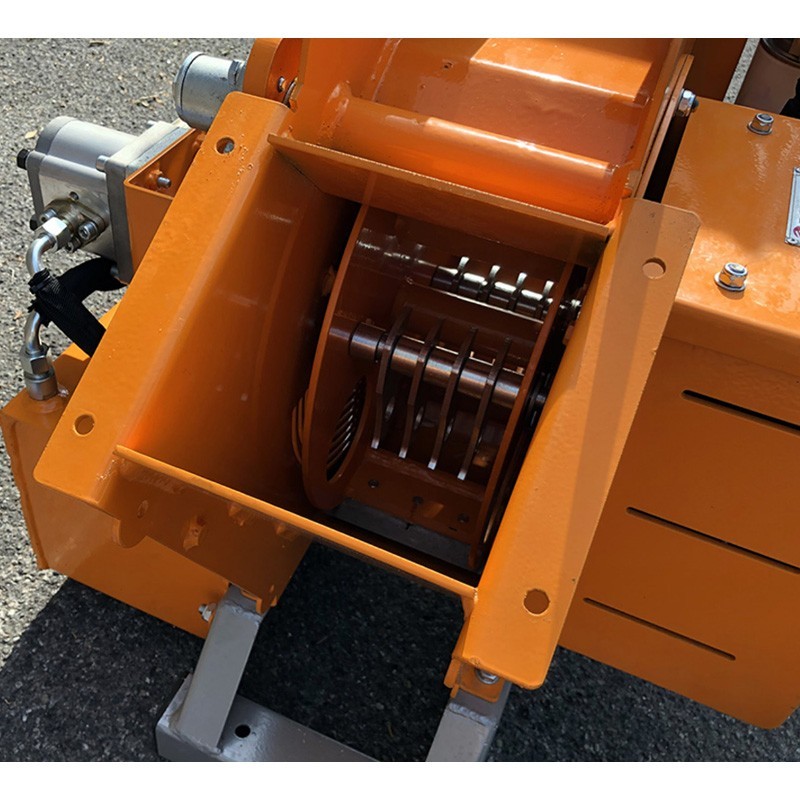

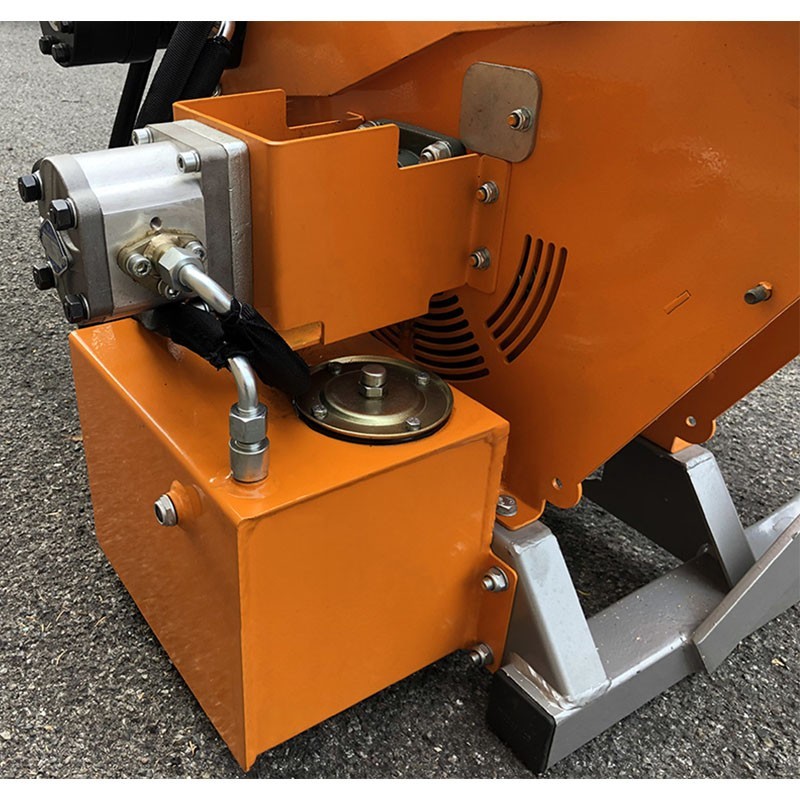

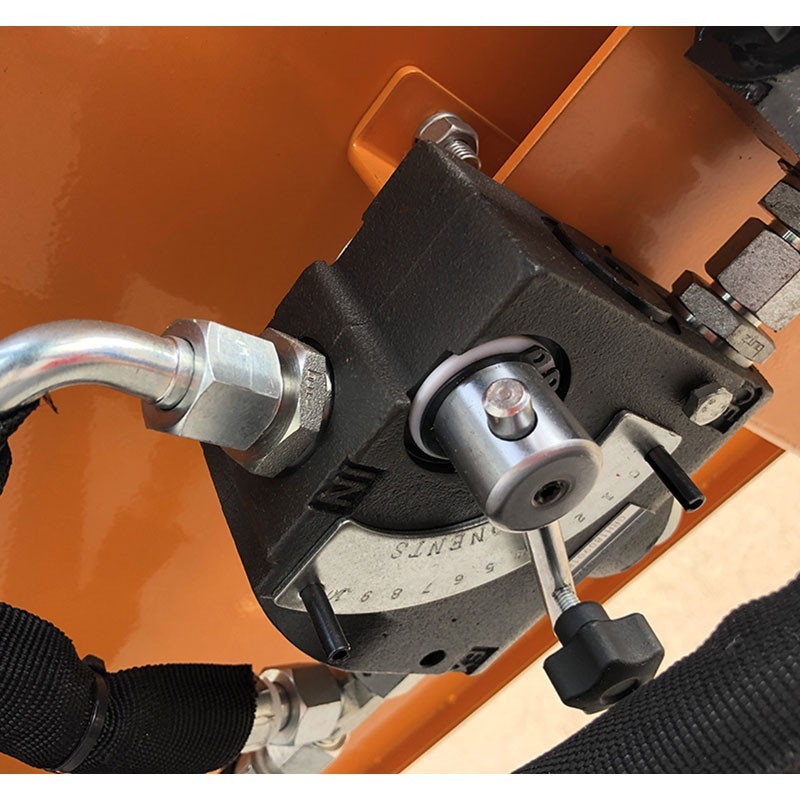

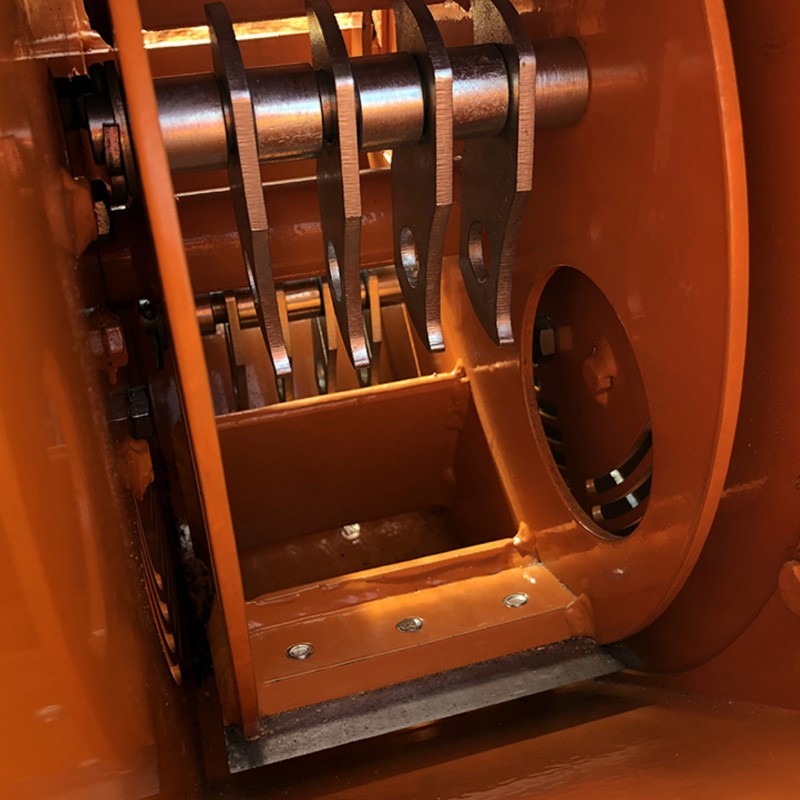

This machine of Deleks It includes an internal disc with 2 blades and two rows of hammers. It features a manual adjustment valve to adjust the speed of the feed roller. In this model, the output can be oriented 360 degrees.

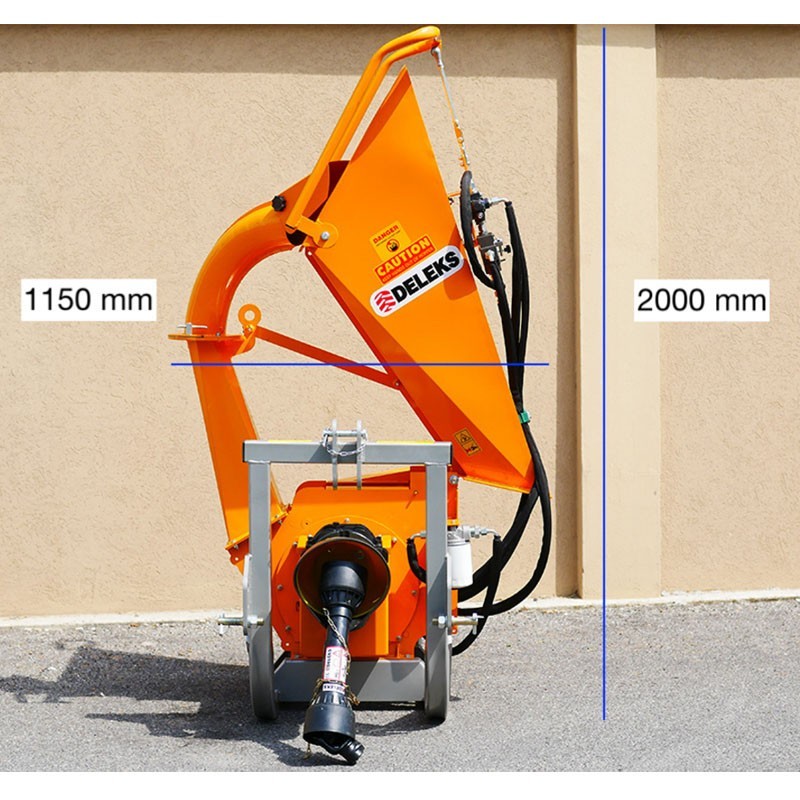

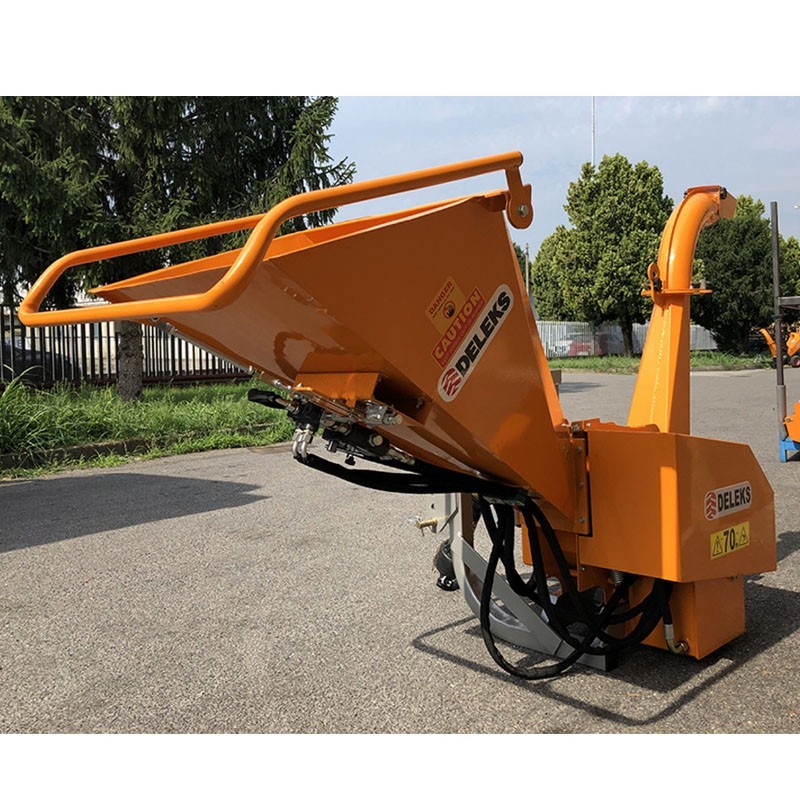

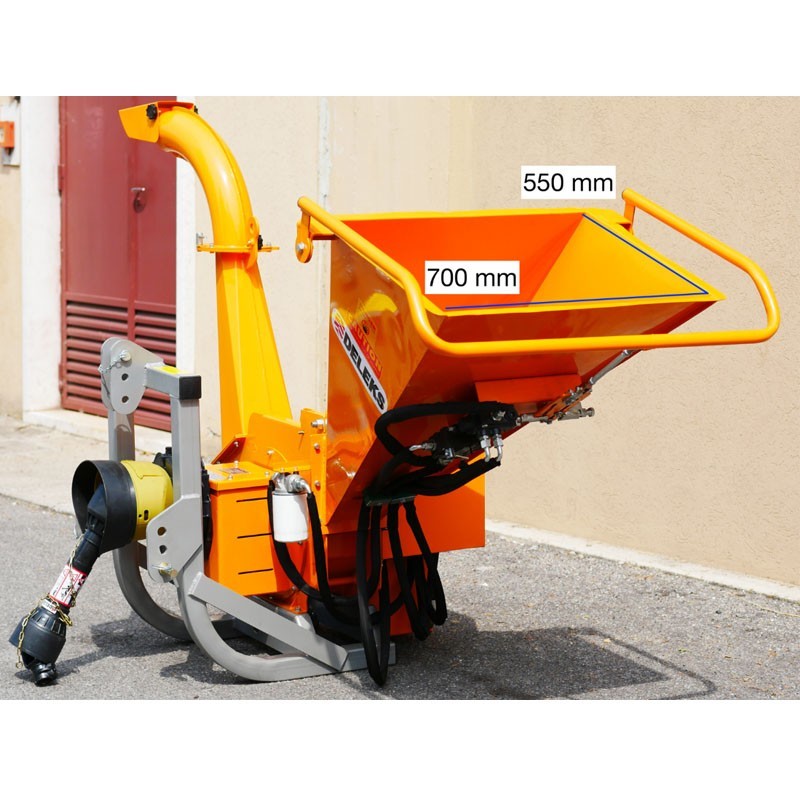

The branch shredder Deleks DK-1300It also comes with a locking handle and immediate transmission review. The model has hoppers that close for road transport. Closed, it measures 1150 mm.
This model of DK-1300 Branch ShredderEnsures the operator great ease and comfort for performing effective crushing. This is thanks to its outstanding features. The model includes a 225 kg lightweight.
Among these features, we can highlight its efficiency of 8-9 m3/h and its good power take-off speed of 1000 r/min. Additionally, it also offers us a STOP & START Lever security system.
Characteristics
| Weight |
225 kg |
| Tractor power |
18 - 50 hp |
| Three-point hitch |
Cat. 1 (ø 19-22mm) |
| Transmission |
Hydraulic system |

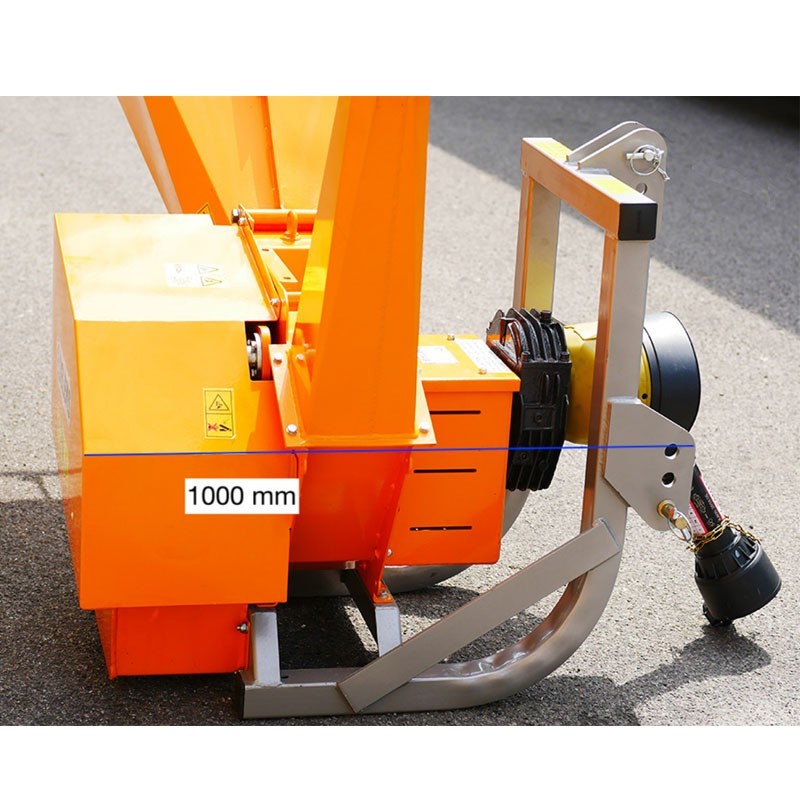

| Space between the gearbox and the ground |
500 mm |
| Cardan |
CE 4x800 mm + Bolt |
| Efficiency |
8-9 m3/h |
| Cutting system |
Drum with 2 blades + 8 hammers |
| Measurement of the chips |
5 - 10 mm |
| Power take-off speed |
1000 r/min |
| Number of transmission cores |
x |
| Security system |
STOP & START lever |
| Roll: number |
1 |
| Roll: width |
150 mm |
| Roll: transmission |
Hydraulics |
| Exit measures |
360° |
| Maximum cutting diameter |
80 - 100 mm |
| Ejection height |
1550 mm |
| Packaging dimension |
1250*110*2200 mm |
| IMPORTANT NOTICE |
|
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
