Tractor-mounted branch shredder Zeppelin 3080 Z 130 mm
- Cutting diameter: 130 mm
- Power requirement: 40-45 Hp
- Blades: 4
- Weight: 370 kg
CARDAN SHAFT INCLUDED
€4,429.38 VAT incl.

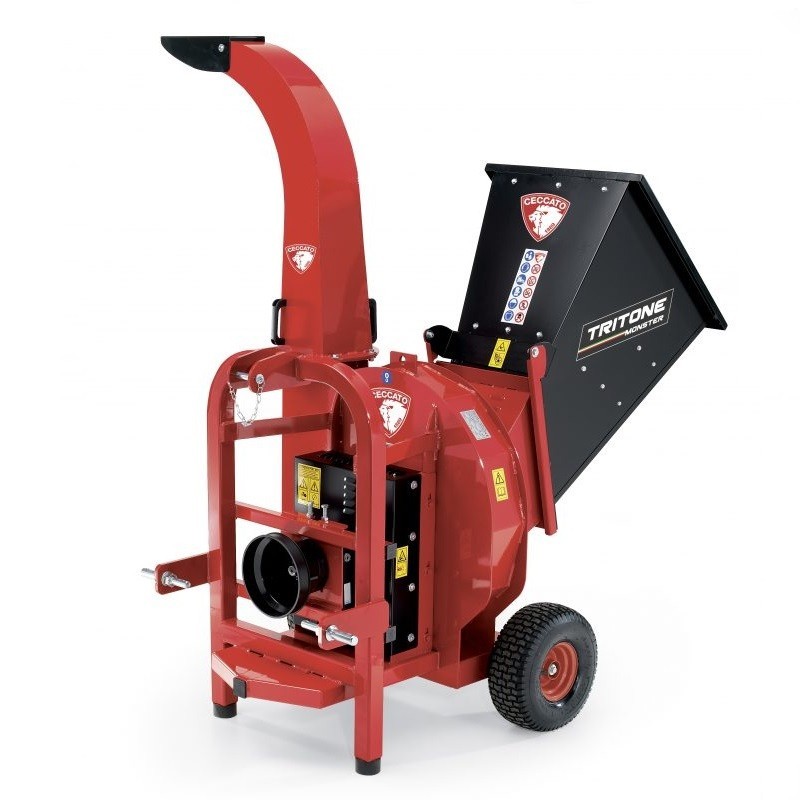

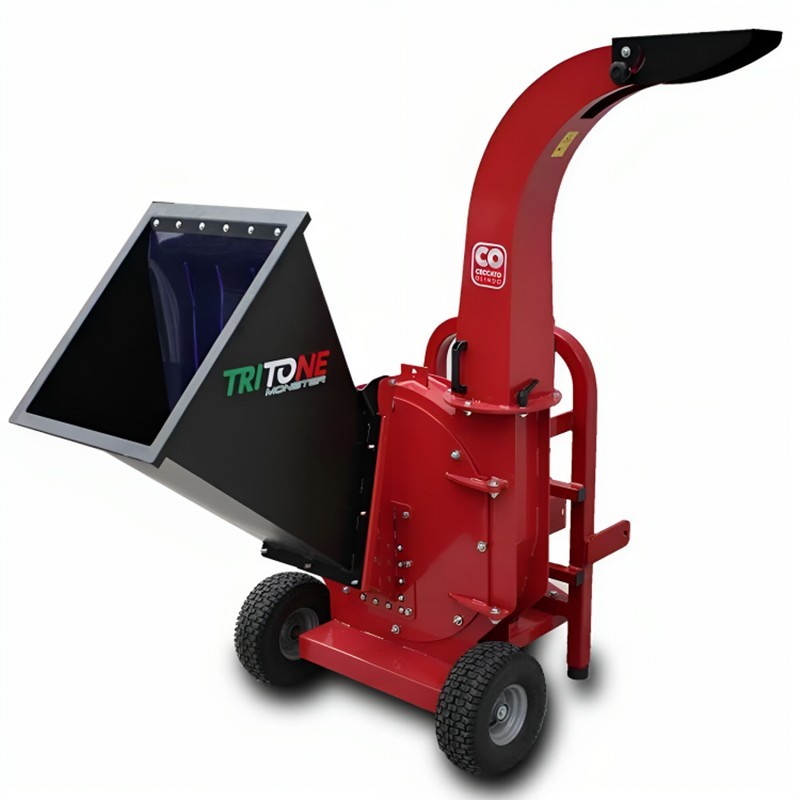

The Bio Shredder PTO Ceccato Olindo Tritone Monster 100 mm is a powerful machine designed to shred branches and pruning debris up to 100 mm in diameter with a minimum power of 30 HP. Its robust enameled steel chassis ensures durability and strength, while the 52 cm hopper opening height and 62 cm width facilitate material loading.
In addition, it has a removable screen to reduce chunks and an interchangeable sieve that allows shredding down to 1 cm. The cutting rotor combines knives and hammers, with 4 knives and 24 hammers for efficient performance.
The knives have a rotating movement that facilitates the shredding process, and the resulting size varies between 20 and 30 mm. The shredder operates by belt drive and has a manual rotation of the chimney.
Power Supply | PTO |
Exhaust outlet | high rotary |
No. of hoppers | 1 |
Hopper opening height | 52 cm |
Hopper opening width | 62 cm |
Grid to reduce chunks | Yes (removable) |
Interchangeable strainer | Yes |
Min shredding size with screen | 1 сm |
Min. power | 30 HP |
Maximum branch diameter | 100 mm |
Transmission type | Belt drive |
Chassis material | Enameled steel |
Type of cutting rotor | Combination of blades and hammers |
No. of blades | 4 |
Counter knives | 2 |
No. of hammers | 24 |
Blade movement | rotary |
Grinding dimensions | 20 - 30 mm |
Chimney rotation | manual |
Wheels | Rear 15 x 6 - 6 |
Product dimensions | 180 x 150 x 197 cm |
Net weight | 353 Kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
