CARDAN SHAFT INCLUDED

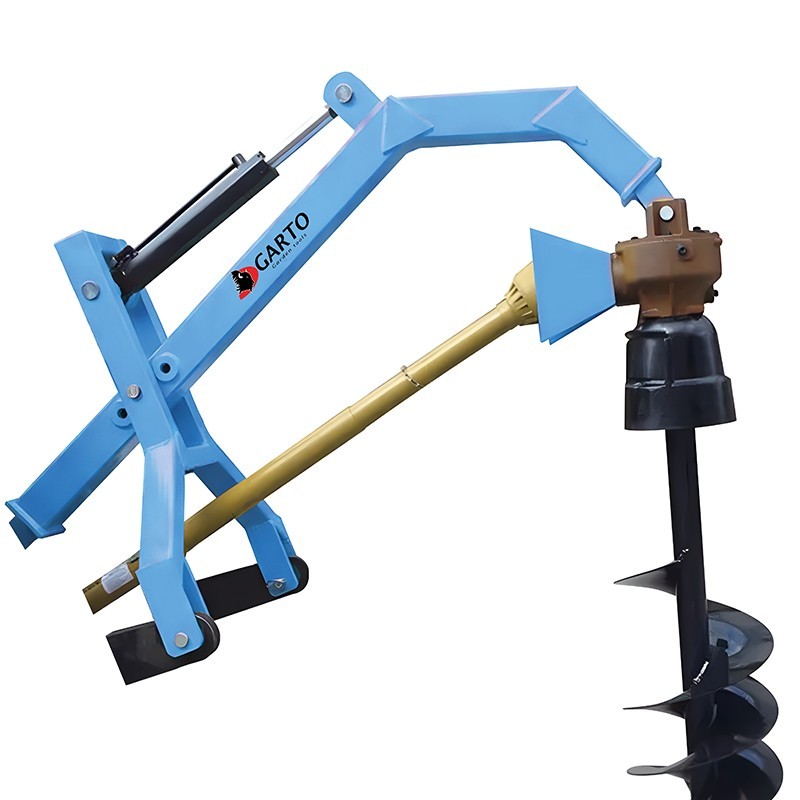

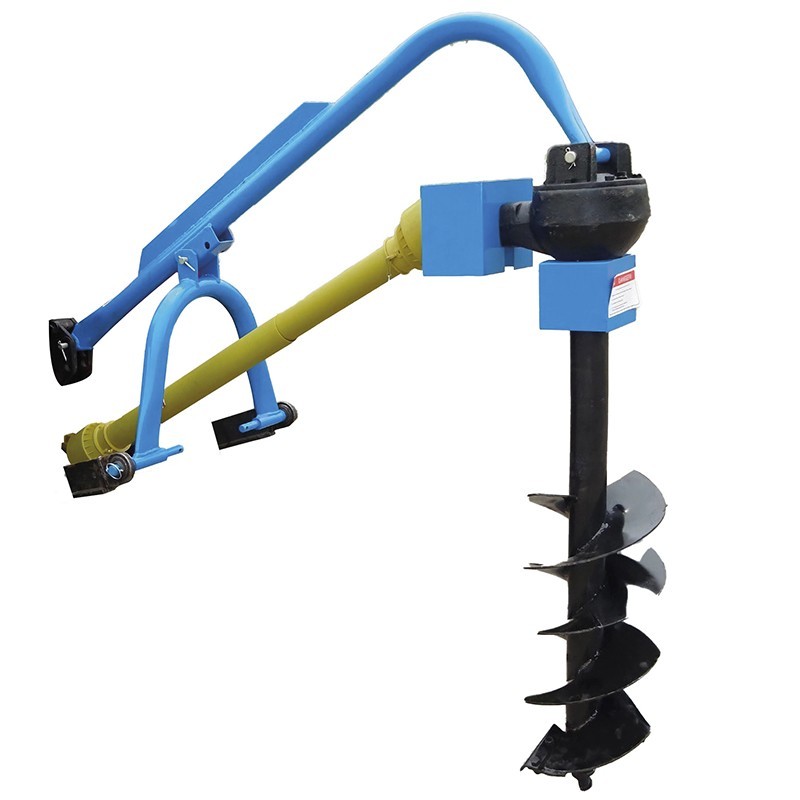

The Garto HD tractor auger comes in two versions, the HD14 and HD14H, a rugged and reliable tool designed to efficiently drill holes in the ground. With a bit length of 760 mm, it is capable of reaching the desired depth for various applications.
The 540 RPM PTO speed ensures optimum performance, allowing drilling to be performed quickly and efficiently.
Its heavy-duty reinforced arm provides stability and durability, ensuring accurate and safe work. Weighing 132 kg for the HD14 model and 155 kg for the HD14H model, the auger is strong enough to withstand demanding work in a variety of ground conditions.
The 300 mm auger diameter allows for bore sizes suitable for a variety of needs, such as installing posts or performing agricultural and construction work.
| Model | HD14 | HD14H |
| Dimensions | 1.770 x 780 x 1,880 mm (770 x 780 x 1,880 mm) | 1.770 x 780 x 1.880 mm |
| Weight | 132 kg | 155 kg |
| Power requirement | 50 HP | 50 HP |
| Type | Mechanical | Hydraulic |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
12" drill bit included
CARDAN INCLUDED
INCLUDES CARDAN
