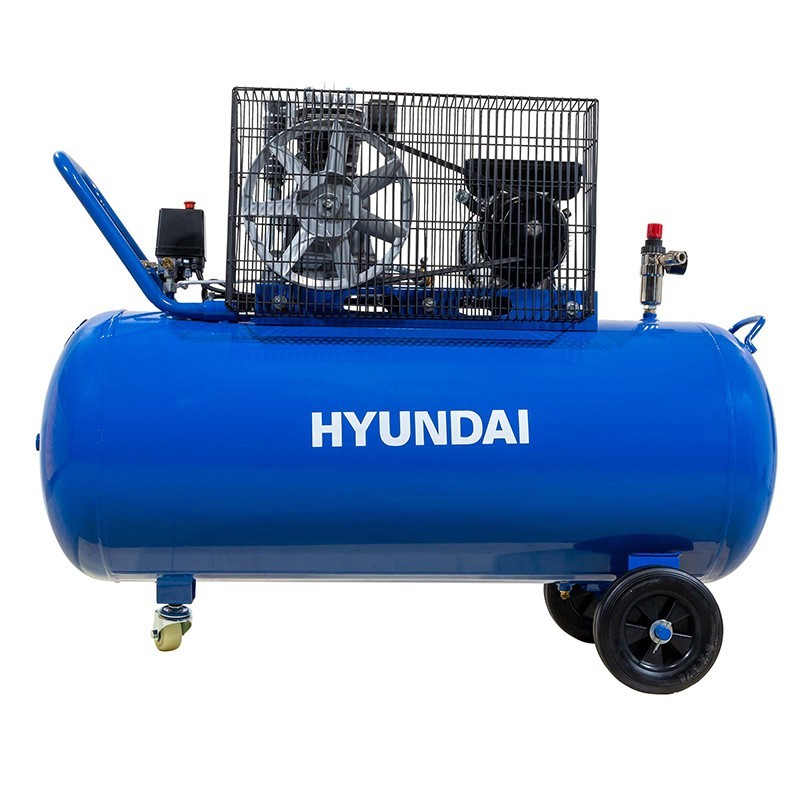

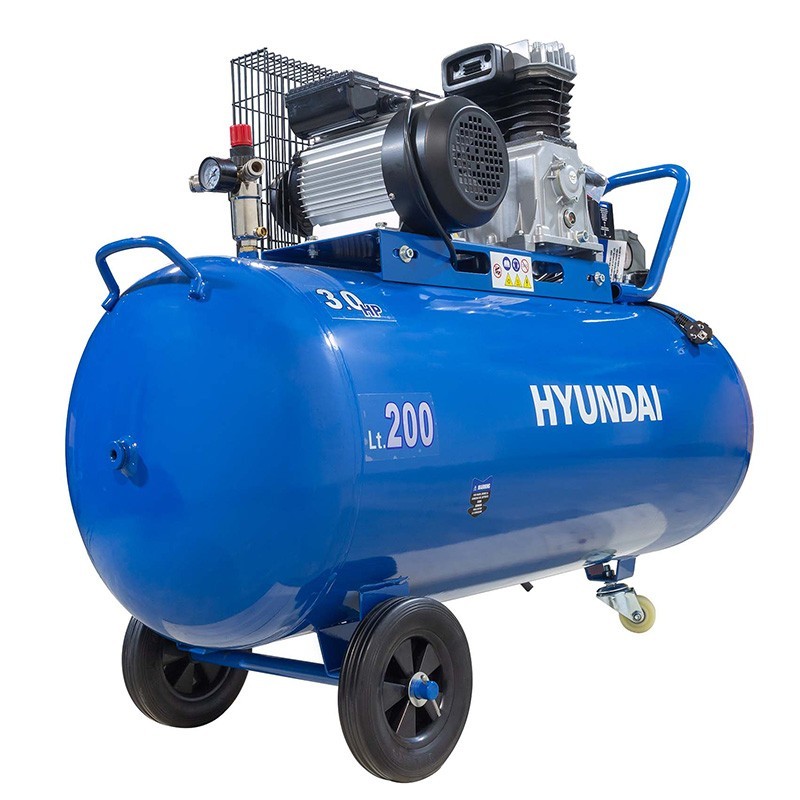

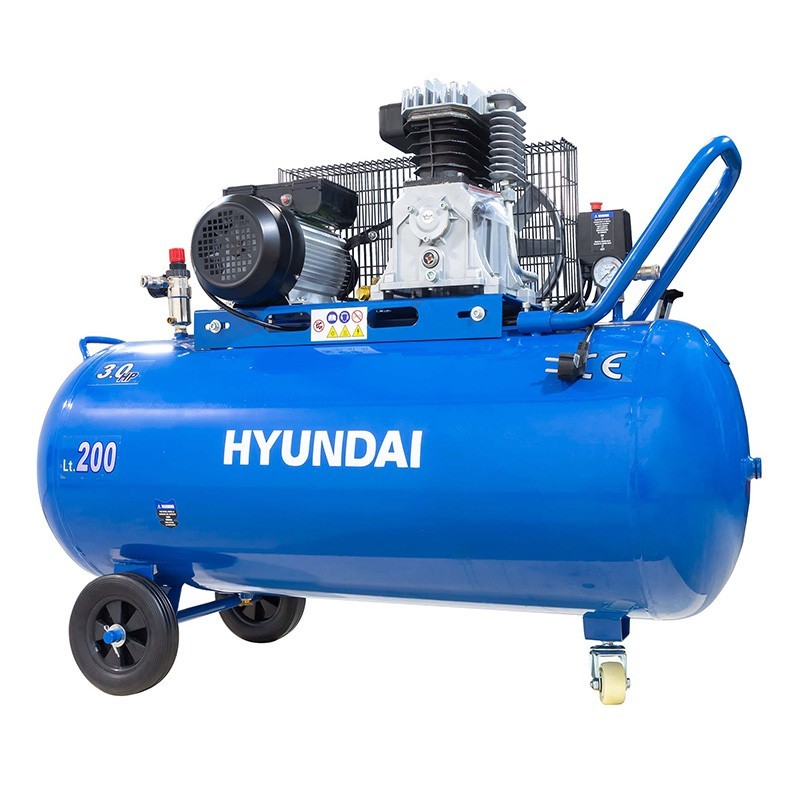

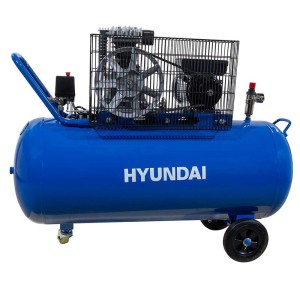

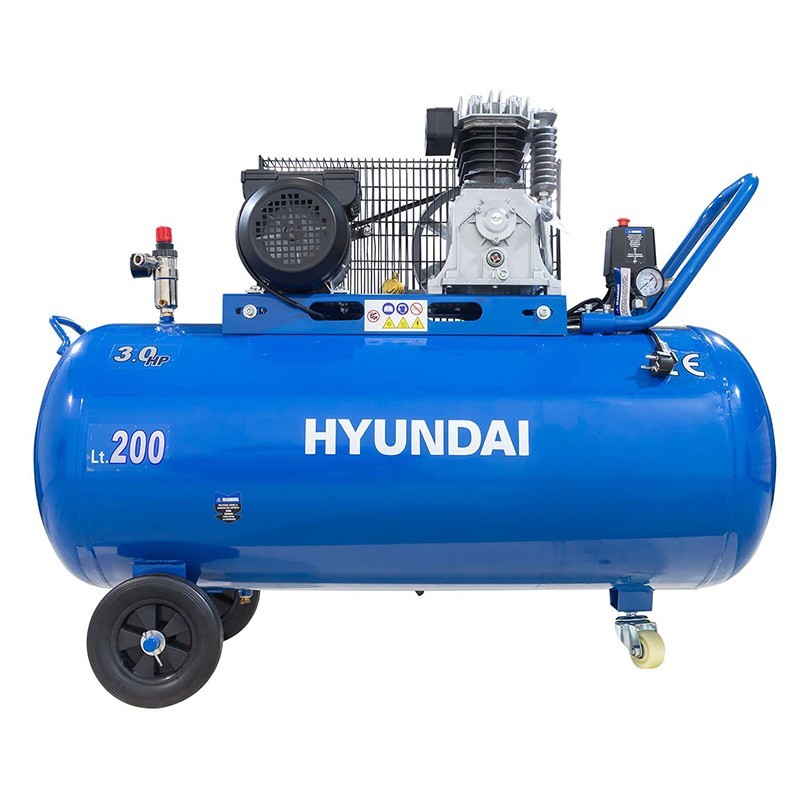

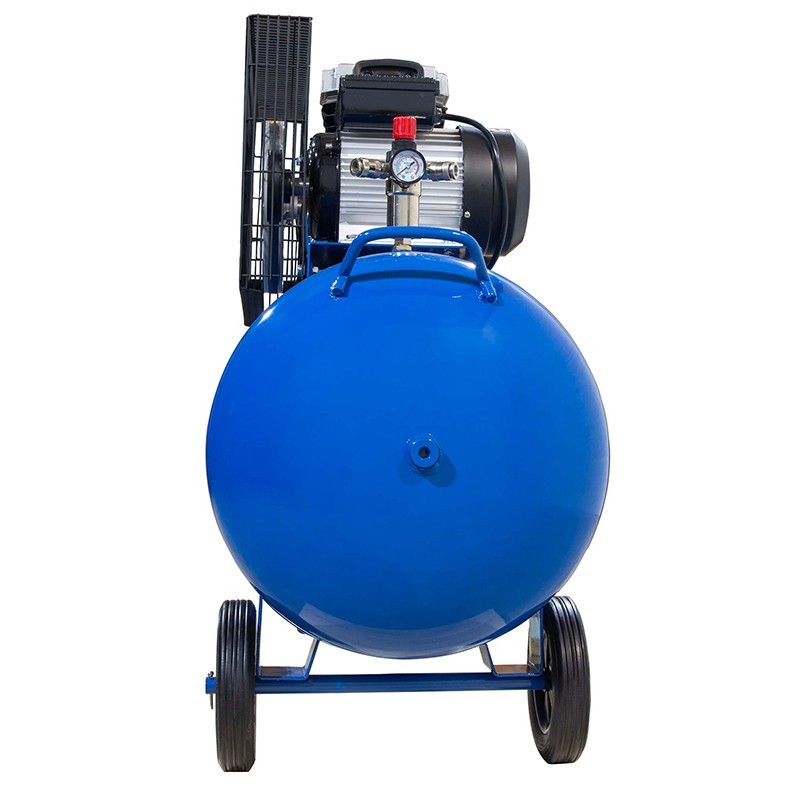

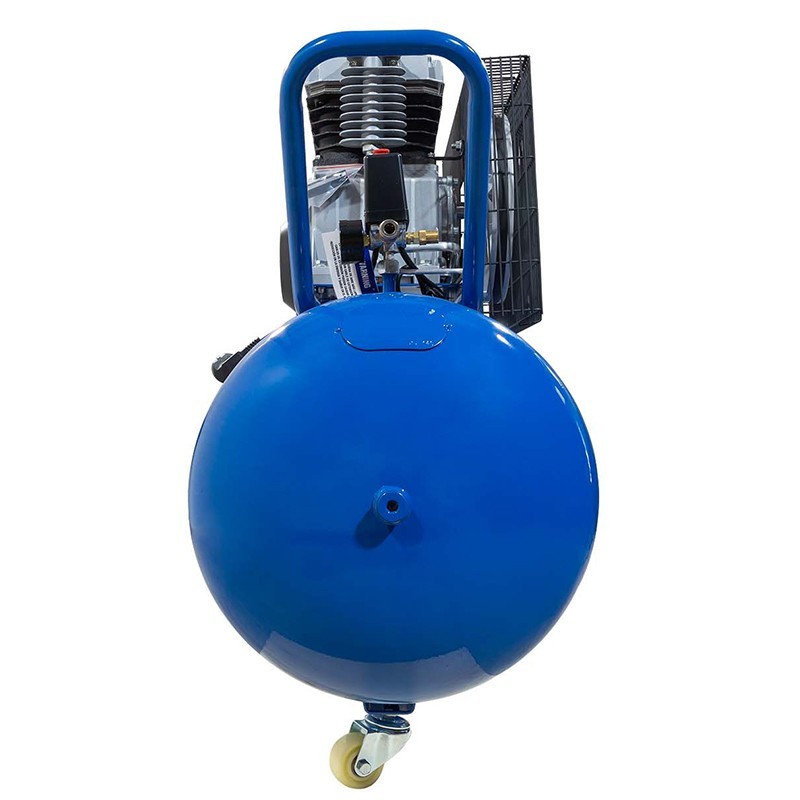

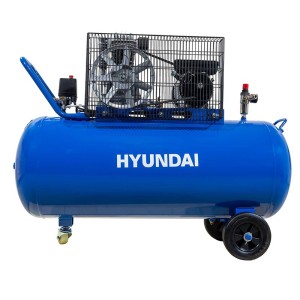

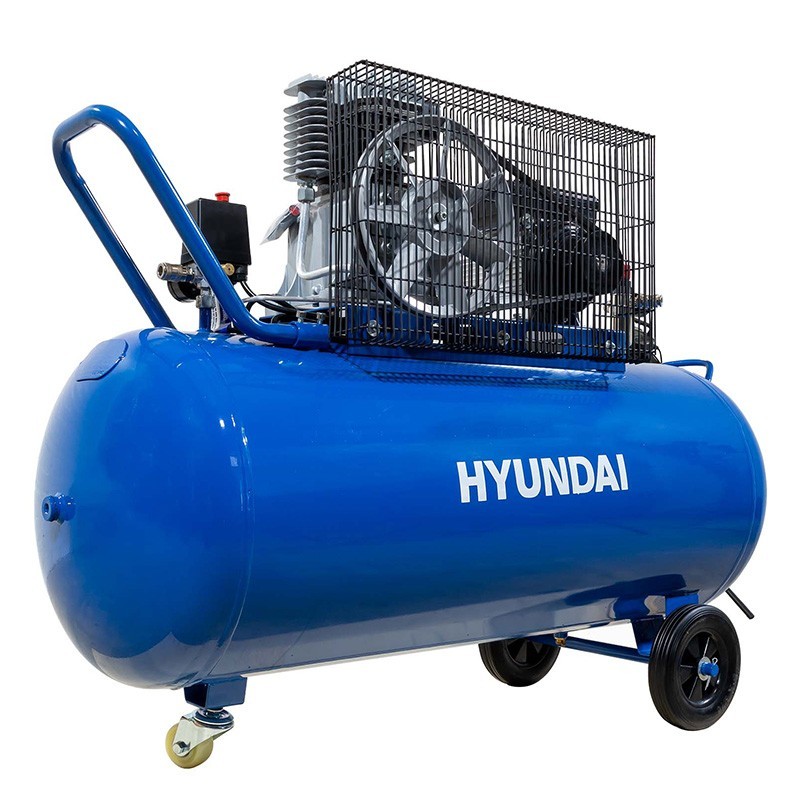

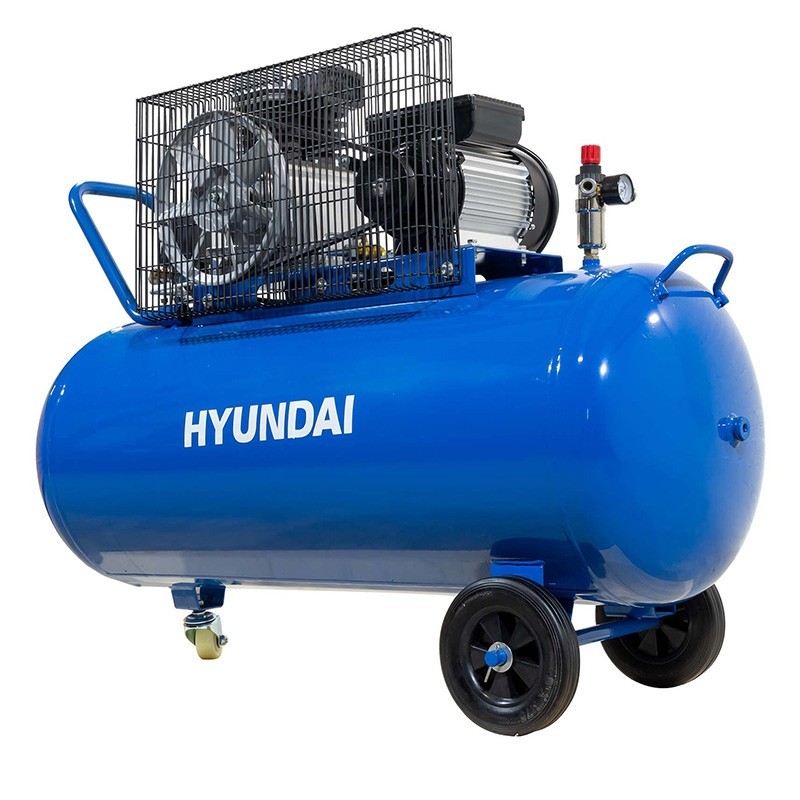

Hyundai HYACB200-31T Three-Phase 200 L Air Compressor
- Motor power : 3 hp
- Protection ip : 54
- Transmission : Belt
€810.22 VAT incl.
The compressor Hyundai HYACB200-31 stands out for its robust construction and high performance. With a maximum pressure of 10 Bar (145 PSI) and a motor power of 3 Hp, this unit is ideal for industrial tasks that require a high demand for compressed air.
Its power Supply of 230 V / 50 Hz / 1 ph ensures efficient operation in demanding environments. Equipped with a 200 L tank, the Hyundai HYACB200-31 includes aftercoolers and intercoolers, depending on the configuration, ensuring optimum performance and durability.
Its belt drive and metal belt guards provide increased safety and longevity to the equipment. In addition, it has a low vibration and noise level, providing a more comfortable working environment.
This compressor also incorporates several air outlets and pressure regulators, allowing precise and versatile control of the compressed air. The on/off pressure switch and quick connector facilitate its use, making this model a reliable option for professionals seeking quality and efficiency in their tools.
Maximum pressure | 10 Bar / 145 PSi |
Motor power | 3 Hp |
IP protection | 44 |
Transmission | Belt |
Power Supply | 230 V / 50 Hz / 1 ph |
Tank | 200 L |
Air intake (L/Min) | 330 |
Rotation | 1.500 min |
Cylinders / stages | 2 / 1 |
Oil | Synthetic |
Output | Direct - / Reduced 1 |
Pressure Reducer | 1 |
Condensate / Discharge | Manual |
Amperage | 15 A |
Cord diameter | 3x1,5 mm2 |
Cord | 2 m |
Group | AB 248 |
Wheels | 15 cm |
Product dimensions | 146 X 64 X 114 cm |
Weight | 105 Kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
