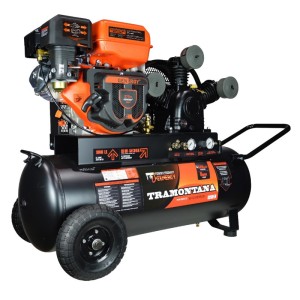

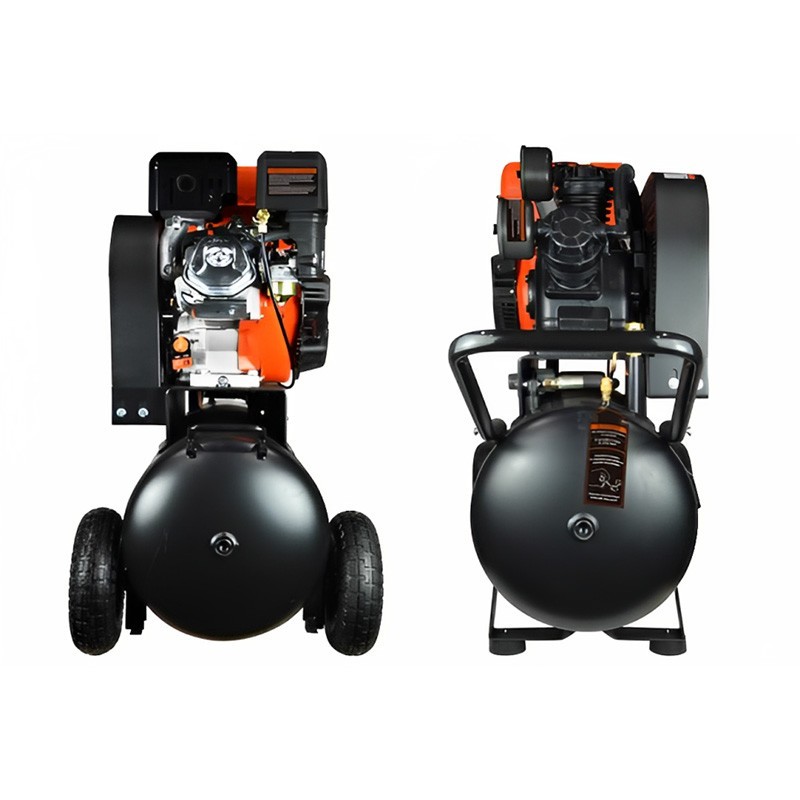

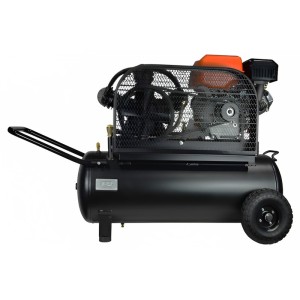

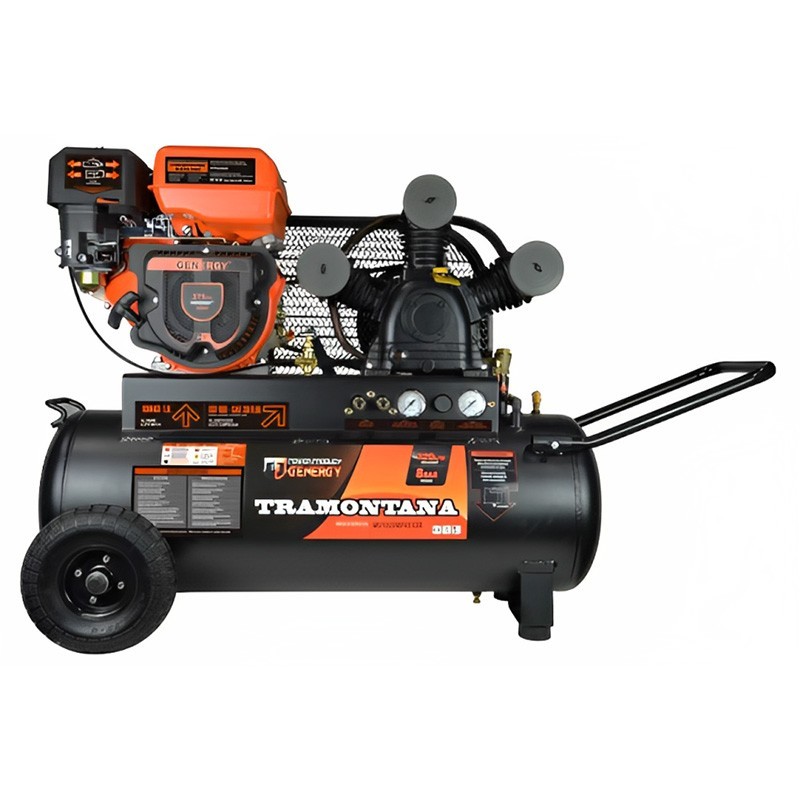

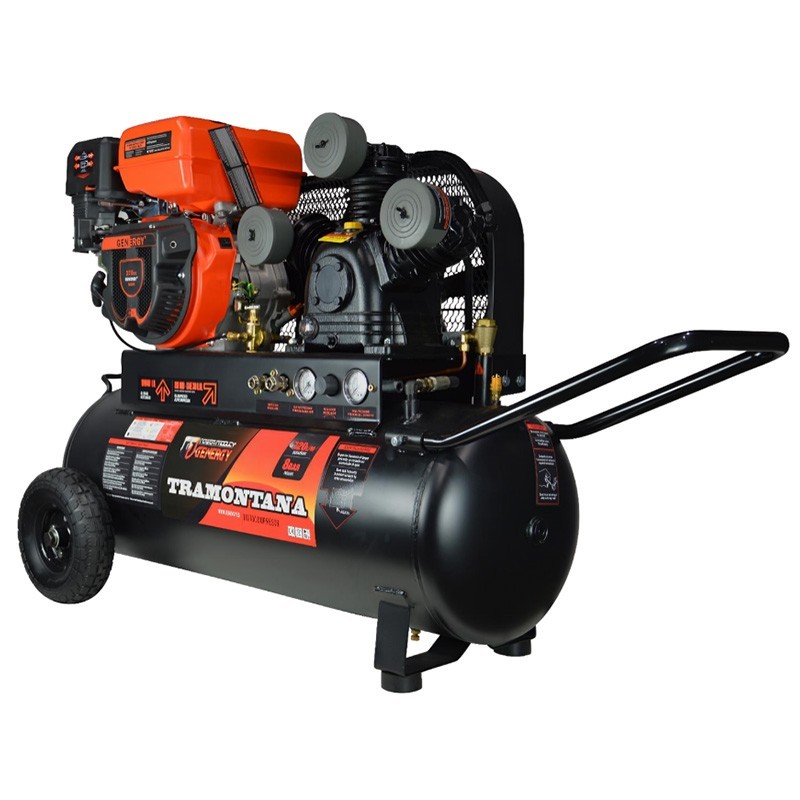

The gasoline compressor Genergy Tramontana 720 L/M 270 cc 8 BAR has an air tank capacity of 100 L, and dimensions without handlebars of 1102x546x967 mm. Its starting type is manual and the compressor has 3 pistons.
With a pressurized time from 0 to 8 bar in 80 seconds, it has an estimated average autonomy of 4 hours, and the fuel tank capacity is 6L. It weighs 122 kg and has a maximum air displacement of 720 L/M.
The gasoline compressor Genergy Tramontana 720 L/M 270 cc 8 BAR, has a 4-stroke OHV air-cooled gasoline engine, and a fuel consumption at load of 0.9 L per hour and at rest of 2.1 Lper hour. The displacement of this compressor is 270 cc.
Maximum air displacement | 720L/M |
Air displacement 2BAR | 560L/M |
Air displacement 4BAR | 518L/M |
Air displacement 6BAR | 498L/M |
Air displacement 8BAR | 475L/M |
Air tank capacity | 100L |
Compressor type | 3 pistons |
Pressurized time 0 to 8BAR | 80Sec |
Engine model | GENERGY SGB270PRO |
Displacement | 270cc |

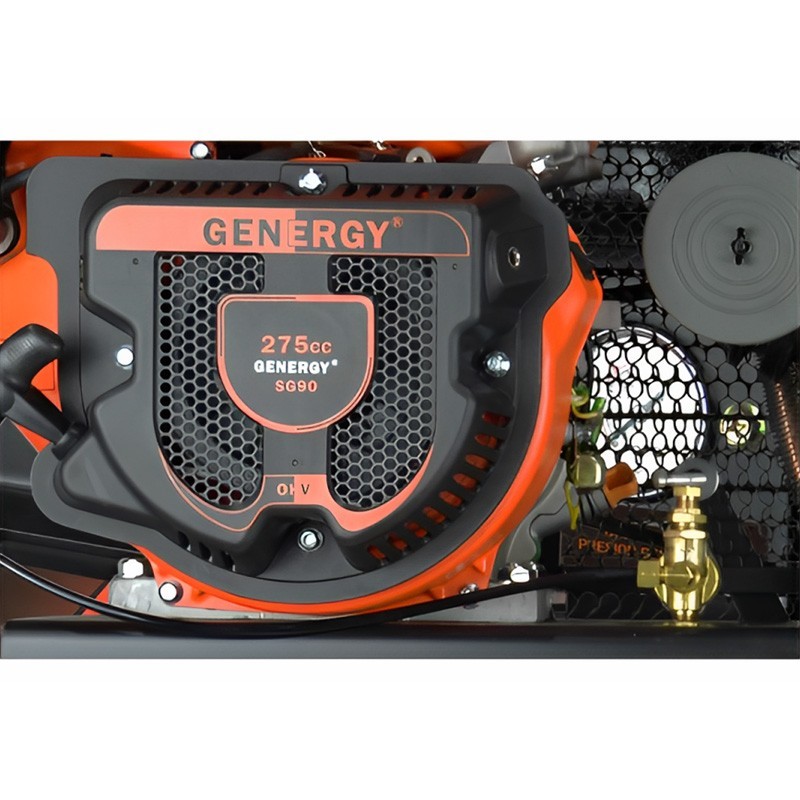

Engine type | Gasoline, 4-stroke OHV air-cooled |
Noise level at 4mts LpA (idling/loading) | 88dB - 86dB |
Sound power level LwA | 109dB |
Starting type | Manual |
Fuel tank capacity | 6L |
Consumption in load - refueling | 0.9 L/H - 2.1 L/H |
Estimated average autonomy | 4H |
Engine oil | SAE10W40 (1.1L) |
Standard | ISO12100:2010 EN1012-1:2010 EN60204-1:2006+A1:2009+AC2010 |
Transport kit | Yes with 10" wheels |
Dimensions without handlebars | 1102x546x967 mm |
Weight | 122 kg |
Reference | 31110 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
