Nuair Air Compressor AIRSIL2 NB5/5.5/270 FT 11 bar
Nuair Air Compressor AIRSIL2 NB5/5.5/270 FT 11 bar
Nuair Air Compressor AIRSIL2 NB5/5.5/270 FT 11 bar
Nuair Air Compressor AIRSIL2 NB5/5.5/270 FT 11 bar
Nuair Air Compressor AIRSIL2 NB5/5.5/270 FT 11 bar
Nuair Air Compressor AIRSIL2 NB5/5.5/270 FT 11 bar

Nuair Air Compressor AIRSIL2 NB5/5.5/270 FT 11 bar

Rating:
(0)
  • Current : Three phase
  • Power supply : Electric
  • Transmission type : Belts
  • Power : 5,5 HP
  • Tank : 270 L
  • Lubrication : With oil
  • Pressure : 11 bar
  • Pump type : Two stages
  • Cooling manifold : Yes
  • Air intake : 640 l/min
En stock
icon Power Supply
Power Supply
Electric
icon Current
Current
Three-phase
icon Power
Power
5.5 HP
icon Deposit
Deposit
270 L
icon Lubrication
Lubrication
With oil
icon Pressure
Pressure
11 BAR
icon Pump Type
Pump Type
Double stage
icon Cooling manifold
Cooling manifold
Yes
icon Transmission type
Transmission type
Straps
icon Air flow rate
Air flow rate
640 L/MIN
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
180 KG
€1,227.15 excl. VAT
- 5%
€1,165.79 excl. VAT
€1,410.61 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Nuair Air Compressor AIRSIL2 NB5/5.5/270 FT 11 bar
€1,410.61
Qty

Air compressor Nuair AIRSIL2 NB5/5,5/270 FT 11 bar

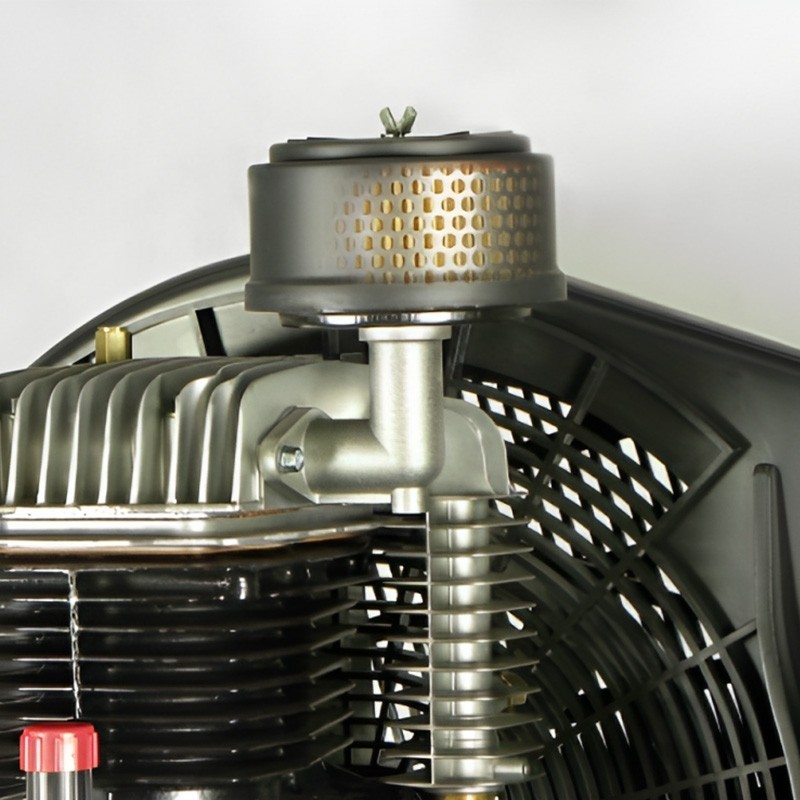

The Nuair AIRSIL2 NB5/5.5/270 FT air compress or features a powerful 5.5 hp (4 kW) motor and a 270-liter air tank, ideal for industrial and commercial applications. Its design includes a large suction filter that reduces noise and optimizes performance.

This compressor reaches a maximum pressure of 11 bar and can draw up to 640 liters per minute at a pressure of 145 psi. It operates with a voltage of 400 V in a three-phase phase and a frequency of 50 Hz, making it suitable for a variety of working environments.

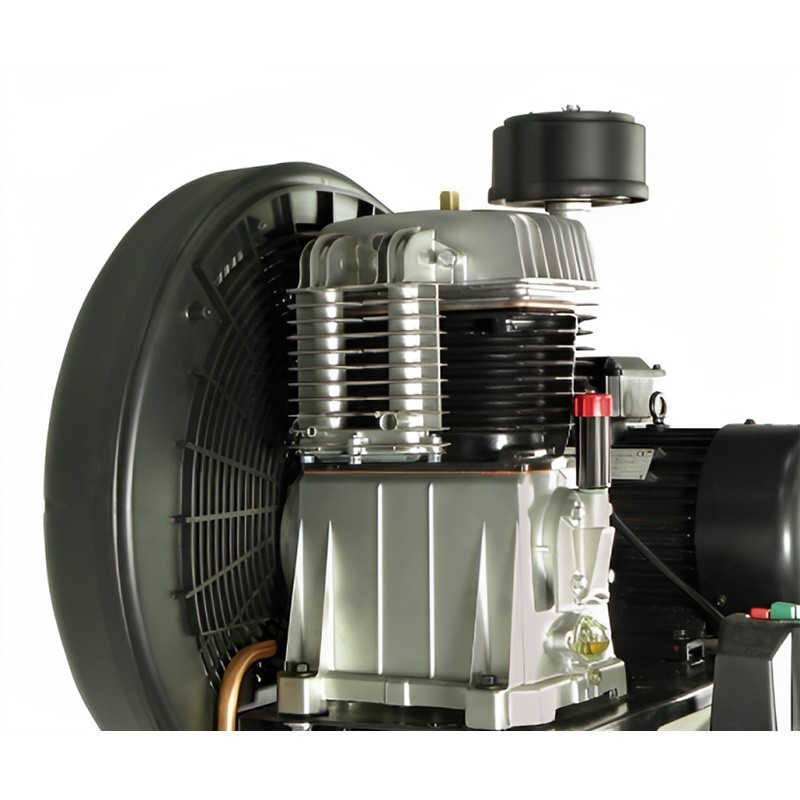

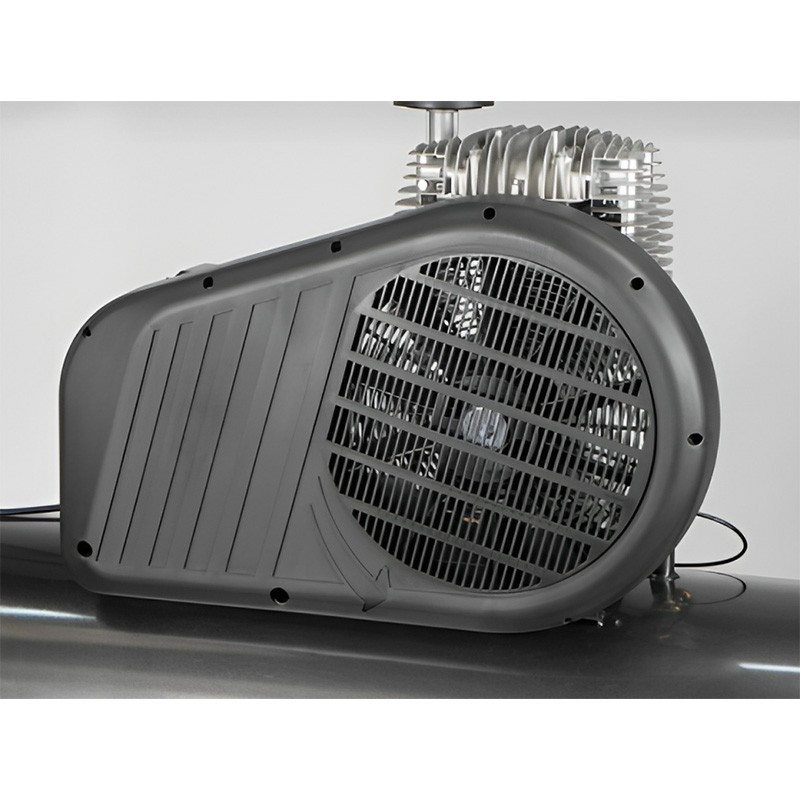

The compressor is also distinguished by its robust belt guard, designed to improve ventilation over the head group, and its new NB dual-stage head group with cast-iron cylinder. In addition, it features a large inter-stage manifold in finned aluminum for increased cooling, ensuring durability and performance in demanding conditions.

Features

Power 5.5 hp / 4 kW
Air tank capacity 270 L
Maximum pressure 11 bar
Air intake 640 l/min
Pressure 145 psi
Voltage 400 V
Phase Three-phase
Frequency 50 Hz
Thread Connection 1/2
Cylinders 2
Stages 2
Lubricated yes
Weight 180 kg
Dimensions 1550x590x1100 mm
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
