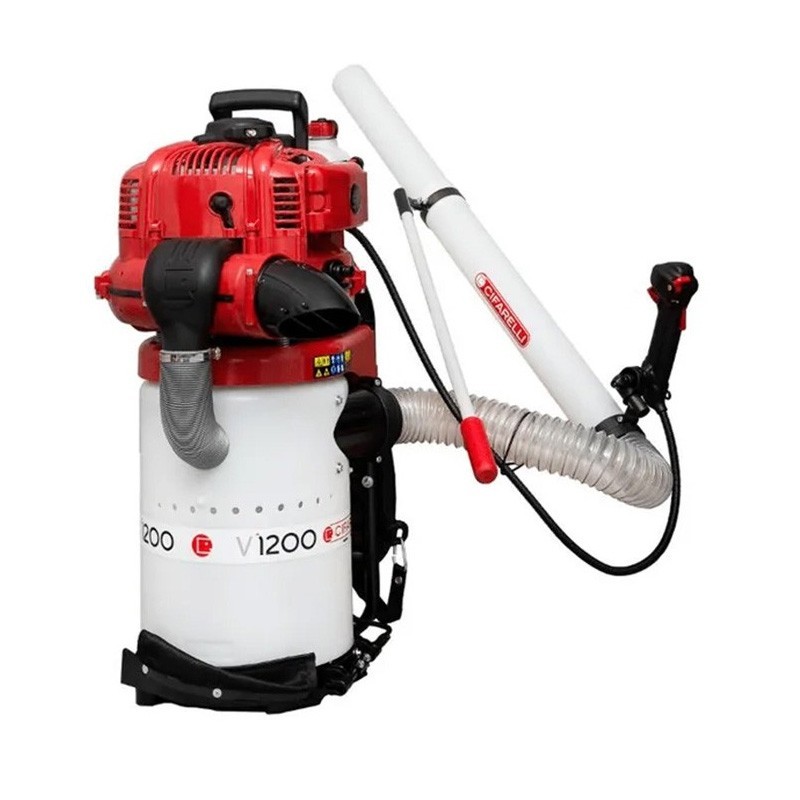

The agricultural nut vacuum cleaner Cifarelli V1200 is a powerful tool ideal for cleaning and/or picking of nuts from the ground, such as for the collection of
olives
chestnuts
dried figs
hazelnuts
nuts
almonds
This machine performs excellent work. It has a motor of Cifarelli two-stroke, 77 cc and 3.6 kW of power. A quality vacuum cleaner with a 20-liter collection tank. An excellent vacuum cleaner that will meet the expectations of the most demanding users.
It also has a separation/filtering system which, while vacuuming the fruits from the ground or branches, easily solves the problem of collecting or vacuuming leaves, stones, and expels all this remaining material with an enormous filtering precision, to the outside. The vacuum cleaner has been designed to pick up fruits of all sizes, even medium to large ones.
It has a very optimal emptying system, as well as an intelligent filtering system, which allows the tank to be emptied even with the machine on its back, thus facilitating the work cycles that the operator will have to perform.
Powerful, quality and reliable
-The vacuum cleaner is able to work for long periods at high intensity, thanks in part to its powerful 5 HP engine and professional carburetor, capable of resisting the worst conditions during long sessions.
-The rigid and durable tubing ensures better product suction and extends product life (as well as performance over the years).
-Anodized aluminum frame, providing lightness and resistance to corrosion and ageing.
-Meticulously studied ergonomics designed for a machine that is comfortable to use.
-Comfort to reduce strain, curved backrest with wide, soft cushion, padded and adjustable shoulder straps, resulting in greater comfort and energy savings for the operator (allowing him to work longer).
-Adjustable control handle, in terms of position and inclination.
-Left hand grip for steering the tube during collection.
-Lever for opening and closing the collection tank, with the convenience of action with the machine positioned between the shoulders.
-Mixing tank with vertical nozzle that facilitates refilling and makes it much more convenient.
-Lockable tank to maintain constant throttle.
-Lifting handle.
-Silencer and fan designed to improve acoustic comfort, reduce stress on the operator and improve work quality.
-Low vibration systems to increase operator comfort and improve work quality.
-Internal protection of the conveyor made of anti-abrasive material to protect the collected material from heat, easy to replace.
-Easy attachment of water pipes for fan cleaning.
-Highly efficient fan, which ensures high performance and high suction efficiencies.
Technical characteristics of the nut vacuum cleaner
Engine
Cifarelli C7 Air-cooled two-stroke single cylinder
Displacement
77cc
Lower diameter
52mm
Suction pipe diameter
75mm
Tour
36mm
Maximum power at 6600 RPM
kW 3.6 (5hp)
Maximum motor speed
7200rpm
Fuel
Two-stroke gasoline/oil mixture
Fuel tank capacity
2 liters
Carburetor
Walbro with membrane
Startup
Electric
Spark plug
Champion RCJ6Y
Workflow
Depending on the fruit, approximately 50 Kg. It performs a work of 3 persons with the advantage of doing it in vertical position.
Vacuum mass with tubes
15.9 kg
Collection tank
20L
Noise
(In ISO 11201) Noise pressure level
Lpa=dB 103 + 4 (Kpa)
(In ISO 3744) Sound power level
Lwa= dB 107 + 3 (Kwa)
Weight
15.9 kg
How to use the nut vacuum cleaner? How to get the most out of it?
Have the ground as clean and level as possible.
It is not advisable to till the area where the fruits will fall (so as not to remove soil or create unevenness in the soil).
First, it is recommended to cover the areas under the plants where the fruits will fall.
It is recommended to cut the weeds before the fruit collection (for example by cleaning the area with a blower), this is recommended because before the aspiration it is convenient to remove or leave the minimum amount of weeds possible, because later the aspirator will aspirate the area and this will help the aspirator to filter the fruits more easily.
The fruits can also be grouped if they have hard shells or can be moved without damaging them, as this will save time at the time of harvesting, facilitating and speeding up this task.
While the tank is being emptied, the engine should be kept slightly over-revved to improve the separation of the light material.
Emptying the tank is very simple and can even be done standing up with the machine on your back.
In summary, in order to use the nut vacuum cleaner, it is necessary to do some preliminary work in order to have a good job and save time.
Vacuum cleaner for professional use
Used by professionals mostly (but also by individuals), being a serious and powerful machine, in addition to enjoying the best qualities and the newest technologies on the market and being able to withstand long days of intensive time, this vacuum cleaner is used for its great efficiencies and yields, facilitating the collection of fruits with shell to unsuspected levels, thus being able to save immense time and effort, reducing work time, labor and effort.
Simple and short maintenance
The vacuum cleaner Cifarelli has been designed for easy maintenance in all conditions.
The fruit vacuum cleaner Cifarelli V1200 has been specifically designed to be strong, durable, reliable and professional, with which short and simple maintenance has been further developed, it has a simple disassembly system and unifies the heads of the bolts, allowing to facilitate and speed up the operations of intervention, maintenance and repairs. With the use of a single wrench it is possible to disassemble almost all the general components requiring maintenance.
Warranties and after-sales services
Intermaquinas y Cifarelli has an exceptional after-sales service, the immediate availability of spare parts is a fundamental pillar for these brands, and even more so for top-selling and high quality products such as this high-end vacuum cleaner. This ease in the stock of spare parts, coupled with guaranteed quality guarantees, make these machines ideal options to work with maximum efficiency, and obtaining the best performance.
Cifarelli also offers its customers an accessory apart from the machine, which is a transport trolley that by means of a simple two-wheel system is able to drag the vacuum cleaner with little effort and thus greatly speed up the task. It should be taken into account that the environment will depend on the profitability of the accessory, since if the terrain is not suitable or is very "difficult", it will be convenient to carry it on the shoulder.
In these cases it is advisable to mount flexible tubes slightly longer than the default one, as this will make the work easier.
In order to avoid electrostatic discharges during the use of the machine it is advisable acquire the anti-static discharge kit
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
