Forestry head, shear for mini-excavator Deleks CF-12H
- Weight : 500 kg
- Tractor power : 20 - 70 hp
- Oil pressure min./max : 130 - 150 bar
€2,881.52 VAT incl.
Deleks products take about 15 to 20 days. |

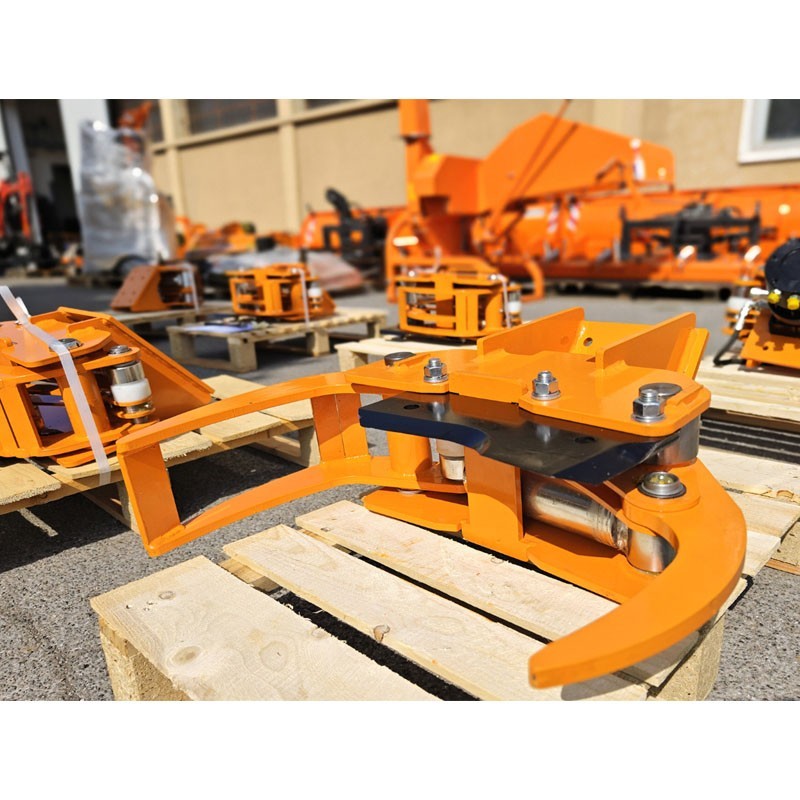

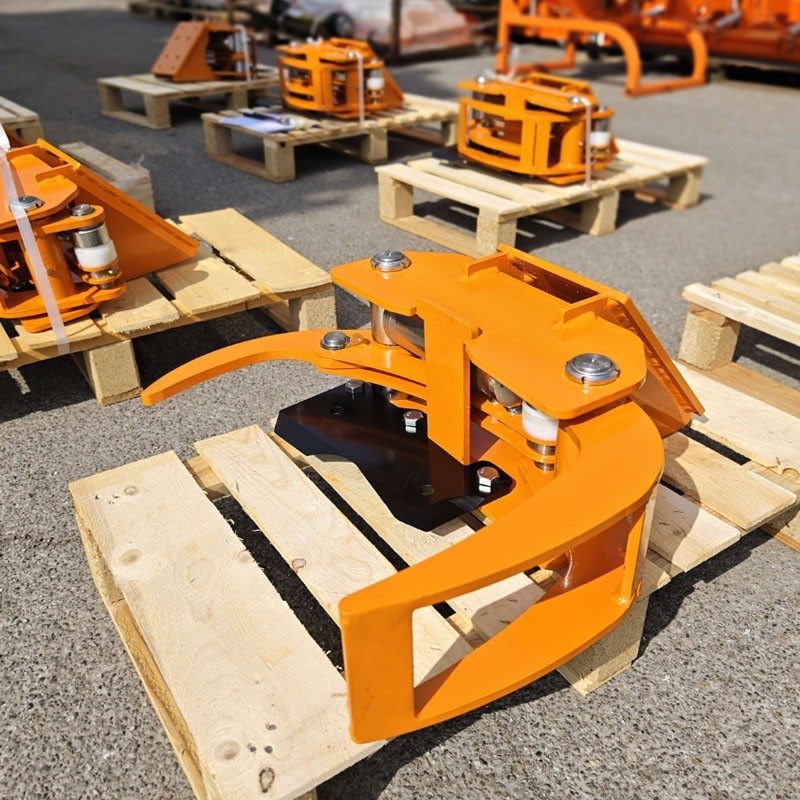

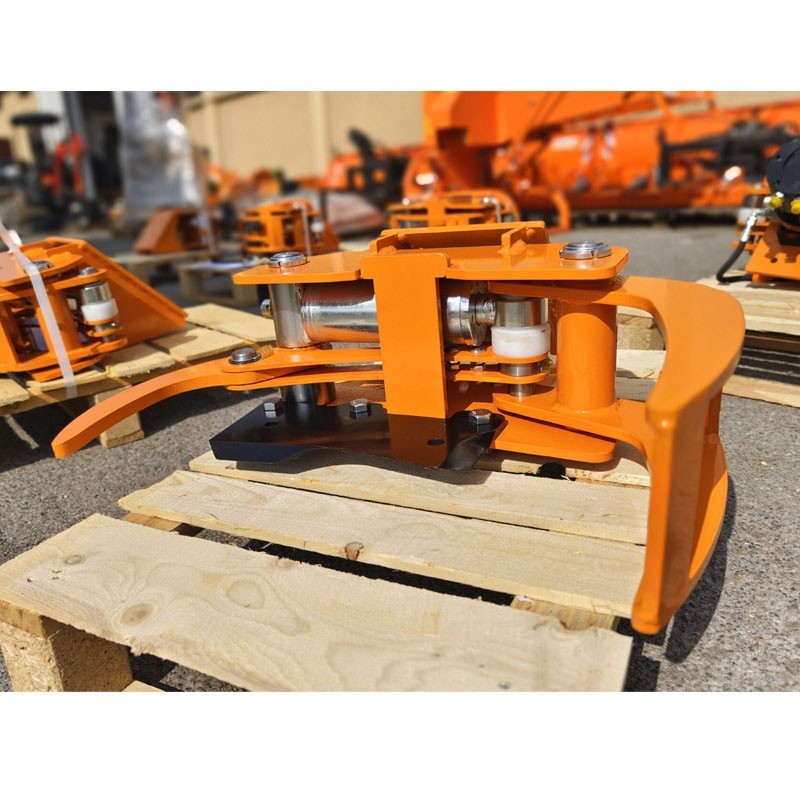

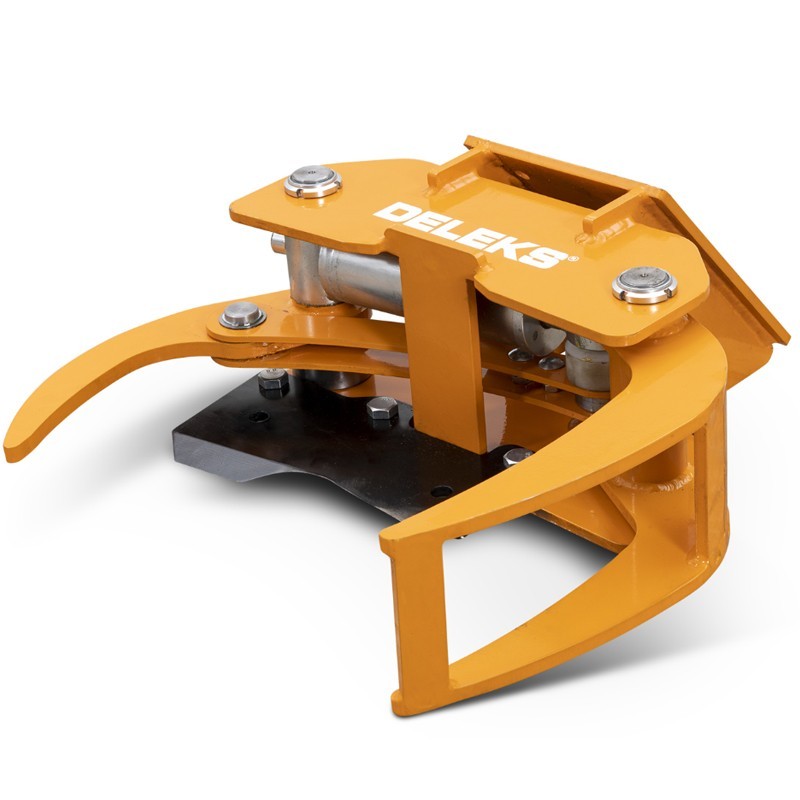

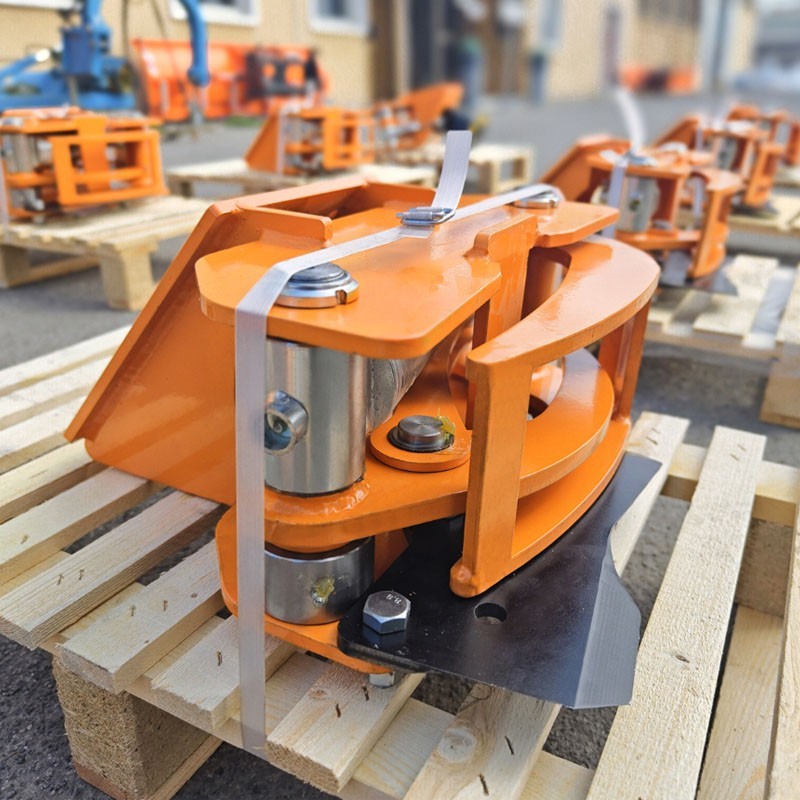

DELEKS® hydraulic felling shear and DELEKS® grapple- Italian production - 100% Hardox, made of hardened steel, for cutting and handling logs and trees up to ø 10 cm.
USE
The CF-10 model is ideal for felling and harvesting wood for energy use, for clearing fields and roadsides.

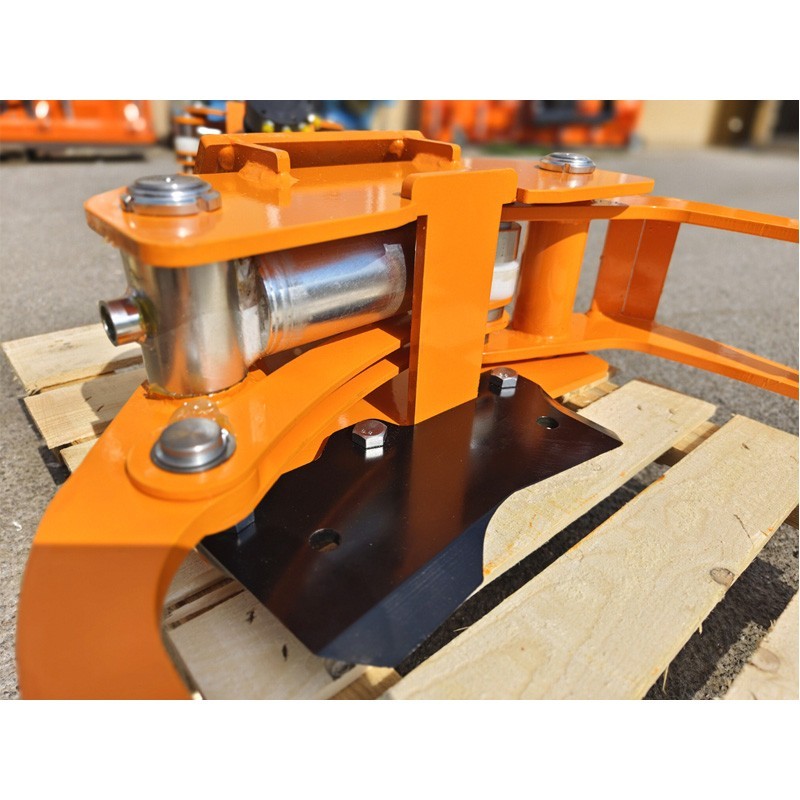

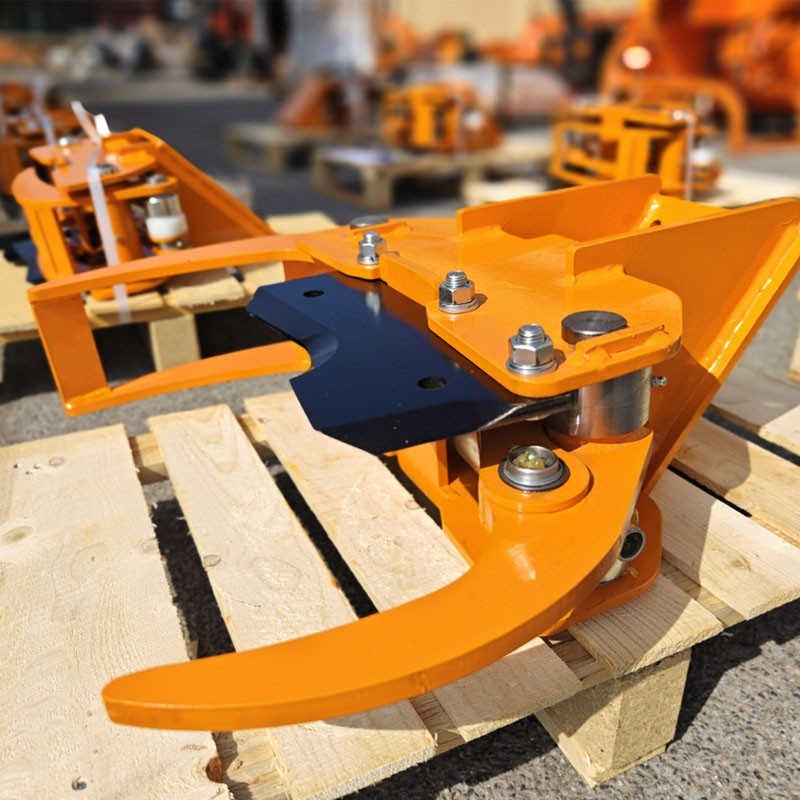

The DELEKS® CF-10 mini-excavator cutting grapple can cut thinner trees or bundle wood with the head. The head has a powerful reinforced blade that will cut wood cleanly and safely.
Available with excavator attachments (upon request).
The cutting grapple is available with fixed or full 360° rotation with hydraulic rotor for pruning trees or cutting fallen timber.

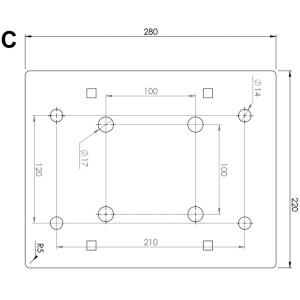

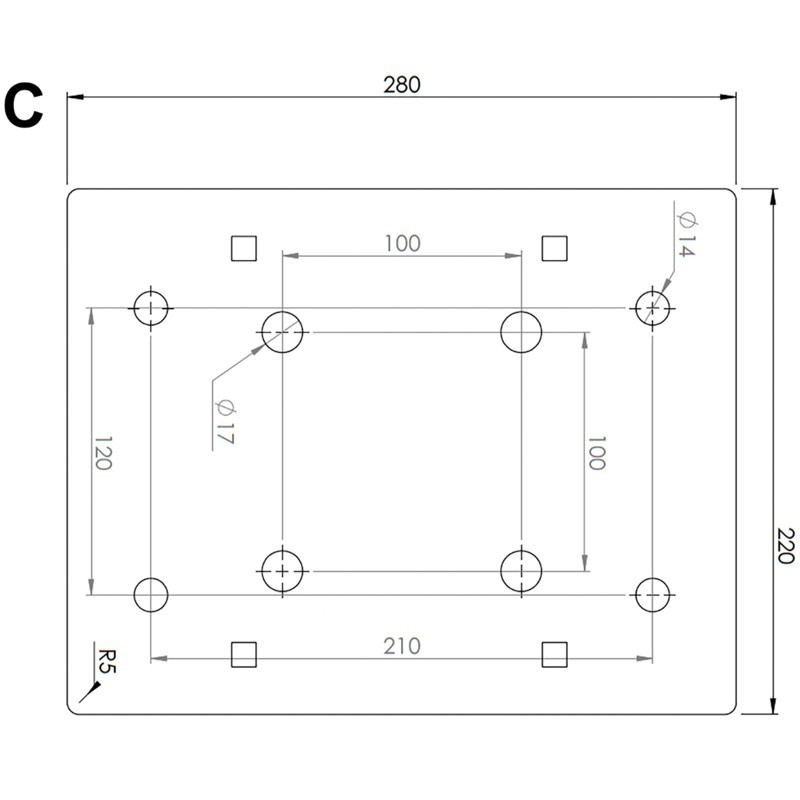

Plate attachment dimensions: See drawing C.
FEATURES AND ADVANTAGES

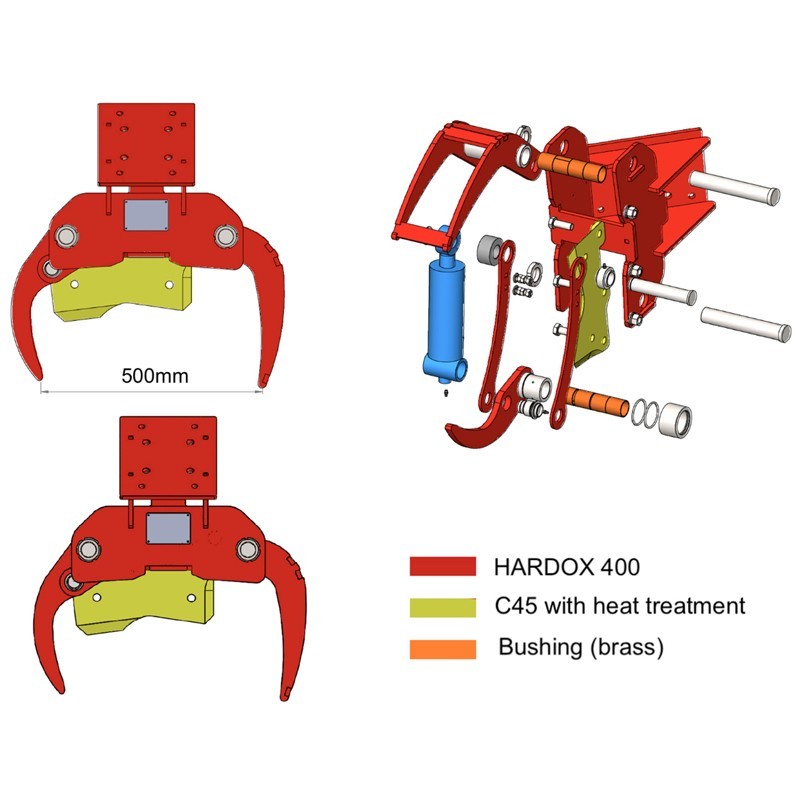

Made of 100% HARDOX for maximum resistance to torsion.

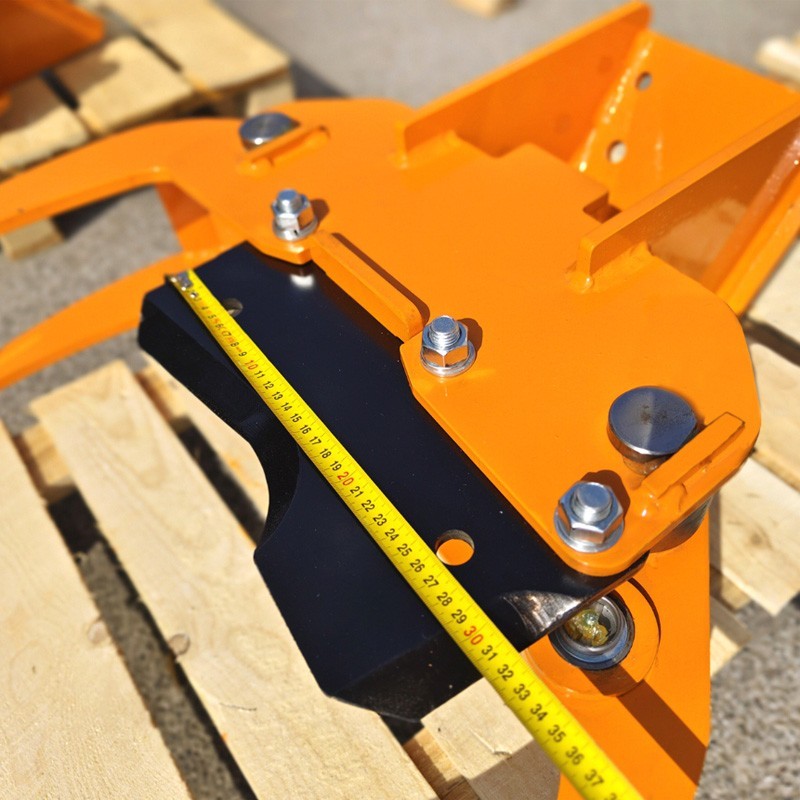

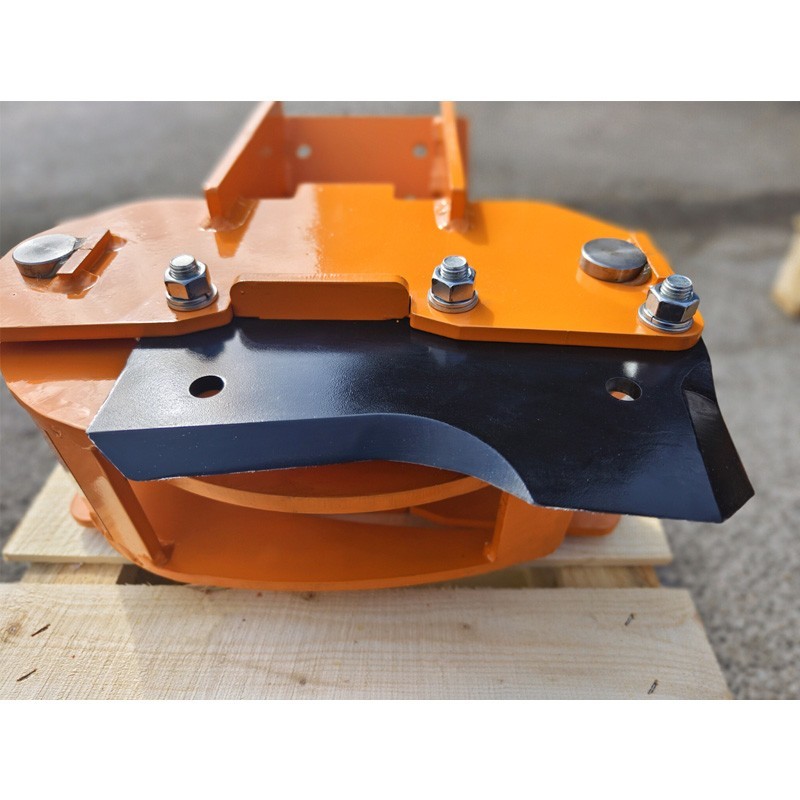

Blade made in Italy, hardened 43 HRC.

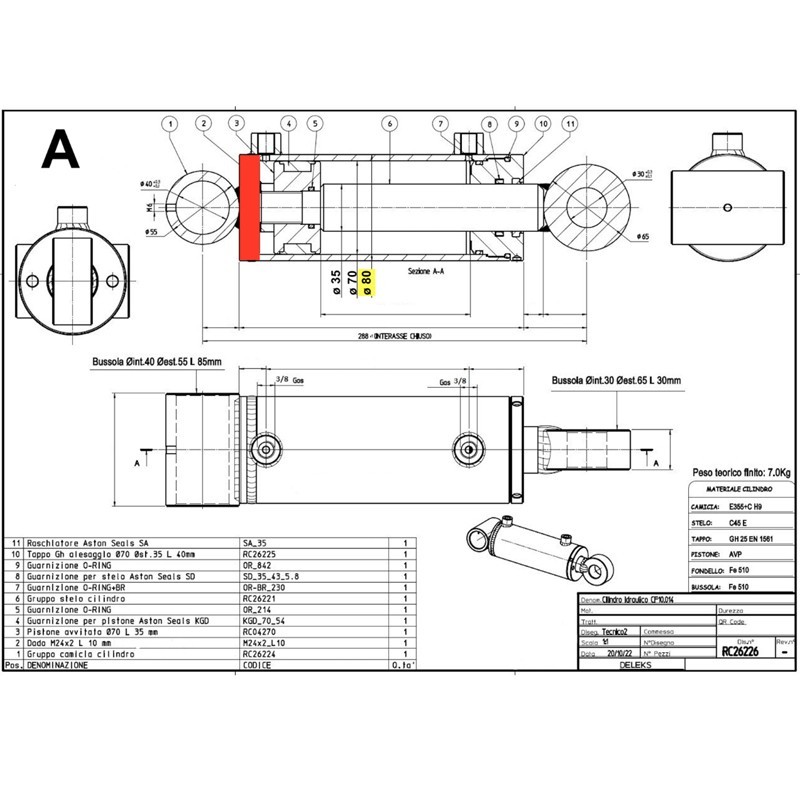

Hydraulic cylinder specially designed for this use with reinforced bottom for high loads (see drawing A).

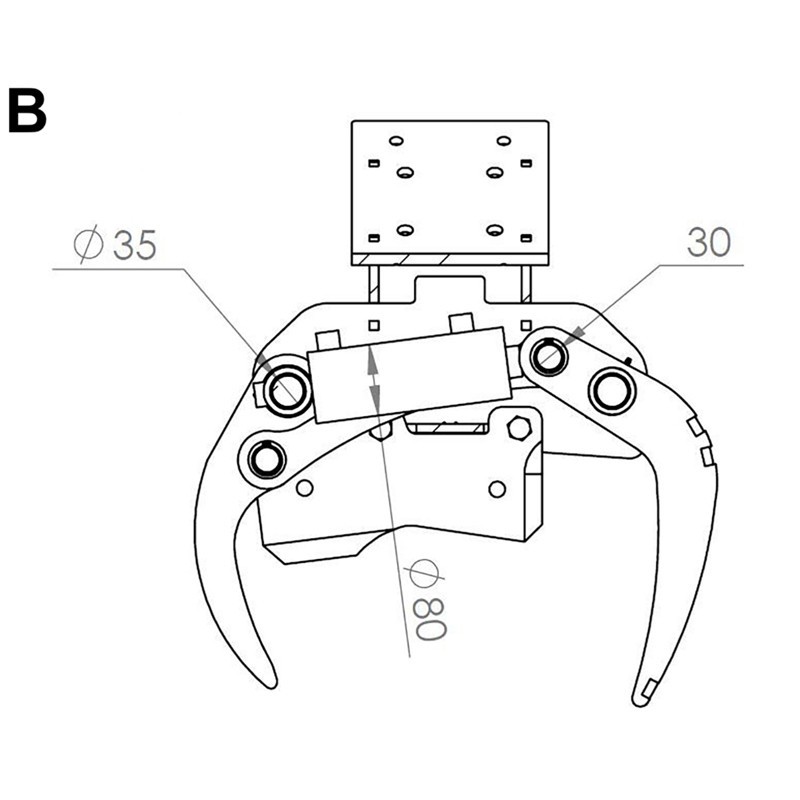

Pins in special material 42CrMo4 of ø30 and ø35 mm ( see drawing B).
Easy installation and use
The CF-10 model is the smallest cutting grapple in the range and its light weight allows the mini-excavator to maintain its capacity.
It cuts at ground level, allowing stumps to be cut low to the ground.
The DELEKS® CF-10 grapple cuts the wood cleanly and precisely at the desired point at ground level.

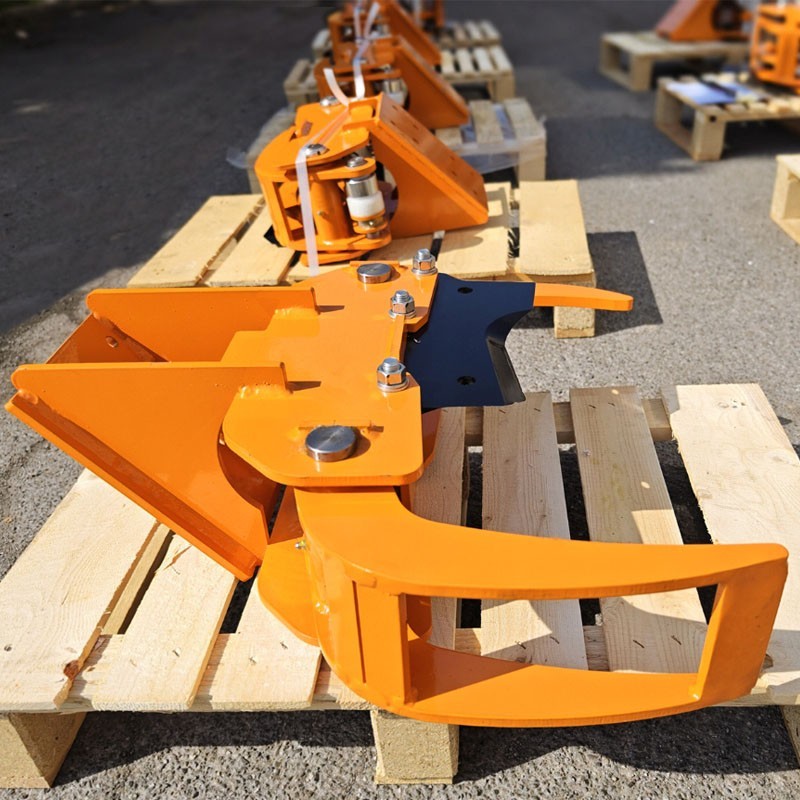

Thanks to the large opening of the grapple, it is also easy to cut several small trees at once.
2-in-1 use: cutting and harvesting
If necessary, the cutting blade can be removed, in which case the grapple head acts as a classic log grapple.
Weight | 52.0 kg |
Maximum cutting diameter | 90-120 mm |
Oil pressure min./max | 150 - 210 bar |
Optimal oil flow | 8+ l/min |
Hydraulic hoses | 400 bar pressure |

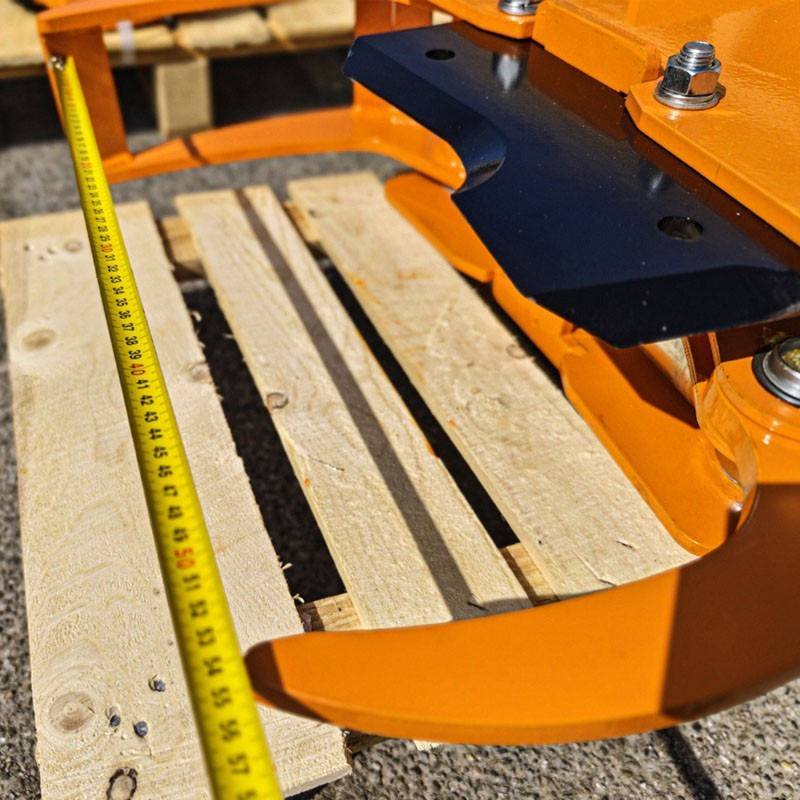

Max. opening | 540.0 mm |
hydraulic piston ø | 80.0 - 35.0 mm |
Excavator range | 1.0 - 2.0 ton |
Packing dimension | 600.0*800.0*450.0 mm |
