Rating:
(0)
  • Weight: 302 kg
  • Load capacity: 2500 kg
  • Maximum pressure 200 Bar
  • Minimum diameter of branches 40 mm
Deleks products take about 15 to 25 days.
En stock
icon Load capacity
Load capacity
2500 kg
icon Thickness of the rodel
Thickness of the rodel
302 kg
icon Country of manufacture
Country of manufacture
Italy
€3,052.53 excl. VAT
€3,693.57 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Forestry grapple for excavators and cranes DELEKS DK-18 + GR-100F
€3,693.57
Qty

Forestry grapple for DELEKS DK-18 + GR-100F excavators and cranes

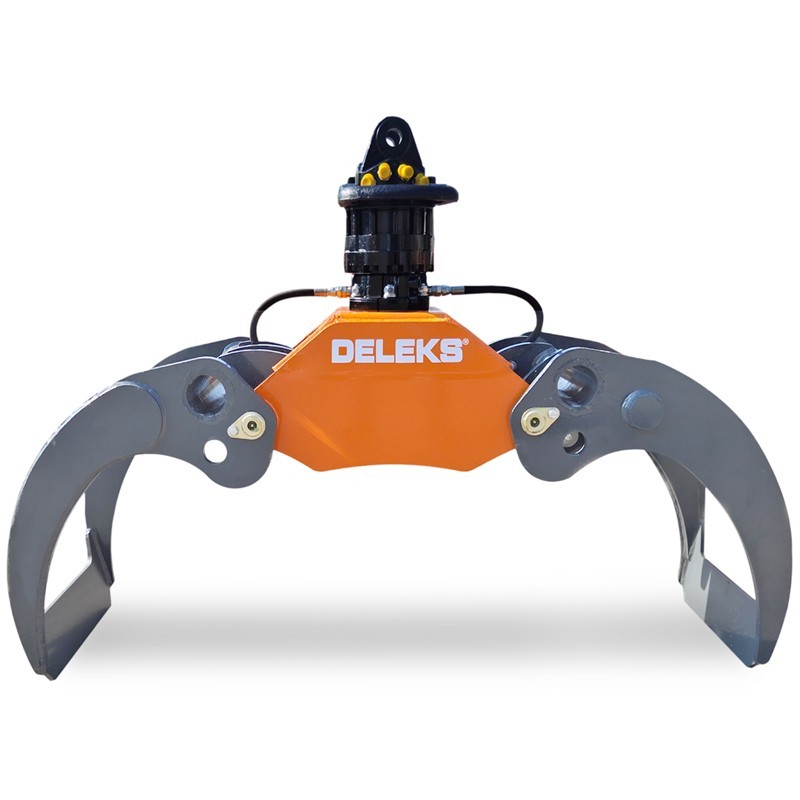

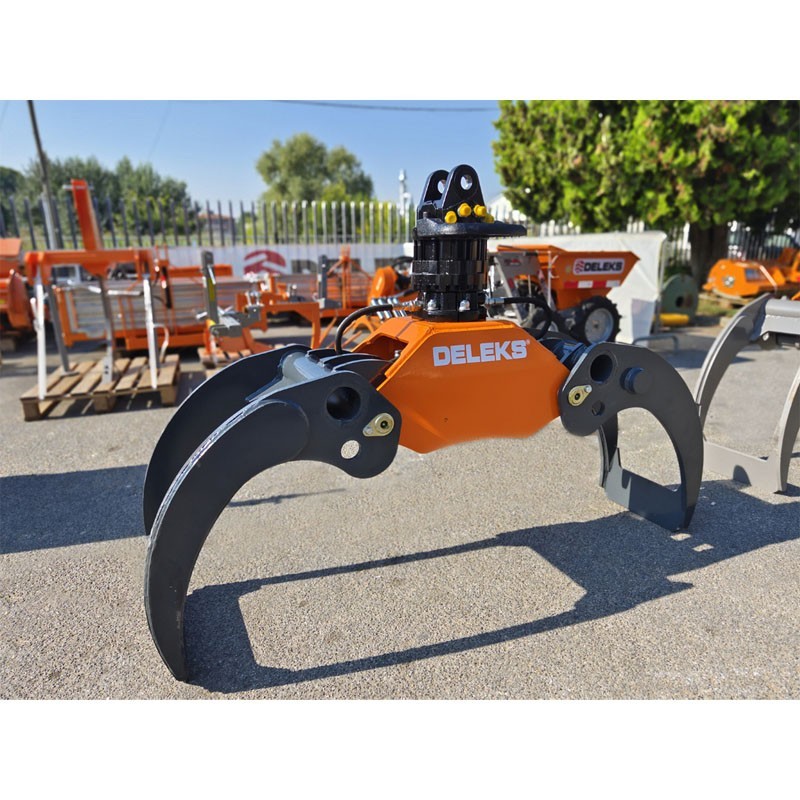

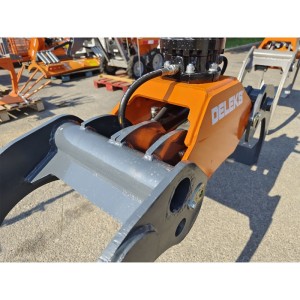

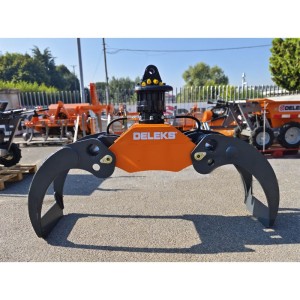

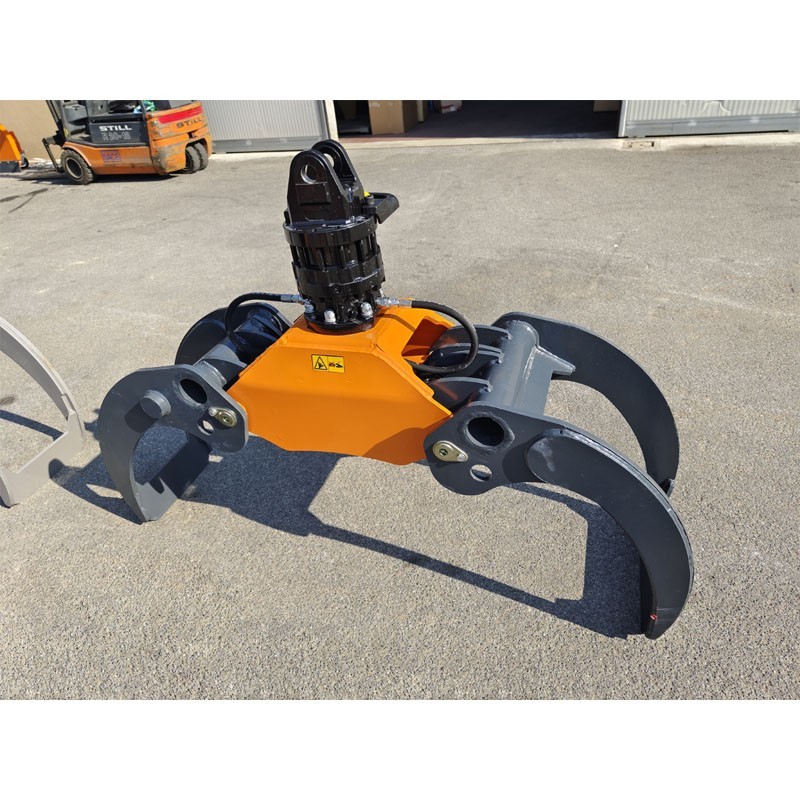

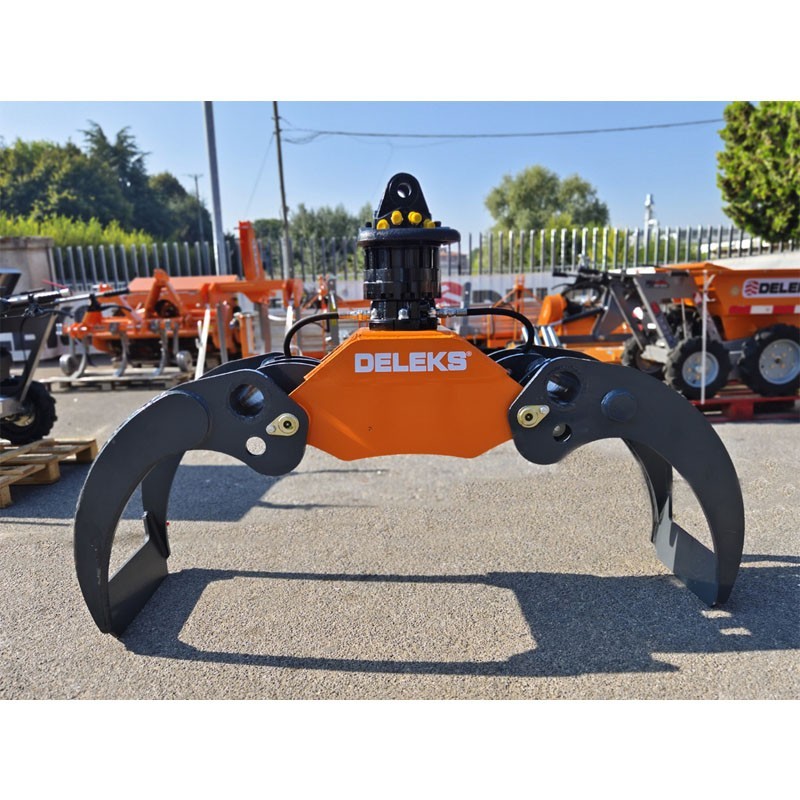

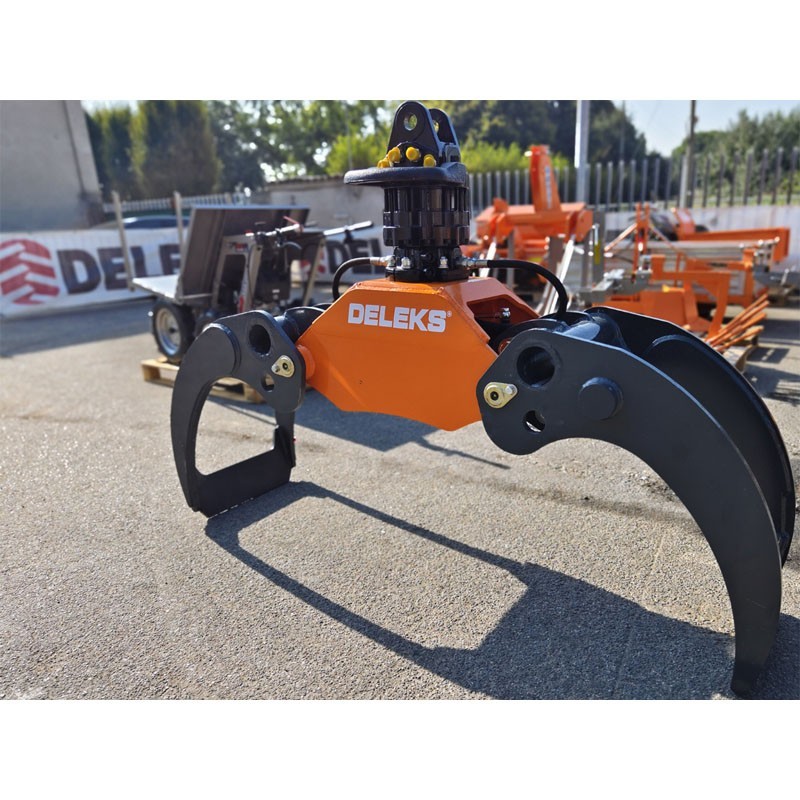

The DELEKS DK-18 + GR-100F forestry grapple for excavators and cranes is a robust grapple, ideal for transporting wood, rocks, forestry work or moving debris. It has a load capacity of 2500 kg, its gripping area is 0.36 square meters and its gripping force is 13.1 KN.

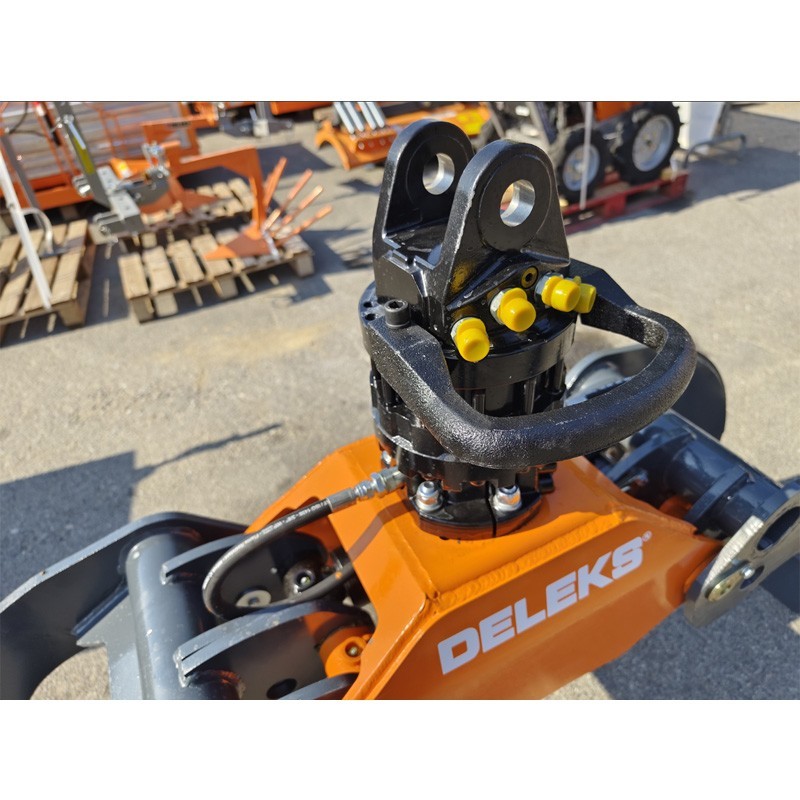

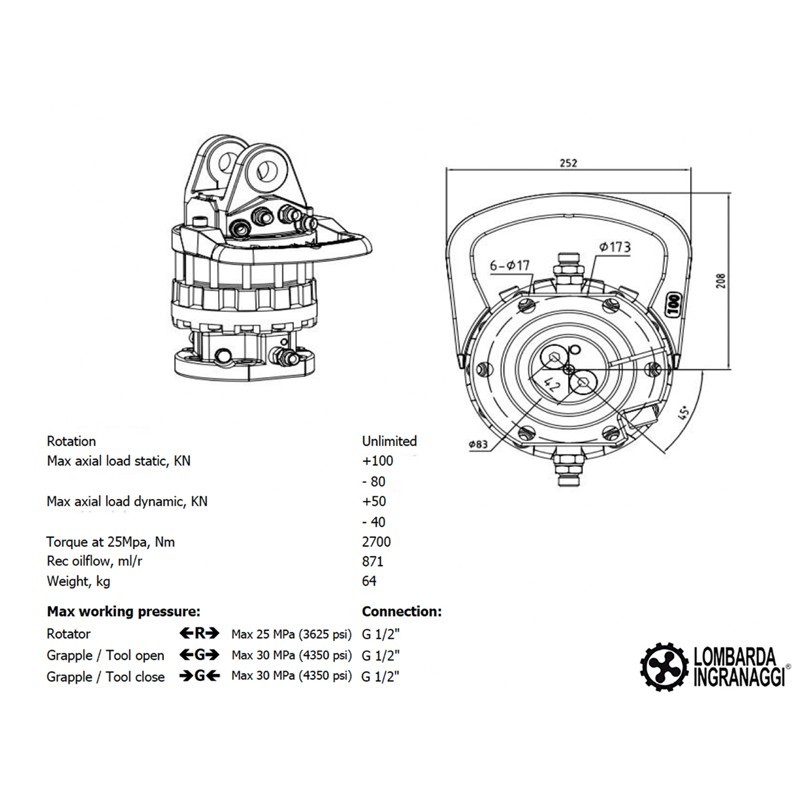

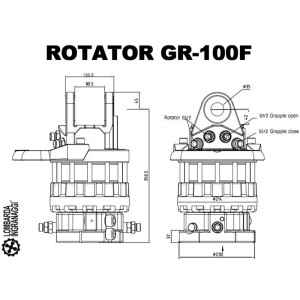

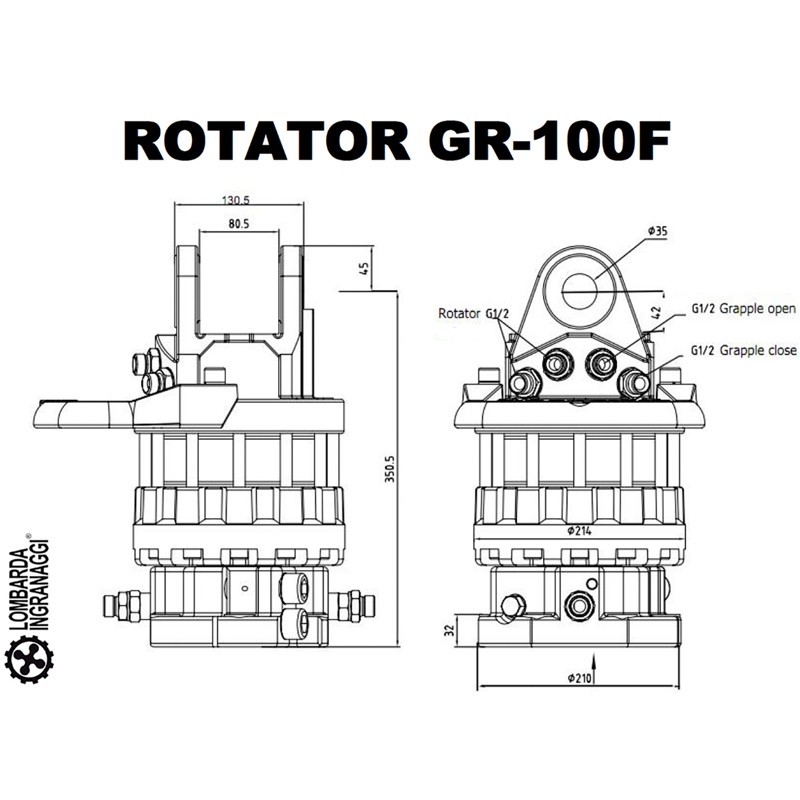

It is compatible with most mini excavators, has a CE conformity and a 2-year warranty. Its Lombarda Ingranaggi GR-100F rotor is powerful, reliable and robust. It is designed to lift a load of 10,000 kg with maximum effectiveness while minimizing downtime.

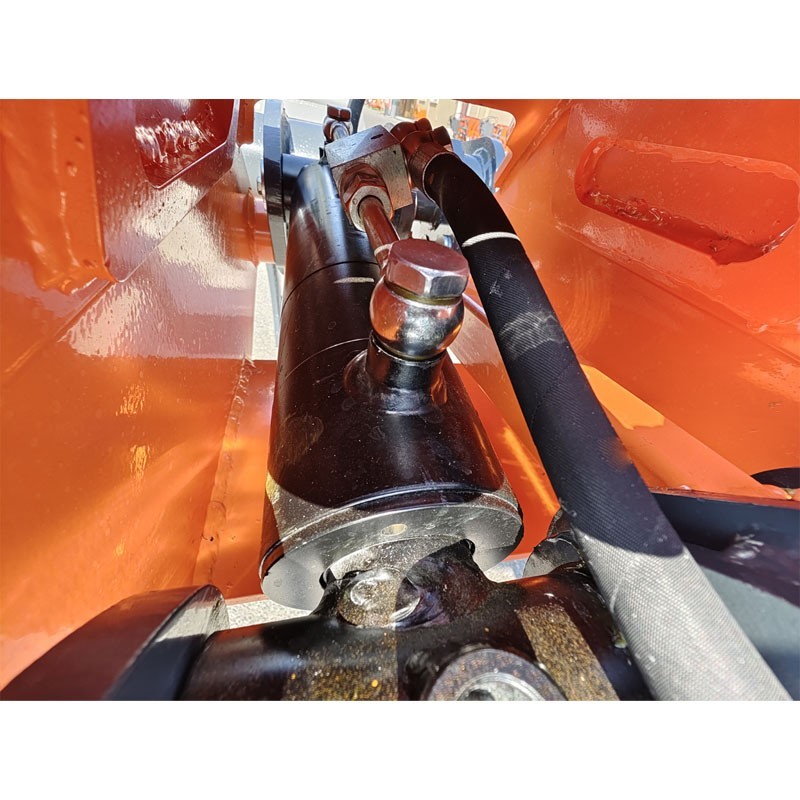

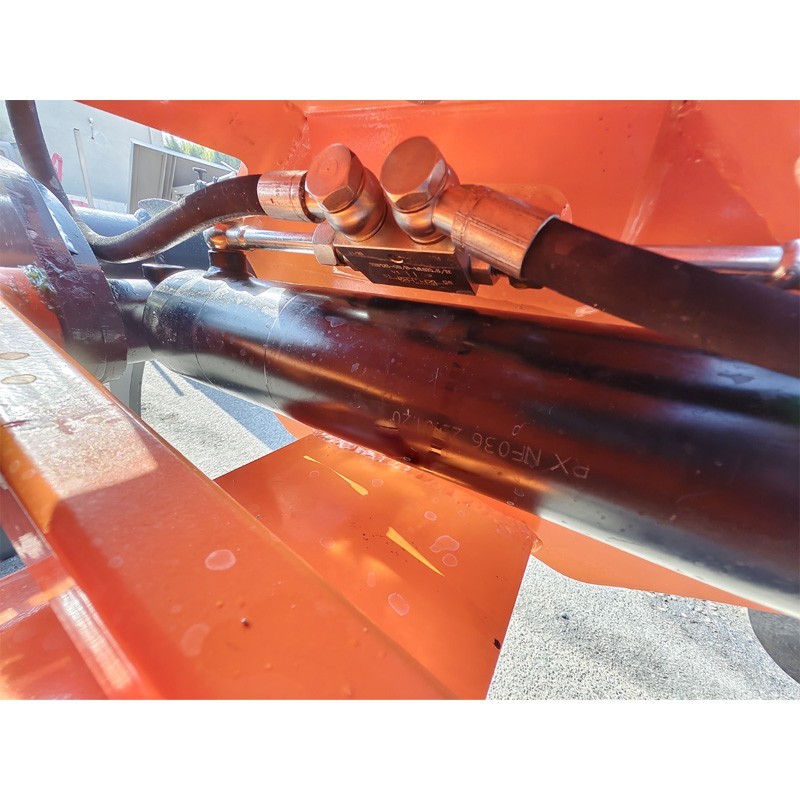

To operate, the rotor needs 4 hydraulic outlets, has a continuous 360-degree rotation and a locking valve on the hydraulic piston, its unique conception of the grapples, which allows the clamping of debris or rocks. It has a high quality steel and reinforced steel pins.

Features

Weight 302.0 kg
Load capacity 2500.0 kg
Plate thickness 12.0 mm
Oil pressure min./max 150 - 220 bar
Optimal oil flow 25 - 50 l/min

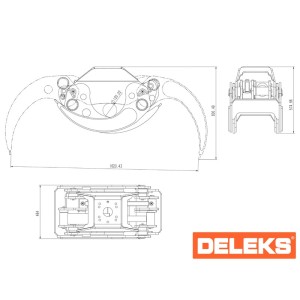

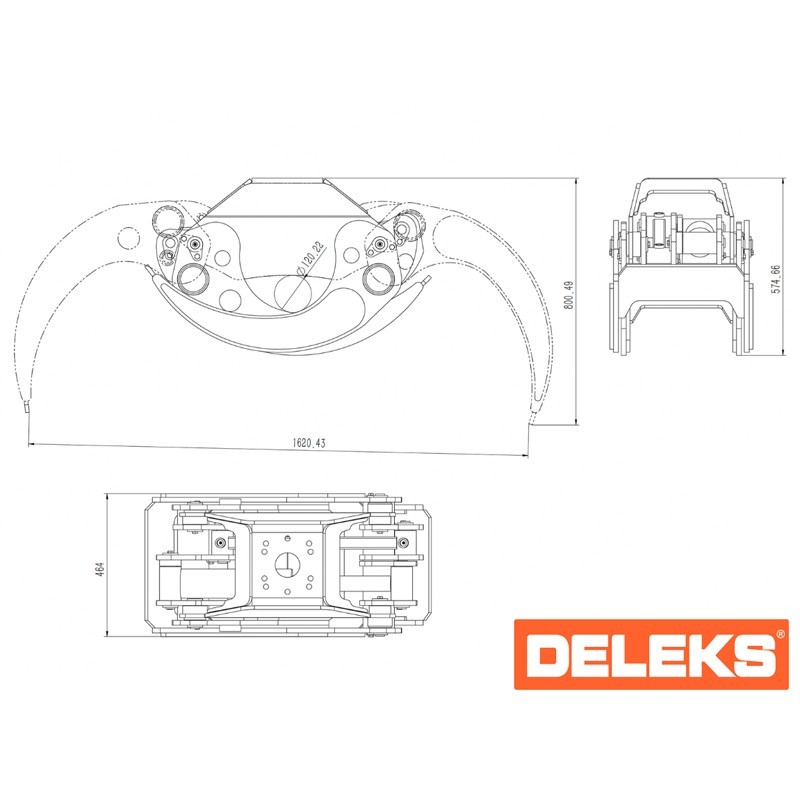

Other dimensions See photos
Hydraulic hoses 400 bar pressure
Maximum opening 1620.0 mm
Height, clamp open 1180.0 mm
Minimum branch diameter 40.0 mm
ø hydraulic piston 90.0 - 50.0 mm
Max. pressure 200 bar
Rotator Lombarda Ingranaggi GR-30F (3,0 ton)
Range of excavators 5 - 10 ton
Packing dimensions 120 x 80 x 100 cm
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
260469

Data sheet

Load capacity
2500 kg
Thickness of the rodel
302 kg
Country of manufacture
Italy

Specific References

EAN-13
8053470239205
New

✔️ Advantages of making purchases in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
